export pdf borderless keynote 6.0

I use keynote to create graphics for latex. In keynote '09 I could simply export them as PDF borderless.


Keynote 6.0 seems to always put this annoying black border around the exported PDF. Is there a way to export without this border?


(The hint to use the print functionality is worthless to me here as it does not export the slide in its dimensions but on a printable sheet which requires manual trimming later which I want to prevent.)

Keynote 6.0-OTHER, OS X Mavericks (10.9)

Posted on Nov 3, 2013 6:54 AM

Reply
17 replies

Nov 3, 2013 9:38 AM in response to RNKLN

Thanks for your reply.

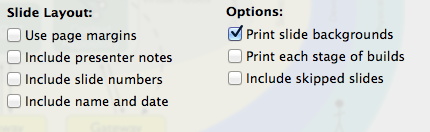

I checked under File->Print (did you mean this dialog?)


User uploaded file

I think the settings fit.


In your screenshot it is difficult to see if you have a border. It seems to be a 1px black border that becomes very visible when you use white scheme and put the resulting PDF on a white page:


User uploaded file

(The black border around the figure is undesired. It does not appear when exporting from keynote'09.)

Nov 3, 2013 10:23 AM in response to m-o-p

I think i can confirm the 1px black border is there in my pdf's. I really had to zoom in to see it, but it's undeniably there.


Although no longer relevant, what i meant with the Print Settings is: Command+P, then Show Details (if not shown already). By default it will show Keynote options, but you can switch to Layout and find out that you can set a border. In my case it had a value of 'None'.

Nov 7, 2013 1:24 AM in response to m-o-p

This is driving me crazy! I use keynote to create beautiful PDF documents that are often minimalistic in style with white background and this border is ugly for sure.


Does anyone know how we can raise this issue with apple, this is new to me? I am interested purely in the original problem of exporting PDFs, not print.

Nov 8, 2013 8:53 PM in response to m-o-p

I ran into the same issue this evening - I often use keynote to create PDF images. You can convert your PDF file to a borderless PDF file by opening a terminal window and typing the following (followed by return) -


pdfcrop input.pdf output.pdf


where input.pdf is your original PDF file and output.pdf is the cropped PDF file the command creates.

Nov 9, 2013 10:59 AM in response to m-o-p

I was just playing with PDF export for another issue and I didn't understand this statement


m-o-p wrote:


it does not export the slide in its dimensions but on a printable sheet which requires manual trimming later


Whether I Export to PDF or Print and "Open PDF in Preview", I get a big rectangle. Is the difference that you're Exporting a PDF that's smaller than a full slide? I have a PDF that doesn't have a line around it, but I'm almost positive it's because I'm not doing the exact same thing you are.

Nov 9, 2013 12:01 PM in response to astrolirg

Thanks for the hint to pdfcrop (e.g. part of texlive, needs X11)!


Running


pdfcrop --margins "-1 -1 -1 -1" input.pdf output.pdf


removes the border. So this is a workaround that might be faster than opening and exporting in keynote '09.

As I have many graphics and I change them frequently the border remains annoying and should be removable in the program.



For those wanting to see the 1px border, you can enter:


pdfcrop --margins "5 5 5 5" input.pdf output.pdf


and you will see the annoying black border...




So I agree with techfips and encourage you to:

Please join me in filing a feature request with Apple:http://www.apple.com/feedback/keynote.html

Dec 17, 2013 11:25 AM in response to m-o-p

Cropping the black border with pdfcrop seems to work but when scaling the PDF where the cropped image is embedded, the borders occur again. Exporting to keynote '09 is not always possible as some shapes are incompatible...



Thus here is what I do now:

- Print

- Save as PDF

- pdfcrop $source $dest


As the printed PDF does not have any borders they do also not reoccur when scaling the pdfcropped PDF embedded on another PDF page.


This workaround is fast enough for me at the moment though I hope Apple will allow to remove this annoying border soon.........
