Bootcamp missing after expanding partition
MacBook Pro with Retina display, OS X Mavericks (10.9.5)
Start=196718600
End=343476224
Size=146757625
You can make a difference in the Apple Support Community!
When you sign up with your Apple Account, you can provide valuable feedback to other community members by upvoting helpful replies and User Tips.
When you sign up with your Apple Account, you can provide valuable feedback to other community members by upvoting helpful replies and User Tips.
47 replies
at least got some progress... the bootcamp has appear yet...

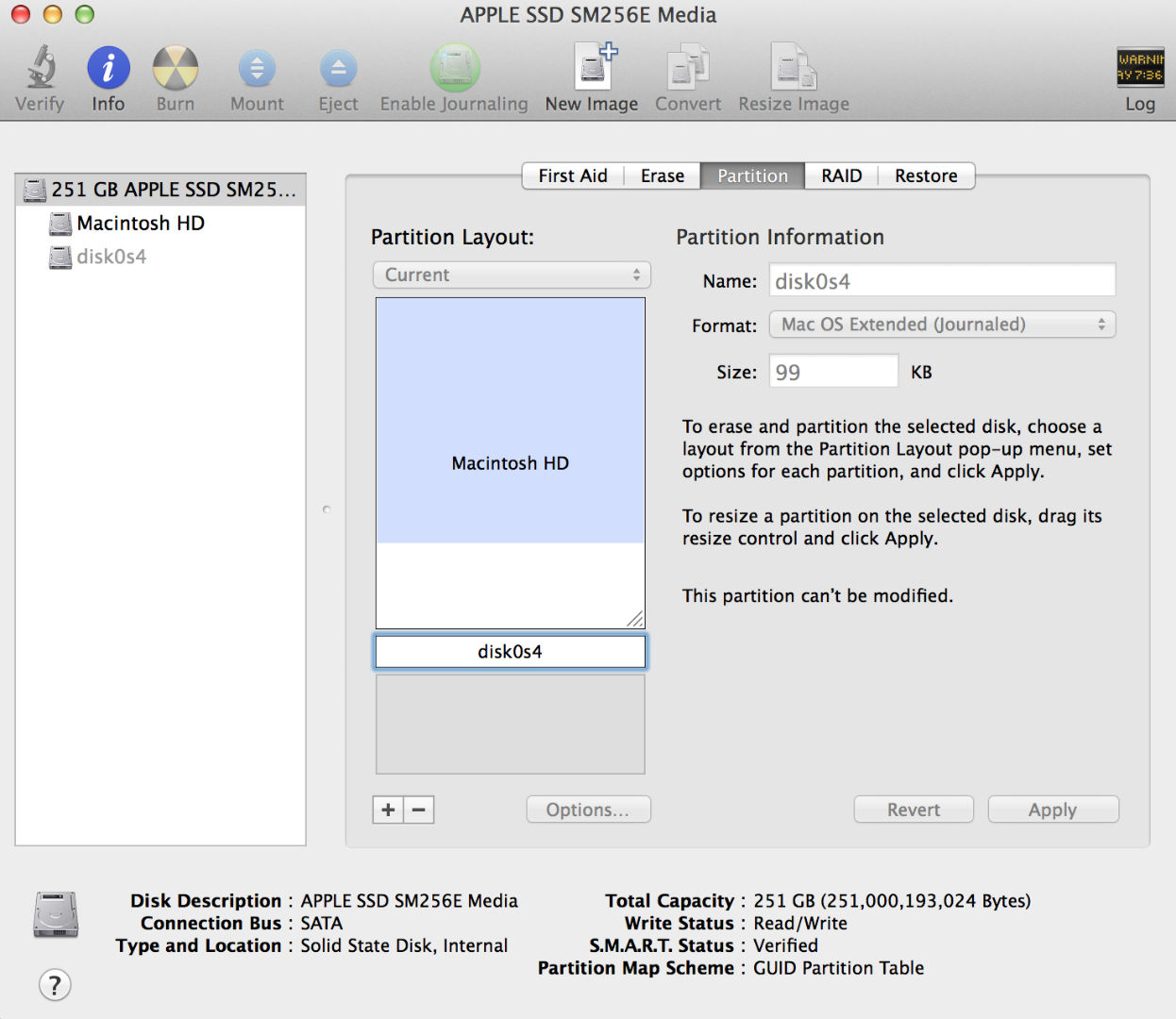

but the partition become sth like this...
still not working... i have checked, but i dont where did i go wrong...
Last login: Thu Oct 2 19:39:29 on console
CCs-MacBook-Pro:~ CheungChing1$ sudo gdisk /dev/disk0
Password:
GPT fdisk (gdisk) version 0.8.10
Warning: Devices opened with shared lock will not have their
partition table automatically reloaded!
Partition table scan:
MBR: hybrid
BSD: not present
APM: not present
GPT: present
Found valid GPT with hybrid MBR; using GPT.
Command (? for help): p
Disk /dev/disk0: 490234752 sectors, 233.8 GiB
Logical sector size: 512 bytes
Disk identifier (GUID): 0000103F-40BF-0000-F577-0000DF230000
Partition table holds up to 128 entries
First usable sector is 34, last usable sector is 490234718
Partitions will be aligned on 8-sector boundaries
Total free space is 146758500 sectors (70.0 GiB)
Number Start (sector) End (sector) Size Code Name
1 40 409639 200.0 MiB EF00 EFI system partition
2 409640 342206495 163.0 GiB AF00 Customer
3 342206496 343476031 619.9 MiB AB00 Recovery HD
4 343476032 343476224 96.5 KiB FFFF Unknown
Command (? for help):
and
Please post the GPT for verification.
Last login: Thu Oct 2 19:39:29 on console
CCs-MacBook-Pro:~ CheungChing1$ sudo gdisk /dev/disk0
Password:
GPT fdisk (gdisk) version 0.8.10
Warning: Devices opened with shared lock will not have their
partition table automatically reloaded!
Partition table scan:
MBR: hybrid
BSD: not present
APM: not present
GPT: present
Found valid GPT with hybrid MBR; using GPT.
Command (? for help): p
Disk /dev/disk0: 490234752 sectors, 233.8 GiB
Logical sector size: 512 bytes
Disk identifier (GUID): 0000103F-40BF-0000-F577-0000DF230000
Partition table holds up to 128 entries
First usable sector is 34, last usable sector is 490234718
Partitions will be aligned on 8-sector boundaries
Total free space is 146758500 sectors (70.0 GiB)
Number Start (sector) End (sector) Size Code Name
1 40 409639 200.0 MiB EF00 EFI system partition
2 409640 342206495 163.0 GiB AF00 Customer
3 342206496 343476031 619.9 MiB AB00 Recovery HD
4 343476032 343476224 96.5 KiB FFFF Unknown
when i was doing it,
when it comes to the partition 4, it shows FF in default not 07)
Creating entry for GPT partition #4 (MBR partition #4)
Enter an MBR hex code (default FF): 07
Set the bootable flag? (Y/N): y
how to handle this...?
1. Delete the old entry and create a new entry at GPT#4.
sudo gdisk /dev/disk0
p
d
4
n
4
(Put the correct Start value here)
(Put the correct End value here)
0700
p
w
y
2. You will need to reboot after each change, because the disk you are booted from is the one being modified. Each reboot will rebuild disk0s4 using the start/end you entered.
3. Run the dd command - sudo dd if=/dev/rdisk0s4 count=1 2>/dev/null | hexdump -C and check that the first line contains "R.NTFS".
4. If you want to pose here for recording purposes, each of these iterations, please do so. It may be better that the output of 1,2,3 gets recorded here.
5. This is a tedious process and you want to check after the second 'p'rint command that it looks reasonable, before the 'w'rite and 'y'es to confirm.
Here is an example...
Command (? for help): d
Partition number (1-4): 4
Command (? for help): n
Partition number (4-128, default 4): 4
First sector (34-1954210086, default = 1454210080) or {+-}size{KMGTP}: 1454211072
Last sector (1454211072-1954210086, default = 1954210086) or {+-}size{KMGTP}: 1954209791
Current type is 'Apple HFS/HFS+'
Hex code or GUID (L to show codes, Enter = AF00): 0700
Changed type of partition to 'Microsoft basic data'
Command (? for help): p
Disk /dev/disk0: 1954210120 sectors, 931.8 GiB
Logical sector size: 512 bytes
Disk identifier (GUID): 6ED0C429-00D1-4759-B50E-04B6FB80D0E3
Partition table holds up to 128 entries
First usable sector is 34, last usable sector is 1954210086
Partitions will be aligned on 8-sector boundaries
Total free space is 1293 sectors (646.5 KiB)
Number Start (sector) End (sector) Size Code Name
1 40 409639 200.0 MiB EF00 EFI System Partition
2 409640 1452940543 692.6 GiB AF00 Customer
3 1452940544 1454210079 619.9 MiB AB00 Recovery HD
4 1454211072 1954209791 238.4 GiB 0700 Microsoft basic data
i have done the steps you told me, but seems i still get it wrong..
i did both , i ran "dd", there is "R.NTFS"
and when i type in the first sector, it wont allow me to do so, so i followed the default one..
here is the GRT:
Last login: Thu Oct 2 20:10:38 on console
CCs-MacBook-Pro:~ CheungChing1$ sudo dd if=/dev/rdisk0s4 count=1 2>/dev/null | hexdump -C
Password:
00000000 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|
*
00000200
CCs-MacBook-Pro:~ CheungChing1$ sudo gdisk /dev/disk0
GPT fdisk (gdisk) version 0.8.10
Warning: Devices opened with shared lock will not have their
partition table automatically reloaded!
Partition table scan:
MBR: hybrid
BSD: not present
APM: not present
GPT: present
Found valid GPT with hybrid MBR; using GPT.
Command (? for help): p
Disk /dev/disk0: 490234752 sectors, 233.8 GiB
Logical sector size: 512 bytes
Disk identifier (GUID): 0000103F-40BF-0000-F577-0000DF230000
Partition table holds up to 128 entries
First usable sector is 34, last usable sector is 490234718
Partitions will be aligned on 8-sector boundaries
Total free space is 6 sectors (3.0 KiB)
Number Start (sector) End (sector) Size Code Name
1 40 409639 200.0 MiB EF00 EFI system partition
2 409640 342206495 163.0 GiB AF00 Customer
3 342206496 343476031 619.9 MiB AB00 Recovery HD
4 343476032 490234718 70.0 GiB 0700 Microsoft basic data
Command (? for help):
Partition 4 looks incorrect. You have
343476032 490234718
but it should be
343476224 490233848 146757625
I am using this that you posted earlier...
the second one i "P" it:
TestDisk 7.0-WIP, Data Recovery Utility, August 2014
Christophe GRENIER <grenier@cgsecurity.org>
MS Data 343476224 490233848 146757625
Directory /
>dr-xr-xr-x 0 0 0 1-Oct-2014 22:15 .
dr-xr-xr-x 0 0 0 1-Oct-2014 22:15 ..
dr-xr-xr-x 0 0 0 18-Dec-2012 14:00 $Recycle.Bin
dr-xr-xr-x 0 0 0 11-Mar-2014 15:57 .Trashes
dr-xr-xr-x 0 0 0 1-Oct-2014 14:37 Autodesk
dr-xr-xr-x 0 0 0 18-Dec-2012 21:52 Boot
dr-xr-xr-x 0 0 0 1-Oct-2014 22:03 Config.Msi
dr-xr-xr-x 0 0 0 18-Dec-2012 14:06 Intel
dr-xr-xr-x 0 0 0 18-Dec-2012 15:27 NVIDIA
dr-xr-xr-x 0 0 0 22-Oct-2013 15:13 New folder
dr-xr-xr-x 0 0 0 14-Jul-2009 04:20 PerfLogs
dr-xr-xr-x 0 0 0 22-Oct-2013 14:38 Program Files
dr-xr-xr-x 0 0 0 1-Oct-2014 22:03 Program Files (x86)
dr-xr-xr-x 0 0 0 1-Oct-2014 22:03 ProgramData
dr-xr-xr-x 0 0 0 10-Jun-2014 16:01 QvodPlayer
dr-xr-xr-x 0 0 0 18-Dec-2012 14:00 Recovery
dr-xr-xr-x 0 0 0 1-Oct-2014 22:03 System Volume Information
dr-xr-xr-x 0 0 0 23-Dec-2012 05:13 TEMP_PARALLELS_TOOLS
dr-xr-xr-x 0 0 0 17-Jul-2014 07:52 UpdateChromeLinksLogs
dr-xr-xr-x 0 0 0 18-Dec-2012 15:28 Users
dr-xr-xr-x 0 0 0 1-Oct-2014 22:15 Windows
-r--r--r-- 0 0 8192 18-Dec-2012 21:52 BOOTSECT.BAK
-r--r--r-- 0 0 0 29-Apr-2013 07:45 END
-r--r--r-- 0 0 383786 21-Nov-2010 03:23 bootmgr
-r--r--r-- 0 0 90 18-Dec-2012 16:17 desktop.ini
-r--r--r-- 0 0 904704 1-Dec-2006 22:37 msdia80.dll
-r--r--r-- 0 0 2097152000 1-Oct-2014 21:11 pagefile.sys
there is one the post.......i followed...
Loner TOct 2, 2014 10:03 AM Re: Bootcamp missing after expanding partition
Re: Bootcamp missing after expanding partitionin response to Adrianching
Did you look at the other thread/discussion where Testdisk and Gdisk are used with the steps to recreate the GPT and check each entry? If not, please take a look.
This looks like the best candidate
MS Data 196718600 343476224 146757625
but it wasn't allowed me to type in 196718600 for the first sector...
what should i do now.....
This is what it should look like. Notice the gap between 343476031 (where Recovery HD ends) and 343476224 (start of NTFS).
3 342206496 343476031 619.9 MiB AB00 Recovery HD
4 343476032 490234718 70.0 GiB 0700 Microsoft basic data
4 343476224 490233848 0700 Microsoft Basic Data
Dear Loner T,
I really want to thank you in person!
you saved me and my mac and i had a great lesson from you!
Now everything is settled and running flawlessly!!!
THANK YOU VERY MUCH!!!!!!!
๐๐๐๐๐๐๐๐๐๐๐๐๐
here is the GPT result:
Last login: Thu Oct 2 22:15:12 on console
CCs-MacBook-Pro:~ CheungChing1$ sudo gdisk /dev/disk0
Password:
GPT fdisk (gdisk) version 0.8.10
Warning: Devices opened with shared lock will not have their
partition table automatically reloaded!
Partition table scan:
MBR: hybrid
BSD: not present
APM: not present
GPT: present
Found valid GPT with hybrid MBR; using GPT.
Command (? for help): p
Disk /dev/disk0: 490234752 sectors, 233.8 GiB
Logical sector size: 512 bytes
Disk identifier (GUID): 0000103F-40BF-0000-F577-0000DF230000
Partition table holds up to 128 entries
First usable sector is 34, last usable sector is 490234718
Partitions will be aligned on 8-sector boundaries
Total free space is 1068 sectors (534.0 KiB)
Number Start (sector) End (sector) Size Code Name
1 40 409639 200.0 MiB EF00 EFI system partition
2 409640 342206495 163.0 GiB AF00 Customer
3 342206496 343476031 619.9 MiB AB00 Recovery HD
4 343476224 490233848 70.0 GiB 0700 Microsoft basic data
Command (? for help):
Excellent work, Adrian. Glad to see it all back together. ๐
You are the man, Lenor!!!!!!!!!!!!๐
You also consider Rod Smith (GPT Fdisk) and Christophe Grenier (Testdisk) as important contributors to the solution. ๐
