shadowlow Author

Level 1

10 points

bootcamp not working after yosemite install

here is the screen shots of terminal

/dev/disk0

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *500.1 GB disk0

1: EFI EFI 209.7 MB disk0s1

2: Apple_CoreStorage 275.0 GB disk0s2

3: Apple_Boot Recovery HD 650.0 MB disk0s3

4: Microsoft Basic Data 100.0 GB disk0s4

/dev/disk1

#: TYPE NAME SIZE IDENTIFIER

0: Apple_HFS Macintosh HD *274.6 GB disk1

Logical Volume on disk0s2

414C1913-69F6-4D1F-AA25-DC77900BFE6E

Unencrypted

/dev/disk2

#: TYPE NAME SIZE IDENTIFIER

0: FDisk_partition_scheme *8.2 GB disk2

1: DOS_FAT_32 ESD-USB 8.2 GB disk2s1

diskutil cs list

CoreStorage logical volume groups (1 found)

+-- Logical Volume Group E3ACEE1B-8082-4415-8896-5D054A6D17E2

=========================================================

Name: Macintosh HD

Status: Online

Size: 274999996416 B (275.0 GB)

Free Space: 18935808 B (18.9 MB)

+-< Physical Volume 20D0D68F-5826-43D1-BBC1-C0E822A50D60

| ----------------------------------------------------

| Index: 0

| Disk: disk0s2

| Status: Online

| Size: 274999996416 B (275.0 GB)

+-> Logical Volume Family 5BB9DAE5-27D5-4C9E-8518-538FC61477DB

----------------------------------------------------------

Encryption Status: Unlocked

Encryption Type: None

Conversion Status: NoConversion

Conversion Direction: -none-

Has Encrypted Extents: No

Fully Secure: No

Passphrase Required: No

+-> Logical Volume 414C1913-69F6-4D1F-AA25-DC77900BFE6E

---------------------------------------------------

Disk: disk1

Status: Online

Size (Total): 274628739072 B (274.6 GB)

Conversion Progress: -none-

Revertible: Yes (no decryption required)

LV Name: Macintosh HD

Volume Name: Macintosh HD

Content Hint: Apple_HFS

CoreStorage logical volume groups (1 found)

+-- Logical Volume Group E3ACEE1B-8082-4415-8896-5D054A6D17E2

=========================================================

Name: Macintosh HD

Status: Online

Size: 274999996416 B (275.0 GB)

Free Space: 18935808 B (18.9 MB)

+-< Physical Volume 20D0D68F-5826-43D1-BBC1-C0E822A50D60

| ----------------------------------------------------

| Index: 0

| Disk: disk0s2

| Status: Online

| Size: 274999996416 B (275.0 GB)

+-> Logical Volume Family 5BB9DAE5-27D5-4C9E-8518-538FC61477DB

----------------------------------------------------------

Encryption Status: Unlocked

Encryption Type: None

Conversion Status: NoConversion

Conversion Direction: -none-

Has Encrypted Extents: No

Fully Secure: No

Passphrase Required: No

+-> Logical Volume 414C1913-69F6-4D1F-AA25-DC77900BFE6E

---------------------------------------------------

Disk: disk1

Status: Online

Size (Total): 274628739072 B (274.6 GB)

Conversion Progress: -none-

Revertible: Yes (no decryption required)

LV Name: Macintosh HD

Volume Name: Macintosh HD

Content Hint: Apple_HFS

sudo gpt -vv -r show /dev/disk0

Password:

gpt show: /dev/disk0: mediasize=500107862016; sectorsize=512; blocks=976773168

gpt show: /dev/disk0: Suspicious MBR at sector 0

gpt show: /dev/disk0: Pri GPT at sector 1

gpt show: /dev/disk0: Sec GPT at sector 976773167

start size index contents

0 1 MBR

1 1 Pri GPT header

2 32 Pri GPT table

34 6

40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

409640 537109368 2 GPT part - 53746F72-6167-11AA-AA11-00306543ECAC

537519008 1269536 3 GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC

538788544 242672960

781461504 195311616 4 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

976773120 15

976773135 32 Sec GPT table

976773167 1 Sec GPT header

Disk: /dev/disk0 geometry: 60801/255/63 [976773168 sectors]

Signature: 0xAA55

Starting Ending

#: id cyl hd sec - cyl hd sec [ start - size]

------------------------------------------------------------------------

1: EE 0 0 2 - 1023 254 63 [ 1 - 781461503] <Unknown ID>

*2: 07 1023 254 63 - 1023 254 63 [ 781461504 - 195311616] HPFS/QNX/AUX

3: 00 0 0 0 - 0 0 0 [ 0 - 0] unused

4: 00 0 0 0 - 0 0 0 [ 0 - 0] unused

Posted on Oct 17, 2014 10:12 PM

103 replies

lily_3

Level 1

0 points

Oct 14, 2015 4:55 AM in response to Loner T

Hi,

I have the same problem.

I'm running OS X Yosemite on iMac Late 2009, and with Windows 7 on bootcamp. I don't have backup and would really like to avoid new installation of Windows.

I've changed partition size a long time ago and everything worked fine. After a while I installed OS X Yosemite and didn't check boot to Windows for a long time, and now that I need to I can't.

I did quick search with TestDisk and believe that I found addresses that I need, but not sure how to delete GPT#4 and not brave enough to try on my own.

Here are my screenshots:

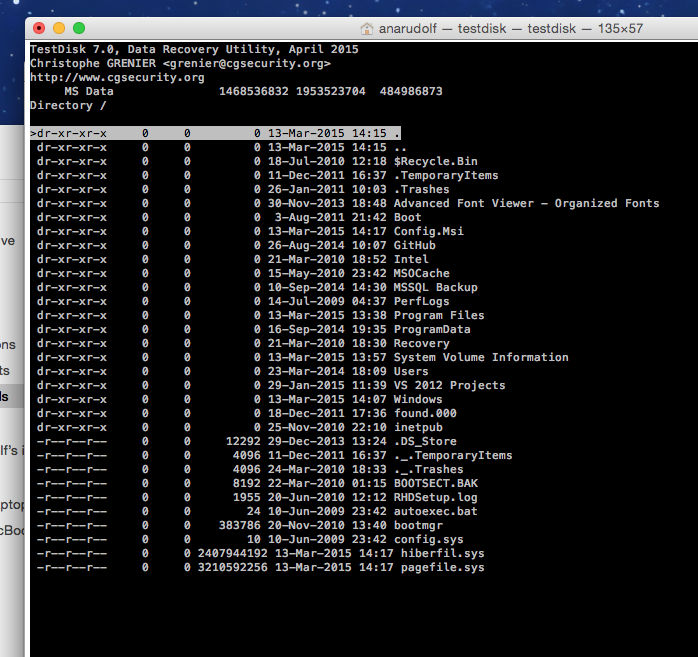

From TestDisk:

Can anyone guide me through next steps?

How can I delete GPT#4 and recreate it with new start/end?

Is the new start/end/size 1468536832/1953523704/48498673?

Thank you!

Loner T

Level 9

59,536 points

Oct 14, 2015 5:12 AM in response to lily_3

lily_3 wrote:

Can anyone guide me through next steps?

How can I delete GPT#4 and recreate it with new start/end?

Is the new start/end/size 1468536832/1953523704/48498673?

Can you use El Capitan has deleted my bootcamp windows partition as a reference? Use 1468536832 in step 7 and +48498673 in step 8 in the first set of Gdisk steps?

lily_3

Level 1

0 points

Oct 14, 2015 7:15 AM in response to Loner T

Thank you for such quick reply.

I did this:

Sudo gdisk /dev/rdisk0
P (print the full list of parts)
D (delete)
4 (part 4)
N (new part)
4 (part 4)
1468536832 ( - Start offset in sectors or the start point for Bootcamp part)
+48498673 ( - Size offset, as opposed to End offset)
0700 (Windows part type)
P (print list of all parts just to see what changes will be made)
W (Write the new GPT)
Y (Yes! really write the new GPT)

And then this:

Sudo gdisk /dev/rdisk0
P (Print list of parts)
R (Recover)
O (print current Hybrid MBR)
H (chooses Hybrid)
Partitions numbers to be hybridized: 2 3 4
Y (Good for GRUB question)
N (part 2 boot flag)
N (part 3 boot flag)
Y (part 4 boot flag make NTFS bootable partition)
O (print current Hybrid MBR)
W (Write the new MBR)
Y (Yes! write the new MBR)
Reboot

But I still can not get BOOTCAMP in finder or in System Preferences -> Startup Disk

Only thing that is changed is this:

What can I do next?

lily_3

Level 1

0 points

Oct 14, 2015 7:18 AM in response to lily_3

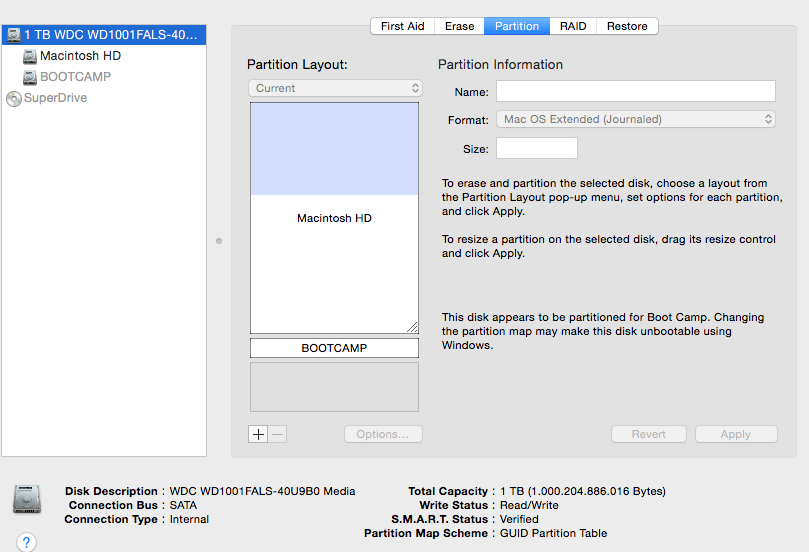

And I still have gap here:

Loner T

Level 9

59,536 points

Oct 14, 2015 7:21 AM in response to lily_3

Please post the output of

sudo gpt -vv -r show /dev/disk0

sudo fdisk /dev/disk0

Do you have any third-party NTFS software?

lily_3

Level 1

0 points

Oct 14, 2015 7:27 AM in response to Loner T

I have FUSE for OS X and MacFUSE

Loner T

Level 9

59,536 points

Oct 14, 2015 7:34 AM in response to lily_3

1. Do you have NTFS-3g? If a non-Apple NTFS driver controls the BC/Windows NTFS volume, it will not show up in System Preferences.

2. On older NTFS-3g versions, there is a Preferences panel where you can selectively disable the driver for specific volumes.

Was your Windows partition resized?

Power down your Mac, and power it backup and hold the Alt/Option key. Can you boot into Windows?

lily_3

Level 1

0 points

Oct 14, 2015 7:38 AM in response to Loner T

I did have NTFS-3g but I uninstalled it from System Preferences before I wrote to you here and did all those steps.

Should I check anywhere else?

Loner T

Level 9

59,536 points

Oct 14, 2015 7:41 AM in response to lily_3

What version of NTFS-3g did you have? Can run Disk Utility and check which driver controls the Bootcamp volume?

lily_3

Level 1

0 points

Oct 14, 2015 7:44 AM in response to Loner T

I'm not sure about the version.

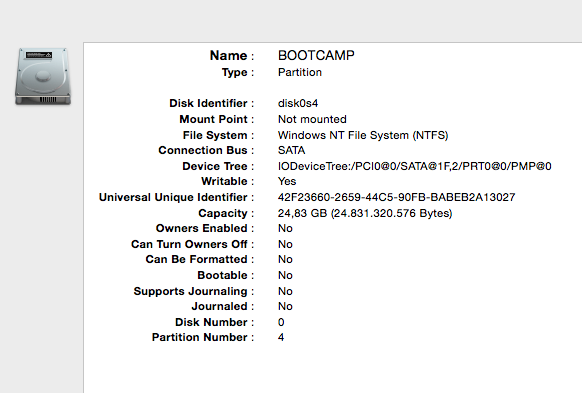

This is what I have for BOOTCAMP in Disk Utility:

lily_3

Level 1

0 points

Oct 14, 2015 7:49 AM in response to lily_3

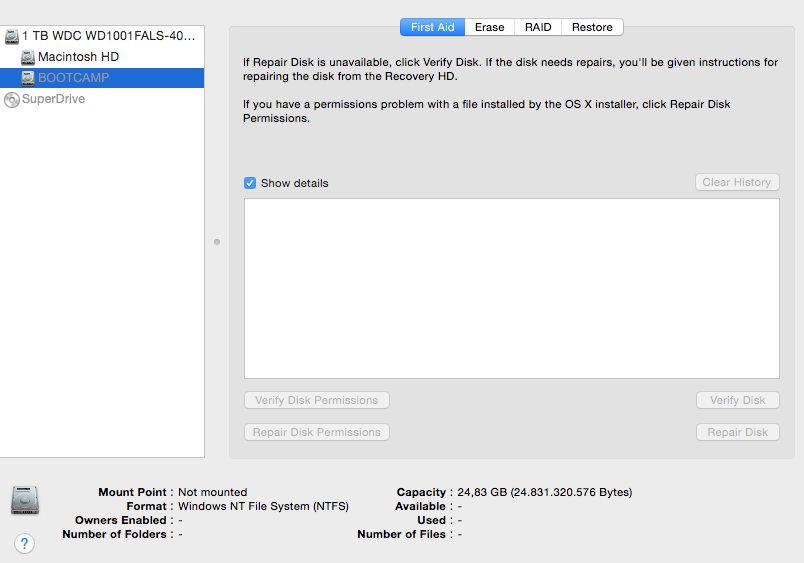

And this:

Loner T

Level 9

59,536 points

Oct 14, 2015 7:52 AM in response to lily_3

Can you test the power-cycle alt/option key method?

lily_3

Level 1

0 points

Oct 14, 2015 8:02 AM in response to Loner T

I've tested it.

Windows option is now showing on boot with option key pressed.

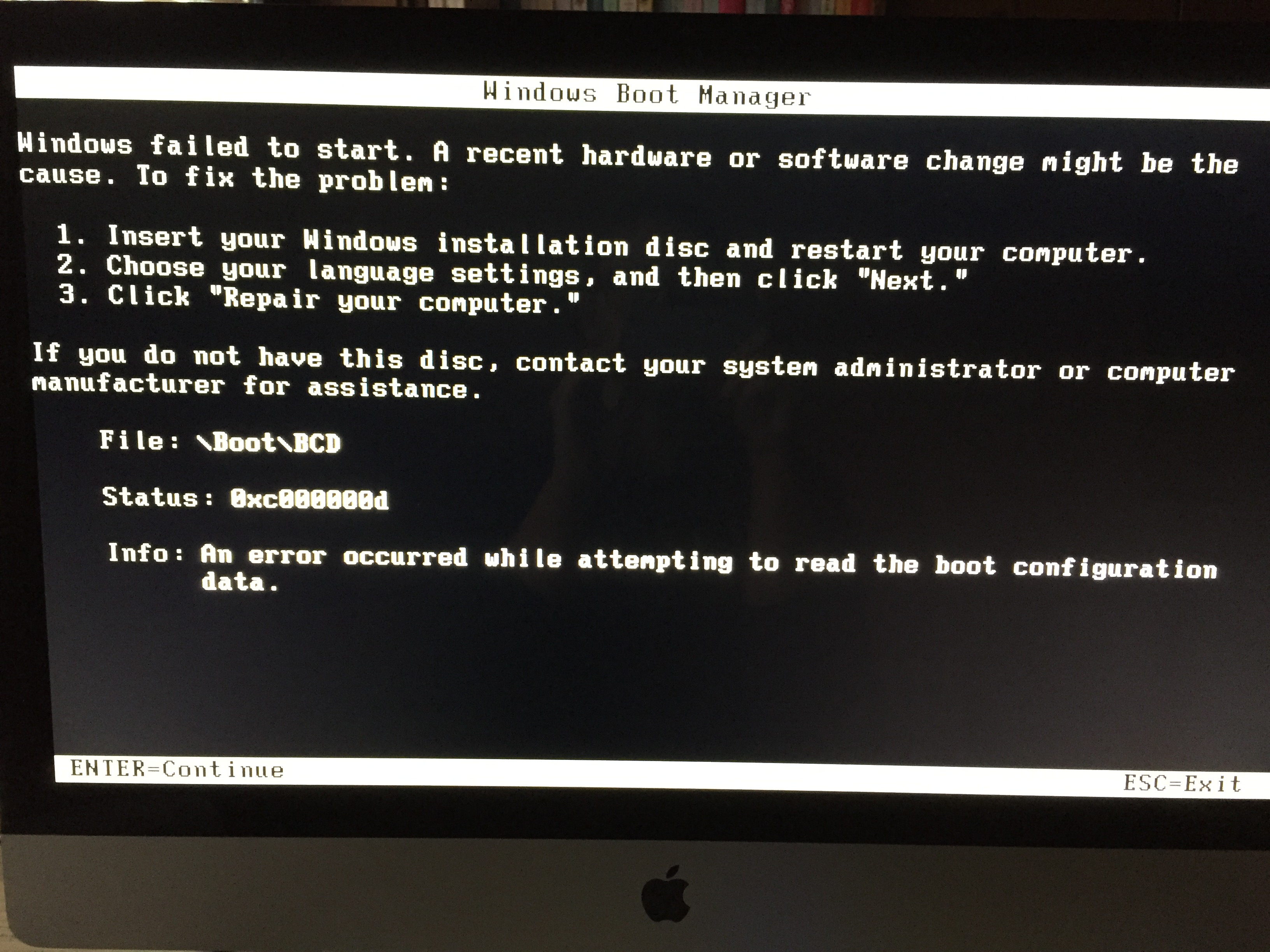

But can not start it:

Loner T

Level 9

59,536 points

Oct 14, 2015 8:06 AM in response to lily_3

You need Windows Startup Repair or use bootrec.exe - https://support.microsoft.com/en-us/kb/927392 to rebuild your BCD.

lily_3

Level 1

0 points

Oct 14, 2015 8:12 AM in response to Loner T

I saw that you recommended it in earlier post, but I don't have access to bootcamp file in finder.

How can I rebuild it from OS X?
