Partition problem while installing Win8.1 on MacBookPro running OSX 10.9

I am using Boot Camp v.5.1.0 (473) to install Windows 8.1 Pro and I am facing the following partition problem.


"Windows cannot be installed to this disk. This disk has an MBR partition table. On EFI systems, windows can only be installed to GPT disks."


I am using a MacBook Pro 13” Mid 2012, 2.5 GHz Intel Core i5, 4GB 1600 MHz DDR3 running OS X Mavericks 10.9.

I had 334 GB free out 500GB and have partitioned 56GB of this for Windows installation.


I am installing from a USB and I have the downloaded support software on the same USB.

I reached at the partition selection dialogue. I click on 'Drive 0 Partition 4: Bootcamp' and click Format, then OK.

When this is complete, it changes the partition name to 'Drive 0 Partition 4' and still has the warning 'Windows can't be installed on Drive 0 Partition 4. (show details)' at bottom of the dialog.

When I click ok on the warning it prompt me above error and Next button is not visible to go ahead.


Following are commands and respective output:


$ diskutil list

/dev/disk0

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *500.1 GB disk0

1: EFI EFI 209.7 MB disk0s1

2: Apple_HFS Macintosh HD 443.2 GB disk0s2

3: Apple_Boot Recovery HD 650.0 MB disk0s3

4: Microsoft Basic Data 56.0 GB disk0s4

/dev/disk1

#: TYPE NAME SIZE IDENTIFIER

0: CD_partition_scheme *259.1 MB disk1

1: Apple_partition_scheme 225.6 MB disk1s0

2: Apple_partition_map 17.9 KB disk1s0s1

3: Apple_HFS Idea Net Setter 17.2 MB disk1s0s2



$ sudo gpt -vv -r show /dev/disk0

gpt show: /dev/disk0: mediasize=500107862016; sectorsize=512; blocks=976773168

gpt show: /dev/disk0: Suspicious MBR at sector 0

gpt show: /dev/disk0: Pri GPT at sector 1

gpt show: /dev/disk0: Sec GPT at sector 976773167

start size index contents

0 1 MBR

1 1 Pri GPT header

2 32 Pri GPT table

34 6

40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

409640 865718952 2 GPT part - 48465300-0000-11AA-AA11-00306543ECAC

866128592 1269536 3 GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC

867398128 1552

867399680 109373440 4 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

976773120 15

976773135 32 Sec GPT table

976773167 1 Sec GPT header



$ sudo fdisk /dev/disk0

Disk: /dev/disk0 geometry: 60801/255/63 [976773168 sectors]

Signature: 0xAA55

Starting Ending

#: id cyl hd sec - cyl hd sec [ start - size]

------------------------------------------------------------------------

1: EE 1023 254 63 - 1023 254 63 [ 1 - 409639] <Unknown ID>

2: AF 1023 254 63 - 1023 254 63 [ 409640 - 865718952] HFS+

3: AB 1023 254 63 - 1023 254 63 [ 866128592 - 1269536] Darwin Boot

4: 07 1023 254 63 - 1023 254 63 [ 867399680 - 109373440] HPFS/QNX/AUX


Please let me know if any one had any success with this problem.


Thanks,

MacBook Pro, OS X Mavericks (10.9)

Posted on Nov 4, 2014 8:34 AM

Reply
18 replies

Aug 23, 2015 7:51 AM in response to Loner T

Yes, I've changed my configuration. I had a RAID consisting of two Buffalo thunderbolt drives, but it was redundant to a SuperDuper backup on a 2TB, USB2, external drive.


Broke down the RAID and using one Buffalo for Boot Camp Backup (Paragon) files, while on the other Buffalo, I'll run a redundant CCC backup of my primary Macintosh HD.


Windows 10 is running as it should, but Boot Camp partition doesn't show on the desktop nor the Startup System Preferences. However, it makes an appearance, of course, using the option-key boot. SoftRaid indicated that BC was not mounted, but I couldn't mount it with SoftRAID or Disk Utility.


Thanks again!

Aug 5, 2016 5:22 PM in response to bunty85

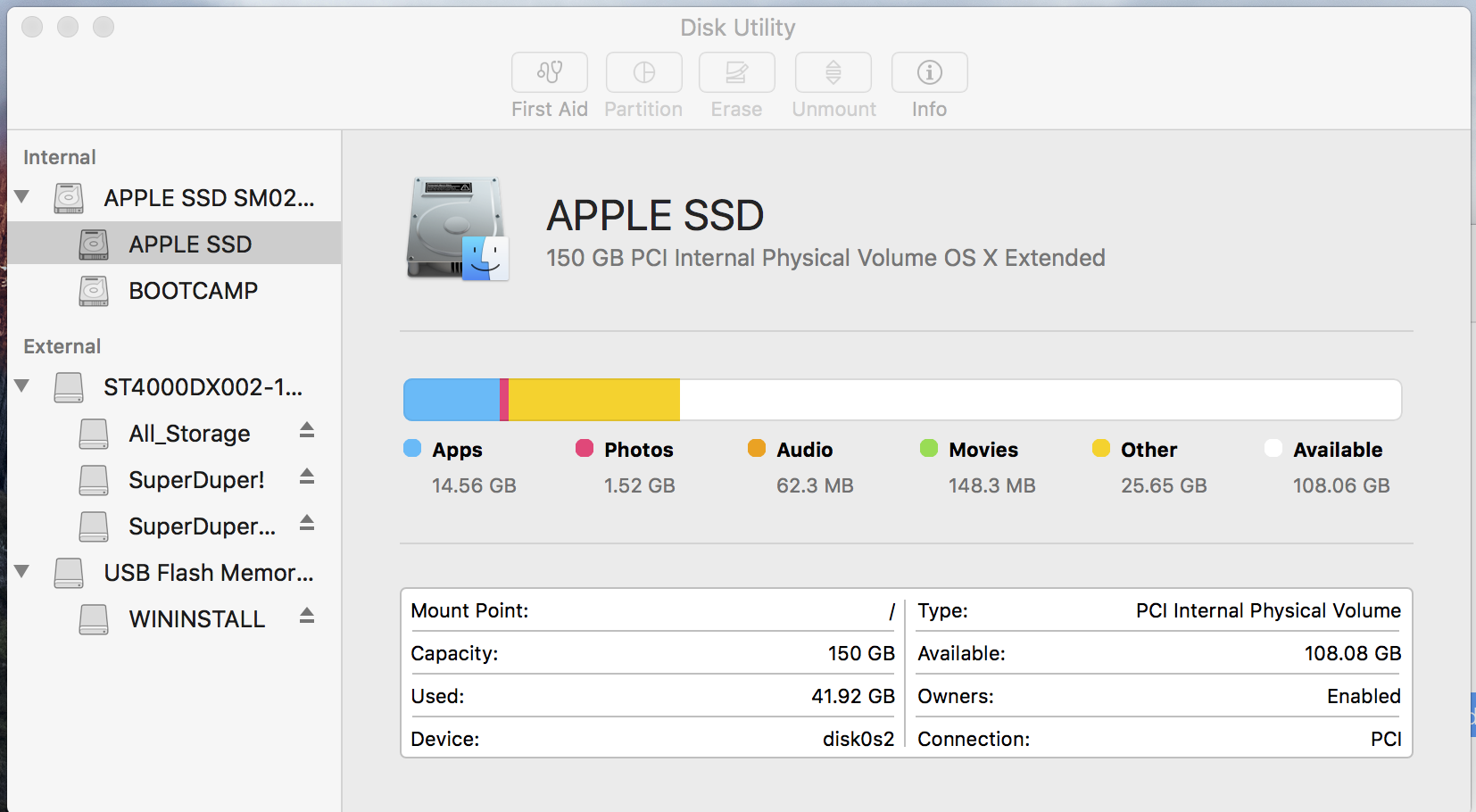

Can anybody break this down for a laymen? I am having this exact issue and find the threads nearly illegible due to lingo. I've partitioned my HDD as you can see here and have the windows ISO stored on a flash drive.

User uploaded file

After holding down "option" after restart there are four disks available: 1) HDD 2) Recovery 3) Windows 4) EPI Boot.


Now, i've tried using both EPI Boot and Windows but with either one four disks appear, none of which are capable of installing Windows 10 on.


All external drives other than "WININSTALL" are ejected prior to restart.




Please will someone help.


MacBook Pro (Retina, 13-inch, Mid 2014)

2.6 GHz Intel Core i5

8 GB 1600 MHz DDR3

APPLE SSD

Intel Iris 1536 MB
