Q: HELP! I have 7 partitions, 2 EFI, 2 MacHD, etc.

I have no idea how this happened, but my internal HD has ended up with 7 (yes, seven) partitions, 6 of which are invisible, and several of which are duplicates. Neat trick, I know, and no, no clue how!



Specs: iMac 27" Late 2012, running Mavericks 10.9.5. Have tried rebooting into Time Machine (external drive), a CarbonCopy Clone (other external drive) and Recovery Mode, none of these will allow me to re-partition the drive. Here is what Disk Utility shows (with hidden volumes enabled):

Screen Shot 2015-01-29 at 7.49.00 PM.png

When I run diskutil list, the drives appear as follows:

/dev/disk0

   #:                       TYPE NAME                    SIZE       IDENTIFIER

   0:      GUID_partition_scheme                        *121.3 GB   disk0

   1:                        EFI EFI                     209.7 MB   disk0s1

   2:          Apple_CoreStorage                         121.0 GB   disk0s2

   3:                 Apple_Boot Boot OS X               134.2 MB   disk0s3

/dev/disk1

   #:                       TYPE NAME                    SIZE       IDENTIFIER

   0:      GUID_partition_scheme                        *1.0 TB     disk1

   1:                        EFI EFI                     209.7 MB   disk1s1

   2:          Apple_CoreStorage                         999.3 GB   disk1s2

   3:                 Apple_Boot Recovery HD             650.0 MB   disk1s3

/dev/disk2

   #:                       TYPE NAME                    SIZE       IDENTIFIER

   0:                  Apple_HFS Manor                  *1.1 TB     disk2



This all started when trying to set up BootCamp, which also threw up a list of 7 volumes, none of which could be used to install Windows.


I am pretty much out of ideas...... Help?

iMac, OS X Mavericks (10.9), 27&" 3.4 Ghz Core i7

Posted on Jan 29, 2015 5:04 PM

Close

Q: HELP! I have 7 partitions, 2 EFI, 2 MacHD, etc.

  • All replies
  • Helpful answers

Page 1 of 4 last Next
  • by Ravenmoon,

    Ravenmoon Ravenmoon Jan 31, 2015 12:07 PM in response to Ravenmoon
    Level 1 (12 points)
    iTunes
    Jan 31, 2015 12:07 PM in response to Ravenmoon

    I see this is getting lots of views and no answers. Eeek!



    Is this configuration a normal thing? Am I worried about nothing? Although I still can't re-partition the drive, which I kind of need to do, so....and more ideas on that?

  • by tbirdvet,

    tbirdvet tbirdvet Jan 31, 2015 5:34 PM in response to Ravenmoon
    Level 4 (3,012 points)
    Mac OS X
    Jan 31, 2015 5:34 PM in response to Ravenmoon

    This is not normal.  You could boot up using command-r and then using Utilities erase your drive, and make one partition then use TM to restore everything.  I had to do that a few weeks ago to fix a similar issue.

  • by Ravenmoon,

    Ravenmoon Ravenmoon Jan 31, 2015 6:18 PM in response to tbirdvet
    Level 1 (12 points)
    iTunes
    Jan 31, 2015 6:18 PM in response to tbirdvet

    I tried booting into Recovery Mode (command-R) and the options to reformat the drive are greyed out. I can erase the main partition, but I can't re-partition it.  That's the sticky part - I could wipe the whole thing, but no method of booting will allow me to re-partition.....

  • by babowa,

    babowa babowa Jan 31, 2015 6:40 PM in response to Ravenmoon
    Level 7 (32,122 points)
    iPad
    Jan 31, 2015 6:40 PM in response to Ravenmoon

    Do you have a fusion drive?

  • by Drew Reece,

    Drew Reece Drew Reece Jan 31, 2015 7:04 PM in response to Ravenmoon
    Level 5 (7,689 points)
    Notebooks
    Jan 31, 2015 7:04 PM in response to Ravenmoon

    You need to do…

    diskutil cs list

    …in Terminal to show the core storage setup.



    Please post that here, it will make it easier to see what you have.

  • by Ravenmoon,

    Ravenmoon Ravenmoon Jan 31, 2015 9:24 PM in response to Ravenmoon
    Level 1 (12 points)
    iTunes
    Jan 31, 2015 9:24 PM in response to Ravenmoon

    Drew: Here's the results of diskutil cs list:



    CoreStorage logical volume groups (1 found)

    |

    +-- Logical Volume Group 4595DA22-0057-4CBE-A0A2-2E64596FAF8F

        =========================================================

        Name:         Macintosh HD

        Status:       Online

        Size:         1120333979648 B (1.1 TB)

        Free Space:   114688 B (114.7 KB)

        |

        +-< Physical Volume 11DB863A-1C0B-4B94-9E8C-1544FBB1F5A2

        |   ----------------------------------------------------

        |   Index:    0

        |   Disk:     disk0s2

        |   Status:   Online

        |   Size:     120988852224 B (121.0 GB)

        |

        +-< Physical Volume C1885864-73C5-421D-A586-8FDA851C638B

        |   ----------------------------------------------------

        |   Index:    1

        |   Disk:     disk1s2

        |   Status:   Online

        |   Size:     999345127424 B (999.3 GB)

        |

        +-> Logical Volume Family 1FE488FF-14E6-4A4D-9A80-1A8FD336A190

            ----------------------------------------------------------

            Encryption Status:       Unlocked

            Encryption Type:         None

            Conversion Status:       NoConversion

            Conversion Direction:    -none-

            Has Encrypted Extents:   No

            Fully Secure:            No

            Passphrase Required:     No

            |

            +-> Logical Volume 77D2C79F-AFAB-4E79-B0A4-E1E7F07F5D8F

                ---------------------------------------------------

                Disk:                  disk2

                Status:                Online

                Size (Total):          1111826497536 B (1.1 TB)

                Conversion Progress:   -none-

                Revertible:            No

                LV Name:               Manor

                Volume Name:           Manor

                Content Hint:          Apple_HFS



    babowa: Yes, it's a fusion drive, but this structure stills seems wrong to me. Shouldn't I still be able to do a re-partition in Recovery Mode?

  • by babowa,

    babowa babowa Jan 31, 2015 9:44 PM in response to Ravenmoon
    Level 7 (32,122 points)
    iPad
    Jan 31, 2015 9:44 PM in response to Ravenmoon

    I only had a fusion drive for about a week (a new iMac with multiple power management problems which was returned to the store), but I had a problem first trying to partition it in Disk Utility and then trying to repartition and erase the drive in recovery to be able to return it. I finally managed after several tries - can't remember which step finally worked; try to erase either the entire drive and/or one partition/volume at a time. You can only have 2 partitions on a fusion drive by the way.



    FWIW, I got a replacement iMac without a fusion drive because, frankly, I was not impressed as I didn't seem to have control over the drive and there really did not appear to be a speed increase with the SSD.

  • by Ravenmoon,

    Ravenmoon Ravenmoon Jan 31, 2015 9:53 PM in response to babowa
    Level 1 (12 points)
    iTunes
    Jan 31, 2015 9:53 PM in response to babowa

    Thanks for the tip. I wonder what to do about the oodles of extra hidden partitions? Those seem to be the ones causing trouble. What I'd like to have (eventually) is two partitions; one for Mac OS, and one for BootCamp. But the extra EFIs and such are freaking out the Windows installer.... I have a feeling that the 'extra' hidden drives were created by BootCamp, but I 'reunited' the drive using the BC utility, so it should have corrected for that, I'd think.  Alas...



    I'll keep pecking away at it, though....

  • by Ravenmoon,

    Ravenmoon Ravenmoon Feb 4, 2015 3:13 PM in response to Ravenmoon
    Level 1 (12 points)
    iTunes
    Feb 4, 2015 3:13 PM in response to Ravenmoon

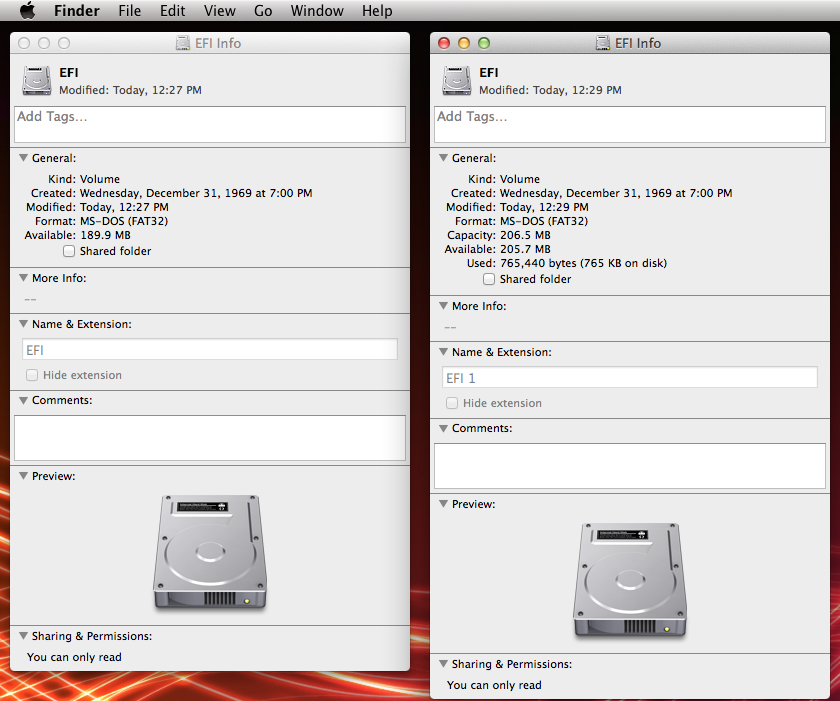

    I have gotten BootCamp to behave, but I still have an excess of hidden partitions. Except when they're not hidden.

    Because this is what happens when I reboot:

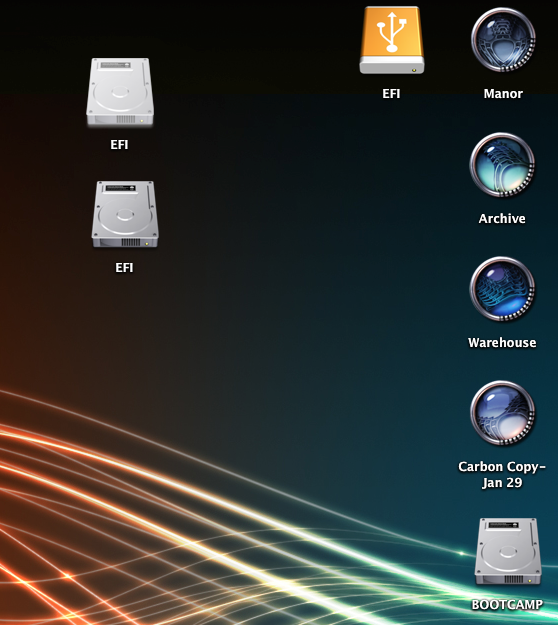

    Screen Shot 2015-02-04 at 11.11.23 AM.png

    'Manor' is the primary internal Mac Boot drive, BootCamp is well, BootCamp, partitioned off the internal drive.  'Archive, 'Warehouse,' and 'Carbon Copy' are all external USB drives. It's the three EFI beasties I'm concerned with! I can understand having one for the internal drive, and maybe one for BootCamp. But three? And should they be showing up like this? They all vanish after a few seconds, but I'm thinking this is not supposed to be a thing? There are still two hidden partitions called 'Macintosh HD' that don't mount on reboot, but are still lurking there.



    Any other thoughts? It doesn't SEEM to be a performance issue, and they're not that big, so it's not like it's costing me space I need, but it's weird. I don't like weird when it comes to my Mac; I depend on it too much! LOL But, I remain at a loss.

  • by Ravenmoon,

    Ravenmoon Ravenmoon Feb 4, 2015 3:20 PM in response to Ravenmoon
    Level 1 (12 points)
    iTunes
    Feb 4, 2015 3:20 PM in response to Ravenmoon

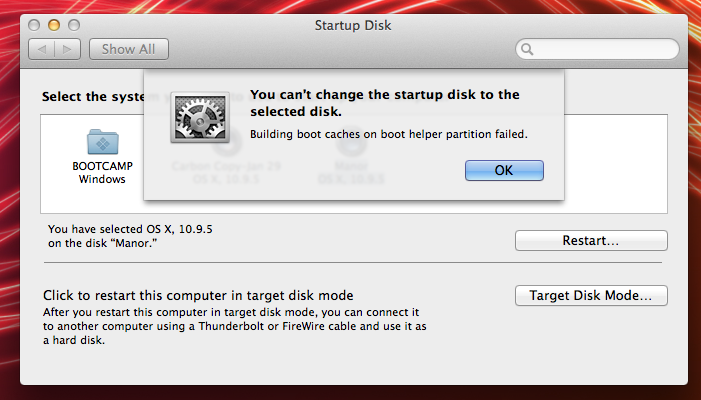

    AND the plot thickens. Last reboot my Mac started into BootCamp. I figured I'd forgotten to change it back in the Prefs. I went to do that and got this: Screen Shot 2015-02-04 at 6.15.27 PM.png

    Clearly I CAN boot into Mac OS, but I have to do that by shutting down and holding 'Option.' So maybe this IS a serious issue.....



    Er, HELP?

  • by babowa,

    babowa babowa Feb 4, 2015 3:37 PM in response to Ravenmoon
    Level 7 (32,122 points)
    iPad
    Feb 4, 2015 3:37 PM in response to Ravenmoon

    Sorry, this is beyond my realm as I don't use and am not at all familiar with Bootcamp; on top of that, I do not understand why the EFI are showing as they shouldn't be. Hopefully someone will chime in shortly.

  • by Loner T,

    Loner T Loner T Feb 5, 2015 4:19 PM in response to Ravenmoon
    Level 7 (24,307 points)
    Safari
    Feb 5, 2015 4:19 PM in response to Ravenmoon

    It is possible that the GPT is corrupt on each of the two disks. You have a 1TB Fusion drive (120GB SSD/1TB HDD).



    Can you post the output of the following commands?



    sudo gpt -vv -r show /dev/disk0

    sudo fdisk /dev/disk0

    sudo gpt -vv -r show /dev/disk1

    sudo fdisk /dev/disk1



    These will show the GPT and the MBR on each physical disk.



    Was Windows installed using EFI, rather than the traditional Hybrid MBR?



    There is also a bug in Disk Utility (and the System Report -> Storage view) where the same storage can be reported more than once.

  • by Ravenmoon,

    Ravenmoon Ravenmoon Feb 5, 2015 7:16 PM in response to Loner T
    Level 1 (12 points)
    iTunes
    Feb 5, 2015 7:16 PM in response to Loner T

    Thank you for the reply, LonerT. I will run those commands and post the result here shortly.


    As to the Windows install, I'm not sure what you mean. I used the BootCamp software to partition and restart, but I did have to go back and change the BootCamp partition to NTFS in order to install Windows onto it. Once I had done that, the Windows installer was able to format the partition, and the install went smoothly. But the 'extra' partitions were already there at that point. Other than that, I did not do anything different in the Windows install process.



    As to a reporting error, I still have three EFI drives appearing at startup, which doesn't seem to have anything to do with DiskUtility....



    Terminal results in a jiffy!

  • by Ravenmoon,

    Ravenmoon Ravenmoon Feb 5, 2015 7:20 PM in response to Ravenmoon
    Level 1 (12 points)
    iTunes
    Feb 5, 2015 7:20 PM in response to Ravenmoon

    Results:


    sudo gpt -vv -r show /dev/disk0

    gpt show: /dev/disk0: mediasize=121332826112; sectorsize=512; blocks=236978176

    gpt show: /dev/disk0: PMBR at sector 0

    gpt show: /dev/disk0: Pri GPT at sector 1

    gpt show: /dev/disk0: Sec GPT at sector 236978175

          start       size  index  contents

              0          1         PMBR

              1          1         Pri GPT header

              2         32         Pri GPT table

             34          6

             40     409600      1  GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

         409640  236306352      2  GPT part - 53746F72-6167-11AA-AA11-00306543ECAC

      236715992     262144      3  GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC

      236978136          7

      236978143         32         Sec GPT table

      236978175          1         Sec GPT header





    sudo fdisk /dev/disk0

    Disk: /dev/disk0 geometry: 14751/255/63 [236978176 sectors]

    Signature: 0xAA55

             Starting       Ending

    #: id  cyl  hd sec -  cyl  hd sec [     start -       size]

    ------------------------------------------------------------------------

    1: EE 1023 254  63 - 1023 254  63 [         1 -  236978175] <Unknown ID>

    2: 00    0   0   0 -    0   0   0 [         0 -          0] unused

    3: 00    0   0   0 -    0   0   0 [         0 -          0] unused

    4: 00    0   0   0 -    0   0   0 [         0 -          0] unused



    sudo gpt -vv -r show /dev/disk1

    gpt show: /dev/disk1: mediasize=1000204886016; sectorsize=512; blocks=1953525168

    gpt show: /dev/disk1: Suspicious MBR at sector 0

    gpt show: /dev/disk1: Pri GPT at sector 1

    gpt show: /dev/disk1: Sec GPT at sector 1953525167

           start        size  index  contents

               0           1         MBR

               1           1         Pri GPT header

               2          32         Pri GPT table

              34           6

              40      409600      1  GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

          409640  1317547968      2  GPT part - 53746F72-6167-11AA-AA11-00306543ECAC

      1317957608     1269536      3  GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC

      1319227144         248

      1319227392   634296320      4  GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

      1953523712        1423

      1953525135          32         Sec GPT table

      1953525167           1         Sec GPT header



    sudo fdisk /dev/disk1

    Disk: /dev/disk1 geometry: 121601/255/63 [1953525168 sectors]

    Signature: 0xAA55

             Starting       Ending

    #: id  cyl  hd sec -  cyl  hd sec [     start -       size]

    ------------------------------------------------------------------------

    1: EE 1023 254  63 - 1023 254  63 [         1 -     409639] <Unknown ID>

    2: AC 1023 254  63 - 1023 254  63 [    409640 - 1317547968] <Unknown ID>

    3: AB 1023 254  63 - 1023 254  63 [1317957608 -    1269536] Darwin Boot

    *4: 07 1023 254  63 - 1023 254  63 [1319227392 -  634296320] HPFS/QNX/AUX
