My Windows partition is not bootable after create a new partition

Loner T, the output showed in the previous post was taken after reboot.

I think i've done something wrong...

What i did was:

1. Use Gdisk and in the main menu, use the 't' command and change partition 3 from 0700 to AB00. done

2. GPT4 when converted to Free Space, will return an error, because there is valid disk - disk0s4 to start with, but Free Space cannot be mounted as a disk. (i understood it like a explanation for action in number 1)

3. How was GPT5 created? i don't know, i made something wrong

4. Run the DD command for disk0s6. done - it is executed in gdisk right?
(should i rebooted before execute it?)

no, it was used to try to merge 2 partitions, to do it i needed erase the new partition, the erase worked, but the resize has failed.

maybe i did something wrong in gdisk...

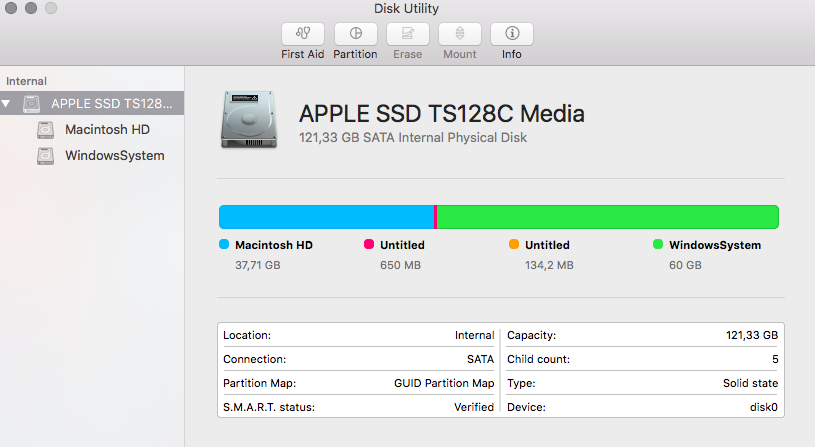

before, i only could see 3 partitions in disk utility: windows, mac hd and the new (untitled), now there are 4 partitions visible (plus the free space (not visible))

Ok, here it is

MacBook-Air-de-Ricardo:~ Barbieri$ sudo dd if=/dev/rdisk0s5 count=1 2>/dev/null | hexdump -C

Password:

00000000 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|

*

00000200

MacBook-Air-de-Ricardo:~ Barbieri$ sudo dd if=/dev/rdisk0s6 count=1 2>/dev/null | hexdump -C

00000000 eb 52 90 4e 54 46 53 20 20 20 20 00 02 08 00 00 |.R.NTFS .....|

00000010 00 00 00 00 00 f8 00 00 3f 00 ff 00 00 e0 23 07 |........?.....#.|

00000020 00 00 00 00 80 00 80 00 ff 17 fc 06 00 00 00 00 |................|

00000030 00 00 0c 00 00 00 00 00 02 00 00 00 00 00 00 00 |................|

00000040 f6 00 00 00 01 00 00 00 ab 02 80 90 1a 80 90 56 |...............V|

00000050 00 00 00 00 fa 33 c0 8e d0 bc 00 7c fb 68 c0 07 |.....3.....|.h..|

00000060 1f 1e 68 66 00 cb 88 16 0e 00 66 81 3e 03 00 4e |..hf......f.>..N|

00000070 54 46 53 75 15 b4 41 bb aa 55 cd 13 72 0c 81 fb |TFSu..A..U..r...|

00000080 55 aa 75 06 f7 c1 01 00 75 03 e9 dd 00 1e 83 ec |U.u.....u.......|

00000090 18 68 1a 00 b4 48 8a 16 0e 00 8b f4 16 1f cd 13 |.h...H..........|

000000a0 9f 83 c4 18 9e 58 1f 72 e1 3b 06 0b 00 75 db a3 |.....X.r.;...u..|

000000b0 0f 00 c1 2e 0f 00 04 1e 5a 33 db b9 00 20 2b c8 |........Z3... +.|

000000c0 66 ff 06 11 00 03 16 0f 00 8e c2 ff 06 16 00 e8 |f...............|

000000d0 4b 00 2b c8 77 ef b8 00 bb cd 1a 66 23 c0 75 2d |K.+.w......f#.u-|

000000e0 66 81 fb 54 43 50 41 75 24 81 f9 02 01 72 1e 16 |f..TCPAu$....r..|

000000f0 68 07 bb 16 68 52 11 16 68 09 00 66 53 66 53 66 |h...hR..h..fSfSf|

00000100 55 16 16 16 68 b8 01 66 61 0e 07 cd 1a 33 c0 bf |U...h..fa....3..|

00000110 0a 13 b9 f6 0c fc f3 aa e9 fe 01 90 90 66 60 1e |.............f`.|

00000120 06 66 a1 11 00 66 03 06 1c 00 1e 66 68 00 00 00 |.f...f.....fh...|

00000130 00 66 50 06 53 68 01 00 68 10 00 b4 42 8a 16 0e |.fP.Sh..h...B...|

00000140 00 16 1f 8b f4 cd 13 66 59 5b 5a 66 59 66 59 1f |.......fY[ZfYfY.|

00000150 0f 82 16 00 66 ff 06 11 00 03 16 0f 00 8e c2 ff |....f...........|

00000160 0e 16 00 75 bc 07 1f 66 61 c3 a1 f6 01 e8 09 00 |...u...fa.......|

00000170 a1 fa 01 e8 03 00 f4 eb fd 8b f0 ac 3c 00 74 09 |............<.t.|

00000180 b4 0e bb 07 00 cd 10 eb f2 c3 0d 0a 41 20 64 69 |............A di|

00000190 73 6b 20 72 65 61 64 20 65 72 72 6f 72 20 6f 63 |sk read error oc|

000001a0 63 75 72 72 65 64 00 0d 0a 42 4f 4f 54 4d 47 52 |curred...BOOTMGR|

000001b0 20 69 73 20 63 6f 6d 70 72 65 73 73 65 64 00 0d | is compressed..|

000001c0 0a 50 72 65 73 73 20 43 74 72 6c 2b 41 6c 74 2b |.Press Ctrl+Alt+|

000001d0 44 65 6c 20 74 6f 20 72 65 73 74 61 72 74 0d 0a |Del to restart..|

000001e0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 |................|

000001f0 00 00 00 00 00 00 8a 01 a7 01 bf 01 00 00 55 aa |..............U.|

00000200

MacBook-Air-de-Ricardo:~ Barbieri$

ok, thank you. erase using gdisk option "d"?

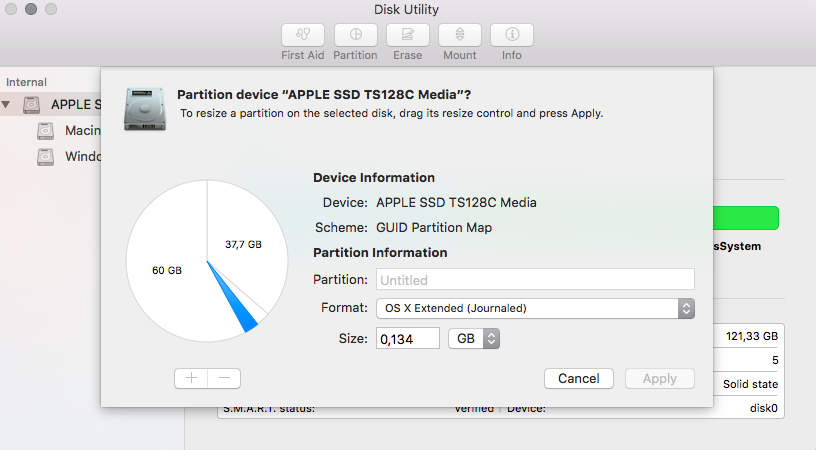

Ok, but i can't manipulate it in disk utility, it shows in the Partition window, but not in main window where the command to erase is.

Oh, i'm sorry i've confused diskutil with disk utility 😕

Done, and now i have this:

MacBook-Air-de-Ricardo:~ Barbieri$ sudo gpt -vv -r show /dev/disk0

Password:

gpt show: /dev/disk0: mediasize=121332826112; sectorsize=512; blocks=236978176

gpt show: /dev/disk0: Suspicious MBR at sector 0

gpt show: /dev/disk0: Pri GPT at sector 1

gpt show: /dev/disk0: Sec GPT at sector 236978175

start size index contents

0 1 MBR

1 1 Pri GPT header

2 32 Pri GPT table

34 6

40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

409640 74375304 2 GPT part - 48465300-0000-11AA-AA11-00306543ECAC

74784944 1269536 3 GPT part - 48465300-0000-11AA-AA11-00306543ECAC

76054480 43737136

119791616 117184512 4 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

236976128 2015

236978143 32 Sec GPT table

236978175 1 Sec GPT header

MacBook-Air-de-Ricardo:~ Barbieri$ sudo fdisk /dev/disk0

Disk: /dev/disk0 geometry: 14751/255/63 [236978176 sectors]

Signature: 0xAA55

Starting Ending

#: id cyl hd sec - cyl hd sec [ start - size]

------------------------------------------------------------------------

1: EE 1023 254 63 - 1023 254 63 [ 1 - 409639] <Unknown ID>

*2: AF 1023 254 63 - 1023 254 63 [ 409640 - 74375304] HFS+

3: AF 1023 254 63 - 1023 254 63 [ 74784944 - 1269536] HFS+

4: 0C 1023 254 63 - 1023 254 63 [ 119791616 - 117184512] Win95 FAT32L

MacBook-Air-de-Ricardo:~ Barbieri$ sudo dd if=/dev/rdisk0s5 count=1 2>/dev/null | hexdump -C

MacBook-Air-de-Ricardo:~ Barbieri$

Windows still with the message "missing operating system".

Loner T, you are incredible!

You are an expert and a gentleman, thank you very much for your help.

It's working fine again.

Now, i will search a good tutorial to merge partitions in order not to do mistakes again. I think i will follow your suggestion to make a clone of my Windows and recover after merge partitions.

Best regards
