Windows 10 Boot Camp BCD Missing/Errors

Question

Level 1

0 points

Windows 10 Boot Camp BCD Missing/Errors

clean upgrade of Windows 10 from Windows 8.1 Pro (no apps, all updates) using Boot Camp Assistant (latest) on El Capitan
Used EFI install option - no issues install went smoothly
Have latest XCode, etc. installed, all OSX updates installed
Didn't install any Windows updates until after Boot Camp drivers installed (disabled Windows Update until those were complete.)
Win 10 install was clean except for Steam and Chrome installed. No other apps.
Installed all available Windows updates
Today installed latest Windows Updates (not sure what they all were, one was Windows Defender definitions, one was Malicious Software Removal tool, and one was a C++ redistributable update)
Machine rebooted to finish - display was 'off' though - didn't have right dimensions, didn't fill screen, lower res than before updates.
Went into display settings to try to set it back to a higher res
Machine crashed; back into Windows 10 and tried to run the NVidia Control Panel
Crashed again into loop of 3 crashes
Now get blue screen immediately after boot saying "Boot Configuration Data ... missing or contains errors":
When holding down Option at boot no longer see Windows drive either:

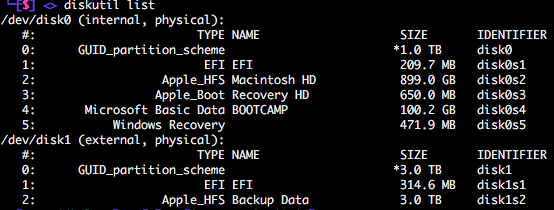

Here's output of diskutil - list (I do have a 3TB backup USB drive attached that I did not have attached during Windows install; however, it's worked fine for a week or more and is not used in/by Windows 10):

Here's output of fdisk:

Here's output of sudo gpt -vv -r show /dev/disk0:

When I run diskutil cs list I get, "No CoreStorage logical volume groups found"

Finally, sudo dd if=/dev/rdisk0s4 count=1 2>/dev/null | hexdump -C gives:

Any help appreciated! Not sure what to do next.

MacBook Pro (Retina, 15-inch, Late 2013), OS X El Capitan (10.11.2), null

Posted on Dec 13, 2015 1:15 PM

Reply

Answer 1

Loner T

Level 9

59,536 points

Dec 13, 2015 5:56 PM in response to hiscapness

Please see Can't resize Macintosh HD partition (third page) to check how to mount the EFI partition on your internal disk. Disconnect the external backup disk to avoid any accidental issues with that disk. Do not delete/modify any files.

Reply

Answer 2

hiscapness Author

Level 1

0 points

Dec 14, 2015 7:27 AM in response to Loner T

Here's the output.

FWIW the bcdinfo.txt file contains, "The boot configuration data store could not be opened.

The requested system device cannot be identified due to multiple indistinguishable devices potentially matching the identification criteria."

Here you go:

└─[$] <> ls -gR /Volumes/EFI

total 4

-rwxrwxrwx 1 staff 106 Feb 6 2014 BOOTLOG

-rwxrwxrwx 1 staff 512 Jun 22 03:02 BOOTSECT.BAK

drwxrwxrwx 1 staff 512 Dec 3 11:27 EFI

drwxrwxrwx 1 staff 512 Aug 27 16:50 Temp

/Volumes/EFI/EFI:

total 3

drwxrwxrwx 1 staff 512 Oct 20 2014 APPLE

drwxrwxrwx 1 staff 512 Dec 3 22:17 Boot

drwxrwxrwx 1 staff 512 Dec 3 22:10 Microsoft

/Volumes/EFI/EFI/APPLE:

total 4

drwxrwxrwx 1 staff 512 Feb 6 2014 CACHES

drwxrwxrwx 1 staff 512 Oct 26 2013 EXTENSIONS

drwxrwxrwx 1 staff 512 Nov 2 19:25 FIRMWARE

drwxrwxrwx 1 staff 512 Oct 20 2014 UPDATERS

/Volumes/EFI/EFI/APPLE/CACHES:

/Volumes/EFI/EFI/APPLE/EXTENSIONS:

total 30722

-rwxrwxrwx 1 staff 15729264 Dec 14 09:47 Firmware.scap

/Volumes/EFI/EFI/APPLE/FIRMWARE:

total 16642

-rwxrwxrwx 1 staff 8520304 Nov 2 19:25 MBP112_0138_B16_LOCKED.scap

/Volumes/EFI/EFI/APPLE/UPDATERS:

total 2

drwxrwxrwx 1 staff 1024 Oct 20 2014 SMC

/Volumes/EFI/EFI/APPLE/UPDATERS/SMC:

total 1347

-rwxrwxrwx 1 staff 33621 Oct 20 2014 Mac-2BD1B31983FE1663.epm

-rwxrwxrwx 1 staff 377748 Oct 20 2014 Mac-2BD1B31983FE1663.smc

-rwxrwxrwx 1 staff 201984 Oct 20 2014 SmcFlasher.efi

-rwxrwxrwx 1 staff 37836 Oct 20 2014 flasher_base.smc

-rwxrwxrwx 1 staff 37836 Oct 20 2014 flasher_update.smc

/Volumes/EFI/EFI/Boot:

total 2264

-rwxrwxrwx 1 staff 1159008 Oct 30 03:09 bootx64.efi

/Volumes/EFI/EFI/Microsoft:

total 9

drwxrwxrwx 1 staff 4096 Dec 3 22:10 Boot

drwxrwxrwx 1 staff 512 Dec 3 21:26 Recovery

/Volumes/EFI/EFI/Microsoft/Boot:

total 8800

-rwxrwxrwx 1 staff 49152 Dec 13 14:22 BCD.Backup.0001

-rwxrwxrwx 1 staff 65536 Dec 3 22:10 BCD.LOG

-rwxrwxrwx 1 staff 0 Dec 3 22:17 BCD.LOG1

-rwxrwxrwx 1 staff 0 Dec 3 22:17 BCD.LOG2

-rwxrwxrwx 1 staff 65536 Dec 3 21:26 BOOTSTAT.DAT

drwxrwxrwx 1 staff 1536 Dec 3 22:17 Fonts

drwxrwxrwx 1 staff 512 Dec 3 22:17 Resources

drwxrwxrwx 1 staff 512 Dec 3 22:17 bg-BG

-rwxrwxrwx 1 staff 4391 Oct 30 03:09 boot.stl

-rwxrwxrwx 1 staff 1159008 Oct 30 03:09 bootmgfw.efi

-rwxrwxrwx 1 staff 1147744 Oct 30 03:09 bootmgr.efi

drwxrwxrwx 1 staff 1024 Dec 3 22:17 cs-CZ

drwxrwxrwx 1 staff 1024 Dec 3 22:17 da-DK

drwxrwxrwx 1 staff 1024 Dec 3 22:17 de-DE

drwxrwxrwx 1 staff 1024 Dec 3 22:17 el-GR

drwxrwxrwx 1 staff 512 Dec 3 22:17 en-GB

drwxrwxrwx 1 staff 1024 Dec 3 22:17 en-US

drwxrwxrwx 1 staff 1024 Dec 3 22:17 es-ES

drwxrwxrwx 1 staff 512 Dec 3 22:17 et-EE

drwxrwxrwx 1 staff 1024 Dec 3 22:17 fi-FI

drwxrwxrwx 1 staff 1024 Dec 3 22:17 fr-FR

drwxrwxrwx 1 staff 512 Dec 3 22:17 hr-HR

drwxrwxrwx 1 staff 1024 Dec 3 22:17 hu-HU

drwxrwxrwx 1 staff 1024 Dec 3 22:17 it-IT

drwxrwxrwx 1 staff 1024 Dec 3 22:17 ja-JP

-rwxrwxrwx 1 staff 29024 Oct 30 03:09 kd_02_10df.dll

-rwxrwxrwx 1 staff 324952 Oct 30 03:09 kd_02_10ec.dll

-rwxrwxrwx 1 staff 13312 Oct 30 03:09 kd_02_1137.dll

-rwxrwxrwx 1 staff 211808 Oct 30 03:09 kd_02_14e4.dll

-rwxrwxrwx 1 staff 35168 Oct 30 03:09 kd_02_15b3.dll

-rwxrwxrwx 1 staff 38752 Oct 30 03:09 kd_02_1969.dll

-rwxrwxrwx 1 staff 29024 Oct 30 03:09 kd_02_19a2.dll

-rwxrwxrwx 1 staff 196448 Oct 30 03:09 kd_02_8086.dll

-rwxrwxrwx 1 staff 17248 Oct 30 03:09 kd_07_1415.dll

-rwxrwxrwx 1 staff 36704 Oct 30 03:09 kd_0C_8086.dll

-rwxrwxrwx 1 staff 15192 Oct 30 03:09 kdstub.dll

drwxrwxrwx 1 staff 1024 Dec 3 22:17 ko-KR

drwxrwxrwx 1 staff 512 Dec 3 22:17 lt-LT

drwxrwxrwx 1 staff 512 Dec 3 22:17 lv-LV

-rwxrwxrwx 1 staff 1031520 Oct 30 03:09 memtest.efi

drwxrwxrwx 1 staff 1024 Dec 3 22:17 nb-NO

drwxrwxrwx 1 staff 1024 Dec 3 22:17 nl-NL

drwxrwxrwx 1 staff 1024 Dec 3 22:17 pl-PL

drwxrwxrwx 1 staff 1024 Dec 3 22:17 pt-BR

drwxrwxrwx 1 staff 1024 Dec 3 22:17 pt-PT

drwxrwxrwx 1 staff 1024 Dec 3 22:17 qps-ploc

drwxrwxrwx 1 staff 512 Dec 3 22:17 ro-RO

drwxrwxrwx 1 staff 1024 Dec 3 22:17 ru-RU

drwxrwxrwx 1 staff 512 Dec 3 22:17 sk-SK

drwxrwxrwx 1 staff 512 Dec 3 22:17 sl-SI

drwxrwxrwx 1 staff 512 Dec 3 22:17 sr-Latn-CS

drwxrwxrwx 1 staff 512 Dec 3 22:17 sr-Latn-RS

drwxrwxrwx 1 staff 1024 Dec 3 22:17 sv-SE

drwxrwxrwx 1 staff 1024 Dec 3 22:17 tr-TR

drwxrwxrwx 1 staff 512 Dec 3 22:17 uk-UA

drwxrwxrwx 1 staff 1024 Dec 3 22:17 zh-CN

drwxrwxrwx 1 staff 1024 Dec 3 22:17 zh-HK

drwxrwxrwx 1 staff 1024 Dec 3 22:17 zh-TW

/Volumes/EFI/EFI/Microsoft/Boot/Fonts:

total 26104

-rwxrwxrwx 1 staff 3694080 Jun 18 2013 chs_boot.ttf

-rwxrwxrwx 1 staff 3876772 Jun 18 2013 cht_boot.ttf

-rwxrwxrwx 1 staff 1984228 Jun 18 2013 jpn_boot.ttf

-rwxrwxrwx 1 staff 2371360 Jun 18 2013 kor_boot.ttf

-rwxrwxrwx 1 staff 168212 Jun 18 2013 malgun_boot.ttf

-rwxrwxrwx 1 staff 165764 Jun 18 2013 malgunn_boot.ttf

-rwxrwxrwx 1 staff 134508 Jun 18 2013 meiryo_boot.ttf

-rwxrwxrwx 1 staff 132888 Jun 18 2013 meiryon_boot.ttf

-rwxrwxrwx 1 staff 154896 Jun 18 2013 msjh_boot.ttf

-rwxrwxrwx 1 staff 152892 Jun 18 2013 msjhn_boot.ttf

-rwxrwxrwx 1 staff 146228 Jun 18 2013 msyh_boot.ttf

-rwxrwxrwx 1 staff 142124 Jun 18 2013 msyhn_boot.ttf

-rwxrwxrwx 1 staff 36020 Oct 30 03:09 segmono_boot.ttf

-rwxrwxrwx 1 staff 77404 Oct 30 03:09 segoe_slboot.ttf

-rwxrwxrwx 1 staff 77088 Oct 30 03:09 segoen_slboot.ttf

-rwxrwxrwx 1 staff 47452 Oct 30 03:09 wgl4_boot.ttf

/Volumes/EFI/EFI/Microsoft/Boot/Resources:

total 39

-rwxrwxrwx 1 staff 19296 Oct 30 03:09 bootres.dll

drwxrwxrwx 1 staff 512 Dec 3 22:17 en-US

/Volumes/EFI/EFI/Microsoft/Boot/Resources/en-US:

total 25

-rwxrwxrwx 1 staff 12640 Oct 30 03:11 bootres.dll.mui

/Volumes/EFI/EFI/Microsoft/Boot/bg-BG:

total 302

-rwxrwxrwx 1 staff 77152 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 77152 Aug 22 2013 bootmgr.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/cs-CZ:

total 387

-rwxrwxrwx 1 staff 76128 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 76128 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 45408 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/da-DK:

total 385

-rwxrwxrwx 1 staff 75616 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 75616 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 45408 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/de-DE:

total 398

-rwxrwxrwx 1 staff 78688 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 78688 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 45920 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/el-GR:

total 403

-rwxrwxrwx 1 staff 79712 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 79712 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 46432 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/en-GB:

total 288

-rwxrwxrwx 1 staff 73568 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 73568 Aug 22 2013 bootmgr.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/en-US:

total 378

-rwxrwxrwx 1 staff 74080 Oct 30 03:09 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 74080 Oct 30 03:09 bootmgr.efi.mui

-rwxrwxrwx 1 staff 44896 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/es-ES:

total 392

-rwxrwxrwx 1 staff 77152 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 77152 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 45920 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/et-EE:

total 292

-rwxrwxrwx 1 staff 74592 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 74592 Aug 22 2013 bootmgr.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/fi-FI:

total 389

-rwxrwxrwx 1 staff 76640 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 76640 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 45408 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/fr-FR:

total 398

-rwxrwxrwx 1 staff 78688 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 78688 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 45920 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/hr-HR:

total 298

-rwxrwxrwx 1 staff 76128 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 76128 Aug 22 2013 bootmgr.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/hu-HU:

total 396

-rwxrwxrwx 1 staff 78176 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 78176 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 45920 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/it-IT:

total 389

-rwxrwxrwx 1 staff 76640 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 76640 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 45400 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/ja-JP:

total 348

-rwxrwxrwx 1 staff 67424 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 67424 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 42848 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/ko-KR:

total 346

-rwxrwxrwx 1 staff 66912 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 66912 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 42840 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/lt-LT:

total 296

-rwxrwxrwx 1 staff 75616 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 75616 Aug 22 2013 bootmgr.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/lv-LV:

total 294

-rwxrwxrwx 1 staff 75104 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 75104 Aug 22 2013 bootmgr.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/nb-NO:

total 383

-rwxrwxrwx 1 staff 75104 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 75104 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 45408 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/nl-NL:

total 393

-rwxrwxrwx 1 staff 77664 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 77664 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 45408 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/pl-PL:

total 394

-rwxrwxrwx 1 staff 77664 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 77664 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 45912 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/pt-BR:

total 387

-rwxrwxrwx 1 staff 76128 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 76128 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 45408 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/pt-PT:

total 390

-rwxrwxrwx 1 staff 76640 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 76640 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 45920 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/qps-ploc:

total 376

-rwxrwxrwx 1 staff 73560 Nov 21 2014 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 73560 Nov 21 2014 bootmgr.efi.mui

-rwxrwxrwx 1 staff 44896 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/ro-RO:

total 296

-rwxrwxrwx 1 staff 75616 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 75616 Aug 22 2013 bootmgr.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/ru-RU:

total 388

-rwxrwxrwx 1 staff 76640 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 76640 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 44888 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/sk-SK:

total 300

-rwxrwxrwx 1 staff 76640 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 76640 Aug 22 2013 bootmgr.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/sl-SI:

total 298

-rwxrwxrwx 1 staff 76128 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 76128 Aug 22 2013 bootmgr.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/sr-Latn-CS:

total 388

-rwxrwxrwx 1 staff 76640 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 76640 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 44896 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/sr-Latn-RS:

total 300

-rwxrwxrwx 1 staff 76640 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 76640 Aug 22 2013 bootmgr.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/sv-SE:

total 386

-rwxrwxrwx 1 staff 76128 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 76128 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 44896 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/tr-TR:

total 383

-rwxrwxrwx 1 staff 75104 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 75104 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 45408 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/uk-UA:

total 300

-rwxrwxrwx 1 staff 76640 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 76640 Aug 22 2013 bootmgr.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/zh-CN:

total 333

-rwxrwxrwx 1 staff 63840 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 63840 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 42336 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/zh-HK:

total 333

-rwxrwxrwx 1 staff 63832 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 63840 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 42336 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Boot/zh-TW:

total 333

-rwxrwxrwx 1 staff 63840 Aug 22 2013 bootmgfw.efi.mui

-rwxrwxrwx 1 staff 63840 Aug 22 2013 bootmgr.efi.mui

-rwxrwxrwx 1 staff 42336 Oct 30 03:09 memtest.efi.mui

/Volumes/EFI/EFI/Microsoft/Recovery:

total 80

-rwxrwxrwx 1 staff 16384 Dec 4 02:43 BCD

-rwxrwxrwx 1 staff 24576 Dec 4 02:40 BCD.LOG

-rwxrwxrwx 1 staff 0 Dec 4 02:40 BCD.LOG1

-rwxrwxrwx 1 staff 0 Dec 4 02:40 BCD.LOG2

/Volumes/EFI/Temp:

total 25

-rwxrwxrwx 1 staff 7024 Dec 13 19:29 SrtTrail.log

-rwxrwxrwx 1 staff 2432 Dec 13 19:29 SrtTrail.txt

-rwxrwxrwx 1 staff 198 Dec 13 19:28 bcdinfo.txt

-rwxrwxrwx 1 staff 4 Aug 27 16:50 bootfailure.txt

-rwxrwxrwx 1 staff 1990 Dec 13 19:29 disklayout.txt

Reply

Answer 3

Loner T

Level 9

59,536 points

Dec 17, 2015 6:57 AM in response to hiscapness

You will need to rebuild the BCD in /Volumes/EFI/EFI/Microsoft/Boot using bootrec.exe /rebuildBCD.

Reply

Answer 4

hiscapness Author

Level 1

0 points

Dec 17, 2015 6:58 AM in response to Loner T

What's the easiest way to do this without impacting my OSX partition?

I appreciate your help.

I have a thumb drive with the Win 8.1 installation I used to originally set up the partition via BCA. Is this what I should use to launch CMD to do this? Is there a good reference post you could suggest to follow so I don't mess this up?

Reply

Answer 5

Loner T

Level 9

59,536 points

Dec 17, 2015 7:05 AM in response to hiscapness

Use the BCA-create W8.1 thumb-drive installer, boot from it and use Repair option to get to command prompt and then you can rebuild BCD using bootrec.exe.

Reply

Answer 6

hiscapness Author

Level 1

0 points

Dec 17, 2015 8:25 AM in response to Loner T

Thanks much - will try.

Could this have occurred (this is the third time my entire Windows 10 installation has been corrupted in the same way) with having the external backup Time Machine USB drive connected when I boot into Windows? Should I never have it connected or does this have nothing to do with this problem?

Reply

Answer 7

Loner T

Level 9

59,536 points

Dec 17, 2015 8:38 AM in response to hiscapness

Unless you restore from TM, they are independent. The primary issue is due to software upgrades of El Capitan. I personally dislike using the Mac EFI partition for BCD. On my Macs, the EFI installations of Windows use their own dedicated MSR. OSX Spotlight is also notorious.

Reply

Answer 8

hiscapness Author

Level 1

0 points

Dec 17, 2015 8:49 AM in response to Loner T

How would I make my Windows install use its own MSR (assuming EFI install)?

Also, dumb question: I can't seem to start recovery console from my BCA thumb drive. I've tried holding down R at start, Cmd + F8, etc. How can I launch it?

Reply

Answer 9

Loner T

Level 9

59,536 points

Dec 17, 2015 8:54 AM in response to hiscapness

You will need to remove (using BCA)/re-install Windows using EFI Boot, and create a Free Space partition via Disk Utility and point the EFI Installer to this Free Space, which will become 128MB MSR and rest will be NTFS for Windows.

Reply

Answer 10

hiscapness Author

Level 1

0 points

Dec 17, 2015 9:16 AM in response to Loner T

Great - any idea how to boot into recover console using my BCA thumb drive? Every time it reboots I go into Windows Setup no matter if I press F8 (or fn + F8) or R. If I let it go through the install screens I just get to the partition screen with no repair option.

Reply

Answer 11

Loner T

Level 9

59,536 points

Dec 17, 2015 10:52 AM in response to hiscapness

If you boot from the Installer USB, do you see a Repair option at the bottom left corner of the Installer?

Reply

Answer 12

Loner T

Level 9

59,536 points

Dec 17, 2015 11:16 AM in response to hiscapness

Can you try the Shift or Fn+Shift key?

Reply

Answer 13

hiscapness Author

Level 1

0 points

Dec 17, 2015 11:49 AM in response to Loner T

I do not see any text on screen ever when booting that's related to Repair or Recovery. I just see white terminal / DOS text at the top of a black screen that says something to the effect of, "booting from boot camp assistant created usb drive...".

Then the Windows 8.1 logo appears (the white windows logo on the light blue background), followed by a dark blue background with 'Setup is Starting' across the bottom. The system then starts Windows setup.

Tried Shift and fn + Shift - no dice. Still no recovery console.

Reply

Answer 14

Loner T

Level 9

59,536 points

Dec 17, 2015 11:49 AM in response to hiscapness

After Setup has started and you enter Language and Region, what options do you see on the screen?

Reply

Answer 15

hiscapness Author

Level 1

0 points

Dec 17, 2015 11:50 AM in response to Loner T

It goes to the partition table screen (I also have to enter my Windows Key first) where you format drives/partitions on which you wish to install Windows. No Repair options there either.

Reply
