Hello, I'm new for mac and OS X. so i need some help please

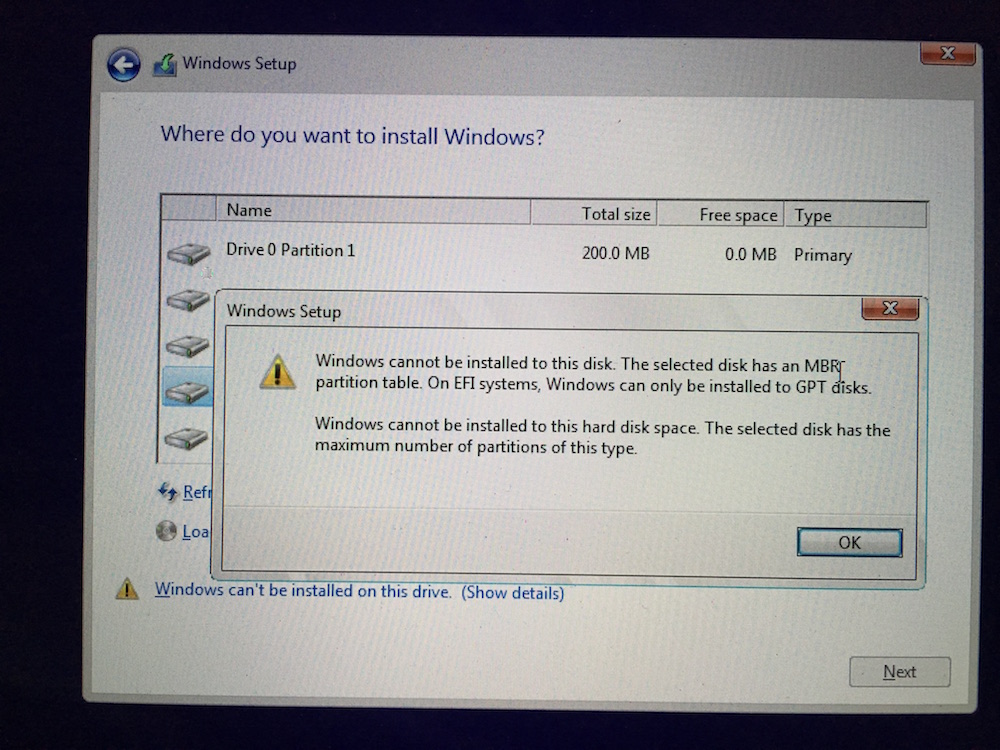

I have Macbook 13 OX S 10.11.2 and windows 10. I make a new partition to share files between this 2 system but after that i could not enter my windows ( windows showing an error asking me to repair or put CD or USB )
I hope I can get help here ..
OS X El Capitan (10.11.2)

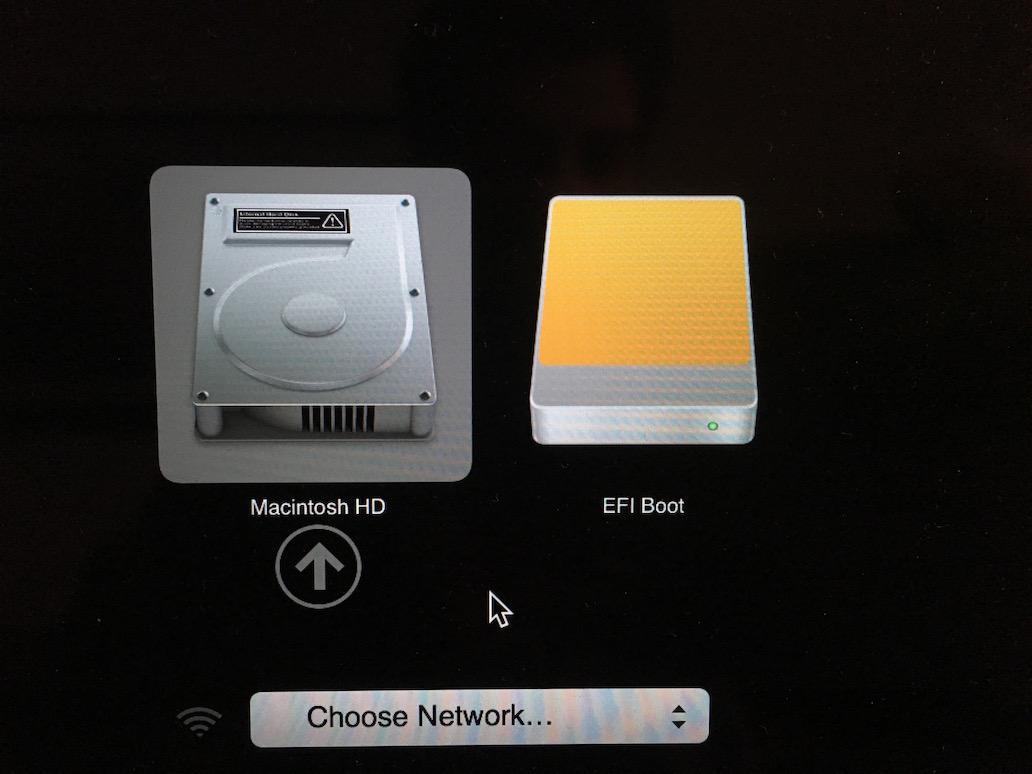

It is EFI boot , is there any other way to make this boot USB to work out. Please tell me the next step
Please post the output of sudo fdisk /dev/disk0 . The ALLFILES FAT32 would have created an MBR, but let us confirm.
Tamouhs-MacBook-Pro:~ tamouhadla$ sudo fdisk /dev/disk0
Password:
Disk: /dev/disk0 geometry: 30515/255/63 [490234752 sectors]
Signature: 0xAA55
Starting Ending
#: id cyl hd sec - cyl hd sec [ start - size]
------------------------------------------------------------------------
1: EE 1023 254 63 - 1023 254 63 [ 1 - 409639] <Unknown ID>
2: AC 1023 254 63 - 1023 254 63 [ 409640 - 244865632] <Unknown ID>
3: AB 1023 254 63 - 1023 254 63 [ 245275272 - 1269536] Darwin Boot
4: 0B 1023 254 63 - 1023 254 63 [ 363732992 - 126500864] Win95 FAT-32
Tamouhs-MacBook-Pro:~ tamouhadla$
Please check it.
Tamouh A wrote:
Disk: /dev/disk0 geometry: 30515/255/63 [490234752 sectors]
Signature: 0xAA55
Starting Ending
#: id cyl hd sec - cyl hd sec [ start - size]
------------------------------------------------------------------------
1: EE 1023 254 63 - 1023 254 63 [ 1 - 409639] <Unknown ID>
2: AC 1023 254 63 - 1023 254 63 [ 409640 - 244865632] <Unknown ID>
3: AB 1023 254 63 - 1023 254 63 [ 245275272 - 1269536] Darwin Boot
4: 0B 1023 254 63 - 1023 254 63 [ 363732992 - 126500864] Win95 FAT-32
And your GPT is
40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B
409640 244865632 2 GPT part - 53746F72-6167-11AA-AA11-00306543ECAC
245275272 1269536 3 GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC
246544808 117188184
363732992 126500864 4 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7
so it does match. We need to delete the MBR, if we need to run the EFI Boot.
Do you have Gdisk installed? If yes, then (do not enter anything inside the parenthesis which is an explanation)
sudo gdisk /dev/disk0
x (Experts menu..)
n (create a new protective MBR)
o (print the MBR)
w (write)
y (confirm write)
Reboot and try your EFI Boot.
To make every thing clear to me , first what is Gdisk ??
Sorry , I just remembered
I install it yesterday .. but how i can confirm that completely installed ?
Thanks
Please check this
Tamouhs-MacBook-Pro:~ tamouhadla$ sudo gdisk /dev/disk0
Password:
GPT fdisk (gdisk) version 1.0.1
Warning: Devices opened with shared lock will not have their
partition table automatically reloaded!
NOTE: Write test failed with error number 1. It will be impossible to save
changes to this disk's partition table!
You may need to deactivate System Integrity Protection to use this program. See
https://www.quora.com/How-do-I-turn-off-the-rootless-in-OS-X-El-Capitan-10-11
for more information.
Partition table scan:
MBR: hybrid
BSD: not present
APM: not present
GPT: present
Found valid GPT with hybrid MBR; using GPT.
Command (? for help): x
Expert command (? for help): n
Expert command (? for help): o
Disk size is 490234752 sectors (233.8 GiB)
MBR disk identifier: 0x00000000
MBR partitions:
Number Boot Start Sector End Sector Status Code
1 1 490234751 primary 0xEE
Expert command (? for help): w
Final checks complete. About to write GPT data. THIS WILL OVERWRITE EXISTING
PARTITIONS!!
Do you want to proceed? (Y/N): y
OK; writing new GUID partition table (GPT) to /dev/disk0.
Warning: Devices opened with shared lock will not have their
partition table automatically reloaded!
Unable to open device '/dev/disk0' for writing! Errno is 1! Aborting write!
Expert command (? for help):
I guess it's fails because I need to deactivate System Integrity Protection. should i follow the steps here "https://www.quora.com/How-do-I-turn-off-the-rootless-in-OS-X-El-Capitan-10-11"
Thanks
Can you look at Re: Repairing bootcamp after making new partition ?
Thanks a lot for your help. It's work like a charm and every thing is fine.
and I really appreciate the long time you speed to help me 🙂🙂🙂
Thanks agin 😀
1. Please back up OS X, Windows and create a Windows System Restore point.
2. Can you post the output of
diskutil list
diskutil cs list
sudo gpt -vv -r show /dev/disk0
sudo fdisk /dev/disk0
Tamouhs-MacBook-Pro:~ tamouhadla$ diskutil list
/dev/disk0 (internal, physical):
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *251.0 GB disk0
1: EFI EFI 209.7 MB disk0s1
2: Apple_CoreStorage Macintosh HD 125.4 GB disk0s2
3: Apple_Boot Recovery HD 650.0 MB disk0s3
4: Microsoft Reserved 16.8 MB disk0s4
5: Microsoft Basic Data BOOTCAMP 60.0 GB disk0s5
6: Microsoft Basic Data ALLFILES 64.8 GB disk0s6
/dev/disk1 (internal, virtual):
#: TYPE NAME SIZE IDENTIFIER
0: Apple_HFS Macintosh HD +125.0 GB disk1
Logical Volume on disk0s2
97BB6DDF-8164-4B66-B79B-1D7F8D4E7AC4
Unencrypted
/dev/disk2 (external, physical):
#: TYPE NAME SIZE IDENTIFIER
0: FDisk_partition_scheme *8.0 GB disk2
1: DOS_FAT_32 NO NAME 8.0 GB disk2s1
Tamouhs-MacBook-Pro:~ tamouhadla$ diskutil cs list
CoreStorage logical volume groups (1 found)
|
+-- Logical Volume Group 8846EEFC-396A-476F-857B-8FE68592319F
=========================================================
Name: Macintosh HD
Status: Online
Size: 125371203584 B (125.4 GB)
Free Space: 0 B (0 B)
|
+-< Physical Volume 62E03267-742E-4D72-9988-25C08928FF67
| ----------------------------------------------------
| Index: 0
| Disk: disk0s2
| Status: Online
| Size: 125371203584 B (125.4 GB)
|
+-> Logical Volume Family B0582EE2-D684-40B5-A9C8-BB608E57F1BF
----------------------------------------------------------
Encryption Type: None
|
+-> Logical Volume 97BB6DDF-8164-4B66-B79B-1D7F8D4E7AC4
---------------------------------------------------
Disk: disk1
Status: Online
Size (Total): 125018882048 B (125.0 GB)
Revertible: Yes (no decryption required)
LV Name: Macintosh HD
Volume Name: Macintosh HD
Content Hint: Apple_HFS
Tamouhs-MacBook-Pro:~ tamouhadla$ sudo gpt -vv -r show /dev/disk0
Password:
gpt show: /dev/disk0: mediasize=251000193024; sectorsize=512; blocks=490234752
gpt show: /dev/disk0: PMBR at sector 0
gpt show: /dev/disk0: Pri GPT at sector 1
gpt show: /dev/disk0: Sec GPT at sector 490234751
start size index contents
0 1 PMBR
1 1 Pri GPT header
2 32 Pri GPT table
34 6
40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B
409640 244865632 2 GPT part - 53746F72-6167-11AA-AA11-00306543ECAC
245275272 1269536 3 GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC
246544808 1624
246546432 32768 4 GPT part - E3C9E316-0B5C-4DB8-817D-F92DF00215AE
246579200 117153792 5 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7
363732992 126500864 6 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7
490233856 863
490234719 32 Sec GPT table
490234751 1 Sec GPT header
Tamouhs-MacBook-Pro:~ tamouhadla$ sudo fdisk /dev/disk0
Disk: /dev/disk0 geometry: 30515/255/63 [490234752 sectors]
Signature: 0xAA55
Starting Ending
#: id cyl hd sec - cyl hd sec [ start - size]
------------------------------------------------------------------------
1: EE 0 0 2 - 1023 255 63 [ 1 - 490234751] <Unknown ID>
2: 00 0 0 0 - 0 0 0 [ 0 - 0] unused
3: 00 0 0 0 - 0 0 0 [ 0 - 0] unused
4: 00 0 0 0 - 0 0 0 [ 0 - 0] unused
Tamouhs-MacBook-Pro:~ tamouhadla$
There is one thing , not so important, if it's so complicated it's fine.
I can't see my OS X partition from windows.
Your OSX Partition is a CoreStorage volume (disk1). There are no Windows drivers provided by Apple to read CS volumes. However, if you must see the OSX partition, the current state can be reverted.
Revertible: Yes (no decryption required)
If you want to test, ,please run the following command.
diskutil cs revert disk1
We use disk1 which is the CS volume, not disk0s2 which is the underlying physical disk.
Loner T, I see you have extensive knowledge concerning the topic, and I wish you could help me with a similar problem.
fyi I'm on El Capitan.
I installed windows 10 via bootcamp, without any external drives, on my 256GB ssd. I then used disk utitlity to create a shared partition by shrinking the OSX partition. After that, when I boot into windows it shows me the recovery screen, like Tamouh A's. As I said, I'm not familiar with the topic, so please, help me with each step.
Thanks.
Can i suggest a new discussion with the output of the following commands in the new discussion?
diskutil list
diskutil cs list
sudo gpt -vv -r show /dev/disk0
sudo fdisk /dev/disk0
Repairing bootcamp after making new partition
