bootcamp partition renamed untitled after booting in MacOS

Question

Level 1

5 points

bootcamp partition renamed untitled after booting in MacOS

Can anybody please help me ?

I had succesfully installed Windows 10 on my Macbook Pro and ran Windows already several weeks smoothly.

Unfortunately I did not make a backup of my windows files yet.

Today when I booted to El Capitan to connect my iPad to iTunes Windows gave me a message that it needed repair when I tried to reboot to the bootcamp Windows version.

It did not succeed in repairing and only gave my an advanced options menu.

I booted back into MacOS to find that the windows partition was renamed to 'Untitled' and that no files were visible in Finder.

I than ran Disk Utility and selected First Aid on this partition, I thought this was read only to check for disk errors.

Now when booting from Windows it says no operation system available and Disk Utility shows 496 GB empty space on this partition !

I hope not all my files are lost !!

What can I do to repair the bootcamp partition ? I tried to install setup bootcamp files on USB but cannot boot from USB (does not show the USB drive)

thank you !

Olivier

MacBook Pro, OS X El Capitan (10.11.3), Bootcamp Windows 10

Posted on Apr 5, 2016 11:34 AM

Reply

Answer 1

ozeegers Author

Level 1

5 points

Apr 10, 2016 11:47 AM in response to Loner T

Alright thank you, I've tried to look it up but too risky without appropriate knowledge.... 😉

Reply

Answer 2

Loner T

Level 9

59,536 points

Apr 10, 2016 3:34 PM in response to ozeegers

Here is an example - Re: Unable to boot into mac or bootcamp . Please disable SIP, it it is not already disabled. You will repeat step A, because it is generic.

Step B. will have your values, which you should verify/match with your GDisk 'p' command output.

sudo gdisk /dev/rdisk0

x

l (This is is lower case L )

1 (This is digit 1 )

m (Go to main menu)

n (New)

1

40

409639

EF00

n

2

409640

538608447

AF00

n

3

538608448

539877983

AB00

n

4

539877984

1464886983

0700

p

w

y

Reply

Answer 3

ozeegers Author

Level 1

5 points

Apr 11, 2016 12:09 AM in response to Loner T

output from gdisk p command:

Command (? for help): p

Disk /dev/disk0: 1465149168 sectors, 698.6 GiB

Logical sector size: 512 bytes

Disk identifier (GUID): 0000324C-0DFF-0000-ED08-0000FD0D0000

Partition table holds up to 128 entries

First usable sector is 34, last usable sector is 1465149134

Partitions will be aligned on 8-sector boundaries

Total free space is 262157 sectors (128.0 MiB)

Number Start (sector) End (sector) Size Code Name

1 40 409639 200.0 MiB EF00 EFI system partition

2 409640 538608447 256.6 GiB AF00 Customer

3 538608448 539877983 619.9 MiB AB00 Recovery HD

4 539877984 1464886983 441.1 GiB 0700 DOS_FAT_32_Untitled_2

Reply

Answer 4

ozeegers Author

Level 1

5 points

Apr 11, 2016 12:22 AM in response to ozeegers

partition number out of range ! should there be a preceding 'o' command (create a new GPT) ?

Command (? for help): x

Expert command (? for help): ?
a set attributes
c change partition GUID
d display the sector alignment value
e relocate backup data structures to the end of the disk
g change disk GUID
h recompute CHS values in protective/hybrid MBR
i show detailed information on a partition
l set the sector alignment value
m return to main menu
n create a new protective MBR
o print protective MBR data
p print the partition table
q quit without saving changes
r recovery and transformation options (experts only)
s resize partition table
t transpose two partition table entries
u replicate partition table on new device
v verify disk
w write table to disk and exit
z zap (destroy) GPT data structures and exit
? print this menu

Expert command (? for help): l
Enter the sector alignment value (1-65536, default = 2048): 1

Expert command (? for help): m

Command (? for help): n
Partition number (5-128, default 5): 1
Value out of range
Partition number (5-128, default 5):

Reply

Answer 5

Loner T

Level 9

59,536 points

Apr 11, 2016 7:59 AM in response to ozeegers

You have not run step A yet, and created a new GPT.

Reply

Answer 6

ozeegers Author

Level 1

5 points

Apr 11, 2016 8:36 AM in response to Loner T

okay, and I need to use rdisk0 instead of disk0 ? could you explain why that is ? thanks

Reply

Answer 7

Loner T

Level 9

59,536 points

Apr 11, 2016 8:41 AM in response to ozeegers

For Step A, you can use either. To be consistent, use the same for both steps A and B.

Reply

Answer 8

ozeegers Author

Level 1

5 points

Apr 11, 2016 9:42 AM in response to Loner T

Disk /dev/rdisk0: 1465149168 sectors, 698.6 GiB

Logical sector size: 512 bytes

Disk identifier (GUID): BE924D70-1CD5-4EDB-9B44-947B2100D347

Partition table holds up to 128 entries

First usable sector is 34, last usable sector is 1465149134

Partitions will be aligned on 1-sector boundaries

Total free space is 262157 sectors (128.0 MiB)

Number Start (sector) End (sector) Size Code Name

1 40 409639 200.0 MiB EF00 EFI System

2 409640 538608447 256.6 GiB AF00 Apple HFS/HFS+

3 538608448 539877983 619.9 MiB AB00 Recovery HD

4 539877984 1464886983 441.1 GiB 0700 Microsoft basic data

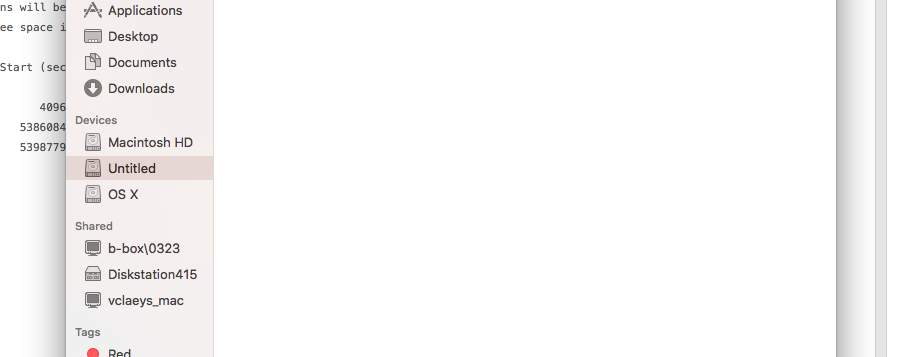

in finder Untitled visible but no files.... files on Macintosh HD intact....

is this worrisome ?

Reply

Answer 9

Loner T

Level 9

59,536 points

Apr 11, 2016 1:12 PM in response to ozeegers

What is the output of

sudo gpt -vv -r show /dev/disk0

Right now, your MBR is configured to show NTFS. We can modify one value and see if FAT32 brings back any files.

Reply

Answer 10

ozeegers Author

Level 1

5 points

Apr 11, 2016 10:12 PM in response to Loner T

sudo gpt -vv -r show /dev/disk0

Password:

gpt show: /dev/disk0: mediasize=750156374016; sectorsize=512; blocks=1465149168

gpt show: /dev/disk0: PMBR at sector 0

gpt show: /dev/disk0: Pri GPT at sector 1

gpt show: /dev/disk0: Sec GPT at sector 1465149167

start size index contents

0 1 PMBR

1 1 Pri GPT header

2 32 Pri GPT table

34 6

40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

409640 538198808 2 GPT part - 48465300-0000-11AA-AA11-00306543ECAC

538608448 1269536 3 GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC

539877984 925009000 4 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

1464886984 262151

1465149135 32 Sec GPT table

1465149167 1 Sec GPT header

Reply

Answer 11

ozeegers Author

Level 1

5 points

Apr 11, 2016 10:20 PM in response to ozeegers

don't i see files because El Capitan is not able to read and write NTFS ?

see http://macdrug.com/free-ntfs-read-and-write-solutions-in-mac-os-x-el-capitan-or- older/

Reply

Answer 12

Loner T

Level 9

59,536 points

Apr 12, 2016 5:48 AM in response to ozeegers

There is a read-only KEXT for NTFS in OS X. It can also write, but is disabled by default. If you feel adventurous, please see http://www.cnet.com/news/how-to-manually-enable-ntfs-read-and-write-in-os-x/ .

The issue you have is that the partition is FAT, not NTFS. Have you used Testdisk in the past?

Reply

Answer 13

ozeegers Author

Level 1

5 points

Apr 12, 2016 11:12 PM in response to Loner T

sorry, I do not have any experience with mac OS until now.

Used to have windows machines since my youth...

getting to like the mac OS though..

I have read about testdisk in the other post....

what do I do with it ? I am really anxious to be able to reach my emails on my bootcamp windows again..

thank you

Reply

Answer 14

ozeegers Author

Level 1

5 points

Apr 13, 2016 12:07 AM in response to Loner T

can you provide me with a link to the download of testdisk ? I downloaded a version that cannot be run ?

Is this also a command that should be run from within terminal or should I start it by double click on its icon ?

Reply

Answer 15

Loner T

Level 9

59,536 points

Apr 13, 2016 5:15 AM in response to ozeegers

You can download Testdisk from http://www.cgsecurity.org/wiki/TestDisk_Download .

Please see El Capitan has deleted my bootcamp windows partition as an example of it's use to discover 'lost' partitions.

Let us make sure we do not make things worse. We want to avoid permanent data loss.

Reply
