I really need help! Bootcamp Partition GONE! Loner T please Help!

Hello. I Have been using Windows 7 with Bootcamp on my Macbook Pro Late 2013 15 inch Retina 16GB 2.6GHz Core i7 since I bought the computer brand new. I turned on my mac the other day and out of nowhere, the Windows Partition was gone. The only thing that I did do differently was that I turned on FileVault and encrypted my system. I am wondering if it affected my partition because of that? I am not sure. I am nervous, though because I have all of my really important work files on the partition and I haven't been able to access them at all.

Everything I tried to do so far:

I tried plugging my MBP into my iMac and booting it in target disk mode and I couldn't find any files from the Windows partition. For some odd reason the bootcamp partition is greyed out in Disk Utilities and it is now called "disk0s4."

I have a Windows 7 disk that I was able to boot from and it was about to install Windows but I was afraid that it was going to overwrite everything so I canceled it.

When I boot my MBP now and hold alt, like I used to always have to do to get into Windows, it shows 2 "Macintosh HDs" whereas it used to show one "Macintosh HD" one "Recovery Drive" and one "Windows" drive. (I am guessing that by encrypting the drive it may have messed up the naming of the voumes... Not sure)

I have turned off FileVault, unlocked, and decrypted the system to see if it would help but no luck.

I tried hitting verify disk and then repair disk and nothing worked.

I also tried to hit mount disk and that did nothing.

Is there any way I can access the files on the partition if there is no possible way to install windows 7 again without overwriting everything?

To anyone who helps answer this, thank you in advance. I am so stuck!!!

I have been reading the forums and I saw that "Loner T" asked someone to type in these commands in terminal:

diskutil list

diskutil cs list

sudo gpt -vv -r show /dev/disk0

sudo fdisk /dev/disk0

Check my terminal results below: I also attached the text file of the terminal session.

Last login: Fri May 6 06:40:05 on ttys000

Bennys-MacBook-Pro:~ djrelentt$ diskutil list

/dev/disk0

#: TYPE NAME SIZE IDENTIFIER

0: GUID_partition_scheme *1.0 TB disk0

1: EFI EFI 209.7 MB disk0s1

2: Apple_HFS Macintosh HD 623.4 GB disk0s2

3: Apple_Boot Recovery HD 650.0 MB disk0s3

4: Microsoft Basic Data 202.0 GB disk0s4

Bennys-MacBook-Pro:~ djrelentt$ diskutil cs list

No CoreStorage logical volume groups found

Bennys-MacBook-Pro:~ djrelentt$

Bennys-MacBook-Pro:~ djrelentt$ sudo gpt -vv -r show /dev/disk0

gpt show: /dev/disk0: mediasize=1000555581440; sectorsize=512; blocks=1954210120

gpt show: /dev/disk0: Suspicious MBR at sector 0

gpt show: /dev/disk0: Pri GPT at sector 1

gpt show: /dev/disk0: Sec GPT at sector 1954210119

start size index contents

0 1 MBR

1 1 Pri GPT header

2 32 Pri GPT table

34 6

40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B

409640 1217596352 2 GPT part - 48465300-0000-11AA-AA11-00306543ECAC

1218005992 1269536 3 GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC

1219275528 340403448

1559678976 394530816 4 GPT part - EBD0A0A2-B9E5-4433-87C0-68B6B72699C7

1954209792 295

1954210087 32 Sec GPT table

1954210119 1 Sec GPT header

Bennys-MacBook-Pro:~ djrelentt$ sudo fdisk /dev/disk0

Disk: /dev/disk0 geometry: 121643/255/63 [1954210120 sectors]

Signature: 0xAA55

Starting Ending

#: id cyl hd sec - cyl hd sec [ start - size]

------------------------------------------------------------------------

1: EE 1023 254 63 - 1023 254 63 [ 1 - 409639] <Unknown ID>

2: AF 1023 254 63 - 1023 254 63 [ 409640 - 1217596352] HFS+

3: AB 1023 254 63 - 1023 254 63 [1218005992 - 1269536] Darwin Boot

4: 0C 1023 254 63 - 1023 254 63 [1559678976 - 394530816] Win95 FAT32L

Bennys-MacBook-Pro:~ djrelentt$

MacBook Pro with Retina display, OS X Mavericks (10.9.5), Late 2013 2.6GHz Core i7 Processor

Posted on May 6, 2016 3:50 AM

69 replies

Loner T

Level 9

59,471 points

May 6, 2016 9:33 PM in response to djrelentt

Please use the 'p' command on the second MS Data entry from the top of the listing.

djrelentt Author

Level 1

14 points

May 6, 2016 9:36 PM in response to Loner T

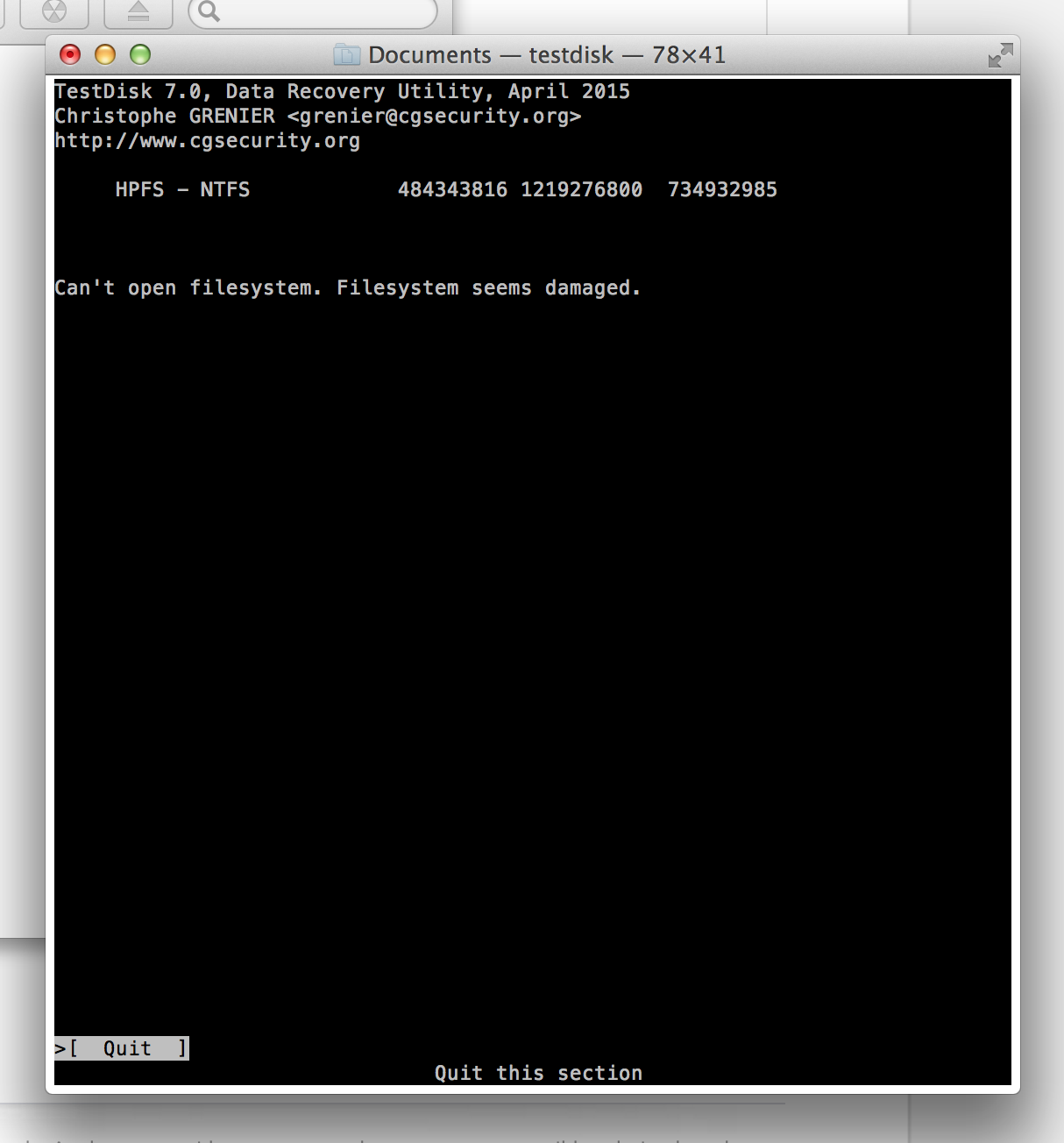

Oh noooo!

Loner T

Level 9

59,471 points

May 6, 2016 9:38 PM in response to djrelentt

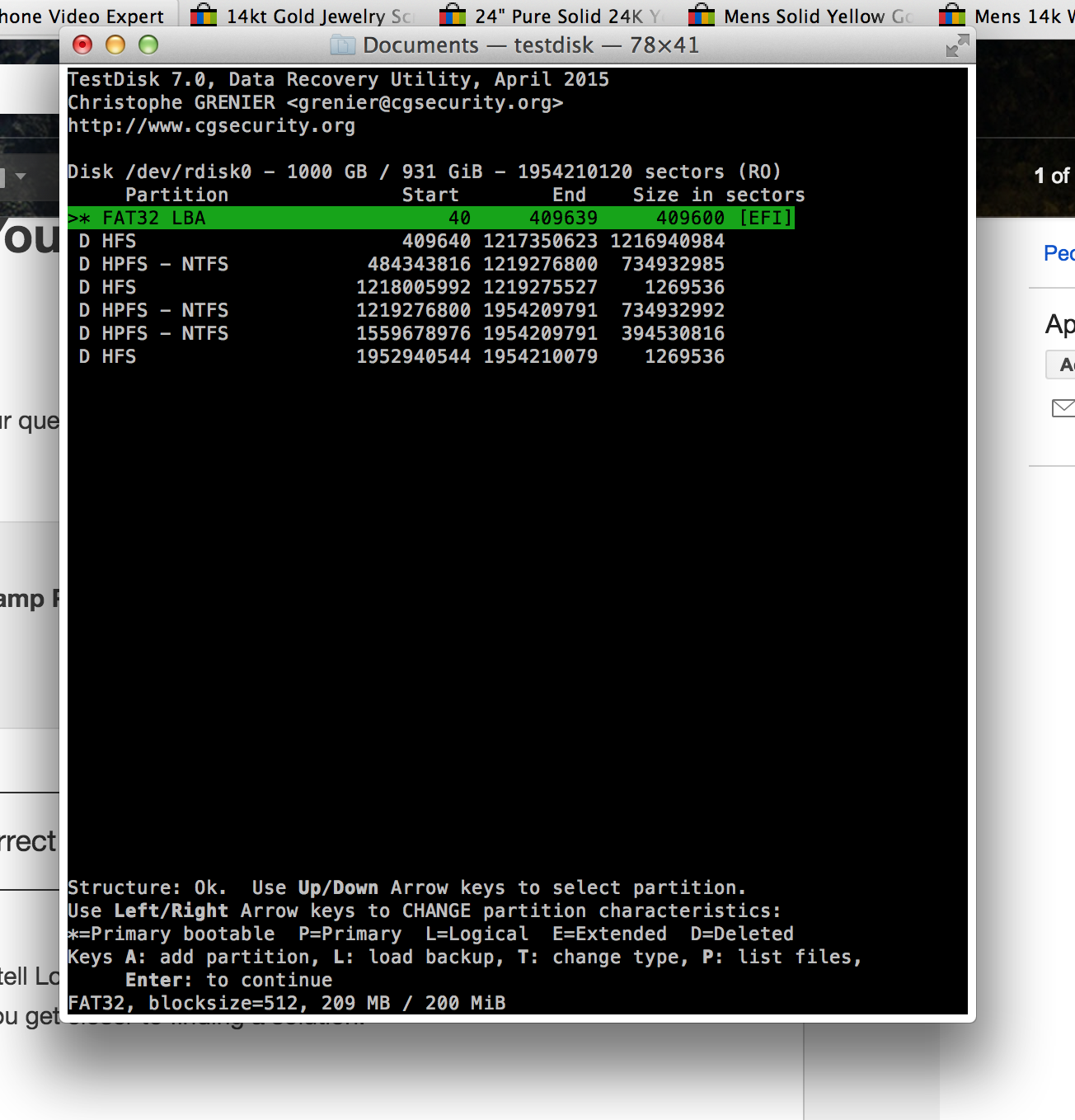

You need to use the second MS Data entry, not the first one. It is invalid. Please press Escape (only once, not more than once) and get back to your list.

djrelentt Author

Level 1

14 points

May 6, 2016 9:41 PM in response to Loner T

I got it.

Loner T

Level 9

59,471 points

May 6, 2016 9:44 PM in response to djrelentt

djrelentt wrote:

On this screen, use the 'p' command on the NTFS entry starting at 1219276800. This is the entry I had originally meant (MS Data and NTFS are synonymous).

djrelentt Author

Level 1

14 points

May 6, 2016 9:46 PM in response to Loner T

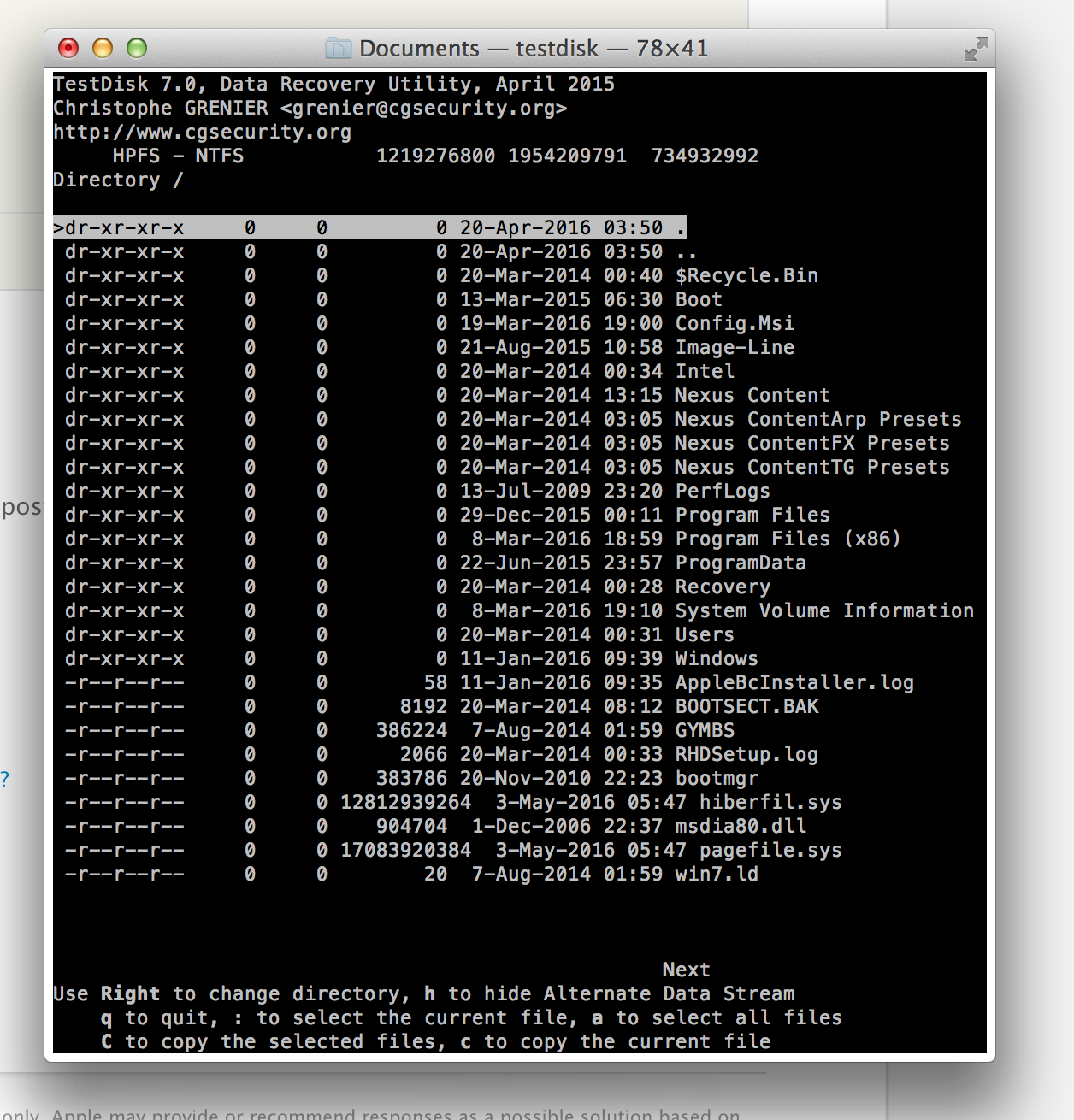

This is where I am at now.

Loner T

Level 9

59,471 points

May 6, 2016 9:47 PM in response to djrelentt

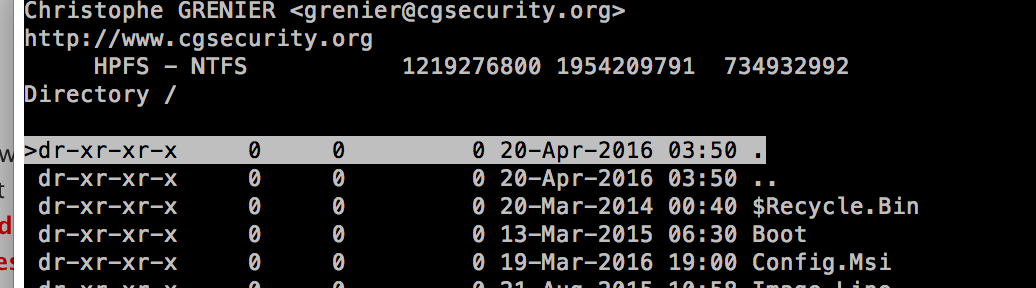

djrelentt wrote:

I got it.

On the line which says HPFS-NTFS, use the first and last number (start and size) in steps 7 and 8 in the first set of Gdisk steps as shown in Re: El Capitan has deleted my bootcamp windows partition . The second set of Gdisk steps are the same for all Macs.

djrelentt Author

Level 1

14 points

May 6, 2016 9:59 PM in response to Loner T

I am terrified that I am going to do something wrong and lose all of my files. I see the HPFS - NTFS line. The first number is the start? (1219276800) And the size is the 3rd set of numbers? (734932992)

If this is the case, I am trying to interpret the next forum you linked me to. Am I going to have to install and open gdisk while this terminal is open? Follow these directions and then skip to #7 and #8?

(Install GPT Fdisk (aka gdisk). Leave your Testdisk display and start a new Terminal Window. You need to use the following steps. If you see any error messages during the following steps, please stop and post back here with the error message. The following steps have values from your Testdisk output (and you can verify) in Steps 7 and 8. Please notice the'+' sign in step 8 (this is called offset notation). The text in parentheses is for informational purpose to describe the action being taken. Gdisk has one-character commands except when entering numbers.)

Loner T

Level 9

59,471 points

May 6, 2016 10:16 PM in response to djrelentt

djrelentt wrote:

I am terrified that I am going to do something wrong and lose all of my files. I see the HPFS - NTFS line. The first number is the start? (1219276800) And the size is the 3rd set of numbers? (734932992)

If this is the case, I am trying to interpret the next forum you linked me to. Am I going to have to install and open gdisk while this terminal is open? Follow these directions and then skip to #7 and #8?

You cannot skip steps 7 and 8. Step 7 for your specific case is 1219276800 and step 8 is +734932992. And yes, you will need to install Gdisk.

If you are running El Capitan, you will also need to disable SIP, before the first set of Gdisk steps, which means you will lose all the information from Testdisk, and must rely on what you have posted on this thread.

To disable SIP

1. Boot into Local Recovery (Command+R).

2. Start Utilities -> Terminal.

3. Type csrutil disable in Terminal and press Enter/Return.

4. Type csrutil status.

5. Boot normally, and type csrutil status to confirm that all individual entries are still disabled.

We are not touching any data content, but only manipulating partition start/end pointers.

djrelentt Author

Level 1

14 points

May 6, 2016 10:16 PM in response to Loner T

Ok. I am running Mavericks 10.9.5.

djrelentt Author

Level 1

14 points

May 6, 2016 10:20 PM in response to Loner T

I'm running Mavericks 10.9.5 and I Just installed gdisk but do not know what to do now. Do I have to open another terminal and open it that way? It doesn't show up in my applications.

Can't I just pay you to remote into my laptop and do it for me!? Haha

djrelentt Author

Level 1

14 points

May 6, 2016 10:27 PM in response to Loner T

I did it I hope!

Read below

Last login: Sat May 7 00:15:22 on ttys000

Bennys-MacBook-Pro:~ djrelentt$ Sudo gdisk /dev/rdisk0

Password:

GPT fdisk (gdisk) version 1.0.1

Warning: Devices opened with shared lock will not have their

partition table automatically reloaded!

Partition table scan:

MBR: hybrid

BSD: not present

APM: not present

GPT: present

Found valid GPT with hybrid MBR; using GPT.

Command (? for help): p

Disk /dev/rdisk0: 1954210120 sectors, 931.8 GiB

Logical sector size: 512 bytes

Disk identifier (GUID): 496DE6A2-714F-4E75-85B3-9CCCF29A86BC

Partition table holds up to 128 entries

First usable sector is 34, last usable sector is 1954210086

Partitions will be aligned on 8-sector boundaries

Total free space is 340403749 sectors (162.3 GiB)

Number Start (sector) End (sector) Size Code Name

1 40 409639 200.0 MiB EF00 EFI System Partition

2 409640 1218005991 580.6 GiB AF00 Macintosh HD

3 1218005992 1219275527 619.9 MiB AB00 Recovery HD

4 1559678976 1954209791 188.1 GiB 0700 BOOTCAMP

Command (? for help): D

Partition number (1-4): 4

Command (? for help): N

Partition number (4-128, default 4): 4

First sector (34-1954210086, default = 1219275528) or {+-}size{KMGTP}: 4

First sector (34-1954210086, default = 1219275528) or {+-}size{KMGTP}: 1219276800

Last sector (1219276800-1954210086, default = 1954210086) or {+-}size{KMGTP}: +734932992

Current type is 'Apple HFS/HFS+'

Hex code or GUID (L to show codes, Enter = AF00): 0700

Changed type of partition to 'Microsoft basic data'

Command (? for help): P

Disk /dev/rdisk0: 1954210120 sectors, 931.8 GiB

Logical sector size: 512 bytes

Disk identifier (GUID): 496DE6A2-714F-4E75-85B3-9CCCF29A86BC

Partition table holds up to 128 entries

First usable sector is 34, last usable sector is 1954210086

Partitions will be aligned on 8-sector boundaries

Total free space is 1573 sectors (786.5 KiB)

Number Start (sector) End (sector) Size Code Name

1 40 409639 200.0 MiB EF00 EFI System Partition

2 409640 1218005991 580.6 GiB AF00 Macintosh HD

3 1218005992 1219275527 619.9 MiB AB00 Recovery HD

4 1219276800 1954209791 350.4 GiB 0700 Microsoft basic data

Command (? for help): W

Final checks complete. About to write GPT data. THIS WILL OVERWRITE EXISTING

PARTITIONS!!

Do you want to proceed? (Y/N): Y

OK; writing new GUID partition table (GPT) to /dev/rdisk0.

Warning: Devices opened with shared lock will not have their

partition table automatically reloaded!

Warning: The kernel may continue to use old or deleted partitions.

You should reboot or remove the drive.

The operation has completed successfully.

Bennys-MacBook-Pro:~ djrelentt$

I am PRAYING that I did it right.... Should I restart my OSX and boot into OSX or use ALT and if the windows partition is there try that?

Loner T

Level 9

59,471 points

May 7, 2016 6:04 AM in response to djrelentt

What happens if I hold your computer hostage for a 1000$ on a Credit Charge? 😉. Be careful about making such offers.

Can't I just pay you to remote into my laptop and do it for me!? Haha

You need to run the second set of Gdisk steps and then run the four (4) tests.

djrelentt Author

Level 1

14 points

May 9, 2016 3:58 AM in response to Loner T

Haha, just a joke. Anyway, after following every step you have told me to do, I finally got my Bootcamp partition to show up in my FInder/Desktop!!! I copied all of my files onto a new hard drive so they are safe.

The only problem is that I cannot login to Windows. When I start the computer and hold OPTION, it does show the Windows partition, however, it doesn't boot. It just gets stuck on the black screen with the blinking _. At this point, do I have to reinstall Windows? Or can I boot from my Windows 7 disk, and try to do the Repair Windows option?

Thank you so much once again! I really appreciate your patience and all of your help thus far.

Loner T

Level 9

59,471 points

May 9, 2016 6:27 AM in response to djrelentt

djrelentt wrote:

At this point, do I have to reinstall Windows? Or can I boot from my Windows 7 disk, and try to do the Repair Windows option?

Please post the output of

sudo gpt -vv -r show /dev/disk0

sudo fdisk /dev/disk0

Let us make sure it is correct. If it is correct, you will need Startup Repair. Do not re-install Windows.
