So i try to remove Bootcamp through boot camp assistant. But it did not work, it was not able to remove Bootcamp it said. so it told me to check disk utility. I ran first aid option and nothing seemed to be wrong. But I can not choose boot camp anymore? It has disappeared. And it's just that I have 400 GB of space, but I have 1000gb fusion drive storage. would really appreciate some help. iMac 5k if somebody is wondering.
iMac with Retina 5K display
The gap after GPT3 is the 'stuck' disk space.
We need to temporarily disable SIP. Boot into Local Recovery using Command+R after your restart your Mac. Click on Utilities -> Terminal and run
csrutil status
csrutil disable
csrutil status
If it shows disabled, we then create a 'fake' GPT entry for the Free Space as
sudo gdisk /dev/disk1
x (Expert menu)
l (set sector alignment using "L" to...)
1 (one sector)
m (Main menu)
n (New)
4 (GPT4)
775804928 (Start)
+1177720207 (Size, notice the "+" sign)
0700 (Microsoft Basic Data)
p (Print)
w (Write)
y (Confirm write)
q (Quit Gdisk, if necessary)
Once you complete this, from Terminal, run
diskutil repairDisk disk0
and reboot again.
The gap after GPT3 is the 'stuck' disk space.
We need to temporarily disable SIP. Boot into Local Recovery using Command+R after your restart your Mac. Click on Utilities -> Terminal and run
csrutil status
csrutil disable
csrutil status
If it shows disabled, we then create a 'fake' GPT entry for the Free Space as
sudo gdisk /dev/disk1
x (Expert menu)
l (set sector alignment using "L" to...)
1 (one sector)
m (Main menu)
n (New)
4 (GPT4)
775804928 (Start)
+1177720207 (Size, notice the "+" sign)
0700 (Microsoft Basic Data)
p (Print)
w (Write)
y (Confirm write)
q (Quit Gdisk, if necessary)
Once you complete this, from Terminal, run
diskutil repairDisk disk0
and reboot again.
so I copied this from the terminal app, does this say you anything ?
Mios-iMac:~ mioblomberg$ diskutil cs list
CoreStorage logical volume groups (1 found)
|
+-- Logical Volume Group 95379926-5967-42DF-83E8-94A2BAE3E533
=========================================================
Name: Macintosh HD
Status: Online
Size: 419906109440 B (419.9 GB)
Free Space: 106496 B (106.5 KB)
|
+-< Physical Volume B640A19F-CE92-445F-8681-8D399D1915A7
| ----------------------------------------------------
| Index: 0
| Disk: disk1s2
| Status: Online
| Size: 23553724416 B (23.6 GB)
|
+-< Physical Volume 6D3B960F-5063-4A08-977D-DCC004486981
| ----------------------------------------------------
| Index: 1
| Disk: disk0s2
| Status: Online
| Size: 396352385024 B (396.4 GB)
|
+-> Logical Volume Family 978A448E-C1CD-435C-85F2-7D5798A98DA9
----------------------------------------------------------
Encryption Type: None
|
+-> Logical Volume 1E081667-FC46-418A-9868-58D7AA203DD9
---------------------------------------------------
Disk: disk2
Status: Online
Size (Total): 419001270272 B (419.0 GB)
Revertible: No
LV Name: Macintosh HD
Volume Name: Macintosh HD
Content Hint: Apple_HFS
LVG Type: Fusion, Sparse
Mios-iMac:~ mioblomberg$
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme 24.0 GB disk0
1: EFI EFI 314.6 MB disk0s1
2: Apple_CoreStorage Macintosh HD 23.6 GB disk0s2
3: Apple_Boot Boot OS X 134.2 MB disk0s3
/dev/disk1 (internal, physical):
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *1.0 TB disk1
1: EFI EFI 209.7 MB disk1s1
2: Apple_CoreStorage Macintosh HD 396.4 GB disk1s2
3: Apple_Boot Recovery HD 650.0 MB disk1s3
/dev/disk2 (internal, virtual):
#: TYPE NAME SIZE IDENTIFIER
0: Apple_HFS Macintosh HD +419.0 GB disk2
Logical Volume on disk0s2, disk1s2
1E081667-FC46-418A-9868-58D7AA203DD9
Unencrypted Fusion Drive
Mios-iMac:~ mioblomberg$
Last login: Fri Aug 11 20:38:48 on ttys000
Mios-iMac:~ mioblomberg$ sudo gpt -vv -r show /dev/disk1
Password:
gpt show: /dev/disk1: mediasize=1000204886016; sectorsize=512; blocks=1953525168
gpt show: /dev/disk1: PMBR at sector 0
gpt show: /dev/disk1: Pri GPT at sector 1
gpt show: /dev/disk1: Sec GPT at sector 1953525167
start size index contents
0 1 PMBR
1 1 Pri GPT header
2 32 Pri GPT table
34 6
40 409600 1 GPT part - C12A7328-F81F-11D2-BA4B-00A0C93EC93B
409640 774125752 2 GPT part - 53746F72-6167-11AA-AA11-00306543ECAC
774535392 1269536 3 GPT part - 426F6F74-0000-11AA-AA11-00306543ECAC
775804928 1177720207
1953525135 32 Sec GPT table
1953525167 1 Sec GPT header
Mios-iMac:~ mioblomberg$

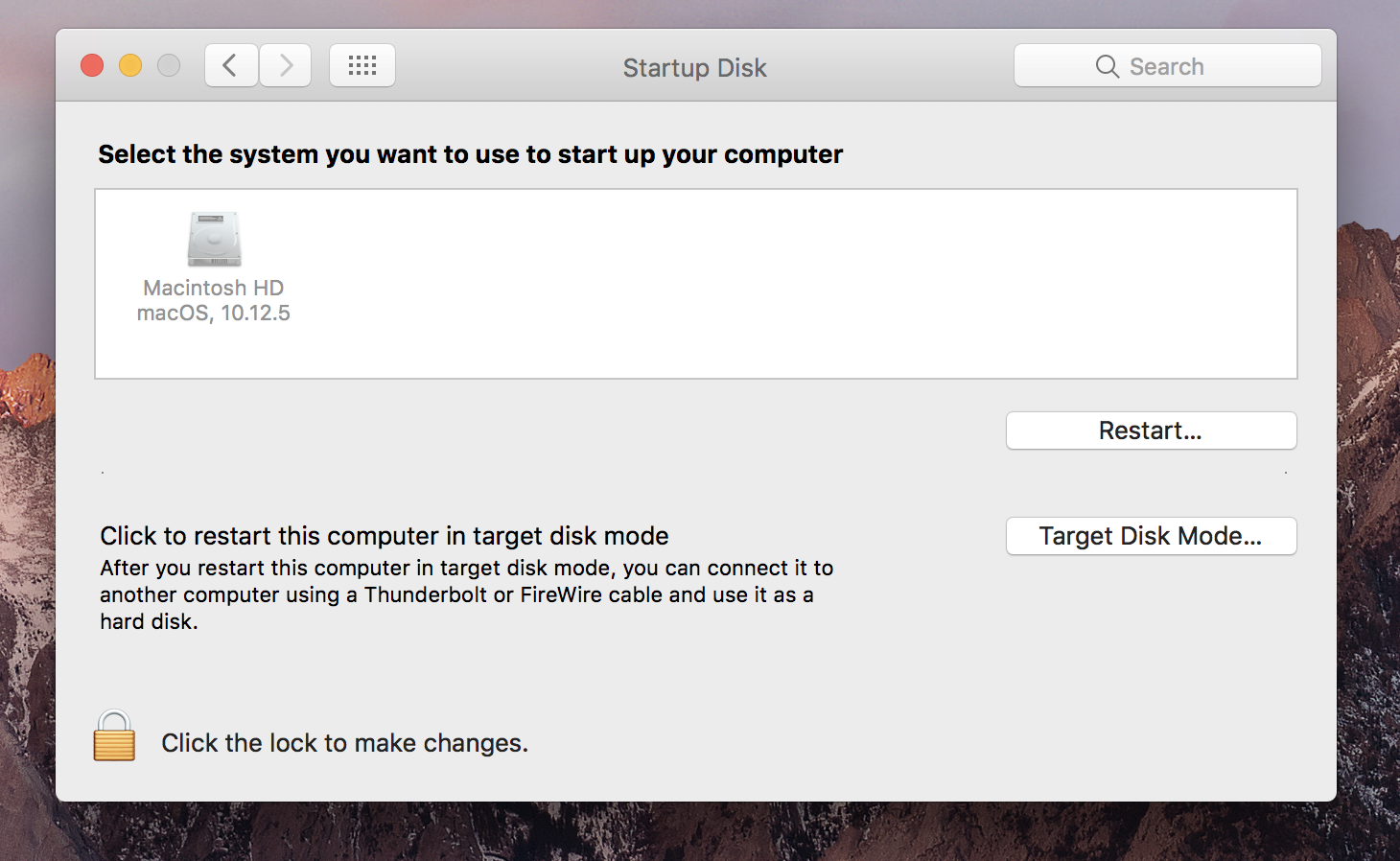

i can't see windows in startup disk
I don't follow. maybe I'm stupid . could you please try to explain more detailed. sorry for bothering you I really do appreciate your help
Can you use Bootcamp Assistant and 'lost' disk space as a reference and check which of the two issues are applicable to you?
You have the same issue as Lost space after removing Boot Camp partition . Can you use it as a reference to create a fake GPT and then remove it using BC Assistant?
Please post the output of
diskutil list
You seem to have the problem as noted in Item 2 of the link I provided.
Can you post the output of
sudo gpt -vv -r show /dev/disk1
I can provide exact steps. You will need to install GPT fdisk download | SourceForge.net .
I can not thank you enough. it finally works . Thank you a hundred times. one last question, do i need to enable csrutil status again ?
Yes, you should re-enable SIP using
csrutil enable
Also, please back up macOS, before you make another attempt to install Windows.
