Constant kernel panics after macOS High Sierra upgrade

I have a MacBook Pro (Retina, 13-inch, Late 2013, 250 GB SSD, 16 GB RAM). I have experienced constant kernel panics after macOS High Sierra upgrade, from Sierra. (Under Sierra 10.12.5 the Mac was as stable as one would expect.)

In High Sierra the OS would boot and almost immediately go into kernel panic. I reinstalled the OS from OS X Recovery (having run Disk First Aid, which revealed no problem) and it worked OK for a couple of days.

I restarted (having noticed an odd behaviour in Contacts) and the problem recurred. Again I had a kernel panics 60-120 seconds after restart, or immediately the Finder started to load.

I again reinstalled the OS from OS X Recovery but the panics continued. I ran Disk First Aid again, which revealed no problem. The kernel panics occurred when booted in Safe Mode too. However, if I logged into a 'plain vanilla' user account the problems didn't occur. This would, I believe, indicate there isn't a problem with the hardware or RAM.

I suspected an rogue extension, and have been trying to uninstall apps that load code or extensions at startup, such as FullContact, Skitch, Yoink, CleanMyMac, and Things. To no avail.

I contacted Apple Support for advice on how to disable or remove other third party extensions but they said there was no method for doing this. They advised backing up, erasing the drive, reinstalling macOS, and restoring the backed up data but if the problem is extension-related it would likely recur.

The closest related post I have found is Kernel panic after latest osx Sierra update, but that only gets me so far. Any advice would be welcomed.

MacBook Pro (Retina, 13-inch, Late 2013), macOS High Sierra (10.13)

Posted on Oct 5, 2017 3:25 PM

Top-ranking reply

BobHarris

Level 9

56,807 points

Posted on Apr 30, 2018 7:14 PM

RJHMUSIC,

We need to see the panics you are getting to be helpful. As this is a user-to-user technical support fourm, we need information.

Please post the most recent kernel panic report(s). If you have more than one, it would be useful to see a few, as whether they are consistant or change will give us useful information.

Kernel Panic reports: Finder -> Go -> Go to Folder -> /Library/Logs/DiagnosticReports

<http://support.apple.com/kb/ht2546>

<http://support.apple.com/en-us/HT200553>

The panic report should have "panic" in the file name.

It would also be useful to see what, if any, 3rd party additions have been installed. This too can help diagnose your system.

Please post the EtreCheck output as a "Reply" to this thread

<https://discussions.apple.com/docs/DOC-6174> or <https://etrecheck.com>

Use the EtreCheck -> Edit -> Copy Report (See the image below)

And then Paste the report as a "Reply" to this thread.

If, AND ONLY IF, you get the error:

"The message contains invalid characters"

then try posting to PasteBin.com, and give us a PasteBin URL link.

<http://pastebin.com/>

EtreCheck is a tool that helps Apple Support Community volunteers debug problems without any access to the troubled computers. Debugging problems can be a difficult task even when the machine is in front of you. Attempting it via a discussion forum is extremely difficult. EtreCheck is a great help that regards.

It is possible you have a hardware issue, but we can only look at the information you give us, and then may recommendataions.

View in context

137 replies

Troglos

Level 1

4 points

Dec 9, 2017 1:34 AM in response to BobHarris

A Google search on "macOS Coda" turns up other kernel panics, so perhaps it is Coda

I did't find anything about that, could you please post the results of your research? And I've been using Coda for many years and never had a problem, just recently with the combo High Sierra+Local by FlyWheel (still haven't tried with MAMP)

Do you use NFS mounted file systems, or access file systems via /net/hostname/..., or have your enabled NFS sharing via macOS Server, or maybe via various Terminal commands, or some 3rd party NFS GUI?

I used to have Paragon NTFS for Mac but I uninstalled it. Maybe something is still hanging somewhere.

How did you set hibernatemode?

I did from terminal: sudo pmset -a hibernatemode 25

I have the the exact same permissions

-rw------T 1 root wheel 1.0G Dec 2 21:13 /private/var/vm/sleepimage

so I do not see why you think yours is wrong?

Initially if I typed this ls -lh /private/var/vm/sleepimage I got ls: /var/vm/sleepimage: No such file or directory

Then, after I set hibernatemode to 25, I got the correct "response"

BobHarris

Level 9

56,807 points

Dec 9, 2017 8:57 AM in response to Troglos

A Google search on "macOS Coda" turns up other kernel panics, so perhaps it is Coda

I did't find anything about that, could you please post the results of your research? And I've been using Coda for many years and never had a problem, just recently with the combo High Sierra+Local by FlyWheel (still haven't tried with MAMP)

My mistake. "Panic.com" is the maker of Coda, where as I didn't look closely to the Google results so my mind went to it having been involved in kernel panics, since this thread is about kernel panics. My apologies.

I used to have Paragon NTFS for Mac but I uninstalled it. Maybe something is still hanging somewhere.

NFS (as in the Network File System originally invented by Sun Computers, way back back back in the early days of computing, and is still used today by many Unix based systems, especially in server rooms).

There is no relation to Window NTFS, so nope, it should not involve Paragon NTFS software.

Initially if I typed this ls -lh /private/var/vm/sleepimage I got ls: /var/vm/sleepimage: No such file or directory

The sleep image does not need to always be on your system. macOS can remove it or create it as it pleases.

The sleep image is used for hibernate mode, when the Mac is totally powered off, but you want it to restore to its pervious state when woken up. If the Mac is trying to save disk space, it may remove the very large sleep image, but recreate it when being put to sleep.

If you are saying 25 creates the sleep image at that point, then I'm guessing pmset has triggered the event. My hibernatemode is set to 3, the standard MacBook Pro default setting. My iMac is set to 0 and it does not have a sleep image, as is a server for my group, so it never goes to sleep.

GKoons

Level 1

4 points

Dec 9, 2017 4:22 PM in response to Nico Macdonald

I have the same kernel panic:

Kernel Extensions in backtrace:

com.apple.filesystems.apfs(748.1.46)[CA424079-AA66-370B-A9AB-D80ED4C92667]@0xff ffff7f81493000->0xffffff7f81569fff

dependency: com.apple.kec.corecrypto(1.0)[0C6635A4-47EA-3A47-8D33-CB3769579F4F]@0xffffff7f8 0eae000

dependency: com.apple.driver.AppleEffaceableStorage(1.0)[F67EFE80-6130-3A06-9105-C89D1004A6 3B]@0xffffff7f813fe000

dependency: com.apple.iokit.IOStorageFamily(2.1)[0E8BC828-5A1E-3308-ADAB-1F4373F9402F]@0xff ffff7f80c46000

In my case it's due to a USB RAID5 enclosure that I stupidly converted to use Apple's new APFS. It worked fine for over a month, and started to degrade when I tried to transfer files to it eventually resulting in this kernel panic every time it's now plugged in. When Spotlight, or FSEvents Daemon attempts to write to it during initialization OSX crashes. The good news, at least in my case, is I'm able to retrieve the data in Recovery Mode since fseventsd is not running. I can see all my data there, but now I'll need to buy a twin RAID enclosure, format it HFS, and transfer everything over. It's an expensive mistake, but recoverable.

mpasant

Level 1

8 points

Dec 9, 2017 4:27 PM in response to Nico Macdonald

I have a new iMac 2017, used migration assistant, upgraded RAM with aftermarket. Was working fine for the few few days but have been having twice daily kernel panics since Thursday:

Source: /Library/Logs/DiagnosticReports/Kernel_2017-12-09-181903_Matts-iMac.panic

Size: 9 KB (9,162 bytes)

Last Modified: 12/9/17, 6:19 PM

Recent Co

Sat Dec 9 18:19:03 2017

*** Panic Report ***

panic(cpu 0 caller 0xffffff800bb6f2e9): Kernel trap at 0xffffff800bf62108, type 14=page fault, registers:

CR0: 0x000000008001003b, CR2: 0x0000000000000046, CR3: 0x000000001e547000, CR4: 0x00000000003627e0

RAX: 0xffffff800c293070, RBX: 0x0000000000000001, RCX: 0xffffff800bf61cc0, RDX: 0x0000000000000025

RSP: 0xffffff84a7ce3818, RBP: 0xffffff84a7ce3900, RSI: 0xffffff849c5e1500, RDI: 0x0000000000000001

R8: 0x0000000000000001, R9: 0x0000000000000000, R10: 0x0000000000000006, R11: 0x00002b2bdc08e6c4

R12: 0xffffff8068cd97c0, R13: 0x0000000000000000, R14: 0xffffff84a7ce39d8, R15: 0xffffff849c5e1500

RFL: 0x0000000000010202, RIP: 0xffffff800bf62108, CS: 0x0000000000000008, SS: 0x0000000000000010

Fault CR2: 0x0000000000000046, Error code: 0x0000000000000002, Fault CPU: 0x0, PL: 0, VF: 1

Backtrace (CPU 0), Frame : Return Address

0xffffff84a7ce32c0 : 0xffffff800ba505f6

0xffffff84a7ce3310 : 0xffffff800bb7d604

0xffffff84a7ce3350 : 0xffffff800bb6f0f9

0xffffff84a7ce33d0 : 0xffffff800ba02120

0xffffff84a7ce33f0 : 0xffffff800ba5002c

0xffffff84a7ce3520 : 0xffffff800ba4fdac

0xffffff84a7ce3580 : 0xffffff800bb6f2e9

0xffffff84a7ce3700 : 0xffffff800ba02120

0xffffff84a7ce3720 : 0xffffff800bf62108

0xffffff84a7ce3900 : 0xffffff800bf3f133

0xffffff84a7ce3970 : 0xffffff800bf67782

0xffffff84a7ce3a20 : 0xffffff800bf3940c

0xffffff84a7ce3a50 : 0xffffff7f8e035876

0xffffff84a7ce3aa0 : 0xffffff7f8e149162

0xffffff84a7ce3ae0 : 0xffffff7f8e317462

0xffffff84a7ce3b30 : 0xffffff7f8e16af3f

0xffffff84a7ce3b80 : 0xffffff7f8e073127

0xffffff84a7ce3bd0 : 0xffffff7f8e145533

0xffffff84a7ce3d70 : 0xffffff7f8e111927

0xffffff84a7ce3e20 : 0xffffff7f8e297a37

0xffffff84a7ce3e90 : 0xffffff7f8e04a1e7

0xffffff84a7ce3ed0 : 0xffffff800c091395

0xffffff84a7ce3f30 : 0xffffff800c08fba2

0xffffff84a7ce3f70 : 0xffffff800c08f1dc

0xffffff84a7ce3fa0 : 0xffffff800ba014f7

Kernel Extensions in backtrace:

com.apple.driver.AirPort.BrcmNIC(1220.28.1a3)[1F7660A9-5228-3C3A-8A18-16C1AD143 FC1]@0xffffff7f8e027000->0xffffff7f8e7dcfff

dependency: com.apple.driver.corecapture(1.0.4)[F0C23182-01CA-3C3D-BA00-A39C4BED75AE]@0xfff fff7f8df03000

dependency: com.apple.driver.mDNSOffloadUserClient(1.0.1b8)[EE7B82F9-F4B1-39F5-9CE8-02661C0 18C68]@0xffffff7f8df2c000

dependency: com.apple.iokit.IO80211Family(1200.12.2)[2B5D1593-AF1D-3DA5-9B8E-A27B8AAE3BAD]@ 0xffffff7f8df33000

dependency: com.apple.iokit.IOPCIFamily(2.9)[C08F7FC1-78A4-3A1B-BFE2-C07080CF2048]@0xffffff 7f8c360000

dependency: com.apple.iokit.IONetworkingFamily(3.4)[17D64D9A-AE76-391D-8C42-6DBC6686333B]@0 xffffff7f8d49f000

BSD process name corresponding to current thread: kernel_task

Mac OS version:

17C88

Kernel version:

Darwin Kernel Version 17.3.0: Thu Nov 9 18:09:22 PST 2017; root:xnu-4570.31.3~1/RELEASE_X86_64

Kernel UUID: 87641697-A3DD-30C4-B010-E65ECE57550B

Kernel slide: 0x000000000b600000

Kernel text base: 0xffffff800b800000

__HIB text base: 0xffffff800b700000

System model name: iMac18,3 (Mac-BE088AF8C5EB4FA2)

System uptime in nanoseconds: 47467377280622

last loaded kext at 16302469105209: com.apple.driver.usb.cdc.acm 5.0.0 (addr 0xffffff7f8de8e000, size 57344)

last unloaded kext at 23063270737230: com.apple.driver.usb.cdc 5.0.0 (addr 0xffffff7f8de20000, size 28672)

loaded kexts:

com.apple.driver.AppleTopCaseHIDEventDriver 127

com.apple.driver.AudioAUUC 1.70

com.apple.driver.AppleGraphicsDevicePolicy 3.16.21

com.apple.AGDCPluginDisplayMetrics 3.16.2

com.apple.driver.pmtelemetry 1

com.apple.iokit.IOUserEthernet 1.0.1

com.apple.driver.AppleUpstreamUserClient 3.6.4

com.apple.kext.AMDFramebuffer 1.6.0

com.apple.iokit.IOBluetoothSerialManager 6.0.2f2

com.apple.Dont_Steal_Mac_OS_X 7.0.0

com.apple.kext.AMDRadeonX4200 1.6.0

com.apple.driver.AGPM 110.23.24

com.apple.driver.ApplePlatformEnabler 2.7.0d0

com.apple.driver.X86PlatformShim 1.0.0

com.apple.kext.AMD9520Controller 1.6.0

com.apple.driver.AppleHV 1

com.apple.driver.AppleIntelKBLGraphics 10.3.0

com.apple.driver.AppleHDA 280.12

com.apple.driver.AppleThunderboltIP 3.1.1

com.apple.iokit.BroadcomBluetooth20703USBTransport 6.0.2f2

com.apple.iokit.AppleBCM5701Ethernet 10.3.1

com.apple.driver.AirPort.BrcmNIC 1220.28.1a3

com.apple.driver.eficheck 1

com.apple.driver.AppleIntelPCHPMC 2.0.1

com.apple.driver.AppleSMCLMU 211

com.apple.driver.AppleOSXWatchdog 1

com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0

com.apple.driver.AppleMCCSControl 1.5.3

com.apple.driver.AppleIntelKBLGraphicsFramebuffer 10.3.0

com.apple.filesystems.autofs 3.0

com.apple.iokit.SCSITaskUserClient 404.30.2

com.apple.driver.AppleUSBStorageCoexistentDriver 439.30.4

com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1

com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0

com.apple.BootCache 40

com.apple.filesystems.hfs.kext 407.30.1

com.apple.driver.AppleSDXC 1.7.6

com.apple.driver.AppleAHCIPort 329

com.apple.driver.AppleACPIButtons 6.1

com.apple.driver.AppleRTC 2.0

com.apple.driver.AppleSMBIOS 2.1

com.apple.driver.AppleACPIEC 6.1

com.apple.driver.AppleAPIC 1.7

com.apple.nke.applicationfirewall 183

com.apple.security.quarantine 3

com.apple.security.TMSafetyNet 8

com.apple.IOBufferCopyEngineTest 1

com.apple.driver.AppleHIDKeyboard 203

com.apple.driver.AppleMultitouchDriver 1204.13

com.apple.driver.AppleInputDeviceSupport 1201.8

com.apple.driver.AppleHSBluetoothDriver 127

com.apple.kext.AMDRadeonX4000HWLibs 1.0

com.apple.driver.AppleGraphicsControl 3.16.21

com.apple.iokit.IOTimeSyncFamily 650.5

com.apple.iokit.IOSerialFamily 11

com.apple.driver.AppleSSE 1.0

com.apple.driver.DspFuncLib 280.12

com.apple.kext.OSvKernDSPLib 526

com.apple.kext.AMDSupport 1.6.0

com.apple.AppleGPUWrangler 3.16.2

com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 6.0.2f2

com.apple.iokit.IOBluetoothHostControllerUSBTransport 6.0.2f2

com.apple.iokit.IOBluetoothHostControllerTransport 6.0.2f2

com.apple.iokit.IOEthernetAVBController 1.1.0

com.apple.driver.AppleHDAController 280.12

com.apple.iokit.IOHDAFamily 280.12

com.apple.iokit.IO80211Family 1200.12.2

com.apple.driver.mDNSOffloadUserClient 1.0.1b8

com.apple.driver.corecapture 1.0.4

com.apple.iokit.IOAudioFamily 206.5

com.apple.vecLib.kext 1.2.0

com.apple.iokit.IONDRVSupport 517.22

com.apple.driver.AppleSMBusPCI 1.0.14d1

com.apple.kext.AMDRadeonX4000HWServices 1.6.0

com.apple.driver.X86PlatformPlugin 1.0.0

com.apple.driver.IOPlatformPluginFamily 6.0.0d8

com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0

com.apple.driver.AppleSMBusController 1.0.18d1

com.apple.AppleGraphicsDeviceControl 3.16.21

com.apple.iokit.IOAcceleratorFamily2 376.6

com.apple.iokit.IOGraphicsFamily 517.22

com.apple.iokit.IOSurface 209.2.2

com.apple.kext.triggers 1.0

com.apple.iokit.IOUSBMassStorageClass 4.0.4

com.apple.driver.AppleUSBHostMergeProperties 1.2

com.apple.driver.usb.AppleUSBHub 1.2

com.apple.driver.IOBluetoothHIDDriver 6.0.2f2

com.apple.iokit.IOBluetoothFamily 6.0.2f2

com.apple.driver.usb.networking 5.0.0

com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2

com.apple.driver.CoreStorage 546

com.apple.iokit.IONetworkingFamily 3.4

com.apple.filesystems.hfs.encodings.kext 1

com.apple.driver.AppleThunderboltDPInAdapter 5.0.2

com.apple.driver.AppleThunderboltDPAdapterFamily 5.0.2

com.apple.driver.AppleThunderboltPCIDownAdapter 2.1.3

com.apple.driver.AppleHPM 3.1.3

com.apple.driver.AppleIntelLpssI2CController 3.0.60

com.apple.driver.AppleIntelLpssDmac 3.0.60

com.apple.iokit.IOAHCIBlockStorage 301.20.1

com.apple.driver.AppleThunderboltNHI 4.5.6

com.apple.iokit.IOThunderboltFamily 6.6.3

com.apple.iokit.IONVMeFamily 2.1.0

com.apple.driver.AppleIntelLpssI2C 3.0.60

com.apple.driver.usb.AppleUSBHostPacketFilter 1.0

com.apple.iokit.IOUSBFamily 900.4.1

com.apple.iokit.IOAHCIFamily 288

com.apple.driver.usb.AppleUSBXHCIPCI 1.2

com.apple.driver.usb.AppleUSBXHCI 1.2

com.apple.driver.AppleEFINVRAM 2.1

com.apple.driver.AppleEFIRuntime 2.1

com.apple.iokit.IOHIDFamily 2.0.0

com.apple.iokit.IOSMBusFamily 1.1

com.apple.security.sandbox 300.0

com.apple.kext.AppleMatch 1.0.0d1

com.apple.driver.AppleFDEKeyStore 28.30

com.apple.driver.AppleEffaceableStorage 1.0

com.apple.driver.AppleKeyStore 2

com.apple.driver.AppleUSBTDM 439.30.4

com.apple.driver.AppleMobileFileIntegrity 1.0.5

com.apple.iokit.IOUSBMassStorageDriver 140.30.1

com.apple.iokit.IOSCSIBlockCommandsDevice 404.30.2

com.apple.iokit.IOSCSIArchitectureModelFamily 404.30.2

com.apple.driver.AppleCredentialManager 1.0

com.apple.driver.KernelRelayHost 1

com.apple.iokit.IOUSBHostFamily 1.2

com.apple.driver.usb.AppleUSBCommon 1.0

com.apple.driver.AppleBusPowerController 1.0

com.apple.driver.AppleSEPManager 1.0.1

com.apple.driver.IOSlaveProcessor 1

com.apple.iokit.IOBufferCopyEngineFamily 1

com.apple.driver.DiskImages 480.30.2

com.apple.iokit.IOStorageFamily 2.1

com.apple.iokit.IOReportFamily 31

com.apple.driver.AppleACPIPlatform 6.1

com.apple.driver.AppleSMCRTC 1.0

com.apple.driver.AppleSMC 3.1.9

com.apple.iokit.IOPCIFamily 2.9

com.apple.iokit.IOACPIFamily 1.4

com.apple.kec.Libm 1

com.apple.kec.pthread 1

com.apple.kec.corecrypto 1.0

EOF

mungz01

Level 1

4 points

Dec 13, 2017 2:49 PM in response to Barney-15E

Hey Barney can you help me out?

I'm having kernel panic issues too and I've looked through this thread and tried near everything suggested. I'm not super tech savvy so some of the recommendations went past me but perhaps you or someone can help. Here is the panic log:

Anonymous UUID: F65A3E69-6A2D-04C8-5394-6521C53E6DE2

Wed Dec 13 17:35:09 2017

*** Panic Report ***

panic(cpu 3 caller 0xffffff801a188e21): Kernel trap at 0xffffff7f9d8bd361, type 14=page fault, registers:

CR0: 0x0000000080010033, CR2: 0x0000000000000041, CR3: 0x00000002506c6011, CR4: 0x00000000003627e0

RAX: 0xffffff80300cab00, RBX: 0x0000000000000000, RCX: 0x0000000000000000, RDX: 0xffffff8129d5b720

RSP: 0xffffff8129d5b6c0, RBP: 0xffffff8129d5b6f0, RSI: 0x0000000000046fff, RDI: 0x0000000000046000

R8: 0xffffff8129d5b850, R9: 0x0000000000000000, R10: 0x0000000000046b20, R11: 0x0000000000000202

R12: 0x0000000000046fff, R13: 0x0000000000046000, R14: 0xffffff8129d5b720, R15: 0x0000000000000000

RFL: 0x0000000000010206, RIP: 0xffffff7f9d8bd361, CS: 0x0000000000000008, SS: 0x0000000000000010

Fault CR2: 0x0000000000000041, Error code: 0x0000000000000002, Fault CPU: 0x3, PL: 0, VF: 0

Backtrace (CPU 3), Frame : Return Address

0xffffff8129d5b170 : 0xffffff801a06b6f6

0xffffff8129d5b1c0 : 0xffffff801a196f54

0xffffff8129d5b200 : 0xffffff801a188c39

0xffffff8129d5b280 : 0xffffff801a01d190

0xffffff8129d5b2a0 : 0xffffff801a06b1cc

0xffffff8129d5b3d0 : 0xffffff801a06af4c

0xffffff8129d5b430 : 0xffffff801a188e21

0xffffff8129d5b5b0 : 0xffffff801a01d190

0xffffff8129d5b5d0 : 0xffffff7f9d8bd361

0xffffff8129d5b6f0 : 0xffffff7f9d8cf654

0xffffff8129d5b780 : 0xffffff801a2d9d9f

0xffffff8129d5b810 : 0xffffff801a290406

0xffffff8129d5b950 : 0xffffff801a297804

0xffffff8129d5bac0 : 0xffffff801a295fb0

0xffffff8129d5bd10 : 0xffffff7f9d8c99ef

0xffffff8129d5bd90 : 0xffffff801a2c8134

0xffffff8129d5be40 : 0xffffff801a55981a

0xffffff8129d5bee0 : 0xffffff801a55998e

0xffffff8129d5bf40 : 0xffffff801a60da48

0xffffff8129d5bfa0 : 0xffffff801a01d976

Kernel Extensions in backtrace:

com.apple.filesystems.hfs.kext(407.1.3)[F1CDFC19-49BF-35BC-8038-B82DF8C30BDE]@0 xffffff7f9d8aa000->0xffffff7f9d910fff

dependency: com.apple.filesystems.hfs.encodings.kext(1)[7CC455ED-D7F1-3AD4-B362-4A974AFD099 1]@0xffffff7f9b7a2000

BSD process name corresponding to current thread: kextd

Mac OS version:

17B48

Kernel version:

Darwin Kernel Version 17.2.0: Fri Sep 29 18:27:05 PDT 2017; root:xnu-4570.20.62~3/RELEASE_X86_64

Kernel UUID: 4B214D53-883B-3E5F-A115-9FDA17E68BA8

Kernel slide: 0x0000000019e00000

Kernel text base: 0xffffff801a000000

__HIB text base: 0xffffff8019f00000

System model name: iMac16,2 (Mac-FFE5EF870D7BA81A)

System uptime in nanoseconds: 24118697176

last loaded kext at 1645918663: com.apple.driver.usb.IOUSBHostHIDDevice 1.2 (addr 0xffffff7f9adcc000, size 49152)

loaded kexts:

com.apple.driver.AppleFileSystemDriver 3.0.1

com.apple.driver.DiskImages.ReadWriteDiskImage 480.1.2

com.apple.driver.DiskImages.SparseDiskImage 480.1.2

com.apple.driver.DiskImages.UDIFDiskImage 480.1.2

com.apple.filesystems.apfs 748.21.6

com.apple.driver.DiskImages.HTTPBackingStore 480.1.2

com.apple.driver.DiskImages.FileBackingStore 480.1.2

com.apple.driver.DiskImages.RAMBackingStore 480.1.2

com.apple.filesystems.hfs.kext 407.1.3

com.apple.BootCache 40

com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1

com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0

com.apple.driver.AppleSDXC 1.7.6

com.apple.iokit.AppleBCM5701Ethernet 10.3.1

com.apple.driver.AirPort.BrcmNIC 1200.26.1a3

com.apple.driver.AppleAHCIPort 329

com.apple.driver.AppleRTC 2.0

com.apple.driver.AppleACPIButtons 6.1

com.apple.driver.AppleHPET 1.8

com.apple.driver.AppleSMBIOS 2.1

com.apple.driver.AppleACPIEC 6.1

com.apple.driver.AppleAPIC 1.7

com.apple.nke.applicationfirewall 183

com.apple.security.TMSafetyNet 8

com.apple.security.quarantine 3

com.apple.IOBufferCopyEngineTest 1

com.apple.driver.usb.IOUSBHostHIDDevice 1.2

com.apple.driver.usb.cdc 5.0.0

com.apple.driver.usb.networking 5.0.0

com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2

com.apple.driver.AppleEffaceableStorage 1.0

com.apple.driver.DiskImages.KernelBacked 480.1.2

com.apple.filesystems.hfs.encodings.kext 1

com.apple.driver.AppleXsanScheme 3

com.apple.iokit.IOAHCIBlockStorage 301.20.1

com.apple.iokit.IOEthernetAVBController 1.1.0

com.apple.iokit.IO80211Family 1200.12.2

com.apple.driver.mDNSOffloadUserClient 1.0.1b8

com.apple.driver.corecapture 1.0.4

com.apple.iokit.IOAHCIFamily 288

com.apple.driver.AppleIntelLpssGspi 3.0.60

com.apple.driver.usb.AppleUSBXHCIPCI 1.2

com.apple.driver.usb.AppleUSBXHCI 1.2

com.apple.driver.AppleThunderboltDPInAdapter 5.0.2

com.apple.driver.AppleThunderboltDPOutAdapter 5.0.2

com.apple.driver.AppleThunderboltDPAdapterFamily 5.0.2

com.apple.driver.AppleThunderboltPCIDownAdapter 2.1.3

com.apple.driver.AppleThunderboltNHI 4.5.6

com.apple.iokit.IOThunderboltFamily 6.5.8

com.apple.driver.usb.AppleUSBHostPacketFilter 1.0

com.apple.iokit.IOUSBFamily 900.4.1

com.apple.driver.AppleEFINVRAM 2.1

com.apple.driver.AppleEFIRuntime 2.1

com.apple.iokit.IOHIDFamily 2.0.0

com.apple.iokit.IOSMBusFamily 1.1

com.apple.security.sandbox 300.0

com.apple.kext.AppleMatch 1.0.0d1

com.apple.iokit.IOBufferCopyEngineFamily 1

com.apple.driver.AppleKeyStore 2

com.apple.driver.AppleUSBTDM 439.20.7

com.apple.driver.AppleMobileFileIntegrity 1.0.5

com.apple.iokit.IOUSBMassStorageDriver 140

com.apple.iokit.IOSCSIBlockCommandsDevice 404.20.1

com.apple.iokit.IOSCSIArchitectureModelFamily 404.20.1

com.apple.driver.AppleCredentialManager 1.0

com.apple.driver.KernelRelayHost 1

com.apple.driver.AppleSEPManager 1.0.1

com.apple.driver.IOSlaveProcessor 1

com.apple.driver.AppleFDEKeyStore 28.30

com.apple.iokit.IOTimeSyncFamily 600.15

com.apple.iokit.IONetworkingFamily 3.4

com.apple.driver.DiskImages 480.1.2

com.apple.iokit.IOStorageFamily 2.1

com.apple.iokit.IOBluetoothFamily 6.0.1f1

com.apple.iokit.IOUSBHostFamily 1.2

com.apple.driver.usb.AppleUSBCommon 1.0

com.apple.driver.AppleBusPowerController 1.0

com.apple.iokit.IOReportFamily 31

com.apple.driver.AppleACPIPlatform 6.1

com.apple.driver.AppleSMCRTC 1.0

com.apple.driver.AppleSMC 3.1.9

com.apple.iokit.IOPCIFamily 2.9

com.apple.iokit.IOACPIFamily 1.4

com.apple.kec.Libm 1

com.apple.kec.pthread 1

com.apple.kec.corecrypto 1.0

EOF

Unable to gather system configuration information.

Thanks for the help to anyone who can figure this out for me.

Barney-15E

Level 10

122,120 points

Dec 13, 2017 4:02 PM in response to mungz01

I'm having kernel panic issues too and I've looked through this thread and tried near everything suggested.

There's nothing to try. Since you don't have any third-party kernel extensions, you have a hardware fault. You'll need to take it in to be evaluated by Apple or a certified repair center.

It could be caused by a external peripheral, but your report doesn't list anything connected. If there is something connected disconnect it and test, or if you have replaced your original RAM, replace the original chips and test.

Mac_slide

Level 3

623 points

Dec 14, 2017 7:09 AM in response to mungz01

I've had them on a couple machines.

Kernel panics can be one of the toughest

GHOSTS in the machine if you will

things to track down.

It can be caused by a problem with your hardware, all the way to an install of software written or setup or corrupted.

The Color/Processor if you will to even TimeMachine for some reason.

Do you by chance have TimeMachine setup? If so, turn it off, power down and up and see.

Dec 15, 2017 5:45 PM in response to Nico Macdonald

I upgraded to OS High Sierra.
I even did a full system reinstall.I even upgraded to 10.13.2 the newest OS.

I have a Late 2015 Mac book Retina. I was getting constant Kernel Panics. I ended up having to go back to Regular OS Sierra to fix the issue. to Date I can not install High Sierra since it isn't a Stable OS.

Dec 28, 2017 3:29 AM in response to javiquil

javiquil wrote:

I'm having same issue with the same macbook model since I upgraded to High Sierra...

Every 20 minutes or so... kernel panic and It's restart.

Any advice?

Try a clean install on a separate drive. You will probably find that it works just fine.

Problems are almost always due to other software that was there but is not compatible with the new OS.

One should always have two backups before doing a major upgrade.

One of those should be a full bootable clone, so in case of crisis you can immediately run the old system just as before.

Installing on to a clean drive almost always ensures a stable system.

One can then use Migration Assistant to bring back user accounts.

Applications can be easily redownloaded fresh from the App Store (gone are the days of sifting through discs and looking for serial numbers, when a clean install was really painful).

Dec 30, 2017 5:31 PM in response to Luis Sequeira1

Here's my kernel panic:

Anonymous UUID: C6866B54-0972-4F0D-8C08-9D930027CCEE

Sat Dec 30 20:27:31 2017

*** Panic Report ***

panic(cpu 2 caller 0xffffff801a689651): "thread_call group 'high' reached max thread cap (500): active: 1, blocked: 499, idle: 0"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu/xnu-4570.31.3/osfmk/kern /thread_call.c:222

Backtrace (CPU 2), Frame : Return Address

0xffffff90e0813c30 : 0xffffff801a6505f6

0xffffff90e0813c80 : 0xffffff801a77d604

0xffffff90e0813cc0 : 0xffffff801a76f0f9

0xffffff90e0813d40 : 0xffffff801a602120

0xffffff90e0813d60 : 0xffffff801a65002c

0xffffff90e0813e90 : 0xffffff801a64fdac

0xffffff90e0813ef0 : 0xffffff801a689651

0xffffff90e0813f10 : 0xffffff801a689534

0xffffff90e0813fa0 : 0xffffff801a6014f7

BSD process name corresponding to current thread: kernel_task

Mac OS version:

17C88

Kernel version:

Darwin Kernel Version 17.3.0: Thu Nov 9 18:09:22 PST 2017; root:xnu-4570.31.3~1/RELEASE_X86_64

Kernel UUID: 87641697-A3DD-30C4-B010-E65ECE57550B

Kernel slide: 0x000000001a200000

Kernel text base: 0xffffff801a400000

__HIB text base: 0xffffff801a300000

System model name: MacBookPro11,1 (Mac-189A3D4F975D5FFC)

System uptime in nanoseconds: 55368814308853

last loaded kext at 54102214327453: com.apple.iokit.IOBluetoothUSBDFU 6.0.2f2 (addr 0xffffff7f9fecf000, size 12288)

last unloaded kext at 52931784879009: com.apple.driver.usb.cdc 5.0.0 (addr 0xffffff7f9fec6000, size 28672)

loaded kexts:

com.webroot.driver.WebrootSecureAnywhere 64

com.apple.iokit.IOBluetoothUSBDFU 6.0.2f2

com.apple.driver.AppleUSBTCKeyEventDriver 254

com.apple.driver.AudioAUUC 1.70

com.apple.driver.AGPM 110.23.24

com.apple.driver.ApplePlatformEnabler 2.7.0d0

com.apple.driver.X86PlatformShim 1.0.0

com.apple.filesystems.autofs 3.0

com.apple.driver.AppleUpstreamUserClient 3.6.4

com.apple.driver.AppleHDA 280.12

com.apple.driver.AppleGraphicsDevicePolicy 3.16.21

com.apple.AGDCPluginDisplayMetrics 3.16.2

com.apple.driver.AppleHV 1

com.apple.iokit.IOUserEthernet 1.0.1

com.apple.iokit.IOBluetoothSerialManager 6.0.2f2

com.apple.driver.eficheck 1

com.apple.driver.pmtelemetry 1

com.apple.Dont_Steal_Mac_OS_X 7.0.0

com.apple.driver.AppleIntelHD5000Graphics 10.3.0

com.apple.driver.AppleThunderboltIP 3.1.1

com.apple.driver.AppleLPC 3.1

com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0

com.apple.driver.AppleCameraInterface 6.01.2

com.apple.driver.AppleSMCLMU 211

com.apple.driver.AppleOSXWatchdog 1

com.apple.driver.AppleIntelFramebufferAzul 10.3.0

com.apple.driver.AppleBacklight 170.10.2

com.apple.driver.AppleMCCSControl 1.5.3

com.apple.driver.AppleUSBCardReader 439.30.4

com.apple.driver.AppleUSBTCKeyboard 254

com.apple.driver.AppleUSBTCButtons 254

com.apple.filesystems.apfs 748.31.8

com.apple.filesystems.hfs.kext 407.30.1

com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1

com.apple.BootCache 40

com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0

com.apple.driver.AppleAHCIPort 329

com.apple.driver.AirPort.BrcmNIC 1220.28.1a3

com.apple.driver.AppleSmartBatteryManager 161.0.0

com.apple.driver.AppleRTC 2.0

com.apple.driver.AppleACPIButtons 6.1

com.apple.driver.AppleHPET 1.8

com.apple.driver.AppleSMBIOS 2.1

com.apple.driver.AppleACPIEC 6.1

com.apple.driver.AppleAPIC 1.7

com.apple.nke.applicationfirewall 183

com.apple.security.TMSafetyNet 8

com.apple.security.quarantine 3

com.apple.IOBufferCopyEngineTest 1

com.apple.driver.usb.cdc 5.0.0

com.apple.kext.triggers 1.0

com.apple.driver.DspFuncLib 280.12

com.apple.kext.OSvKernDSPLib 526

com.apple.driver.AppleGraphicsControl 3.16.21

com.apple.driver.AppleSSE 1.0

com.apple.driver.AppleHDAController 280.12

com.apple.iokit.IOHDAFamily 280.12

com.apple.iokit.IOAudioFamily 206.5

com.apple.vecLib.kext 1.2.0

com.apple.AppleGPUWrangler 3.16.2

com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0

com.apple.driver.X86PlatformPlugin 1.0.0

com.apple.driver.IOPlatformPluginFamily 6.0.0d8

com.apple.iokit.IOSerialFamily 11

com.apple.iokit.IOAcceleratorFamily2 376.6

com.apple.iokit.IOSurface 209.2.2

com.apple.AppleGraphicsDeviceControl 3.16.21

com.apple.driver.AppleBacklightExpert 1.1.0

com.apple.iokit.IONDRVSupport 517.22

com.apple.driver.AppleSMBusController 1.0.18d1

com.apple.iokit.IOGraphicsFamily 517.22

com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 6.0.2f2

com.apple.iokit.IOBluetoothHostControllerUSBTransport 6.0.2f2

com.apple.iokit.IOBluetoothHostControllerTransport 6.0.2f2

com.apple.iokit.IOBluetoothFamily 6.0.2f2

com.apple.driver.usb.AppleUSBHub 1.2

com.apple.driver.AppleUSBMultitouch 261

com.apple.driver.usb.IOUSBHostHIDDevice 1.2

com.apple.driver.usb.networking 5.0.0

com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2

com.apple.filesystems.hfs.encodings.kext 1

com.apple.iokit.IOAHCIBlockStorage 301.20.1

com.apple.iokit.IOAHCIFamily 288

com.apple.driver.AppleThunderboltDPInAdapter 5.0.2

com.apple.driver.AppleThunderboltDPAdapterFamily 5.0.2

com.apple.driver.AppleThunderboltPCIDownAdapter 2.1.3

com.apple.driver.AppleThunderboltNHI 4.5.6

com.apple.iokit.IOThunderboltFamily 6.6.3

com.apple.iokit.IO80211Family 1200.12.2

com.apple.driver.mDNSOffloadUserClient 1.0.1b8

com.apple.driver.corecapture 1.0.4

com.apple.driver.usb.AppleUSBXHCIPCI 1.2

com.apple.driver.usb.AppleUSBXHCI 1.2

com.apple.driver.usb.AppleUSBHostPacketFilter 1.0

com.apple.iokit.IOUSBFamily 900.4.1

com.apple.driver.AppleUSBHostMergeProperties 1.2

com.apple.driver.AppleEFINVRAM 2.1

com.apple.driver.AppleEFIRuntime 2.1

com.apple.iokit.IOHIDFamily 2.0.0

com.apple.iokit.IOSMBusFamily 1.1

com.apple.security.sandbox 300.0

com.apple.kext.AppleMatch 1.0.0d1

com.apple.iokit.IOBufferCopyEngineFamily 1

com.apple.driver.DiskImages 480.30.2

com.apple.driver.AppleFDEKeyStore 28.30

com.apple.driver.AppleEffaceableStorage 1.0

com.apple.driver.AppleKeyStore 2

com.apple.driver.AppleUSBTDM 439.30.4

com.apple.driver.AppleMobileFileIntegrity 1.0.5

com.apple.iokit.IOUSBMassStorageDriver 140.30.1

com.apple.iokit.IOSCSIBlockCommandsDevice 404.30.2

com.apple.iokit.IOSCSIArchitectureModelFamily 404.30.2

com.apple.iokit.IOStorageFamily 2.1

com.apple.driver.AppleCredentialManager 1.0

com.apple.driver.KernelRelayHost 1

com.apple.iokit.IOUSBHostFamily 1.2

com.apple.driver.usb.AppleUSBCommon 1.0

com.apple.driver.AppleBusPowerController 1.0

com.apple.driver.AppleSEPManager 1.0.1

com.apple.driver.IOSlaveProcessor 1

com.apple.iokit.IOReportFamily 31

com.apple.iokit.IOTimeSyncFamily 650.5

com.apple.iokit.IONetworkingFamily 3.4

com.apple.driver.AppleACPIPlatform 6.1

com.apple.driver.AppleSMCRTC 1.0

com.apple.driver.AppleSMC 3.1.9

com.apple.iokit.IOPCIFamily 2.9

com.apple.iokit.IOACPIFamily 1.4

com.apple.kec.pthread 1

com.apple.kec.Libm 1

com.apple.kec.corecrypto 1.0

EOF

Model: MacBookPro11,1, BootROM MBP111.0142.B00, 2 processors, Intel Core i5, 2.4 GHz, 4 GB, SMC 2.16f68

Graphics: Intel Iris, Intel Iris, Built-In

Memory Module: BANK 0/DIMM0, 2 GB, DDR3, 1600 MHz, 0x802C, 0x344B54463235363634485A2D314736453120

Memory Module: BANK 1/DIMM0, 2 GB, DDR3, 1600 MHz, 0x802C, 0x344B54463235363634485A2D314736453120

AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x112), Broadcom BCM43xx 1.0 (7.77.37.5.1a3)

Bluetooth: Version 6.0.2f2, 3 services, 27 devices, 1 incoming serial ports

Network Service: Wi-Fi, AirPort, en0

Serial ATA Device: APPLE SSD SD0128F, 121.33 GB

USB Device: USB 3.0 Bus

USB Device: Apple Internal Keyboard / Trackpad

USB Device: BRCM20702 Hub

USB Device: Bluetooth USB Host Controller

Thunderbolt Bus: MacBook Pro, Apple Inc., 17.2

What do you think caused it?

BobHarris

Level 9

56,807 points

Dec 30, 2017 6:37 PM in response to AppleMac1990

AppleMac1990 wrote:

Here's my kernel panic:

.

.

.

Most likely this is what caused your panic

com.webroot.driver.WebrootSecureAnywhere 64

Suggest uninstalling whatever this 3rd party kernel extension is, an do not install it again.

If this is part of an anti-virus package, do not install it nor any other anti-virus package. Generally on the Mac, all anti-virus packages do is waste your Mac's resources looking for Windows malware, while making your Mac unstable, consuming electricity, and slowing down your Mac, all the while allowing annoying adware have free rain on the Mac.

If you are just plan paranoid, then look at the free version of MalwareBytes, and ONLY run it when you want to check, and do not have it running all the time.

Mac_slide

Level 3

623 points

Dec 3, 2017 12:04 PM in response to Luis Sequeira1

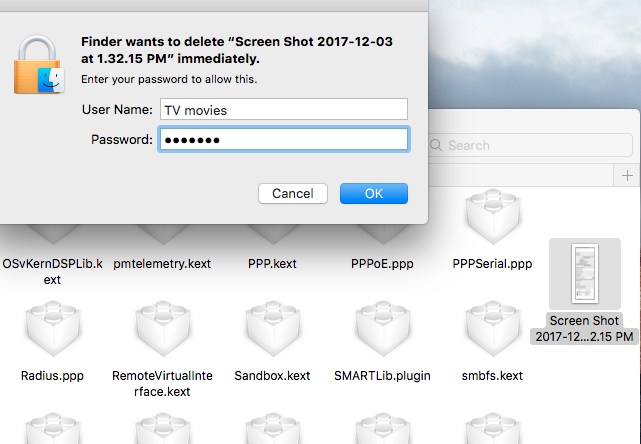

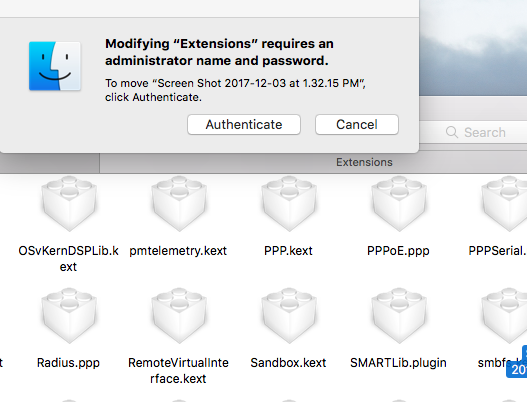

There able here on mine, fully - just requests you for your Admin Password.

woyfe

Level 1

8 points

Feb 9, 2018 7:09 AM in response to Nico Macdonald

I have maybe the same or a similar problem.

I have a kernel panic every time I try to shut down my iMac.

At first it shuts down correctly only to start up again after some seconds. sa kernel panic

I found a Kernel panic report.

Can somebody help me?

Thanks, Wolfgang

Anonymous UUID: 9A30E20F-D7D8-9D3D-CFAB-C601F70E246B

Fri Feb 9 14:21:26 2018

*** Panic Report ***

panic(cpu 1 caller 0xffffff8023c9c67a): "Element 0xffffff804577e000 from zone kalloc.6144 caught being freed to wrong zone kalloc.1664\n"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu/xnu-4570.41. 2/osfmk/kern/zalloc.c:3523

Backtrace (CPU 1), Frame : Return Address

0xffffff820233ba20 : 0xffffff8023c4f606

0xffffff820233ba70 : 0xffffff8023d7c654

0xffffff820233bab0 : 0xffffff8023d6e149

0xffffff820233bb30 : 0xffffff8023c01120

0xffffff820233bb50 : 0xffffff8023c4f03c

0xffffff820233bc80 : 0xffffff8023c4edbc

0xffffff820233bce0 : 0xffffff8023c9c67a

0xffffff820233bdc0 : 0xffffff8024255836

0xffffff820233bde0 : 0xffffff7fa46fea14

0xffffff820233be00 : 0xffffff802420b563

0xffffff820233be30 : 0xffffff802420b346

0xffffff820233be50 : 0xffffff7fa46f802e

0xffffff820233be70 : 0xffffff802420b563

0xffffff820233bea0 : 0xffffff802420b346

0xffffff820233bec0 : 0xffffff802422aacc

0xffffff820233bee0 : 0xffffff80242666cc

0xffffff820233bf60 : 0xffffff80242702a7

0xffffff820233bfa0 : 0xffffff8023c004f7

Kernel Extensions in backtrace:

jp.co.yamaha.driver.YamahaSteinbergUSBAudio(1.9.22)[5B137C01-2AF1-34FF-062C-02E 2C7CFD6E8]@0xffffff7fa46f3000->0xffffff7fa470cfff

dependency: com.apple.iokit.IOAudioFamily(206.5)[2F090399-C028-3F14-AE4F-BF49A3D602E5]@0xff ffff7fa4506000

dependency: com.apple.iokit.IOUSBFamily(900.4.1)[FD04D3BC-D376-36FD-924C-DD5DF51B0509]@0xff ffff7fa4646000

BSD process name corresponding to current thread: kernel_task

Mac OS version:

17D47

Kernel version:

Darwin Kernel Version 17.4.0: Sun Dec 17 09:19:54 PST 2017; root:xnu-4570.41.2~1/RELEASE_X86_64

Kernel UUID: 18D901F1-4A03-3FF1-AE34-C26B2732F13C

Kernel slide: 0x0000000023800000

Kernel text base: 0xffffff8023a00000

__HIB text base: 0xffffff8023900000

System model name: iMac13,2 (Mac-FC02E91DDD3FA6A4)

System uptime in nanoseconds: 237474967612

last loaded kext at 8459540316: com.apple.driver.AppleBluetoothMultitouch 92 (addr 0xffffff7fa7217000, size 61440)

last unloaded kext at 144735301322: com.apple.driver.AppleUSBMergeNub 900.4.1 (addr 0xffffff7fa5531000, size 12288)

loaded kexts:

jp.co.yamaha.driver.YamahaSteinbergUSBAudio 1.9.22

com.apple.driver.AppleBluetoothMultitouch 92

com.apple.driver.AppleHWSensor 1.9.5d0

com.apple.driver.AGPM 110.23.30

com.apple.driver.ApplePlatformEnabler 2.7.0d0

com.apple.driver.X86PlatformShim 1.0.0

com.apple.filesystems.autofs 3.0

com.apple.driver.AppleMikeyHIDDriver 131

com.apple.driver.AppleHDA 280.12

com.apple.AGDCPluginDisplayMetrics 3.16.2

com.apple.driver.AppleUpstreamUserClient 3.6.4

com.apple.driver.pmtelemetry 1

com.apple.iokit.IOUserEthernet 1.0.1

com.apple.iokit.IOBluetoothSerialManager 6.0.2f2

com.apple.Dont_Steal_Mac_OS_X 7.0.0

com.apple.driver.eficheck 1

com.apple.driver.AppleSMCLMU 211

com.apple.driver.AppleOSXWatchdog 1

com.apple.driver.AppleBacklight 170.10.2

com.apple.driver.AppleLPC 3.1

com.apple.driver.AppleHV 1

com.apple.driver.AudioAUUC 1.70

com.apple.driver.AppleThunderboltIP 3.1.1

com.apple.GeForce 10.2.8

com.apple.driver.AppleMCCSControl 1.5.3

com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0

com.apple.driver.AppleIntelHD4000Graphics 10.3.0

com.apple.driver.AppleMikeyDriver 280.12

com.apple.driver.AppleIntelFramebufferCapri 10.3.0

com.apple.iokit.SCSITaskUserClient 404.30.2

com.apple.driver.AppleUSBODD 439.30.4

com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1

com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0

com.apple.BootCache 40

com.apple.filesystems.hfs.kext 407.30.1

com.apple.iokit.AppleBCM5701Ethernet 10.3.1

com.apple.driver.AppleSDXC 1.7.6

com.apple.driver.AirPort.Brcm4360 1220.18.1a2

com.apple.driver.AppleAHCIPort 329

com.apple.driver.AppleRTC 2.0

com.apple.driver.AppleACPIButtons 6.1

com.apple.driver.AppleHPET 1.8

com.apple.driver.AppleSMBIOS 2.1

com.apple.driver.AppleACPIEC 6.1

com.apple.driver.AppleAPIC 1.7

com.apple.driver.AppleIntelCPUPowerManagementClient 220.0.0

com.apple.nke.applicationfirewall 183

com.apple.security.quarantine 3

com.apple.security.TMSafetyNet 8

com.apple.driver.AppleIntelCPUPowerManagement 220.0.0

com.apple.IOBufferCopyEngineTest 1

com.apple.driver.IOBluetoothHIDDriver 6.0.2f2

com.apple.driver.AppleMultitouchDriver 1204.13

com.apple.driver.AppleInputDeviceSupport 1201.8

com.apple.kext.triggers 1.0

com.apple.driver.DspFuncLib 280.12

com.apple.kext.OSvKernDSPLib 526

com.apple.iokit.IOSerialFamily 11

com.apple.driver.AppleBacklightExpert 1.1.0

com.apple.driver.X86PlatformPlugin 1.0.0

com.apple.driver.IOPlatformPluginFamily 6.0.0d8

com.apple.driver.AppleSSE 1.0

com.apple.AppleGPUWrangler 3.16.2

com.apple.driver.AppleThunderboltEDMSink 4.1.2

com.apple.nvidia.driver.NVDAGK100Hal 10.2.8

com.apple.nvidia.driver.NVDAResman 10.2.8

com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0

com.apple.driver.AppleHDAController 280.12

com.apple.iokit.IOHDAFamily 280.12

com.apple.driver.AppleSMBusController 1.0.18d1

com.apple.driver.AppleSMBusPCI 1.0.14d1

com.apple.iokit.IONDRVSupport 517.22

com.apple.iokit.IOAcceleratorFamily2 376.6

com.apple.iokit.IOSurface 209.2.2

com.apple.AppleGraphicsDeviceControl 3.16.21

com.apple.iokit.IOGraphicsFamily 517.22

com.apple.driver.AppleHIDKeyboard 203

com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 6.0.2f2

com.apple.iokit.IOBluetoothHostControllerUSBTransport 6.0.2f2

com.apple.iokit.IOBluetoothHostControllerTransport 6.0.2f2

com.apple.iokit.IOBluetoothFamily 6.0.2f2

com.apple.driver.usb.IOUSBHostHIDDevice 1.2

com.apple.iokit.IOAudioFamily 206.5

com.apple.vecLib.kext 1.2.0

com.apple.iokit.IOSCSIMultimediaCommandsDevice 404.30.2

com.apple.iokit.IOBDStorageFamily 1.8

com.apple.iokit.IODVDStorageFamily 1.8

com.apple.iokit.IOCDStorageFamily 1.8

com.apple.driver.usb.networking 5.0.0

com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2

com.apple.driver.usb.AppleUSBHub 1.2

com.apple.driver.CoreStorage 546

com.apple.filesystems.hfs.encodings.kext 1

com.apple.driver.AppleThunderboltDPInAdapter 5.0.2

com.apple.driver.AppleThunderboltDPOutAdapter 5.0.2

com.apple.driver.AppleThunderboltDPAdapterFamily 5.0.2

com.apple.driver.AppleThunderboltPCIDownAdapter 2.1.3

com.apple.iokit.IOAHCIBlockStorage 301.40.2

com.apple.driver.AppleThunderboltNHI 4.5.6

com.apple.iokit.IOThunderboltFamily 6.6.3

com.apple.iokit.IOEthernetAVBController 1.1.0

com.apple.driver.usb.AppleUSBXHCIPCI 1.2

com.apple.driver.usb.AppleUSBXHCI 1.2

com.apple.iokit.IO80211Family 1200.12.2

com.apple.driver.mDNSOffloadUserClient 1.0.1b8

com.apple.driver.corecapture 1.0.4

com.apple.iokit.IOAHCIFamily 288

com.apple.driver.usb.AppleUSBEHCIPCI 1.2

com.apple.driver.usb.AppleUSBEHCI 1.2

com.apple.driver.usb.AppleUSBHostPacketFilter 1.0

com.apple.iokit.IOUSBFamily 900.4.1

com.apple.driver.AppleEFINVRAM 2.1

com.apple.driver.AppleUSBHostMergeProperties 1.2

com.apple.driver.AppleEFIRuntime 2.1

com.apple.iokit.IOHIDFamily 2.0.0

com.apple.iokit.IOSMBusFamily 1.1

com.apple.security.sandbox 300.0

com.apple.kext.AppleMatch 1.0.0d1

com.apple.driver.AppleFDEKeyStore 28.30

com.apple.driver.AppleEffaceableStorage 1.0

com.apple.driver.AppleKeyStore 2

com.apple.driver.AppleUSBTDM 439.30.4

com.apple.driver.AppleMobileFileIntegrity 1.0.5

com.apple.iokit.IOUSBMassStorageDriver 140.30.1

com.apple.iokit.IOSCSIBlockCommandsDevice 404.30.2

com.apple.iokit.IOSCSIArchitectureModelFamily 404.30.2

com.apple.driver.AppleCredentialManager 1.0

com.apple.driver.KernelRelayHost 1

com.apple.iokit.IOUSBHostFamily 1.2

com.apple.driver.usb.AppleUSBCommon 1.0

com.apple.driver.AppleBusPowerController 1.0

com.apple.driver.AppleSEPManager 1.0.1

com.apple.driver.IOSlaveProcessor 1

com.apple.iokit.IOBufferCopyEngineFamily 1

com.apple.driver.DiskImages 480.30.2

com.apple.iokit.IOStorageFamily 2.1

com.apple.iokit.IOReportFamily 31

com.apple.iokit.IOTimeSyncFamily 650.5

com.apple.iokit.IONetworkingFamily 3.4

com.apple.driver.AppleACPIPlatform 6.1

com.apple.driver.AppleSMCRTC 1.0

com.apple.driver.AppleSMC 3.1.9

com.apple.iokit.IOPCIFamily 2.9

com.apple.iokit.IOACPIFamily 1.4

com.apple.kec.pthread 1

com.apple.kec.corecrypto 1.0

com.apple.kec.Libm 1

EOF

BobHarris

Level 9

56,807 points

Mar 7, 2018 6:16 AM in response to brigarza

Have your previous repair receipt information, or case number when you next interact with Apple.

You can try the Genius Bar, as it cannot hurt. Since you have one failed repair, if the first level of Genius Bar does not want to replace, then ask to speak to a manager. If that is not satisfactory call Apple

Again, if no satisfaction, keep asking to speak to the next higher level of support.

But I suggest you always be polite, just insistent.

Mar 30, 2018 10:22 AM in response to Nico Macdonald

Hello. Have this panics after watching video in safari. Kingstone or GPU?

Anonymous UUID: 80D2943B-EFA9-D64A-BB70-8014D9639A39

Wed Jan 17 23:07:17 2018

*** Panic Report ***

panic(cpu 2 caller 0xffffff802096f2e9): Kernel trap at 0xffffff7fa3e95037, type 14=page fault, registers:

CR0: 0x000000008001003b, CR2: 0x0000000000000040, CR3: 0x0000000024e54000, CR4: 0x00000000000626e0

RAX: 0xffffff80372b5d00, RBX: 0x0000000000000009, RCX: 0xffffff7fa406f770, RDX: 0x0000000000000000

RSP: 0xffffff912eb9bc60, RBP: 0xffffff912eb9bcf0, RSI: 0xffffff7fa43b4510, RDI: 0xffffff80372b5d00

R8: 0xffffff912eb9bd00, R9: 0xffffff7fa3e57ec8, R10: 0x0000000000000000, R11: 0x00000000e0000000

R12: 0x0000000000000040, R13: 0xffffff80372b5d00, R14: 0xffffff912eb9bd00, R15: 0xffffff8037298c00

RFL: 0x0000000000010286, RIP: 0xffffff7fa3e95037, CS: 0x0000000000000008, SS: 0x0000000000000010

Fault CR2: 0x0000000000000040, Error code: 0x0000000000000000, Fault CPU: 0x2, PL: 0, VF: 1

Backtrace (CPU 2), Frame : Return Address

0xffffff912eb9b710 : 0xffffff80208505f6

0xffffff912eb9b760 : 0xffffff802097d604

0xffffff912eb9b7a0 : 0xffffff802096f0f9

0xffffff912eb9b820 : 0xffffff8020802120

0xffffff912eb9b840 : 0xffffff802085002c

0xffffff912eb9b970 : 0xffffff802084fdac

0xffffff912eb9b9d0 : 0xffffff802096f2e9

0xffffff912eb9bb50 : 0xffffff8020802120

0xffffff912eb9bb70 : 0xffffff7fa3e95037

0xffffff912eb9bcf0 : 0xffffff7fa3e508eb

0xffffff912eb9bdc0 : 0xffffff7fa3e50a11

0xffffff912eb9be00 : 0xffffff7fa3da8986

0xffffff912eb9be50 : 0xffffff7fa3db2473

0xffffff912eb9be90 : 0xffffff7fa3db1c7d

0xffffff912eb9bed0 : 0xffffff8020e91395

0xffffff912eb9bf30 : 0xffffff8020e8fba2

0xffffff912eb9bf70 : 0xffffff8020e8f1dc

0xffffff912eb9bfa0 : 0xffffff80208014f7

Kernel Extensions in backtrace:

com.apple.iokit.IOAcceleratorFamily2(376.6)[5F8F39B4-41AB-3263-9867-D0FAF9BBD2A E]@0xffffff7fa3da5000->0xffffff7fa3e3afff

dependency: com.apple.driver.AppleMobileFileIntegrity(1.0.5)[58669FC2-CC90-3594-AD69-DB89B9 23FD20]@0xffffff7fa17fb000

dependency: com.apple.iokit.IOSurface(209.2.2)[AE58720D-7079-388F-AD95-FD2366F98F8D]@0xffff ff7fa37c3000

dependency: com.apple.iokit.IOPCIFamily(2.9)[C08F7FC1-78A4-3A1B-BFE2-C07080CF2048]@0xffffff 7fa1094000

dependency: com.apple.iokit.IOGraphicsFamily(517.22)[2AEA02BF-2A38-3674-A187-E5F610FD65B7]@ 0xffffff7fa1835000

com.apple.kext.AMDRadeonX3000(1.6)[7E721EBE-AD4B-3C53-A70A-1FFF3C231968]@0xffff ff7fa3e4b000->0xffffff7fa43b6fff

dependency: com.apple.iokit.IOSurface(209.2.2)[AE58720D-7079-388F-AD95-FD2366F98F8D]@0xffff ff7fa37c3000

dependency: com.apple.iokit.IOPCIFamily(2.9)[C08F7FC1-78A4-3A1B-BFE2-C07080CF2048]@0xffffff 7fa1094000

dependency: com.apple.iokit.IOGraphicsFamily(517.22)[2AEA02BF-2A38-3674-A187-E5F610FD65B7]@ 0xffffff7fa1835000

dependency: com.apple.iokit.IOAcceleratorFamily2(376.6)[5F8F39B4-41AB-3263-9867-D0FAF9BBD2A E]@0xffffff7fa3da5000

BSD process name corresponding to current thread: kernel_task

Mac OS version:

17C88

Kernel version:

Darwin Kernel Version 17.3.0: Thu Nov 9 18:09:22 PST 2017; root:xnu-4570.31.3~1/RELEASE_X86_64

Kernel UUID: 87641697-A3DD-30C4-B010-E65ECE57550B

Kernel slide: 0x0000000020400000

Kernel text base: 0xffffff8020600000

__HIB text base: 0xffffff8020500000

System model name: Macmini5,2 (Mac-4BC72D62AD45599E)

System uptime in nanoseconds: 13964067626477

last loaded kext at 247656762105: com.apple.filesystems.msdosfs 1.10 (addr 0xffffff7fa44e9000, size 69632)

last unloaded kext at 308292591139: com.apple.filesystems.msdosfs 1.10 (addr 0xffffff7fa44e9000, size 61440)

loaded kexts:

com.apple.driver.AppleBluetoothMultitouch 92

com.apple.driver.AppleHWSensor 1.9.5d0

com.apple.driver.AudioAUUC 1.70

com.apple.driver.AGPM 110.23.24

com.apple.driver.ApplePlatformEnabler 2.7.0d0

com.apple.filesystems.autofs 3.0

com.apple.driver.AppleMikeyHIDDriver 131

com.apple.driver.AppleMikeyDriver 280.12

com.apple.driver.AppleHDA 280.12

com.apple.AGDCPluginDisplayMetrics 3.16.2

com.apple.driver.AppleHV 1

com.apple.iokit.IOUserEthernet 1.0.1

com.apple.driver.AppleUpstreamUserClient 3.6.4

com.apple.driver.AppleMCCSControl 1.5.3

com.apple.iokit.IOBluetoothSerialManager 6.0.2f2

com.apple.kext.AMDLegacyFramebuffer 1.6.0

com.apple.driver.pmtelemetry 1

com.apple.Dont_Steal_Mac_OS_X 7.0.0

com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0

com.apple.kext.AMDRadeonX3000 1.6.0

com.apple.driver.AppleIntelHD3000Graphics 10.0.4

com.apple.driver.eficheck 1

com.apple.driver.AppleThunderboltIP 3.1.1

com.apple.driver.AppleSMCPDRC 1.0.0

com.apple.driver.AppleLPC 3.1

com.apple.driver.AppleOSXWatchdog 1

com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0

com.apple.driver.AppleIntelSNBGraphicsFB 10.0.4

com.apple.kext.AMD6000Controller 1.6.0

com.apple.driver.AppleIRController 352

com.apple.filesystems.apfs 748.31.8

com.apple.filesystems.hfs.kext 407.30.1

com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1

com.apple.BootCache 40

com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0

com.apple.driver.AirPort.Brcm4331 800.21.30

com.apple.driver.AppleFWOHCI 5.5.8

com.apple.iokit.AppleBCM5701Ethernet 10.3.1

com.apple.driver.AppleSDXC 1.7.6

com.apple.driver.AppleAHCIPort 329

com.apple.driver.AppleACPIButtons 6.1

com.apple.driver.AppleRTC 2.0

com.apple.driver.AppleHPET 1.8

com.apple.driver.AppleSMBIOS 2.1

com.apple.driver.AppleACPIEC 6.1

com.apple.driver.AppleAPIC 1.7

com.apple.driver.AppleIntelCPUPowerManagementClient 220.0.0

com.apple.nke.applicationfirewall 183

com.apple.security.TMSafetyNet 8

com.apple.security.quarantine 3

com.apple.IOBufferCopyEngineTest 1

com.apple.driver.AppleIntelCPUPowerManagement 220.0.0

com.apple.driver.IOBluetoothHIDDriver 6.0.2f2

com.apple.driver.AppleMultitouchDriver 1204.13

com.apple.driver.AppleInputDeviceSupport 1201.8

com.apple.kext.triggers 1.0

com.apple.driver.DspFuncLib 280.12

com.apple.kext.OSvKernDSPLib 526

com.apple.driver.AppleSSE 1.0

com.apple.iokit.IOSerialFamily 11

com.apple.AppleGPUWrangler 3.16.2

com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0

com.apple.iokit.IOAcceleratorFamily2 376.6

com.apple.iokit.IOSurface 209.2.2

com.apple.iokit.IONDRVSupport 517.22

com.apple.iokit.IOFireWireIP 2.2.8

com.apple.driver.AppleSMBusController 1.0.18d1

com.apple.driver.IOPlatformPluginLegacy 1.0.0

com.apple.driver.IOPlatformPluginFamily 6.0.0d8

com.apple.driver.AppleSMBusPCI 1.0.14d1

com.apple.AppleGraphicsDeviceControl 3.16.21

com.apple.kext.AMDLegacySupport 1.6.0

com.apple.driver.AppleHDAController 280.12

com.apple.iokit.IOGraphicsFamily 517.22

com.apple.iokit.IOHDAFamily 280.12

com.apple.iokit.IOAudioFamily 206.5

com.apple.vecLib.kext 1.2.0

com.apple.driver.AppleHIDKeyboard 203

com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 6.0.2f2

com.apple.iokit.IOBluetoothHostControllerUSBTransport 6.0.2f2

com.apple.iokit.IOBluetoothHostControllerTransport 6.0.2f2

com.apple.iokit.IOBluetoothFamily 6.0.2f2

com.apple.driver.usb.IOUSBHostHIDDevice 1.2

com.apple.driver.usb.networking 5.0.0

com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2

com.apple.driver.usb.AppleUSBHub 1.2

com.apple.filesystems.hfs.encodings.kext 1

com.apple.driver.AppleThunderboltDPInAdapter 5.0.2

com.apple.driver.AppleThunderboltDPOutAdapter 5.0.2

com.apple.driver.AppleThunderboltDPAdapterFamily 5.0.2

com.apple.driver.AppleThunderboltPCIDownAdapter 2.1.3

com.apple.iokit.IOAHCIBlockStorage 301.20.1

com.apple.driver.AppleThunderboltNHI 4.5.6

com.apple.iokit.IOThunderboltFamily 6.6.3

com.apple.iokit.IO80211Family 1200.12.2

com.apple.driver.corecapture 1.0.4

com.apple.iokit.IOFireWireFamily 4.6.8

com.apple.iokit.IOEthernetAVBController 1.1.0

com.apple.driver.mDNSOffloadUserClient 1.0.1b8

com.apple.iokit.IOAHCIFamily 288

com.apple.driver.usb.AppleUSBEHCIPCI 1.2

com.apple.driver.usb.AppleUSBEHCI 1.2

com.apple.driver.usb.AppleUSBHostPacketFilter 1.0

com.apple.iokit.IOUSBFamily 900.4.1

com.apple.driver.AppleUSBHostMergeProperties 1.2

com.apple.iokit.IOHIDFamily 2.0.0

com.apple.driver.AppleEFINVRAM 2.1

com.apple.driver.AppleEFIRuntime 2.1

com.apple.iokit.IOSMBusFamily 1.1

com.apple.security.sandbox 300.0

com.apple.kext.AppleMatch 1.0.0d1

com.apple.iokit.IOBufferCopyEngineFamily 1

com.apple.driver.DiskImages 480.30.2

com.apple.driver.AppleFDEKeyStore 28.30

com.apple.driver.AppleEffaceableStorage 1.0

com.apple.driver.AppleKeyStore 2

com.apple.driver.AppleUSBTDM 439.30.4

com.apple.driver.AppleMobileFileIntegrity 1.0.5

com.apple.iokit.IOUSBMassStorageDriver 140.30.1

com.apple.iokit.IOSCSIBlockCommandsDevice 404.30.2

com.apple.iokit.IOSCSIArchitectureModelFamily 404.30.2

com.apple.iokit.IOStorageFamily 2.1

com.apple.driver.AppleCredentialManager 1.0

com.apple.driver.KernelRelayHost 1

com.apple.iokit.IOUSBHostFamily 1.2

com.apple.driver.usb.AppleUSBCommon 1.0

com.apple.driver.AppleBusPowerController 1.0

com.apple.driver.AppleSEPManager 1.0.1

com.apple.driver.IOSlaveProcessor 1

com.apple.iokit.IOReportFamily 31

com.apple.iokit.IOTimeSyncFamily 650.5

com.apple.iokit.IONetworkingFamily 3.4

com.apple.driver.AppleACPIPlatform 6.1

com.apple.driver.AppleSMCRTC 1.0

com.apple.driver.AppleSMC 3.1.9

com.apple.iokit.IOPCIFamily 2.9

com.apple.iokit.IOACPIFamily 1.4

com.apple.kec.pthread 1

com.apple.kec.Libm 1

com.apple.kec.corecrypto 1.0

EOF

Model: Macmini5,2, BootROM MM51.007B.B00, 2 processors, Intel Core i5, 2.5 GHz, 8 GB, SMC 1.75f0

Graphics: AMD Radeon HD 6630M, AMD Radeon HD 6630M, PCIe, 256 MB

Graphics: Intel HD Graphics 3000, Intel HD Graphics 3000, Built-In

Memory Module: BANK 0/DIMM0, 4 GB, DDR3, 1333 MHz, 0x80CE, 0x4D34373142353237334448302D4348392020

Memory Module: BANK 1/DIMM0, 4 GB, DDR3, 1333 MHz, 0x80CE, 0x4D34373142353237334448302D4348392020

AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0xE4), Broadcom BCM43xx 1.0 (5.106.98.102.30)

Bluetooth: Version 6.0.2f2, 3 services, 27 devices, 1 incoming serial ports

Network Service: Wi-Fi, AirPort, en1

Serial ATA Device: KINGSTON SUV400S37120G, 120.03 GB

Serial ATA Device: TOSHIBA MK5065GSXF, 500.11 GB

USB Device: USB 2.0 Bus

USB Device: Hub

USB Device: BRCM20702 Hub

USB Device: Bluetooth USB Host Controller

USB Device: USB 2.0 Bus

USB Device: Hub

USB Device: Keyboard Hub

USB Device: Apple Keyboard

USB Device: Microsoft 3-Button Mouse with IntelliEye(TM)

USB Device: IR Receiver

Thunderbolt Bus: Mac mini, Apple Inc., 22.2

This thread has been closed by the system or the community team. You may vote for any posts you find helpful, or search the Community for additional answers.

Constant kernel panics after macOS High Sierra upgrade
