Constant kernel panics after macOS High Sierra upgrade

I have a MacBook Pro (Retina, 13-inch, Late 2013, 250 GB SSD, 16 GB RAM). I have experienced constant kernel panics after macOS High Sierra upgrade, from Sierra. (Under Sierra 10.12.5 the Mac was as stable as one would expect.)

In High Sierra the OS would boot and almost immediately go into kernel panic. I reinstalled the OS from OS X Recovery (having run Disk First Aid, which revealed no problem) and it worked OK for a couple of days.

I restarted (having noticed an odd behaviour in Contacts) and the problem recurred. Again I had a kernel panics 60-120 seconds after restart, or immediately the Finder started to load.

I again reinstalled the OS from OS X Recovery but the panics continued. I ran Disk First Aid again, which revealed no problem. The kernel panics occurred when booted in Safe Mode too. However, if I logged into a 'plain vanilla' user account the problems didn't occur. This would, I believe, indicate there isn't a problem with the hardware or RAM.

I suspected an rogue extension, and have been trying to uninstall apps that load code or extensions at startup, such as FullContact, Skitch, Yoink, CleanMyMac, and Things. To no avail.

I contacted Apple Support for advice on how to disable or remove other third party extensions but they said there was no method for doing this. They advised backing up, erasing the drive, reinstalling macOS, and restoring the backed up data but if the problem is extension-related it would likely recur.

The closest related post I have found is Kernel panic after latest osx Sierra update, but that only gets me so far. Any advice would be welcomed.

MacBook Pro (Retina, 13-inch, Late 2013), macOS High Sierra (10.13)

Posted on Oct 5, 2017 3:25 PM

Top-ranking reply

BobHarris

Level 9

56,819 points

Posted on Apr 30, 2018 7:14 PM

RJHMUSIC,

We need to see the panics you are getting to be helpful. As this is a user-to-user technical support fourm, we need information.

Please post the most recent kernel panic report(s). If you have more than one, it would be useful to see a few, as whether they are consistant or change will give us useful information.

Kernel Panic reports: Finder -> Go -> Go to Folder -> /Library/Logs/DiagnosticReports

<http://support.apple.com/kb/ht2546>

<http://support.apple.com/en-us/HT200553>

The panic report should have "panic" in the file name.

It would also be useful to see what, if any, 3rd party additions have been installed. This too can help diagnose your system.

Please post the EtreCheck output as a "Reply" to this thread

<https://discussions.apple.com/docs/DOC-6174> or <https://etrecheck.com>

Use the EtreCheck -> Edit -> Copy Report (See the image below)

And then Paste the report as a "Reply" to this thread.

If, AND ONLY IF, you get the error:

"The message contains invalid characters"

then try posting to PasteBin.com, and give us a PasteBin URL link.

<http://pastebin.com/>

EtreCheck is a tool that helps Apple Support Community volunteers debug problems without any access to the troubled computers. Debugging problems can be a difficult task even when the machine is in front of you. Attempting it via a discussion forum is extremely difficult. EtreCheck is a great help that regards.

It is possible you have a hardware issue, but we can only look at the information you give us, and then may recommendataions.

View in context

137 replies

woyfe

Level 1

8 points

Feb 9, 2018 7:56 AM in response to BobHarris

Thanks for your help.

Barney-15E

Level 10

122,138 points

Mar 31, 2018 6:44 AM in response to Andrew ukr

Hello. Have this panics after watching video in safari. Kingstone or GPU?

A Page Fault is likely a memory problem.

BobHarris

Level 9

56,819 points

May 7, 2018 7:16 PM in response to david from rennes

(sorry for my English, this is not my natural language)

American English "Is" my native language, and often I read something I've written in the forums, and I wonder if I really grew up in the USA 😊

Jul 11, 2018 8:22 PM in response to BobHarris

Thanks Bob, Will do so and report back

Aug 1, 2018 8:22 PM in response to Nico Macdonald

I'm also having Kernal panics when on high sierra so if anyone can help me here's the link to my post.

Macbook Air Keeps Crashing

Kultiras

Level 1

24 points

Oct 10, 2017 6:26 AM in response to BobHarris

I'm running this on a Mac Pro 5.01 and have the same issues. Re-installed the system 4 times on a Kingston SSD, and it worked fine but after a while it panics after a reboot. What I've done so far:

- Reset PRAM

- Rebooted with -r (can't fix disk)

- Rebooted in s, en did a fsck. Disk appears to be fine

If I start from my other SSD on Sierra, the system boots fine. I am not able to repair the High Sierra disk though, when I try to repair the AppleAPFSMedia it always end up with:

"Storage system check exit code is 8"

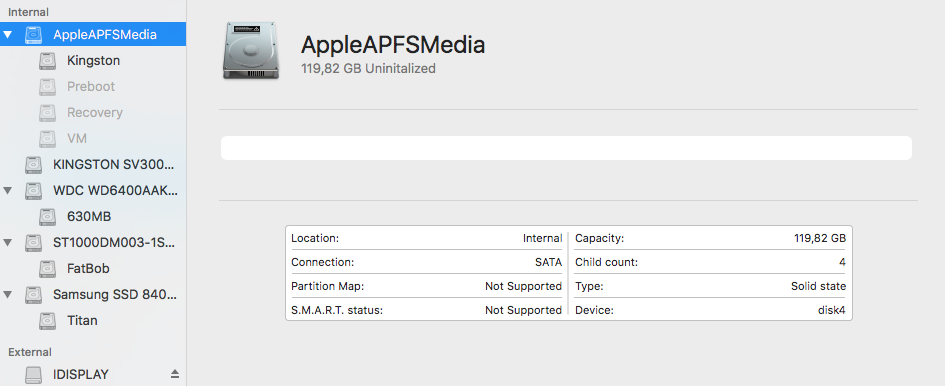

Strange thing is, when I try to do a repair on the "Kingston" volume, disk utility crashes.

From my old Sun days I have some troubleshooting knowledge left, but I can't find the reason why this is happening.

For now I am back on my Sierra disk, which sometimes hangs, specially when I've been away for a while and try to log back in. Something I did not have in High Sierra.

Here's my pain log, seems to look a bit the same as from Nico.

Anonymous UUID: AC6B3A15-D350-995C-4801-B8BFFB89EA94

Tue Oct 10 14:33:21 2017

*** Panic Report ***

panic(cpu 10 caller 0xffffff801e98a611): Kernel trap at 0xffffff7fa1129158, type 14=page fault, registers:

CR0: 0x000000008001003b, CR2: 0x0000000000000020, CR3: 0x00000004592fc000, CR4: 0x0000000000002660

RAX: 0x0000000000000000, RBX: 0x0000000000000000, RCX: 0x0000000000000000, RDX: 0x0000000000000000

RSP: 0xffffff920bdebb50, RBP: 0xffffff920bdebb60, RSI: 0x0000000000000027, RDI: 0x0000000000000000

R8: 0xffffff8040a8e000, R9: 0x0000000000000001, R10: 0xffffff8041ca8cc0, R11: 0x0000000000000001

R12: 0xffffff803ed26680, R13: 0xffffff803ed26680, R14: 0xffffff7fa135c44c, R15: 0xffffff8041cc24e0

RFL: 0x0000000000010246, RIP: 0xffffff7fa1129158, CS: 0x0000000000000008, SS: 0x0000000000000010

Fault CR2: 0x0000000000000020, Error code: 0x0000000000000000, Fault CPU: 0xa, PL: 0, VF: 0

Backtrace (CPU 10), Frame : Return Address

0xffffff920bdeb610 : 0xffffff801e86d366

0xffffff920bdeb650 : 0xffffff801e998494

0xffffff920bdeb690 : 0xffffff801e98a429

0xffffff920bdeb710 : 0xffffff801e81f190

0xffffff920bdeb730 : 0xffffff801e86cd8c

0xffffff920bdeb860 : 0xffffff801e86cafc

0xffffff920bdeb8c0 : 0xffffff801e98a611

0xffffff920bdeba40 : 0xffffff801e81f190

0xffffff920bdeba60 : 0xffffff7fa1129158

0xffffff920bdebb60 : 0xffffff7fa10b62c8

0xffffff920bdebba0 : 0xffffff7fa08d6c9e

0xffffff920bdebc20 : 0xffffff7fa08ce700

0xffffff920bdebc70 : 0xffffff7fa10b7474

0xffffff920bdebcc0 : 0xffffff801ee77c9f

0xffffff920bdebd10 : 0xffffff801eed3b37

0xffffff920bdebd70 : 0xffffff801e945832

0xffffff920bdebdc0 : 0xffffff801e8725ee

0xffffff920bdebe10 : 0xffffff801e84fbdd

0xffffff920bdebe60 : 0xffffff801e862c6b

0xffffff920bdebef0 : 0xffffff801e9750fd

0xffffff920bdebfa0 : 0xffffff801e81f996

Kernel Extensions in backtrace:

com.apple.iokit.IOGraphicsFamily(517.17)[05FC87E8-B78E-319E-AF08-0EBDA16094CE]@ 0xffffff7fa08c0000->0xffffff7fa0905fff

dependency: com.apple.iokit.IOPCIFamily(2.9)[DF1517A2-32C4-328E-9890-03E6C546604A]@0xffffff 7f9f094000

com.apple.nvidia.driver.NVDAResman(10.2.4)[32AD415F-E50C-3AF3-861E-B49483F4B0A4 ]@0xffffff7fa10b3000->0xffffff7fa1398fff

dependency: com.apple.iokit.IOPCIFamily(2.9)[DF1517A2-32C4-328E-9890-03E6C546604A]@0xffffff 7f9f094000

dependency: com.apple.iokit.IONDRVSupport(517.17)[65CF8366-5909-3674-9557-075FE1439A25]@0xf fffff7fa0938000

dependency: com.apple.iokit.IOGraphicsFamily(517.17)[05FC87E8-B78E-319E-AF08-0EBDA16094CE]@ 0xffffff7fa08c0000

dependency: com.apple.AppleGraphicsDeviceControl(3.16.19)[35BE1077-5D56-3353-BFC5-F6026B931 F81]@0xffffff7fa0b52000

BSD process name corresponding to current thread: WindowServer

Mac OS version:

17A405

Kernel version:

Darwin Kernel Version 17.0.0: Thu Aug 24 21:48:19 PDT 2017; root:xnu-4570.1.46~2/RELEASE_X86_64

Kernel UUID: B84FDEFC-9081-35CE-8C51-25A9583AACDE

Kernel slide: 0x000000001e600000

Kernel text base: 0xffffff801e800000

__HIB text base: 0xffffff801e700000

System model name: MacPro5,1 (Mac-F221BEC8)

System uptime in nanoseconds: 77732882346

last loaded kext at 77537754827: com.apple.driver.AppleGraphicsDevicePolicy 3.16.19 (addr 0xffffff7fa14fb000, size 98304)

loaded kexts:

com.nvidia.NVDAStartupWeb 10.2.5

com.nvidia.CUDA 1.1.0

com.steelseries.ssenext.driver 1.6.4

com.apple.driver.AppleGraphicsDevicePolicy 3.16.19

com.apple.AGDCPluginDisplayMetrics 3.16.19

com.apple.driver.AppleHV 1

com.apple.iokit.IOUserEthernet 1.0.1

com.apple.driver.AudioAUUC 1.70

com.apple.iokit.IOBluetoothSerialManager 6.0.0f7

com.apple.driver.AppleUpstreamUserClient 3.6.4

com.apple.driver.pmtelemetry 1

com.apple.driver.AppleMCCSControl 1.5.3

com.apple.driver.AppleMikeyHIDDriver 131

com.apple.Dont_Steal_Mac_OS_X 7.0.0

com.apple.GeForceTesla 10.0.4

com.apple.driver.AppleHDAHardwareConfigDriver 280.12

com.apple.driver.AppleMikeyDriver 280.12

com.apple.driver.AppleTyMCEDriver 1.0.3d2

com.apple.driver.AGPM 110.23.24

com.apple.driver.AppleHDA 280.12

com.apple.AVEBridge 1.0.0

com.apple.nvidia.NVDAStartup 10.2.4

com.apple.driver.Intel82574LEthernet 2.7.2

com.apple.iokit.IOBluetoothUSBDFU 6.0.0f7

com.apple.driver.AppleLPC 3.1

com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0

com.apple.driver.AppleFIVRDriver 4.1.0

com.apple.driver.AppleOSXWatchdog 1

com.apple.driver.Apple_iSight 4.0.1

com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0

com.apple.filesystems.autofs 3.0

com.apple.filesystems.apfs 748.1.47

com.apple.driver.AppleTopCaseHIDEventDriver 127

com.apple.driver.AppleUSBTopCaseDriver 127

com.apple.iokit.SCSITaskUserClient 404

com.apple.driver.AppleFileSystemDriver 3.0.1

com.apple.filesystems.hfs.kext 407.1.3

com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1

com.apple.BootCache 40

com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0

com.apple.driver.AppleFWOHCI 5.5.8

com.apple.driver.AppleAHCIPort 329

com.apple.driver.AppleHPET 1.8

com.apple.driver.AppleRTC 2.0

com.apple.driver.AppleACPIButtons 6.1

com.apple.driver.AppleSMBIOS 2.1

com.apple.driver.AppleACPIEC 6.1

com.apple.driver.AppleAPIC 1.7

com.apple.driver.AppleIntelCPUPowerManagementClient 220.0.0

com.apple.nke.applicationfirewall 183

com.apple.security.TMSafetyNet 8

com.apple.security.quarantine 3

com.apple.IOBufferCopyEngineTest 1

com.apple.driver.AppleIntelCPUPowerManagement 220.0.0

com.apple.driver.AppleGraphicsControl 3.16.19

com.apple.iokit.IOTimeSyncFamily 600.15

com.apple.driver.AppleSSE 1.0

com.apple.iokit.IOSurface 209

com.apple.iokit.IOSerialFamily 11

com.apple.nvidia.driver.NVDAResman 10.2.4

com.apple.nvidia.classic.NVDANV50HalTesla 10.0.4

com.apple.nvidia.classic.NVDAResmanTesla 10.0.4

com.apple.AppleGPUWrangler 3.16.19

com.apple.AppleGraphicsDeviceControl 3.16.19

com.apple.driver.DspFuncLib 280.12

com.apple.kext.OSvKernDSPLib 526

com.apple.iokit.IONDRVSupport 517.17

com.apple.driver.AppleSMBusController 1.0.18d1

com.apple.driver.AppleHDAController 280.12

com.apple.iokit.IOGraphicsFamily 517.17

com.apple.iokit.IOHDAFamily 280.12

com.apple.iokit.IOAudioFamily 206.5

com.apple.vecLib.kext 1.2.0

com.apple.driver.AppleSMBusPCI 1.0.14d1

com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0

com.apple.iokit.IOFireWireIP 2.2.8

com.apple.driver.IOPlatformPluginLegacy 1.0.0

com.apple.driver.IOPlatformPluginFamily 6.0.0d8

com.apple.kext.triggers 1.0

com.apple.driver.AppleEffaceableStorage 1.0

com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 6.0.0f7

com.apple.iokit.IOBluetoothHostControllerUSBTransport 6.0.0f7

com.apple.iokit.IOBluetoothHostControllerTransport 6.0.0f7

com.apple.driver.AppleXsanScheme 3

com.apple.iokit.IOAHCIBlockStorage 301.1.2

com.apple.driver.AppleHSBluetoothDriver 127

com.apple.driver.IOBluetoothHIDDriver 6.0.0f7

com.apple.iokit.IOBluetoothFamily 6.0.0f7

com.apple.driver.AppleHIDKeyboard 203

com.apple.driver.AppleMultitouchDriver 1004.1

com.apple.driver.AppleInputDeviceSupport 1000

com.apple.driver.usb.IOUSBHostHIDDevice 1.2

com.apple.driver.usb.cdc 5.0.0

com.apple.driver.usb.networking 5.0.0

com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2

com.apple.driver.usb.AppleUSBHub 1.2

com.apple.iokit.IOSCSIMultimediaCommandsDevice 404

com.apple.iokit.IOBDStorageFamily 1.8

com.apple.iokit.IODVDStorageFamily 1.8

com.apple.iokit.IOCDStorageFamily 1.8

com.apple.iokit.IONetworkingFamily 3.3

com.apple.filesystems.hfs.encodings.kext 1

com.apple.iokit.IOAHCISerialATAPI 267

com.apple.iokit.IOFireWireFamily 4.6.8

com.apple.driver.AppleUSBMergeNub 900.4.1

com.apple.driver.usb.AppleUSBXHCIPCI 1.2

com.apple.driver.usb.AppleUSBXHCI 1.2

com.apple.iokit.IOAHCIFamily 288

com.apple.driver.usb.AppleUSBEHCIPCI 1.2

com.apple.driver.usb.AppleUSBUHCIPCI 1.2

com.apple.driver.usb.AppleUSBUHCI 1.2

com.apple.driver.usb.AppleUSBEHCI 1.2

com.apple.driver.usb.AppleUSBHostPacketFilter 1.0

com.apple.iokit.IOUSBFamily 900.4.1

com.apple.driver.AppleUSBHostMergeProperties 1.2

com.apple.driver.AppleEFINVRAM 2.1

com.apple.driver.AppleEFIRuntime 2.1

com.apple.iokit.IOHIDFamily 2.0.0

com.apple.iokit.IOSMBusFamily 1.1

com.apple.security.sandbox 300.0

com.apple.kext.AppleMatch 1.0.0d1

com.apple.iokit.IOBufferCopyEngineFamily 1

com.apple.driver.DiskImages 480.1.2

com.apple.driver.AppleKeyStore 2

com.apple.driver.AppleUSBTDM 439

com.apple.driver.AppleMobileFileIntegrity 1.0.5

com.apple.iokit.IOUSBMassStorageDriver 140

com.apple.iokit.IOSCSIBlockCommandsDevice 404

com.apple.iokit.IOSCSIArchitectureModelFamily 404

com.apple.iokit.IOStorageFamily 2.1

com.apple.driver.AppleCredentialManager 1.0

com.apple.driver.KernelRelayHost 1

com.apple.iokit.IOUSBHostFamily 1.2

com.apple.driver.usb.AppleUSBCommon 1.0

com.apple.driver.AppleBusPowerController 1.0

com.apple.driver.AppleSEPManager 1.0.1

com.apple.driver.IOSlaveProcessor 1

com.apple.iokit.IOReportFamily 31

com.apple.driver.AppleFDEKeyStore 28.30

com.apple.driver.AppleACPIPlatform 6.1

com.apple.driver.AppleSMCRTC 1.0

com.apple.driver.AppleSMC 3.1.9

com.apple.iokit.IOPCIFamily 2.9

com.apple.iokit.IOACPIFamily 1.4

com.apple.kec.pthread 1

com.apple.kec.Libm 1

com.apple.kec.corecrypto 1.0

EOF

GKoons

Level 1

4 points

Dec 9, 2017 4:22 PM in response to Nico Macdonald

I have the same kernel panic:

Kernel Extensions in backtrace:

com.apple.filesystems.apfs(748.1.46)[CA424079-AA66-370B-A9AB-D80ED4C92667]@0xff ffff7f81493000->0xffffff7f81569fff

dependency: com.apple.kec.corecrypto(1.0)[0C6635A4-47EA-3A47-8D33-CB3769579F4F]@0xffffff7f8 0eae000

dependency: com.apple.driver.AppleEffaceableStorage(1.0)[F67EFE80-6130-3A06-9105-C89D1004A6 3B]@0xffffff7f813fe000

dependency: com.apple.iokit.IOStorageFamily(2.1)[0E8BC828-5A1E-3308-ADAB-1F4373F9402F]@0xff ffff7f80c46000

In my case it's due to a USB RAID5 enclosure that I stupidly converted to use Apple's new APFS. It worked fine for over a month, and started to degrade when I tried to transfer files to it eventually resulting in this kernel panic every time it's now plugged in. When Spotlight, or FSEvents Daemon attempts to write to it during initialization OSX crashes. The good news, at least in my case, is I'm able to retrieve the data in Recovery Mode since fseventsd is not running. I can see all my data there, but now I'll need to buy a twin RAID enclosure, format it HFS, and transfer everything over. It's an expensive mistake, but recoverable.

Barney-15E

Level 10

122,138 points

Dec 9, 2017 4:54 PM in response to mpasant

upgraded RAM with aftermarket

Replace the old RAM and test.

If it doesn't panic, you got bad RAM. You can try testing with either the built-in Apple Diagnostics or Rember: http://www.kelleycomputing.net/Rember

woyfe

Level 1

8 points

Feb 9, 2018 7:09 AM in response to Nico Macdonald

I have maybe the same or a similar problem.

I have a kernel panic every time I try to shut down my iMac.

At first it shuts down correctly only to start up again after some seconds. sa kernel panic

I found a Kernel panic report.

Can somebody help me?

Thanks, Wolfgang

Anonymous UUID: 9A30E20F-D7D8-9D3D-CFAB-C601F70E246B

Fri Feb 9 14:21:26 2018

*** Panic Report ***

panic(cpu 1 caller 0xffffff8023c9c67a): "Element 0xffffff804577e000 from zone kalloc.6144 caught being freed to wrong zone kalloc.1664\n"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu/xnu-4570.41. 2/osfmk/kern/zalloc.c:3523

Backtrace (CPU 1), Frame : Return Address

0xffffff820233ba20 : 0xffffff8023c4f606

0xffffff820233ba70 : 0xffffff8023d7c654

0xffffff820233bab0 : 0xffffff8023d6e149

0xffffff820233bb30 : 0xffffff8023c01120

0xffffff820233bb50 : 0xffffff8023c4f03c

0xffffff820233bc80 : 0xffffff8023c4edbc

0xffffff820233bce0 : 0xffffff8023c9c67a

0xffffff820233bdc0 : 0xffffff8024255836

0xffffff820233bde0 : 0xffffff7fa46fea14

0xffffff820233be00 : 0xffffff802420b563

0xffffff820233be30 : 0xffffff802420b346

0xffffff820233be50 : 0xffffff7fa46f802e

0xffffff820233be70 : 0xffffff802420b563

0xffffff820233bea0 : 0xffffff802420b346

0xffffff820233bec0 : 0xffffff802422aacc

0xffffff820233bee0 : 0xffffff80242666cc

0xffffff820233bf60 : 0xffffff80242702a7

0xffffff820233bfa0 : 0xffffff8023c004f7

Kernel Extensions in backtrace:

jp.co.yamaha.driver.YamahaSteinbergUSBAudio(1.9.22)[5B137C01-2AF1-34FF-062C-02E 2C7CFD6E8]@0xffffff7fa46f3000->0xffffff7fa470cfff

dependency: com.apple.iokit.IOAudioFamily(206.5)[2F090399-C028-3F14-AE4F-BF49A3D602E5]@0xff ffff7fa4506000

dependency: com.apple.iokit.IOUSBFamily(900.4.1)[FD04D3BC-D376-36FD-924C-DD5DF51B0509]@0xff ffff7fa4646000

BSD process name corresponding to current thread: kernel_task

Mac OS version:

17D47

Kernel version:

Darwin Kernel Version 17.4.0: Sun Dec 17 09:19:54 PST 2017; root:xnu-4570.41.2~1/RELEASE_X86_64

Kernel UUID: 18D901F1-4A03-3FF1-AE34-C26B2732F13C

Kernel slide: 0x0000000023800000

Kernel text base: 0xffffff8023a00000

__HIB text base: 0xffffff8023900000

System model name: iMac13,2 (Mac-FC02E91DDD3FA6A4)

System uptime in nanoseconds: 237474967612

last loaded kext at 8459540316: com.apple.driver.AppleBluetoothMultitouch 92 (addr 0xffffff7fa7217000, size 61440)

last unloaded kext at 144735301322: com.apple.driver.AppleUSBMergeNub 900.4.1 (addr 0xffffff7fa5531000, size 12288)

loaded kexts:

jp.co.yamaha.driver.YamahaSteinbergUSBAudio 1.9.22

com.apple.driver.AppleBluetoothMultitouch 92

com.apple.driver.AppleHWSensor 1.9.5d0

com.apple.driver.AGPM 110.23.30

com.apple.driver.ApplePlatformEnabler 2.7.0d0

com.apple.driver.X86PlatformShim 1.0.0

com.apple.filesystems.autofs 3.0

com.apple.driver.AppleMikeyHIDDriver 131

com.apple.driver.AppleHDA 280.12

com.apple.AGDCPluginDisplayMetrics 3.16.2

com.apple.driver.AppleUpstreamUserClient 3.6.4

com.apple.driver.pmtelemetry 1

com.apple.iokit.IOUserEthernet 1.0.1

com.apple.iokit.IOBluetoothSerialManager 6.0.2f2

com.apple.Dont_Steal_Mac_OS_X 7.0.0

com.apple.driver.eficheck 1

com.apple.driver.AppleSMCLMU 211

com.apple.driver.AppleOSXWatchdog 1

com.apple.driver.AppleBacklight 170.10.2

com.apple.driver.AppleLPC 3.1

com.apple.driver.AppleHV 1

com.apple.driver.AudioAUUC 1.70

com.apple.driver.AppleThunderboltIP 3.1.1

com.apple.GeForce 10.2.8

com.apple.driver.AppleMCCSControl 1.5.3

com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0

com.apple.driver.AppleIntelHD4000Graphics 10.3.0

com.apple.driver.AppleMikeyDriver 280.12

com.apple.driver.AppleIntelFramebufferCapri 10.3.0

com.apple.iokit.SCSITaskUserClient 404.30.2

com.apple.driver.AppleUSBODD 439.30.4

com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1

com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0

com.apple.BootCache 40

com.apple.filesystems.hfs.kext 407.30.1

com.apple.iokit.AppleBCM5701Ethernet 10.3.1

com.apple.driver.AppleSDXC 1.7.6

com.apple.driver.AirPort.Brcm4360 1220.18.1a2

com.apple.driver.AppleAHCIPort 329

com.apple.driver.AppleRTC 2.0

com.apple.driver.AppleACPIButtons 6.1

com.apple.driver.AppleHPET 1.8

com.apple.driver.AppleSMBIOS 2.1

com.apple.driver.AppleACPIEC 6.1

com.apple.driver.AppleAPIC 1.7

com.apple.driver.AppleIntelCPUPowerManagementClient 220.0.0

com.apple.nke.applicationfirewall 183

com.apple.security.quarantine 3

com.apple.security.TMSafetyNet 8

com.apple.driver.AppleIntelCPUPowerManagement 220.0.0

com.apple.IOBufferCopyEngineTest 1

com.apple.driver.IOBluetoothHIDDriver 6.0.2f2

com.apple.driver.AppleMultitouchDriver 1204.13

com.apple.driver.AppleInputDeviceSupport 1201.8

com.apple.kext.triggers 1.0

com.apple.driver.DspFuncLib 280.12

com.apple.kext.OSvKernDSPLib 526

com.apple.iokit.IOSerialFamily 11

com.apple.driver.AppleBacklightExpert 1.1.0

com.apple.driver.X86PlatformPlugin 1.0.0

com.apple.driver.IOPlatformPluginFamily 6.0.0d8

com.apple.driver.AppleSSE 1.0

com.apple.AppleGPUWrangler 3.16.2

com.apple.driver.AppleThunderboltEDMSink 4.1.2

com.apple.nvidia.driver.NVDAGK100Hal 10.2.8

com.apple.nvidia.driver.NVDAResman 10.2.8

com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0

com.apple.driver.AppleHDAController 280.12

com.apple.iokit.IOHDAFamily 280.12

com.apple.driver.AppleSMBusController 1.0.18d1

com.apple.driver.AppleSMBusPCI 1.0.14d1

com.apple.iokit.IONDRVSupport 517.22

com.apple.iokit.IOAcceleratorFamily2 376.6

com.apple.iokit.IOSurface 209.2.2

com.apple.AppleGraphicsDeviceControl 3.16.21

com.apple.iokit.IOGraphicsFamily 517.22

com.apple.driver.AppleHIDKeyboard 203

com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 6.0.2f2

com.apple.iokit.IOBluetoothHostControllerUSBTransport 6.0.2f2

com.apple.iokit.IOBluetoothHostControllerTransport 6.0.2f2

com.apple.iokit.IOBluetoothFamily 6.0.2f2

com.apple.driver.usb.IOUSBHostHIDDevice 1.2

com.apple.iokit.IOAudioFamily 206.5

com.apple.vecLib.kext 1.2.0

com.apple.iokit.IOSCSIMultimediaCommandsDevice 404.30.2

com.apple.iokit.IOBDStorageFamily 1.8

com.apple.iokit.IODVDStorageFamily 1.8

com.apple.iokit.IOCDStorageFamily 1.8

com.apple.driver.usb.networking 5.0.0

com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2

com.apple.driver.usb.AppleUSBHub 1.2

com.apple.driver.CoreStorage 546

com.apple.filesystems.hfs.encodings.kext 1

com.apple.driver.AppleThunderboltDPInAdapter 5.0.2

com.apple.driver.AppleThunderboltDPOutAdapter 5.0.2

com.apple.driver.AppleThunderboltDPAdapterFamily 5.0.2

com.apple.driver.AppleThunderboltPCIDownAdapter 2.1.3

com.apple.iokit.IOAHCIBlockStorage 301.40.2

com.apple.driver.AppleThunderboltNHI 4.5.6

com.apple.iokit.IOThunderboltFamily 6.6.3

com.apple.iokit.IOEthernetAVBController 1.1.0

com.apple.driver.usb.AppleUSBXHCIPCI 1.2

com.apple.driver.usb.AppleUSBXHCI 1.2

com.apple.iokit.IO80211Family 1200.12.2

com.apple.driver.mDNSOffloadUserClient 1.0.1b8

com.apple.driver.corecapture 1.0.4

com.apple.iokit.IOAHCIFamily 288

com.apple.driver.usb.AppleUSBEHCIPCI 1.2

com.apple.driver.usb.AppleUSBEHCI 1.2

com.apple.driver.usb.AppleUSBHostPacketFilter 1.0

com.apple.iokit.IOUSBFamily 900.4.1

com.apple.driver.AppleEFINVRAM 2.1

com.apple.driver.AppleUSBHostMergeProperties 1.2

com.apple.driver.AppleEFIRuntime 2.1

com.apple.iokit.IOHIDFamily 2.0.0

com.apple.iokit.IOSMBusFamily 1.1

com.apple.security.sandbox 300.0

com.apple.kext.AppleMatch 1.0.0d1

com.apple.driver.AppleFDEKeyStore 28.30

com.apple.driver.AppleEffaceableStorage 1.0

com.apple.driver.AppleKeyStore 2

com.apple.driver.AppleUSBTDM 439.30.4

com.apple.driver.AppleMobileFileIntegrity 1.0.5

com.apple.iokit.IOUSBMassStorageDriver 140.30.1

com.apple.iokit.IOSCSIBlockCommandsDevice 404.30.2

com.apple.iokit.IOSCSIArchitectureModelFamily 404.30.2

com.apple.driver.AppleCredentialManager 1.0

com.apple.driver.KernelRelayHost 1

com.apple.iokit.IOUSBHostFamily 1.2

com.apple.driver.usb.AppleUSBCommon 1.0

com.apple.driver.AppleBusPowerController 1.0

com.apple.driver.AppleSEPManager 1.0.1

com.apple.driver.IOSlaveProcessor 1

com.apple.iokit.IOBufferCopyEngineFamily 1

com.apple.driver.DiskImages 480.30.2

com.apple.iokit.IOStorageFamily 2.1

com.apple.iokit.IOReportFamily 31

com.apple.iokit.IOTimeSyncFamily 650.5

com.apple.iokit.IONetworkingFamily 3.4

com.apple.driver.AppleACPIPlatform 6.1

com.apple.driver.AppleSMCRTC 1.0

com.apple.driver.AppleSMC 3.1.9

com.apple.iokit.IOPCIFamily 2.9

com.apple.iokit.IOACPIFamily 1.4

com.apple.kec.pthread 1

com.apple.kec.corecrypto 1.0

com.apple.kec.Libm 1

EOF

BobHarris

Level 9

56,819 points

Mar 7, 2018 6:16 AM in response to brigarza

Have your previous repair receipt information, or case number when you next interact with Apple.

You can try the Genius Bar, as it cannot hurt. Since you have one failed repair, if the first level of Genius Bar does not want to replace, then ask to speak to a manager. If that is not satisfactory call Apple

Again, if no satisfaction, keep asking to speak to the next higher level of support.

But I suggest you always be polite, just insistent.

Mar 30, 2018 10:22 AM in response to Nico Macdonald

Hello. Have this panics after watching video in safari. Kingstone or GPU?

Anonymous UUID: 80D2943B-EFA9-D64A-BB70-8014D9639A39

Wed Jan 17 23:07:17 2018

*** Panic Report ***

panic(cpu 2 caller 0xffffff802096f2e9): Kernel trap at 0xffffff7fa3e95037, type 14=page fault, registers:

CR0: 0x000000008001003b, CR2: 0x0000000000000040, CR3: 0x0000000024e54000, CR4: 0x00000000000626e0

RAX: 0xffffff80372b5d00, RBX: 0x0000000000000009, RCX: 0xffffff7fa406f770, RDX: 0x0000000000000000

RSP: 0xffffff912eb9bc60, RBP: 0xffffff912eb9bcf0, RSI: 0xffffff7fa43b4510, RDI: 0xffffff80372b5d00

R8: 0xffffff912eb9bd00, R9: 0xffffff7fa3e57ec8, R10: 0x0000000000000000, R11: 0x00000000e0000000

R12: 0x0000000000000040, R13: 0xffffff80372b5d00, R14: 0xffffff912eb9bd00, R15: 0xffffff8037298c00

RFL: 0x0000000000010286, RIP: 0xffffff7fa3e95037, CS: 0x0000000000000008, SS: 0x0000000000000010

Fault CR2: 0x0000000000000040, Error code: 0x0000000000000000, Fault CPU: 0x2, PL: 0, VF: 1

Backtrace (CPU 2), Frame : Return Address

0xffffff912eb9b710 : 0xffffff80208505f6

0xffffff912eb9b760 : 0xffffff802097d604

0xffffff912eb9b7a0 : 0xffffff802096f0f9

0xffffff912eb9b820 : 0xffffff8020802120

0xffffff912eb9b840 : 0xffffff802085002c

0xffffff912eb9b970 : 0xffffff802084fdac

0xffffff912eb9b9d0 : 0xffffff802096f2e9

0xffffff912eb9bb50 : 0xffffff8020802120

0xffffff912eb9bb70 : 0xffffff7fa3e95037

0xffffff912eb9bcf0 : 0xffffff7fa3e508eb

0xffffff912eb9bdc0 : 0xffffff7fa3e50a11

0xffffff912eb9be00 : 0xffffff7fa3da8986

0xffffff912eb9be50 : 0xffffff7fa3db2473

0xffffff912eb9be90 : 0xffffff7fa3db1c7d

0xffffff912eb9bed0 : 0xffffff8020e91395

0xffffff912eb9bf30 : 0xffffff8020e8fba2

0xffffff912eb9bf70 : 0xffffff8020e8f1dc

0xffffff912eb9bfa0 : 0xffffff80208014f7

Kernel Extensions in backtrace:

com.apple.iokit.IOAcceleratorFamily2(376.6)[5F8F39B4-41AB-3263-9867-D0FAF9BBD2A E]@0xffffff7fa3da5000->0xffffff7fa3e3afff

dependency: com.apple.driver.AppleMobileFileIntegrity(1.0.5)[58669FC2-CC90-3594-AD69-DB89B9 23FD20]@0xffffff7fa17fb000

dependency: com.apple.iokit.IOSurface(209.2.2)[AE58720D-7079-388F-AD95-FD2366F98F8D]@0xffff ff7fa37c3000

dependency: com.apple.iokit.IOPCIFamily(2.9)[C08F7FC1-78A4-3A1B-BFE2-C07080CF2048]@0xffffff 7fa1094000

dependency: com.apple.iokit.IOGraphicsFamily(517.22)[2AEA02BF-2A38-3674-A187-E5F610FD65B7]@ 0xffffff7fa1835000

com.apple.kext.AMDRadeonX3000(1.6)[7E721EBE-AD4B-3C53-A70A-1FFF3C231968]@0xffff ff7fa3e4b000->0xffffff7fa43b6fff

dependency: com.apple.iokit.IOSurface(209.2.2)[AE58720D-7079-388F-AD95-FD2366F98F8D]@0xffff ff7fa37c3000

dependency: com.apple.iokit.IOPCIFamily(2.9)[C08F7FC1-78A4-3A1B-BFE2-C07080CF2048]@0xffffff 7fa1094000

dependency: com.apple.iokit.IOGraphicsFamily(517.22)[2AEA02BF-2A38-3674-A187-E5F610FD65B7]@ 0xffffff7fa1835000

dependency: com.apple.iokit.IOAcceleratorFamily2(376.6)[5F8F39B4-41AB-3263-9867-D0FAF9BBD2A E]@0xffffff7fa3da5000

BSD process name corresponding to current thread: kernel_task

Mac OS version:

17C88

Kernel version:

Darwin Kernel Version 17.3.0: Thu Nov 9 18:09:22 PST 2017; root:xnu-4570.31.3~1/RELEASE_X86_64

Kernel UUID: 87641697-A3DD-30C4-B010-E65ECE57550B

Kernel slide: 0x0000000020400000

Kernel text base: 0xffffff8020600000

__HIB text base: 0xffffff8020500000

System model name: Macmini5,2 (Mac-4BC72D62AD45599E)

System uptime in nanoseconds: 13964067626477

last loaded kext at 247656762105: com.apple.filesystems.msdosfs 1.10 (addr 0xffffff7fa44e9000, size 69632)

last unloaded kext at 308292591139: com.apple.filesystems.msdosfs 1.10 (addr 0xffffff7fa44e9000, size 61440)

loaded kexts:

com.apple.driver.AppleBluetoothMultitouch 92

com.apple.driver.AppleHWSensor 1.9.5d0

com.apple.driver.AudioAUUC 1.70

com.apple.driver.AGPM 110.23.24

com.apple.driver.ApplePlatformEnabler 2.7.0d0

com.apple.filesystems.autofs 3.0

com.apple.driver.AppleMikeyHIDDriver 131

com.apple.driver.AppleMikeyDriver 280.12

com.apple.driver.AppleHDA 280.12

com.apple.AGDCPluginDisplayMetrics 3.16.2

com.apple.driver.AppleHV 1

com.apple.iokit.IOUserEthernet 1.0.1

com.apple.driver.AppleUpstreamUserClient 3.6.4

com.apple.driver.AppleMCCSControl 1.5.3

com.apple.iokit.IOBluetoothSerialManager 6.0.2f2

com.apple.kext.AMDLegacyFramebuffer 1.6.0

com.apple.driver.pmtelemetry 1

com.apple.Dont_Steal_Mac_OS_X 7.0.0

com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0

com.apple.kext.AMDRadeonX3000 1.6.0

com.apple.driver.AppleIntelHD3000Graphics 10.0.4

com.apple.driver.eficheck 1

com.apple.driver.AppleThunderboltIP 3.1.1

com.apple.driver.AppleSMCPDRC 1.0.0

com.apple.driver.AppleLPC 3.1

com.apple.driver.AppleOSXWatchdog 1

com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0

com.apple.driver.AppleIntelSNBGraphicsFB 10.0.4

com.apple.kext.AMD6000Controller 1.6.0

com.apple.driver.AppleIRController 352

com.apple.filesystems.apfs 748.31.8

com.apple.filesystems.hfs.kext 407.30.1

com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1

com.apple.BootCache 40

com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0

com.apple.driver.AirPort.Brcm4331 800.21.30

com.apple.driver.AppleFWOHCI 5.5.8

com.apple.iokit.AppleBCM5701Ethernet 10.3.1

com.apple.driver.AppleSDXC 1.7.6

com.apple.driver.AppleAHCIPort 329

com.apple.driver.AppleACPIButtons 6.1

com.apple.driver.AppleRTC 2.0

com.apple.driver.AppleHPET 1.8

com.apple.driver.AppleSMBIOS 2.1

com.apple.driver.AppleACPIEC 6.1

com.apple.driver.AppleAPIC 1.7

com.apple.driver.AppleIntelCPUPowerManagementClient 220.0.0

com.apple.nke.applicationfirewall 183

com.apple.security.TMSafetyNet 8

com.apple.security.quarantine 3

com.apple.IOBufferCopyEngineTest 1

com.apple.driver.AppleIntelCPUPowerManagement 220.0.0

com.apple.driver.IOBluetoothHIDDriver 6.0.2f2

com.apple.driver.AppleMultitouchDriver 1204.13

com.apple.driver.AppleInputDeviceSupport 1201.8

com.apple.kext.triggers 1.0

com.apple.driver.DspFuncLib 280.12

com.apple.kext.OSvKernDSPLib 526

com.apple.driver.AppleSSE 1.0

com.apple.iokit.IOSerialFamily 11

com.apple.AppleGPUWrangler 3.16.2

com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0

com.apple.iokit.IOAcceleratorFamily2 376.6

com.apple.iokit.IOSurface 209.2.2

com.apple.iokit.IONDRVSupport 517.22

com.apple.iokit.IOFireWireIP 2.2.8

com.apple.driver.AppleSMBusController 1.0.18d1

com.apple.driver.IOPlatformPluginLegacy 1.0.0

com.apple.driver.IOPlatformPluginFamily 6.0.0d8

com.apple.driver.AppleSMBusPCI 1.0.14d1

com.apple.AppleGraphicsDeviceControl 3.16.21

com.apple.kext.AMDLegacySupport 1.6.0

com.apple.driver.AppleHDAController 280.12

com.apple.iokit.IOGraphicsFamily 517.22

com.apple.iokit.IOHDAFamily 280.12

com.apple.iokit.IOAudioFamily 206.5

com.apple.vecLib.kext 1.2.0

com.apple.driver.AppleHIDKeyboard 203

com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 6.0.2f2

com.apple.iokit.IOBluetoothHostControllerUSBTransport 6.0.2f2

com.apple.iokit.IOBluetoothHostControllerTransport 6.0.2f2

com.apple.iokit.IOBluetoothFamily 6.0.2f2

com.apple.driver.usb.IOUSBHostHIDDevice 1.2

com.apple.driver.usb.networking 5.0.0

com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2

com.apple.driver.usb.AppleUSBHub 1.2

com.apple.filesystems.hfs.encodings.kext 1

com.apple.driver.AppleThunderboltDPInAdapter 5.0.2

com.apple.driver.AppleThunderboltDPOutAdapter 5.0.2

com.apple.driver.AppleThunderboltDPAdapterFamily 5.0.2

com.apple.driver.AppleThunderboltPCIDownAdapter 2.1.3

com.apple.iokit.IOAHCIBlockStorage 301.20.1

com.apple.driver.AppleThunderboltNHI 4.5.6

com.apple.iokit.IOThunderboltFamily 6.6.3

com.apple.iokit.IO80211Family 1200.12.2

com.apple.driver.corecapture 1.0.4

com.apple.iokit.IOFireWireFamily 4.6.8

com.apple.iokit.IOEthernetAVBController 1.1.0

com.apple.driver.mDNSOffloadUserClient 1.0.1b8

com.apple.iokit.IOAHCIFamily 288

com.apple.driver.usb.AppleUSBEHCIPCI 1.2

com.apple.driver.usb.AppleUSBEHCI 1.2

com.apple.driver.usb.AppleUSBHostPacketFilter 1.0

com.apple.iokit.IOUSBFamily 900.4.1

com.apple.driver.AppleUSBHostMergeProperties 1.2

com.apple.iokit.IOHIDFamily 2.0.0

com.apple.driver.AppleEFINVRAM 2.1

com.apple.driver.AppleEFIRuntime 2.1

com.apple.iokit.IOSMBusFamily 1.1

com.apple.security.sandbox 300.0

com.apple.kext.AppleMatch 1.0.0d1

com.apple.iokit.IOBufferCopyEngineFamily 1

com.apple.driver.DiskImages 480.30.2

com.apple.driver.AppleFDEKeyStore 28.30

com.apple.driver.AppleEffaceableStorage 1.0

com.apple.driver.AppleKeyStore 2

com.apple.driver.AppleUSBTDM 439.30.4

com.apple.driver.AppleMobileFileIntegrity 1.0.5

com.apple.iokit.IOUSBMassStorageDriver 140.30.1

com.apple.iokit.IOSCSIBlockCommandsDevice 404.30.2

com.apple.iokit.IOSCSIArchitectureModelFamily 404.30.2

com.apple.iokit.IOStorageFamily 2.1

com.apple.driver.AppleCredentialManager 1.0

com.apple.driver.KernelRelayHost 1

com.apple.iokit.IOUSBHostFamily 1.2

com.apple.driver.usb.AppleUSBCommon 1.0

com.apple.driver.AppleBusPowerController 1.0

com.apple.driver.AppleSEPManager 1.0.1

com.apple.driver.IOSlaveProcessor 1

com.apple.iokit.IOReportFamily 31

com.apple.iokit.IOTimeSyncFamily 650.5

com.apple.iokit.IONetworkingFamily 3.4

com.apple.driver.AppleACPIPlatform 6.1

com.apple.driver.AppleSMCRTC 1.0

com.apple.driver.AppleSMC 3.1.9

com.apple.iokit.IOPCIFamily 2.9

com.apple.iokit.IOACPIFamily 1.4

com.apple.kec.pthread 1

com.apple.kec.Libm 1

com.apple.kec.corecrypto 1.0

EOF

Model: Macmini5,2, BootROM MM51.007B.B00, 2 processors, Intel Core i5, 2.5 GHz, 8 GB, SMC 1.75f0

Graphics: AMD Radeon HD 6630M, AMD Radeon HD 6630M, PCIe, 256 MB

Graphics: Intel HD Graphics 3000, Intel HD Graphics 3000, Built-In

Memory Module: BANK 0/DIMM0, 4 GB, DDR3, 1333 MHz, 0x80CE, 0x4D34373142353237334448302D4348392020

Memory Module: BANK 1/DIMM0, 4 GB, DDR3, 1333 MHz, 0x80CE, 0x4D34373142353237334448302D4348392020

AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0xE4), Broadcom BCM43xx 1.0 (5.106.98.102.30)

Bluetooth: Version 6.0.2f2, 3 services, 27 devices, 1 incoming serial ports

Network Service: Wi-Fi, AirPort, en1

Serial ATA Device: KINGSTON SUV400S37120G, 120.03 GB

Serial ATA Device: TOSHIBA MK5065GSXF, 500.11 GB

USB Device: USB 2.0 Bus

USB Device: Hub

USB Device: BRCM20702 Hub

USB Device: Bluetooth USB Host Controller

USB Device: USB 2.0 Bus

USB Device: Hub

USB Device: Keyboard Hub

USB Device: Apple Keyboard

USB Device: Microsoft 3-Button Mouse with IntelliEye(TM)

USB Device: IR Receiver

Thunderbolt Bus: Mac mini, Apple Inc., 22.2

Dogcow-Moof

Level 8

36,827 points

Apr 30, 2018 10:31 PM in response to RJHMUSIC

RJHMUSIC wrote:

I was told at the Apple Store tonight that I probably will not be able to downgrade the OS to Sierra because of the firmware in the new machine.

It's been the case for literally decades that you cannot downgrade the OS of a machine past what originally shipped on it.

If you're still within your return period, you can simply return your new machine for a full refund:

Returns & Refunds - Shopping Help - Apple

If your issues are ones the Apple Store has helped you with before and has failed to solve, speaking to a manager may result in them allowing the return anyway.

May 6, 2018 3:48 AM in response to BobHarris

Thanks for your answer.

I've uninstalled MalwareBytes and I'm waiting for the next Crash... but I don't think this the cause. Kernel Panics start before the MalwareBytes install.

For information, before asking for your help, here is what was done on this machine (everything was OK before upgrading from 10.13.3 to 10.13.4):

Apple Hardware Test : everything is OK

ASD OS and EFI : Everything is OK

Reset PRAM and SMC

Clean install of High Sierra 10.13.4

I will continue to follow your advice.

Thank you

David

BobHarris

Level 9

56,819 points

May 6, 2018 7:27 AM in response to david from rennes

I've uninstalled MalwareBytes and I'm waiting for the next Crash... but I don't think this the cause. Kernel Panics start before the MalwareBytes install.

I don't either, as we would have heard things about it as soon as 10.13.4 came out, but with millions of Mac users, there is always some one-off situation where what works for everyone else, does not work for someone else. As 3rd party kernel extensions are a very common kernel panic cause, I wanted to not assume MalwareBytes was free of bugs. Also, as I said, today's Mac malware comes from users being tricked into installing something. So between now and the next time you install something, it will not hurt to remove MalwareBytes.

I really think it is more likely your 3rd party RAM is at fault. So following through with the overnight "Rember" test and if that comes up clean (because maybe the bad bit of RAM is already being used in the operating system kernel, and thus not accessible to "Rember", you move DIMMs around and retest with Rember, or remove DIMMs until the crashing stops.

Jun 16, 2018 4:36 AM in response to Nico Macdonald

I'm also having Kernel Panics and I need the community assistance. I reinstalled HS OS to no avail. I'm suspecting hardware issues. Thanks!

Anonymous UUID: 0771C0C0-0D09-A05B-5B90-A3D8FB3B98D0

Fri Jun 15 22:21:29 2018

*** Panic Report ***

panic(cpu 0 caller 0xffffff8016b87d3d): Kernel trap at 0xffffff7f987066b2, type 14=page fault, registers:

CR0: 0x000000008001003b, CR2: 0x0000010000000010, CR3: 0x000000001cd04000, CR4: 0x00000000003627e0

RAX: 0x0000000000011776, RBX: 0x0000010000000000, RCX: 0x0000000000032000, RDX: 0x00000000000c5490

RSP: 0xffffff81249e3de0, RBP: 0xffffff81249e3e00, RSI: 0x0000000018001180, RDI: 0xffffff802bf50000

R8: 0x0000000000000004, R9: 0x0000000000000000, R10: 0x0000000000000008, R11: 0xffffff7f986c284c

R12: 0xffffff802bf559c8, R13: 0xffffff8017413730, R14: 0xffffff802bf6b800, R15: 0x0000000000011776

RFL: 0x0000000000010206, RIP: 0xffffff7f987066b2, CS: 0x0000000000000008, SS: 0x0000000000000010

Fault CR2: 0x0000010000000010, Error code: 0x0000000000000000, Fault CPU: 0x0, PL: 0, VF: 1

Backtrace (CPU 0), Frame : Return Address

0xffffff81249e3890 : 0xffffff8016a6d166

0xffffff81249e38e0 : 0xffffff8016b95824

0xffffff81249e3920 : 0xffffff8016b87b10

0xffffff81249e39a0 : 0xffffff8016a1f180

0xffffff81249e39c0 : 0xffffff8016a6cbdc

0xffffff81249e3af0 : 0xffffff8016a6c99c

0xffffff81249e3b50 : 0xffffff8016b87d3d

0xffffff81249e3cd0 : 0xffffff8016a1f180

0xffffff81249e3cf0 : 0xffffff7f987066b2

0xffffff81249e3e00 : 0xffffff7f987062ef

0xffffff81249e3e20 : 0xffffff7f98910ba2

0xffffff81249e3e90 : 0xffffff7f986c294d

0xffffff81249e3ed0 : 0xffffff80170997f5

0xffffff81249e3f30 : 0xffffff8017097f62

0xffffff81249e3f70 : 0xffffff801709759c

0xffffff81249e3fa0 : 0xffffff8016a1e4f7

Kernel Extensions in backtrace:

com.apple.driver.AirPort.BrcmNIC(1241.31.1a9)[9963E620-B602-306B-BAF8-48028DCD5 D9E]@0xffffff7f9869f000->0xffffff7f98e55fff

dependency: com.apple.driver.corecapture(1.0.4)[C208BB9A-2092-3E61-A62C-5F24C4909F8B]@0xfff fff7f9856b000

dependency: com.apple.driver.mDNSOffloadUserClient(1.0.1b8)[F1A6427C-3264-3012-8FA4-846E5A0 6DDEF]@0xffffff7f980df000

dependency: com.apple.iokit.IO80211Family(1200.12.2)[D1B58BA6-31A0-3907-B83B-26A8E03CA258]@ 0xffffff7f9859e000

dependency: com.apple.iokit.IOPCIFamily(2.9)[1057F053-73DE-33E4-B5BE-09DA28715DB4]@0xffffff 7f97334000

dependency: com.apple.iokit.IONetworkingFamily(3.4)[5A99D802-B477-3D83-9F76-304605479B9F]@0 xffffff7f97908000

BSD process name corresponding to current thread: kernel_task

Mac OS version:

17F77

Kernel version:

Darwin Kernel Version 17.6.0: Tue May 8 15:22:16 PDT 2018; root:xnu-4570.61.1~1/RELEASE_X86_64

Kernel UUID: CC1699EE-71B5-3AF1-AAA3-6DBD16222B92

Kernel slide: 0x0000000016800000

Kernel text base: 0xffffff8016a00000

__HIB text base: 0xffffff8016900000

System model name: iMac16,2 (Mac-FFE5EF870D7BA81A)

System uptime in nanoseconds: 78810256396

last loaded kext at 47822378020: com.apple.driver.AppleBluetoothHIDKeyboard 205 (addr 0xffffff7f998b6000, size 16384)

loaded kexts:

com.apple.driver.AudioAUUC 1.70

com.apple.driver.AppleBluetoothMultitouch 92

com.apple.driver.AppleHWSensor 1.9.5d0

com.apple.driver.ApplePlatformEnabler 2.7.0d0

com.apple.driver.AGPM 110.23.37

com.apple.driver.X86PlatformShim 1.0.0

com.apple.filesystems.autofs 3.0

com.apple.driver.AppleHDAHardwareConfigDriver 281.52

com.apple.driver.AppleUpstreamUserClient 3.6.5

com.apple.driver.AppleHDA 281.52

com.apple.driver.AppleGraphicsDevicePolicy 3.18.52

com.apple.AGDCPluginDisplayMetrics 3.18.52

com.apple.driver.pmtelemetry 1

com.apple.iokit.IOUserEthernet 1.0.1

com.apple.iokit.IOBluetoothSerialManager 6.0.6f2

com.apple.driver.AppleIntelBDWGraphics 10.3.4

com.apple.Dont_Steal_Mac_OS_X 7.0.0

com.apple.driver.eficheck 1

com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0

com.apple.driver.AppleFIVRDriver 4.1.0

com.apple.driver.AppleHV 1

com.apple.iokit.BroadcomBluetooth20703USBTransport 6.0.6f2

com.apple.driver.AppleLPC 3.1

com.apple.driver.AGDCBacklightControl 3.18.52

com.apple.driver.AppleIntelBDWGraphicsFramebuffer 10.3.4

com.apple.driver.AppleSMCLMU 211

com.apple.driver.AppleThunderboltIP 3.1.1

com.apple.driver.AppleOSXWatchdog 1

com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0

com.apple.driver.AppleBacklight 170.12.6

com.apple.driver.AppleMCCSControl 1.5.5

com.apple.iokit.IOBluetoothUSBDFU 6.0.6f2

com.apple.driver.AppleFileSystemDriver 3.0.1

com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1

com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0

com.apple.AppleSystemPolicy 1.0

com.apple.BootCache 40

com.apple.filesystems.hfs.kext 407.50.6

com.apple.filesystems.apfs 748.51.0

com.apple.driver.AppleSDXC 1.7.6

com.apple.iokit.AppleBCM5701Ethernet 10.3.1

com.apple.driver.AirPort.BrcmNIC 1241.31.1a9

com.apple.driver.AppleAHCIPort 329.50.2

com.apple.driver.AppleRTC 2.0

com.apple.driver.AppleACPIButtons 6.1

com.apple.driver.AppleHPET 1.8

com.apple.driver.AppleSMBIOS 2.1

com.apple.driver.AppleACPIEC 6.1

com.apple.driver.AppleAPIC 1.7

com.apple.nke.applicationfirewall 183

com.apple.security.quarantine 3

com.apple.security.TMSafetyNet 8

com.apple.driver.AppleBluetoothHIDKeyboard 205

com.apple.driver.AppleHIDKeyboard 205

com.apple.driver.IOBluetoothHIDDriver 6.0.6f2

com.apple.driver.AppleMultitouchDriver 1404.4

com.apple.driver.AppleInputDeviceSupport 1404.3

com.apple.kext.triggers 1.0

com.apple.driver.DspFuncLib 281.52

com.apple.kext.OSvKernDSPLib 526

com.apple.driver.AppleGraphicsControl 3.18.52

com.apple.iokit.IOSerialFamily 11

com.apple.iokit.IOAVBFamily 680.2

com.apple.plugin.IOgPTPPlugin 680.15

com.apple.driver.AppleSSE 1.0

com.apple.driver.IOPlatformPluginLegacy 1.0.0

com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 6.0.6f2

com.apple.iokit.IOBluetoothHostControllerUSBTransport 6.0.6f2

com.apple.iokit.IOBluetoothHostControllerTransport 6.0.6f2

com.apple.iokit.IOBluetoothFamily 6.0.6f2

com.apple.driver.AppleHDAController 281.52

com.apple.iokit.IOHDAFamily 281.52

com.apple.iokit.IOAudioFamily 206.5

com.apple.vecLib.kext 1.2.0

com.apple.driver.AppleSMBusPCI 1.0.14d1

com.apple.iokit.IOAcceleratorFamily2 378.18.1

com.apple.iokit.IOSurface 211.12

com.apple.driver.X86PlatformPlugin 1.0.0

com.apple.driver.IOPlatformPluginFamily 6.0.0d8

com.apple.driver.AppleThunderboltEDMSink 4.1.4

com.apple.AppleGPUWrangler 3.18.52

com.apple.AppleGraphicsDeviceControl 3.18.52

com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0

com.apple.driver.AppleBacklightExpert 1.1.0

com.apple.iokit.IONDRVSupport 519.19

com.apple.driver.AppleSMBusController 1.0.18d1

com.apple.iokit.IOGraphicsFamily 519.19

com.apple.driver.usb.IOUSBHostHIDDevice 1.2

com.apple.driver.usb.cdc 5.0.0

com.apple.driver.usb.networking 5.0.0

com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2

com.apple.filesystems.hfs.encodings.kext 1

com.apple.driver.AppleXsanScheme 3

com.apple.iokit.IOAHCIBlockStorage 301.40.2

com.apple.iokit.IOEthernetAVBController 1.1.0

com.apple.iokit.IO80211Family 1200.12.2

com.apple.driver.mDNSOffloadUserClient 1.0.1b8

com.apple.driver.corecapture 1.0.4

com.apple.driver.AppleIntelLpssGspi 3.0.60

com.apple.iokit.IOAHCIFamily 288

com.apple.driver.usb.AppleUSBXHCIPCI 1.2

com.apple.driver.usb.AppleUSBXHCI 1.2

com.apple.driver.AppleThunderboltDPInAdapter 5.5.4

com.apple.driver.AppleThunderboltDPOutAdapter 5.5.4

com.apple.driver.AppleThunderboltDPAdapterFamily 5.5.4

com.apple.driver.AppleThunderboltPCIDownAdapter 2.1.3

com.apple.driver.AppleThunderboltNHI 4.7.2

com.apple.iokit.IOThunderboltFamily 6.7.8

com.apple.driver.usb.AppleUSBHostPacketFilter 1.0

com.apple.iokit.IOUSBFamily 900.4.1

com.apple.driver.AppleEFINVRAM 2.1

com.apple.driver.AppleEFIRuntime 2.1

com.apple.iokit.IOHIDFamily 2.0.0

com.apple.iokit.IOSMBusFamily 1.1

com.apple.security.sandbox 300.0

com.apple.kext.AppleMatch 1.0.0d1

com.apple.driver.AppleFDEKeyStore 28.30

com.apple.driver.AppleEffaceableStorage 1.0

com.apple.driver.AppleKeyStore 2

com.apple.driver.AppleUSBTDM 439.60.2

com.apple.driver.AppleMobileFileIntegrity 1.0.5

com.apple.iokit.IOUSBMassStorageDriver 140.50.3

com.apple.iokit.IOSCSIBlockCommandsDevice 404.30.2

com.apple.iokit.IOSCSIArchitectureModelFamily 404.30.2

com.apple.driver.AppleCredentialManager 1.0

com.apple.driver.KernelRelayHost 1

com.apple.iokit.IOUSBHostFamily 1.2

com.apple.driver.usb.AppleUSBCommon 1.0

com.apple.driver.AppleBusPowerController 1.0

com.apple.driver.AppleSEPManager 1.0.1

com.apple.driver.IOSlaveProcessor 1

com.apple.driver.DiskImages 480.60.1

com.apple.iokit.IOStorageFamily 2.1

com.apple.iokit.IOReportFamily 31

com.apple.iokit.IOTimeSyncFamily 680.15

com.apple.iokit.IONetworkingFamily 3.4

com.apple.driver.AppleACPIPlatform 6.1

com.apple.driver.AppleSMC 3.1.9

com.apple.iokit.IOPCIFamily 2.9

com.apple.iokit.IOACPIFamily 1.4

com.apple.kec.Libm 1

com.apple.kec.pthread 1

com.apple.kec.corecrypto 1.0

EOF

Model: iMac16,2, BootROM IM162.0219.B00, 4 processors, Intel Core i5, 2.8 GHz, 8 GB, SMC 2.32f20

Graphics: Intel Iris Pro Graphics 6200, Intel Iris Pro Graphics 6200, Built-In

Memory Module: BANK 0/DIMM0, 4 GB, DDR3, 1867 MHz, 0x80CE, 0x4B3445364533303445452D45474346202020

Memory Module: BANK 1/DIMM0, 4 GB, DDR3, 1867 MHz, 0x80CE, 0x4B3445364533303445452D45474346202020

AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x156), Broadcom BCM43xx 1.0 (7.77.37.31.1a9)

Bluetooth: Version 6.0.6f2, 3 services, 27 devices, 1 incoming serial ports

Network Service: Wi-Fi, AirPort, en1

Serial ATA Device: APPLE HDD HTS541010A9E662, 1 TB

USB Device: USB 3.0 Bus

USB Device: Bluetooth USB Host Controller

USB Device: FaceTime HD Camera (Built-in)

Thunderbolt Bus: iMac, Apple Inc., 27.4

This thread has been closed by the system or the community team. You may vote for any posts you find helpful, or search the Community for additional answers.

Constant kernel panics after macOS High Sierra upgrade
