bootcamp partition missing

Did you want a screenshot of each one? I selected each, pressed P and checked for one that looked similar to the screenshot you provided. The only one that had anything other than "Can't open filesystem. Filesystem seems damaged." were the ones that had [BOOT] on the right of the sector size and [NO NAME] that were basically an empty directory. The [BOOT] ones just had dates like the ones on the start of your screenshot, nothing else. I scrolled further down and it looks like this set are the only ones that are labelled MS Data.

Yes, if it's possible to retrieve the data/files that were on the bootcamp partition, I'd be happy with that. The laptop itself is going to likely be replaced, so I at least wanted to get the documents from it.

I see a disk0s4 in Disk Utility now (can now see the other 170gb that was partitioned for Bootcamp), but not associated with Windows. Don't really see anything in Finder.

Where can i download TestDisk? By following the steps in the thread you linked, do I risk losing any data that may be still on the Windows partition?

Thanks for your patience!

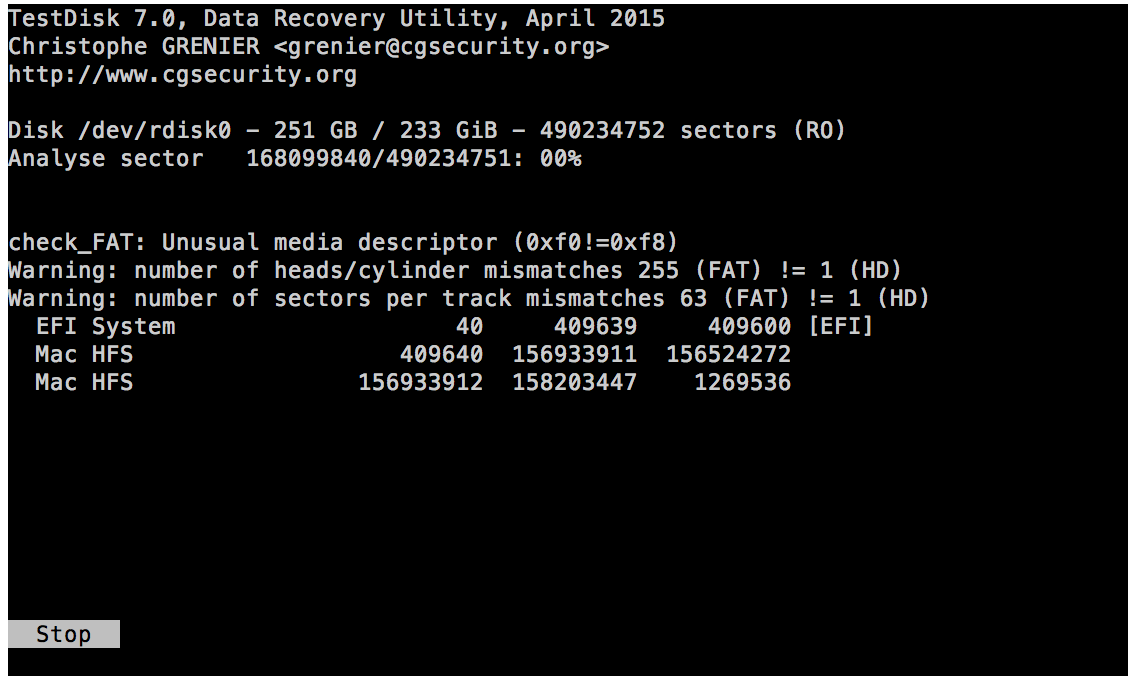

I followed the steps up to choosing the partition table type. Selected EFI GPT. Selected Analyze. Selected QuickSearch. Now a scan looks like it's running.

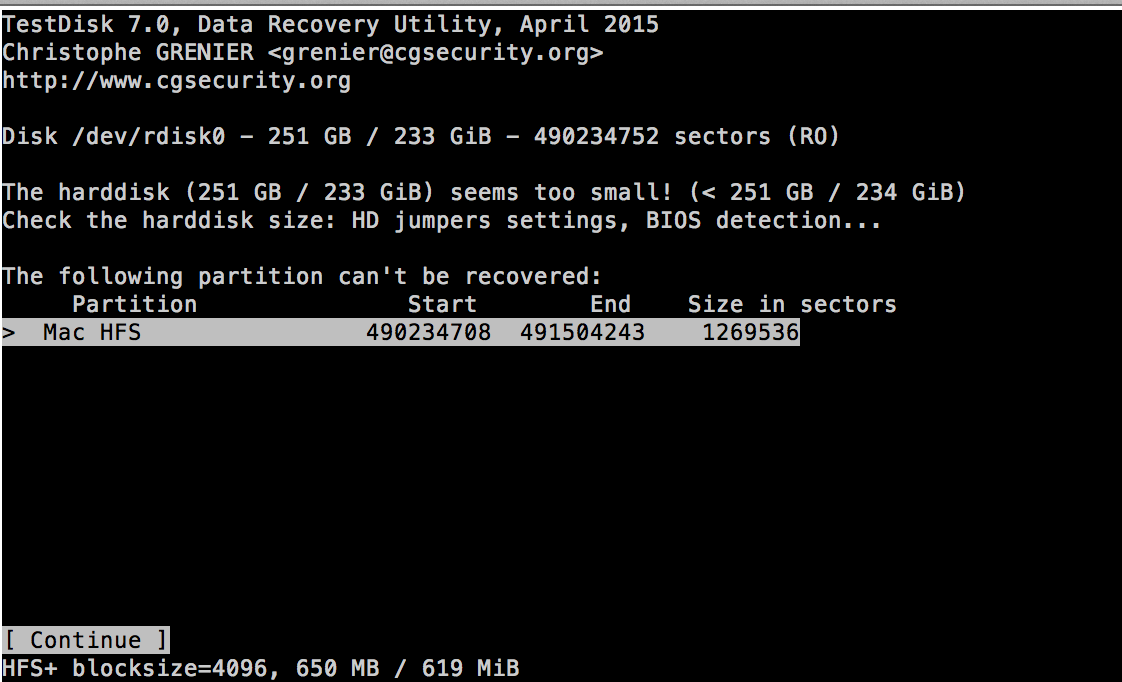

Okay, the scan finished and had the same info in the other thread (partition can't be recovered). I hit Continue and now see:

Not sure which to select.

Not sure what to select after the scan. Don't see a "D MS Data" like mentioned in the other thread. Any ideas?

Apologies for the extremely late reply, but I wasn't able to access the laptop until yesterday.

Should I select the EFI System to run Deeper Search? Don't see that option right now.

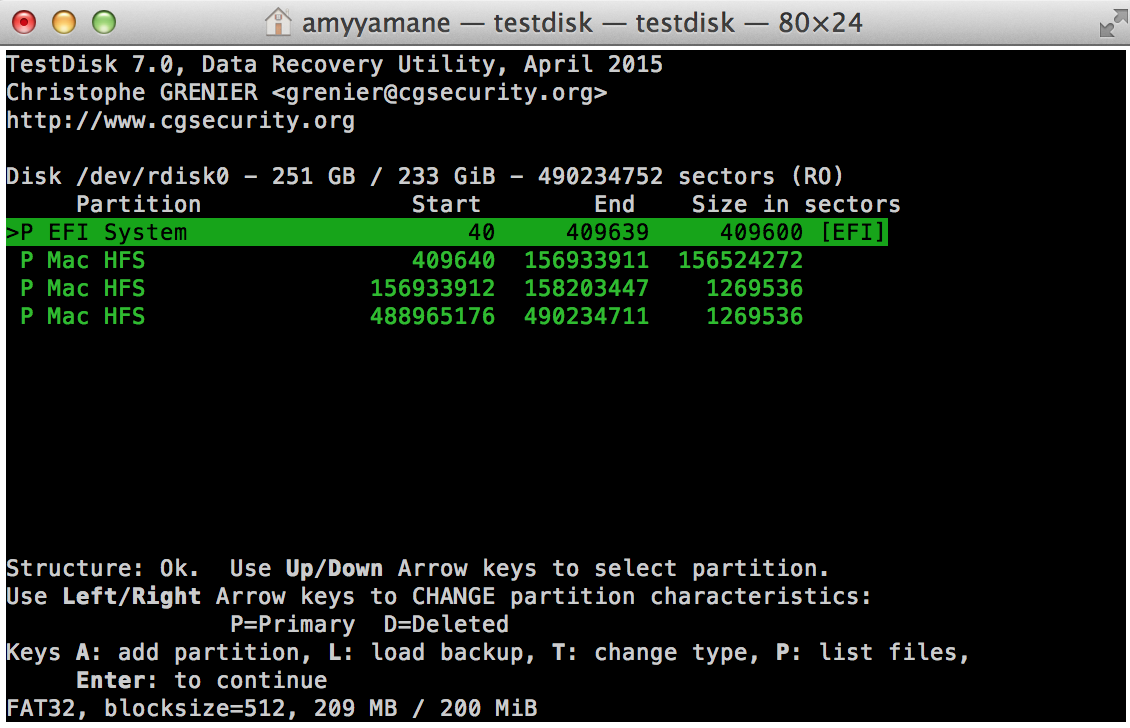

Got this screen after Deeper Search finished:

Hit Continue?

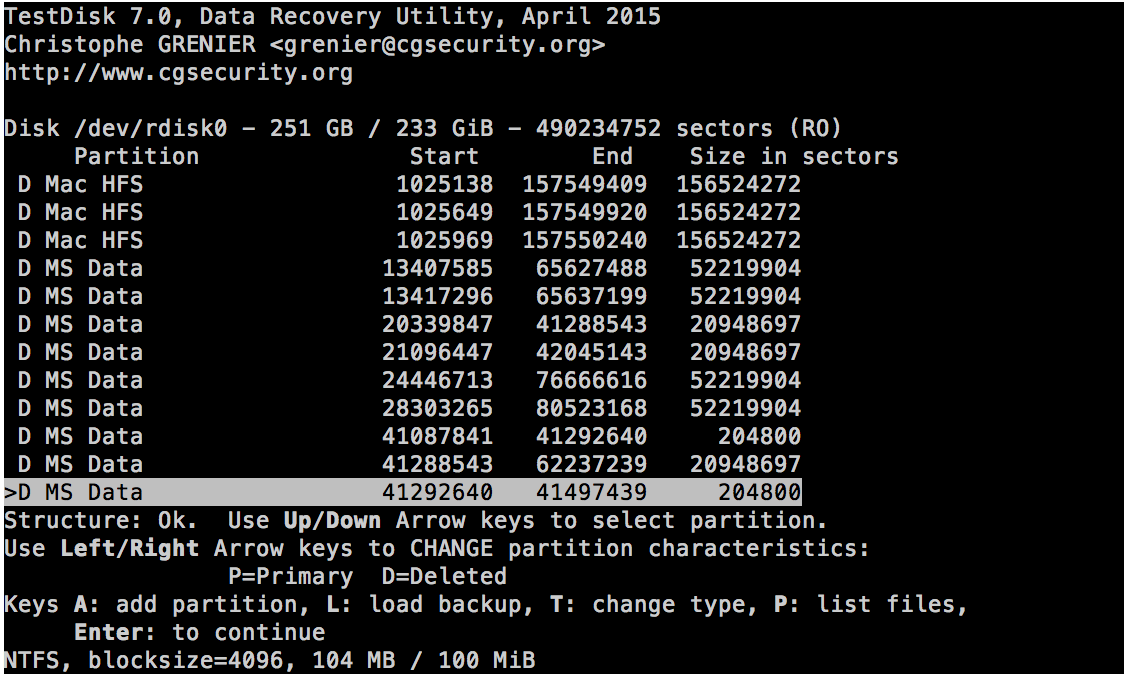

Scrolled down and found these. I see more with like [NO NAME] or [BOOT] on the right. Is there something I should look for in particular?
