Bootcamp partition size availability doesn't match storage space

Question

Level 1

11 points

Bootcamp partition size availability doesn't match storage space

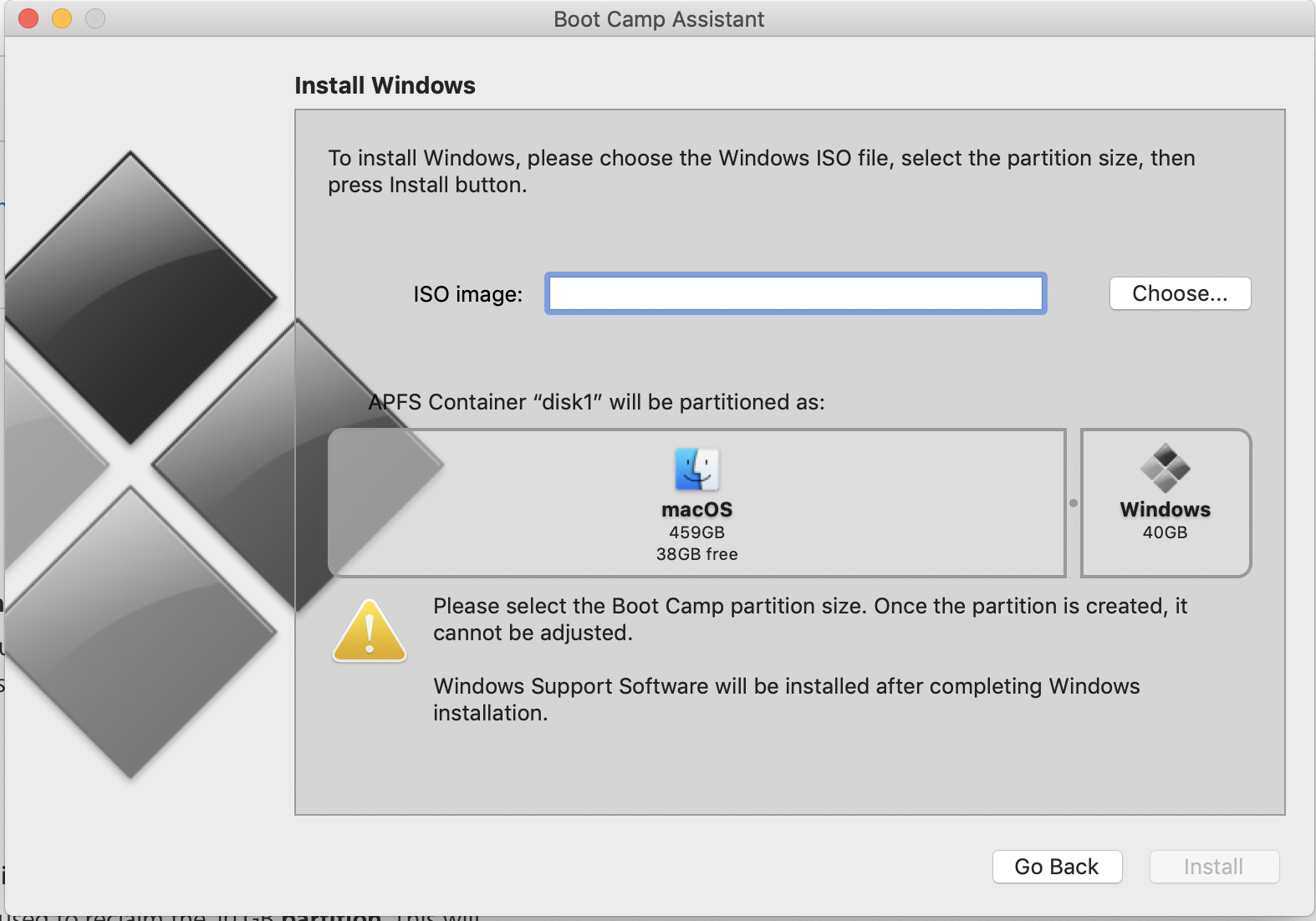

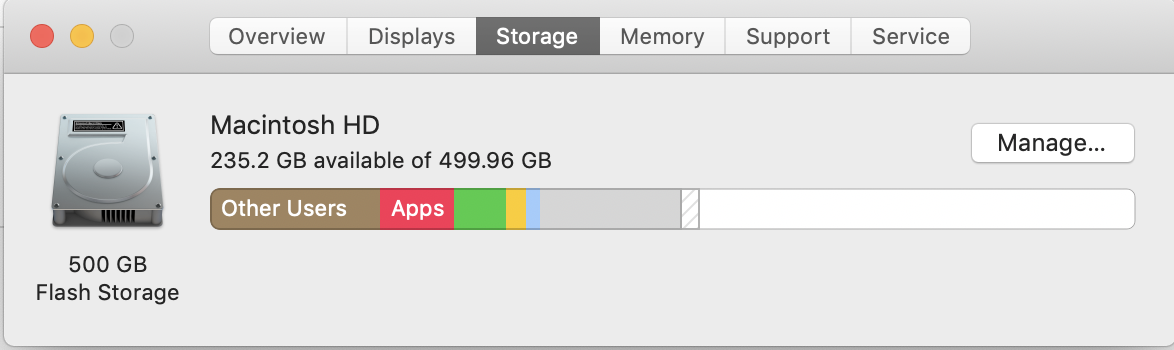

I am attempting to create a Windows partition but Bootcamp assistant is saying that I don't have as much storage as I should. It says I will have 38GB free after 40 GB is used for Windows i.e. 78GB, but Storage shows 235Gb of 500GB of the SSD used i.e. 265GB free

Where is the missing 187GB??

A few people have had issues with Time Machine local images, but the suggestions posted to those questions haven't solved it. Terminal command sudo tmutil listlocalsnapshots / reveals no local images for deletion that I can see.

My Time Machine backups are currently on an external SSD but I did used to do them on a Time Capsule which stopped working for backups (reason unknown!)

Any help much appreciated - it's very frustrating!

iMac 27" 5K, macOS 10.14

Posted on Apr 30, 2019 6:59 AM

Reply

Answer 1

Top-ranking reply

Loner T

Level 9

59,536 points

Apr 30, 2019 3:44 PM in response to sjjones83

The Storage tab is not accurate. If you do not have any local snapshots, the other possibility on High Sierra/Mojave is APFS corruption. If you are on High Sierra and APFS, it is problematic. Mojave has the right tools for fixing the APFS issues in most cases.

Post the output of

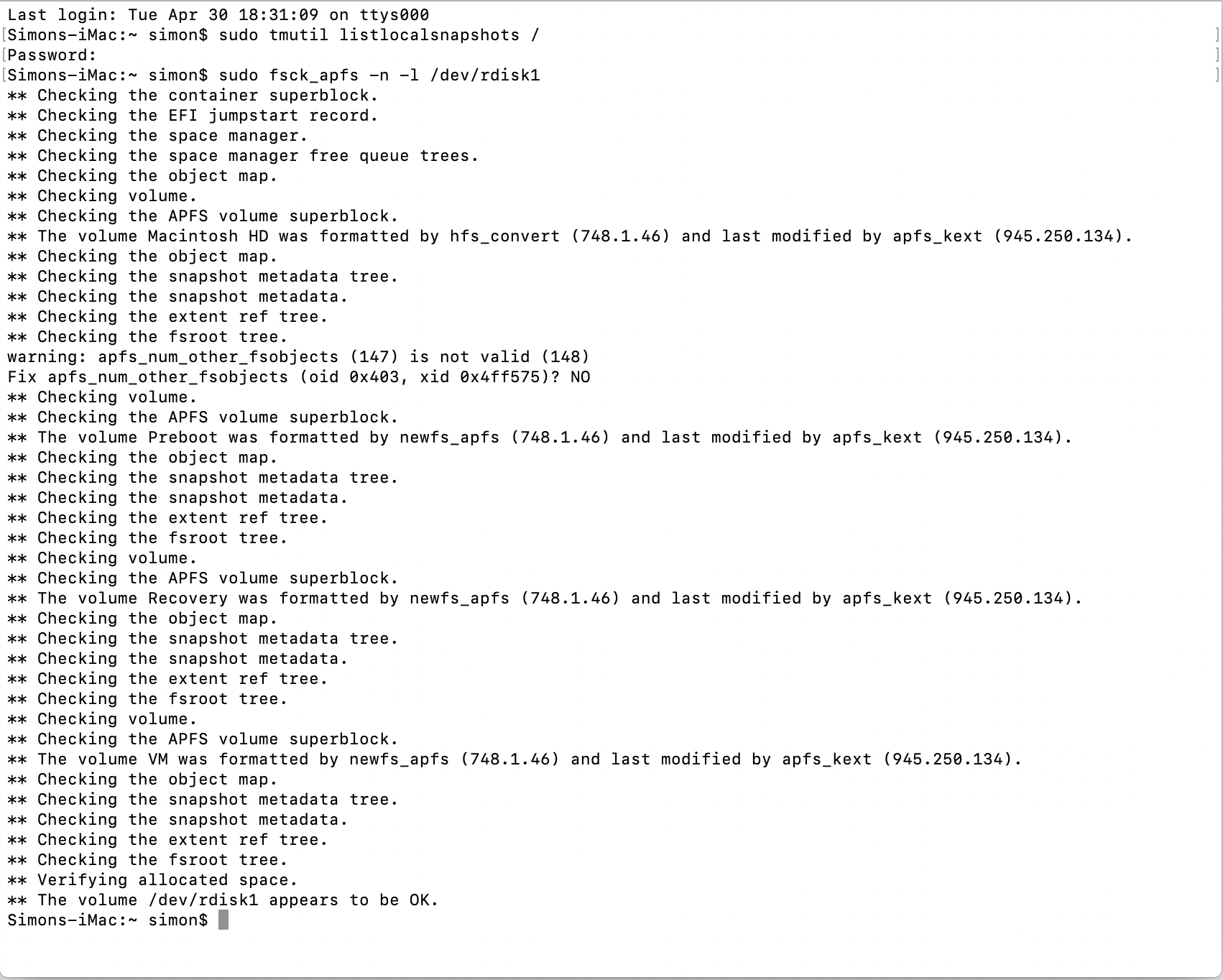

sudo fsck_apfs -n -l /dev/rdisk1

from macOS Terminal.

Reply

Answer 2

Loner T

Level 9

59,536 points

May 1, 2019 4:36 AM in response to sjjones83

You do not have snapshots.

There is an APFS error, which should be corrected. Assuming you are on Mojave, Start up your Mac in single-user mode or verbose mode - Apple Support and run

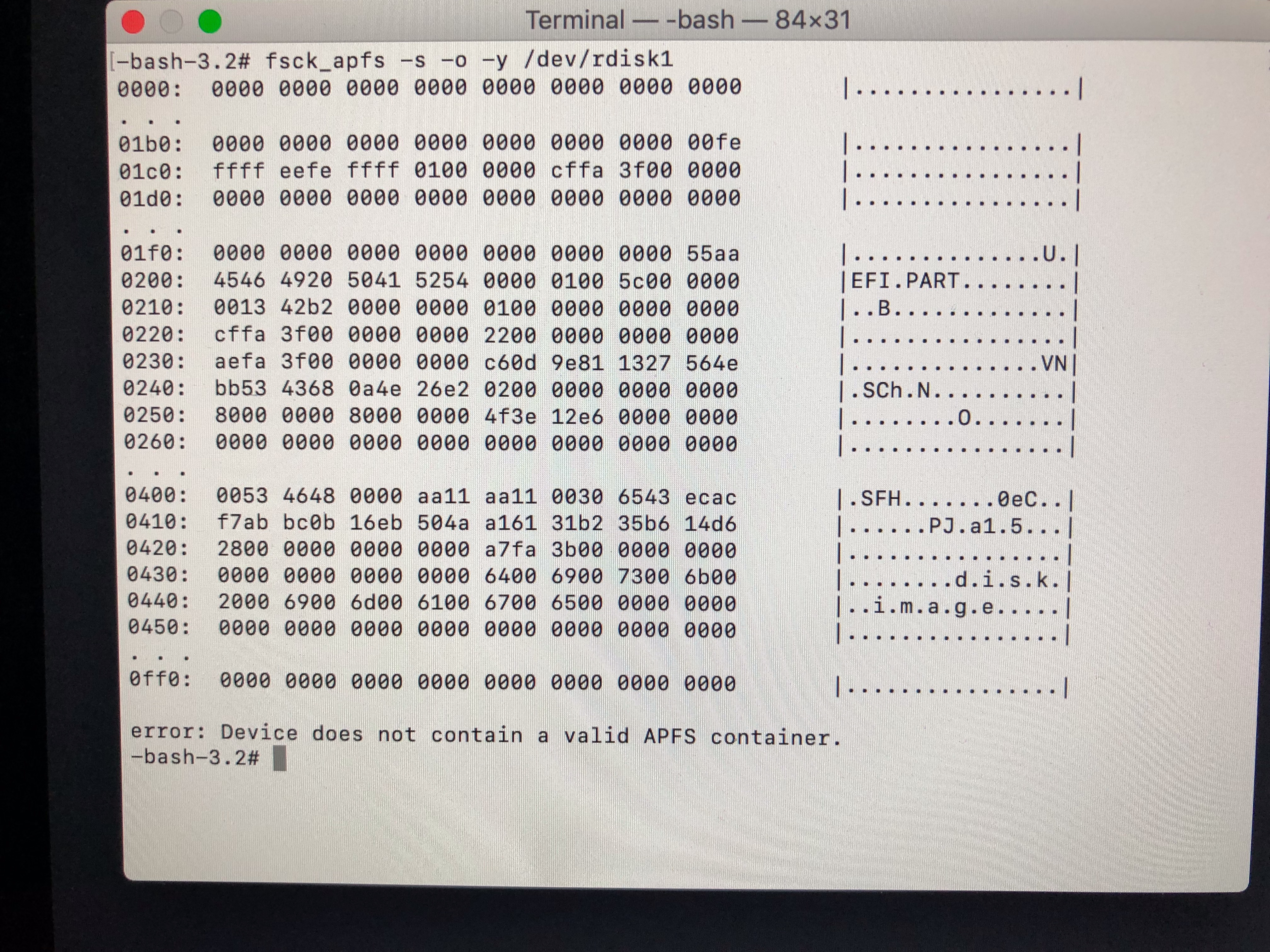

fsck_apfs -s -o -y /dev/rdisk1

If you get any errors, see the footnote under step 6 and try to boot in SIngle-User Mode using Command+S.

Reply

Answer 3

Loner T

Level 9

59,536 points

May 2, 2019 4:42 AM in response to sjjones83

You have 99GiB of available disk space. APFS has a minimum size, so the BCA is showing you correct availability of space that can be allocated. There is no 'missing' disk space.

The 235GB (not GiB) is calculated is within the APFS container. You should not use this value for any further calculations.

Also, see How iOS and macOS report storage capacity - Apple Support.

Reply

Answer 4

Loner T

Level 9

59,536 points

May 1, 2019 5:08 PM in response to sjjones83

sjjones83 wrote:

Would a reset of the iMac solve it?

It will, but the problem will be back. Can you boot normally and post the output of following two commands

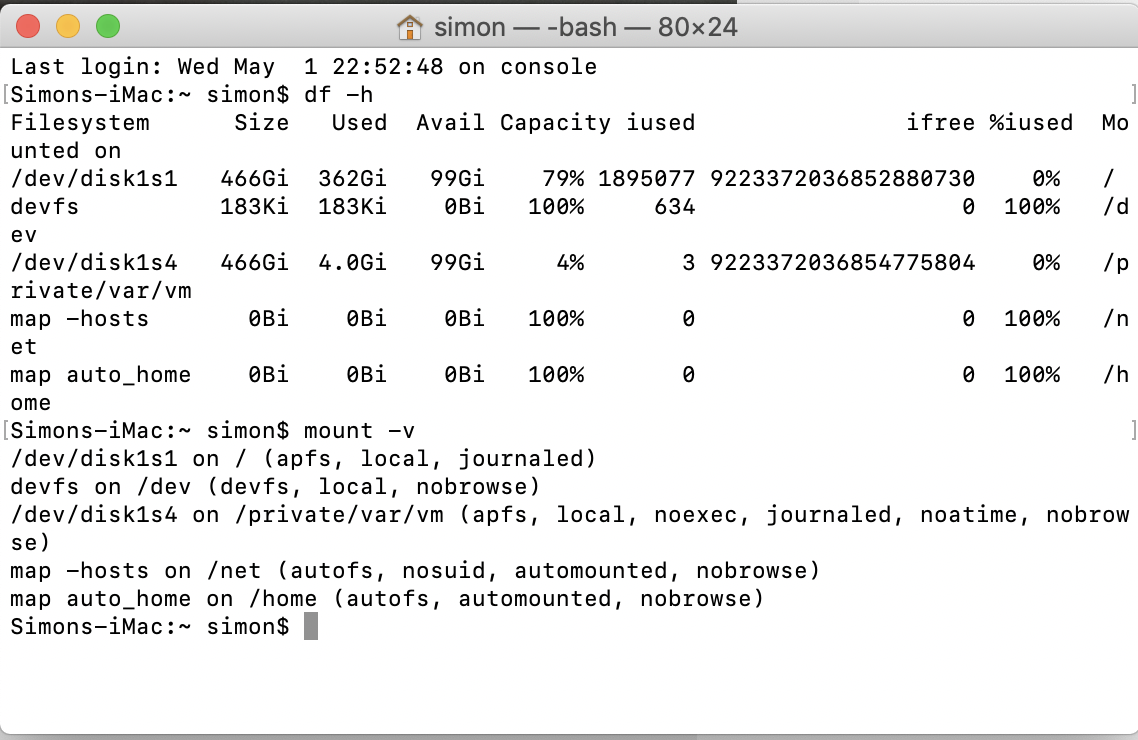

df -h

mount -v

Reply

Answer 5

sjjones83 Author

Level 1

11 points

May 1, 2019 11:19 AM in response to Loner T

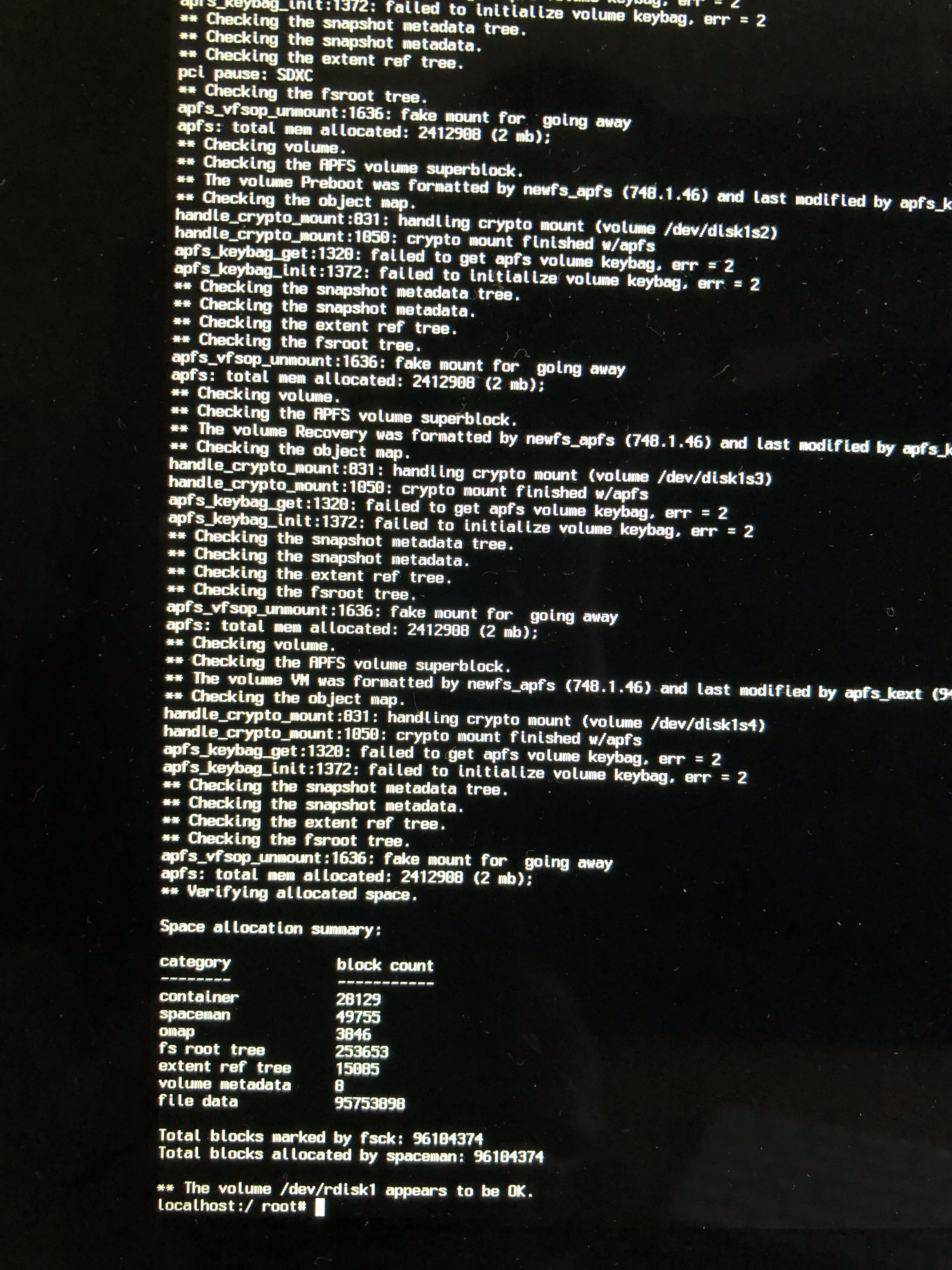

Single user mode gave this output

Booting via Command+S and rerunning the command gave this but essentially seems to say it was OK. Bootcamp still shows a big discrepancy with Storage.

Would a reset of the iMac solve it?

Reply
