Kernel Panic - ACPI: Fatal opcode executed

Can anyone tell me what is going on with this? See below:


*** Panic Report ***

panic(cpu 0 caller 0xffffff7f8e76c040): "ACPI: Fatal opcode executed in \_PTS. Type = 0x01 Code = 0x00004d38 Arg = 0x00000000."@/BuildRoot/Library/Caches/com.apple.xbs/Sources/AppleACPIPlatform/AppleACPIPlatform-298.260.3/ACPICA/source/os_specific/service_layers/osdarwin.c:1568

Backtrace (CPU 0), Frame : Return Address

0xffffff81fd87b750 : 0xffffff800b9aea2d

0xffffff81fd87b7a0 : 0xffffff800bae9e95

0xffffff81fd87b7e0 : 0xffffff800badb70a

0xffffff81fd87b850 : 0xffffff800b95bb40

0xffffff81fd87b870 : 0xffffff800b9ae447

0xffffff81fd87b990 : 0xffffff800b9ae293

0xffffff81fd87ba00 : 0xffffff7f8e76c040

0xffffff81fd87ba10 : 0xffffff7f8e78cf70

0xffffff81fd87ba30 : 0xffffff7f8e77b9c2

0xffffff81fd87ba80 : 0xffffff7f8e79cb51

0xffffff81fd87bb00 : 0xffffff7f8e79e2b6

0xffffff81fd87bb40 : 0xffffff7f8e79ef7a

0xffffff81fd87bb90 : 0xffffff7f8e7964f1

0xffffff81fd87bbd0 : 0xffffff7f8e79ac56

0xffffff81fd87bc30 : 0xffffff7f8e793bae

0xffffff81fd87bc80 : 0xffffff7f8e7590a7

0xffffff81fd87bcd0 : 0xffffff7f8e75d4bf

0xffffff81fd87bcf0 : 0xffffff800c07c298

0xffffff81fd87bd70 : 0xffffff800c0af997

0xffffff81fd87bde0 : 0xffffff800c03f62f

0xffffff81fd87be40 : 0xffffff800c03c29d

0xffffff81fd87bea0 : 0xffffff800c038cf3

0xffffff81fd87bef0 : 0xffffff800c038b90

0xffffff81fd87bf30 : 0xffffff800c056362

0xffffff81fd87bf70 : 0xffffff800c0558bc

0xffffff81fd87bfa0 : 0xffffff800b95b0ce

Kernel Extensions in backtrace:

com.apple.driver.AppleACPIPlatform(6.1)[AE00900F-6E82-31C1-82E7-23005F4219A4]@0xffffff7f8e74d000->0xffffff7f8e7e8fff

dependency: com.apple.iokit.IOACPIFamily(1.4)[D039545F-9B61-3B0D-8F90-CCCAE5BD7A52]@0xffffff7f8c315000

dependency: com.apple.iokit.IOPCIFamily(2.9)[CC6A465F-5A24-304D-B9DF-8C27819CC214]@0xffffff7f8c295000

dependency: com.apple.driver.AppleSMC(3.1.9)[A20E3E30-0CB9-3E88-9B52-F65FE643BCCF]@0xffffff7f8c31e000

MacBook Pro 15", macOS 10.14

Posted on May 25, 2019 3:25 PM

Reply
Question marked as Top-ranking reply

Posted on Jun 3, 2019 1:28 PM

Update:


I ordered several parts that I thought needed replacing. Including a new Touch Bar and speaker that had been crackling for several months. After replacing JUST the left speaker, the panics stopped, the Touch Bar returned to normal and everything is working fine.



Similar questions

9 replies

May 25, 2019 3:36 PM in response to Salice_Wonder

Dealing with Kernel Panics


Disconnect any third-party peripherals including any USB hubs. Use safe mode to isolate issues with your Mac - Apple Support then boot the computer into Safe Mode. See Diagnosing problems- crash, freeze, panic, or spinning beach ball?, Don’t Panic! Understanding & Troubleshooting Kernel Panics in macOS, and How to fix kernel panics after installing OS X updates | MacIssues.


Kernel panics are indicative of possible hardware failure, so you should Check your Mac with hardware diagnostics or AHT. Read the kernel panic log: Mac OS X- How to log a kernel panic.


If you have no success figuring what is happening then you may need to examine the software you have running when the panics occur. Be sure it’s all current. If you must to resolve the problem erase the disk and reinstall macOS. Follow this outline to reset the computer to the factory-new state:


How To Do A Factory Reset


Selection A should be used on computers that came with Lion or later when factory new. These models had no disks included when new. Selection B is for Macs that came originally with Snow Leopard or earlier. These models shipped with Software Restore disks when new.


A. Factory reset of your Mac - Apple Support

B. Factory Reset Your Pre-Lion Mac


Follow these instructions until you get to Step 5 of Factory reset of your Mac - Apple Support. At Step 5 you will need a Snow Leopard DVD or the installer disc that came with the computer.


  1. Boot the computer using the Snow Leopard Installer Disc or the Disc 1 that came with your computer.  Insert the disc into the optical drive and restart the computer. After the chime press and hold down the  "C" key.  Release the key when you see a small spinning gear appear below the dark gray Apple logo.
  2. After the installer loads select your language and click on the Continue button. When the menu bar appears select Disk Utility from the Utilities' menu. After Disk Utility loads select the hard drive entry from the left side list (out-dented entry - mfgr.'s ID and drive size.)  Click on the Partition tab in the Disk Utility main window.  Set the number of partitions to one (1) from the Partitions drop down menu, click on Options button and select GUID, click on OK, then set the format type to MacOS Extended (Journaled), then click on the Apply button.
  3. When the formatting has finished quit Disk Utility.  Proceed with the OS X installation and follow the directions included with the installer.
  4. If you are planning to sell or give your computer away, then do the following: After you reformat your hard drive and reinstall OS X, the computer restarts to a Welcome screen and asks you to choose a country or region. If you want to leave the Mac in an out-of-box state, don't continue with the setup of the system. Instead, press Command-Q to shut down the Mac. When the new owner turns on the Mac, the Setup Assistant will guide them through the setup process.

Jun 12, 2019 8:00 AM in response to F-Kruger

Running a MacBook Pro 2017 15-in Dual Graphics 2.9GHz under MacOS 10.14.5. No third-party kernel extensions present.


You encountered an illegal opcode in the interpreted language of the Advanced Configuration and Power Interface (ACPI).


Wikipedia describes that as "an open standard that operating systems can use to discover and configure computer hardware components, to perform power management by (for example) putting unused components to sleep, and to perform status monitoring."


This error tends to indicate you have some sort of Hardware issue, but it does not provide a direct indication of what that error might be.

May 25, 2019 4:39 PM in response to Salice_Wonder

It may to one of Apple's engineers, with your machine and a hardware debugger. Doesn't say much otherwise. If we are arguing, then you have provided some issues but nothing about their occurrences, errors, etc. You might as well have said, "My computer is broke. What do I do to fix it?" Furthermore, you state that you have a theory but do not say what it is. Oh, and it's not actually a theory but a hypothesis.


I can suggest you start by erasing the drive and installing a fresh copy of macOS, preferably the one that came factory pre-installed. If you continue to have repetitive problems, then document them thoroughly. Take the computer and your problem documentation to your local Apple shop for repair. You have to start from what should be a known state.


My Mac don’t work – troubleshooting tools and techniques

Basic Generic Troubleshooting for Macs

A Mac Troubleshooting Summary

Generic troubleshooting- how to fix something that doesn’t work


Jun 5, 2019 10:53 AM in response to Salice_Wonder

You only posted the first part of the panic report. Even with the entire report, it may not be conclusive.

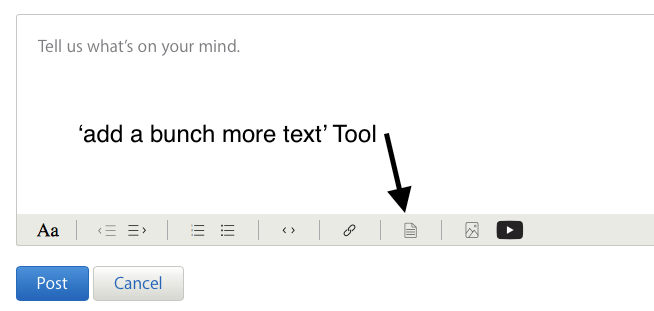

Please post the entire report, by using the 'additional text' Icon on the forum:


--------

These system are very complex. For computer after 2013 model year, Apple provides the ability to load a field diagnostic by holding the D key at startup and waiting for it to load over the Internet.


You can also get a free evaluation of your computer's Hardware with the service diagnostic by presenting it at your appointment at an Apple-owned store.


At this point, you don't know whether your issues are caused by Apple Hardware or Apple software or things you added yourself. Your suggestion that this indicates Apple is sloppy are completely unfounded -- Apple stands ready to assist you..

May 25, 2019 4:18 PM in response to Kappy

Thanks for the quick reply!


For the sake of argument, let's say that I have been doing all those steps repeatedly on and off for the last 2 years...ever since this expensive $4200 lemon of a machine came back from getting its keyboard replaced within the first year of my owning it.


Keyed start-ups that reset, zap and startup in different modes don't work. I have nothing plugged in, and I get that panic message even after a fresh factory install, with no configurations. And the hardware diagnostic says there is nothing wrong....which there clearly is, as my Touch Bar has been dead for over a year and half, and I get that kernel message when the machine wakes from sleep....


There's more to my dilemma, and I have a theory, but I want to see if that kernel specifically says anything.

This thread has been closed by the system or the community team. You may vote for any posts you find helpful, or search the Community for additional answers.
