Issues setting up a Pie Chart

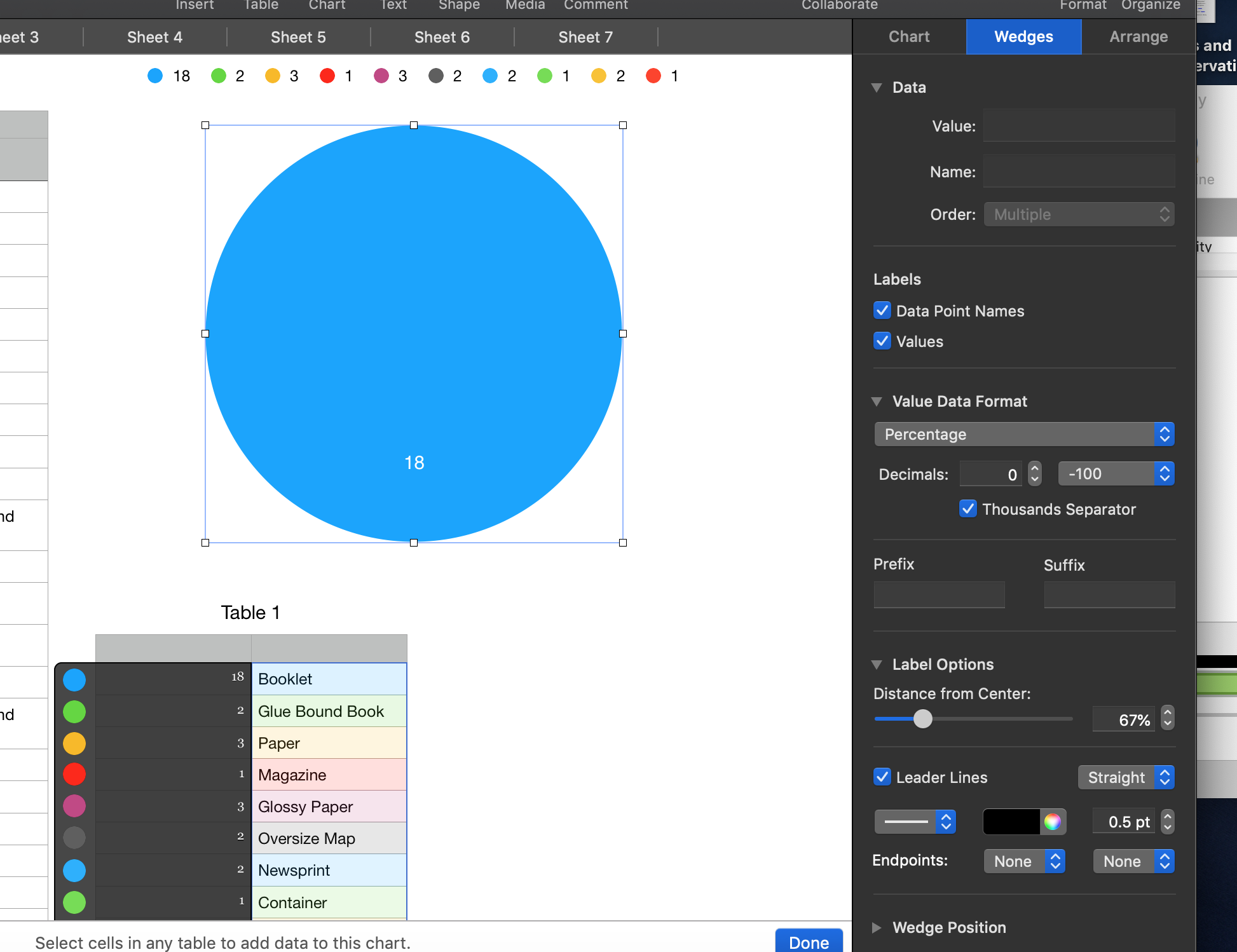

You've placed the numbers in a header column, where they are treated as category labels.

Do this:

• Select the cells in column A containing numbers. Copy.
• Click any cell in column B. Press Option-right arrow to add a new column ( C ) to the right of column B.
• Click cell C2. Paste.
• Click the column Reference tab for column A. Move the pointer to the right end of that tab. When a v appears on the tab, click it and choose Delete column from the menu that opens.
• Click the column reference tab for Column A (formerly column B). Open the menu and choose convet to Header Column.
• Select the cells in column B containing the numbers you pasted.
• Click the Charts button and choose the 2D pie chart.

With the values now in a body column and the labels in a header column, you should get the chart you were expecting.

Regards,

Barry

Is column A (defined as) a Header column?

Have you selected column B as the Data column supplying data to the chart?

If so, your chart should look similar to this one:

To check the first question above:

• Select the table by clicking on any cell.
• Hover the pointer over the reference tab do column A,
• Click the v that appears toward the right end of the tab when you bring the pointer close to that end.
  • If you see "convert to Header Column", choose it.
  • If you see "Add Header column before" and "Add Header column after", column A is already defined as a Header column. Take no action.

To check the second question:

• Click the chart to select it
  • Do you see a blue frame around one or more cells?
    • The cells with blue borders are the cells that are feeding data to your chart.
    • If you do not see the frames around the same cells as in the example here, you have selected the wrong cells to feed information to the chart. Select the cells chown in the image above.

Regards,

Barry
