electric shock while charging

I have been using my iPhone XS Max for around 9 months. It was quite good the past months. However i felt there is a tingling sensation of electricity these few days when i touched the camera unit or the stainless steel part of the phone. Is this normal? I m using an iPad charger to charge my iPhone as it is quicker than the 5A one. I was told that the charger is perfectly fine for the phone. Any suggestion and solutions? Thanks.

Edit: Contacted Apple Support and they said this is an issue called Voltage On Enclosure and is completely normal but I feel pretty unfair to say those words as we spent over 1k to buy this phone and I was told this faulty is normal?

iPhone XS Max

Posted on Sep 6, 2019 11:49 PM

Reply
Question marked as Best reply

Posted on Sep 12, 2019 7:51 AM

That is what I've heard, I'm in the US, I'm pretty sure I have a UK 3 pronged plug from the world travel set, not sure where, but I know that particular plug didn't have the grounding pin connected.


Incidentally (or not), those plugs were recalled because the grounding pin broke off too easily, and apparently, the revised plugs aren't grounded either. It seems as though the only reason for the ground pin is made of metal is because it isn't as brittle as plastic.


You can tell if a wall adapter plug grounds MacBook/iPad charger fairly easily, I don't think I explained very well, but these pictures should make it clear.


The metal tab/disk/cam in this picture holds the wall plug in place, and is also the AC ground pin. It's coupled with the DC V- and EMI shielding inside the charger.

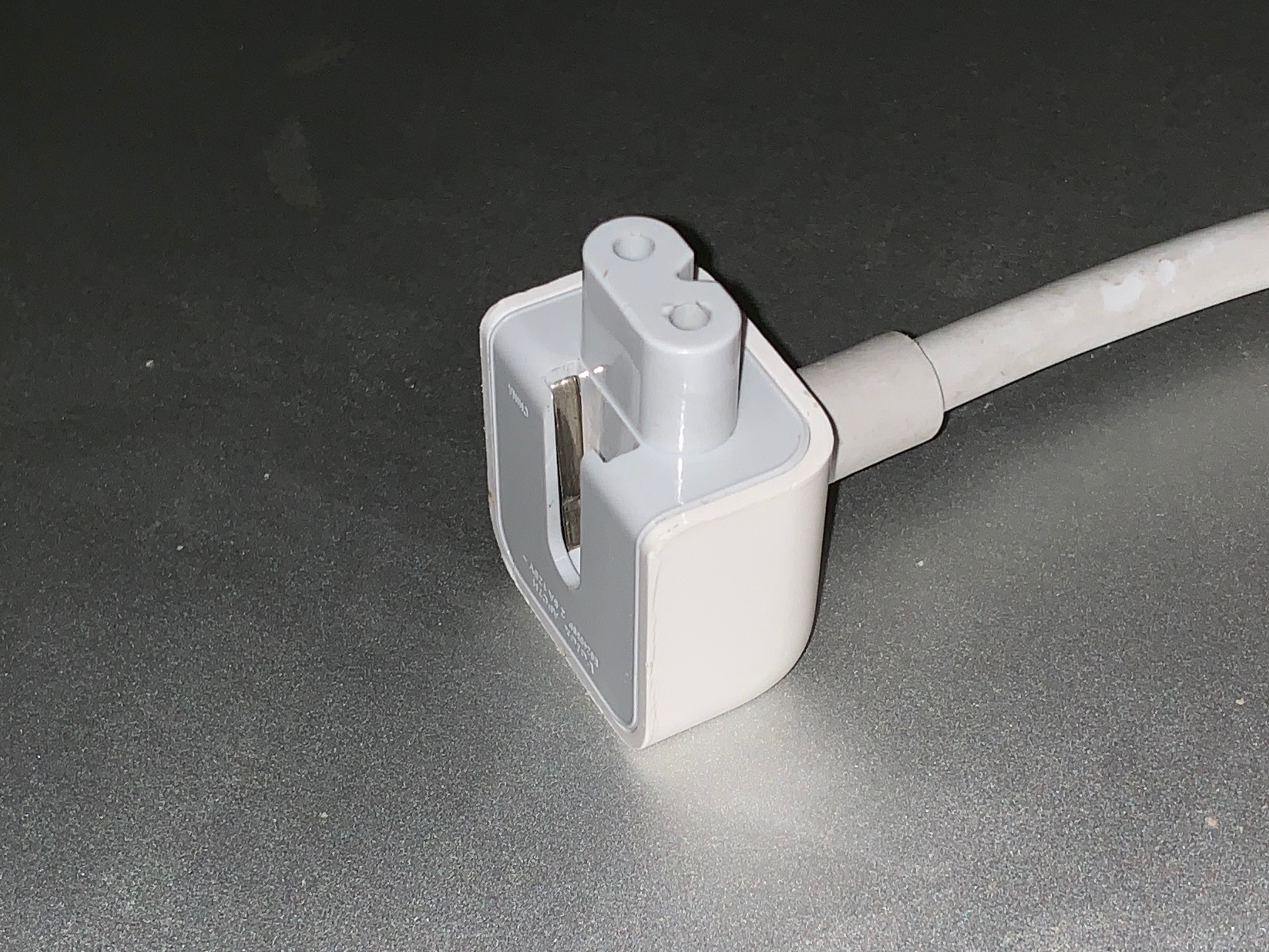

The grounded extension cord has metal tabs inside the slots that is connected with the ground conductor.



Really though, if it feels stronger than a typical zap from static electricity with sweaters and dry weather, I would take a multimeter to the outlet and measure the voltage across each of the three holes, you should get two measurements of ~240V and the other one should be less than 10V.

7 replies
Question marked as Best reply

Sep 12, 2019 7:51 AM in response to laboosts

That is what I've heard, I'm in the US, I'm pretty sure I have a UK 3 pronged plug from the world travel set, not sure where, but I know that particular plug didn't have the grounding pin connected.


Incidentally (or not), those plugs were recalled because the grounding pin broke off too easily, and apparently, the revised plugs aren't grounded either. It seems as though the only reason for the ground pin is made of metal is because it isn't as brittle as plastic.


You can tell if a wall adapter plug grounds MacBook/iPad charger fairly easily, I don't think I explained very well, but these pictures should make it clear.


The metal tab/disk/cam in this picture holds the wall plug in place, and is also the AC ground pin. It's coupled with the DC V- and EMI shielding inside the charger.


The grounded extension cord has metal tabs inside the slots that is connected with the ground conductor.



Really though, if it feels stronger than a typical zap from static electricity with sweaters and dry weather, I would take a multimeter to the outlet and measure the voltage across each of the three holes, you should get two measurements of ~240V and the other one should be less than 10V.

Sep 7, 2019 12:12 AM in response to laboosts

"Normal," as in fairly common and innocuous (from a safety standpoint anyway) is probably what they meant. If the electric "shock" you're describing is closer to a buzzing sort of sense of current flowing through your finger, it's been one of Apple's idiosyncratic features as long as they've used metal enclosures and two-pronged power adapters. It's not exclusive to Apple products actually, anything that has a "grounded" metal enclosure but isn't actually grounded can display this phenomenon. If you happen to have a 3-prong grounded extension cable like the ones that come with the MacBook chargers, you could use that to make it go away. Or, try touching one of the screws on a light switch/power outlet, that works too.


This discharge can actually corrosion in the anodized aluminum if you keep touching the same part over and over again, I've seen it happen to the palm rest area in MagSafe MBP's, and while caused by a separate but somewhat similar problem, caused holes to develop in so many of the 1st generation Magic Mice in their aluminum sides/bottom. Don't think it'll be an issue with an iPhone, but if it bothers you, this will fix the issue, though it can't be used with the 5w mini-chargers iPhones come with.

Sep 9, 2019 2:18 AM in response to laboosts

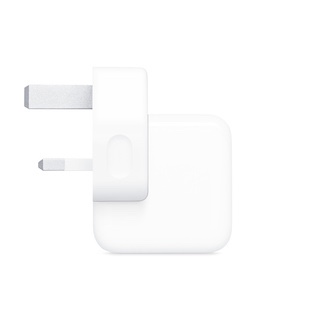

If you mean something like this:

I believe the ground isn't internally connected to anything... It's just there for stability I guess.


If you take the wall plug part of the charger off, you see a metal disk that the slot in the plug mates with, that's the grounding connector. On the stubby plugs, there's nothing inside the plastic slot, it's just plastic.


These have metal tabs along the inside of the slot that grounds the charger. It's bulky and you probably don't need the extra length, but it'll solve the issue.


But the thing is, the "shock" really shouldn't be that bad, I may be misunderstanding but if every time this happens it feels like getting zapped by static electricity in the winter, I would worry that there is something wrong with another appliance on the same circuit, or the wiring not being proper. The electric current you're feeling's due to the voltage difference between neutral and ground which should be a few volts at most, usually not very noticeable and certainly not painful.

Sep 11, 2019 12:59 AM in response to Ted Park

So u mean the charger does not comes with a ground function? Just like any ordinary 2 pin charger? It is more than getting zapped by the static electricity during the winter tho. I tried multiple adapters even the Samsung two pin adapter does not show any positive result when i test it at the enclosure of the phone. It is strange that apple does not include safety measure like this. FYI I have used both the adapter u mentioned and also the adapter that comes with the phone. Thanks btw.
