Failure code:: 0x01110500 0x0000001f

Question

Level 1

5 points

Failure code:: 0x01110500 0x0000001f

whenever i put my Macbook to sleep for few hours when i awake it the screen freeze as soon i put in my login informations. the error massage as soon i am able to login is the following ;

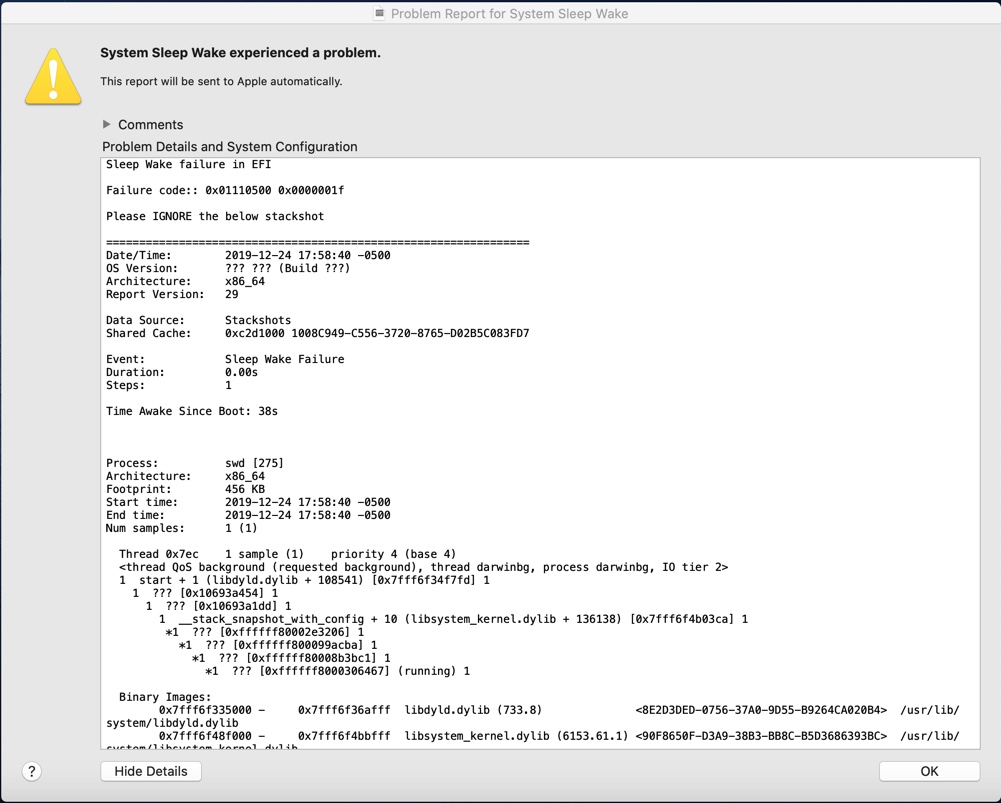

Sleep Wake failure in EFI

Failure code:: 0x01110500 0x0000001f

Please IGNORE the below stackshot

================================================================

Date/Time: 2019-12-24 17:58:40 -0500

OS Version: ??? ??? (Build ???)

Architecture: x86_64

Report Version: 29

Data Source: Stackshots

Shared Cache: 0xc2d1000 1008C949-C556-3720-8765-D02B5C083FD7

Event: Sleep Wake Failure

Duration: 0.00s

Steps: 1

Time Awake Since Boot: 38s

Process: swd [275]

Architecture: x86_64

Footprint: 456 KB

Start time: 2019-12-24 17:58:40 -0500

End time: 2019-12-24 17:58:40 -0500

Num samples: 1 (1)

Thread 0x7ec 1 sample (1) priority 4 (base 4)

1 start + 1 (libdyld.dylib + 108541) [0x7fff6f34f7fd] 1

1 ??? [0x10693a454] 1

1 ??? [0x10693a1dd] 1

1 __stack_snapshot_with_config + 10 (libsystem_kernel.dylib + 136138) [0x7fff6f4b03ca] 1

*1 ??? [0xffffff80002e3206] 1

*1 ??? [0xffffff800099acba] 1

*1 ??? [0xffffff80008b3bc1] 1

*1 ??? [0xffffff8000306467] (running) 1

Binary Images:

0x7fff6f335000 - 0x7fff6f36afff libdyld.dylib (733.8) <8E2D3DED-0756-37A0-9D55-B9264CA020B4> /usr/lib/system/libdyld.dylib

0x7fff6f48f000 - 0x7fff6f4bbfff libsystem_kernel.dylib (6153.61.1) <90F8650F-D3A9-38B3-BB8C-B5D3686393BC> /usr/lib/system/libsystem_kernel.dylib

Model: MacBookPro11,2, BootROM 157.0.0.0.0, 4 processors, Quad-Core Intel Core i7, 2.2 GHz, 16 GB, SMC 2.18f15

Graphics: kHW_IntelIrisProItem, Intel Iris Pro, spdisplays_builtin

Memory Module: BANK 0/DIMM0, 8 GB, DDR3, 1600 MHz, 0x02FE, -

Memory Module: BANK 1/DIMM0, 8 GB, DDR3, 1600 MHz, 0x02FE, -

AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x134), Broadcom BCM43xx 1.0 (7.77.106.3 AirPortDriverBrcmNIC-1435.3)

Bluetooth: Version 7.0.2f4, 3 services, 27 devices, 1 incoming serial ports

Network Service: Wi-Fi, AirPort, en0

USB Device: USB 3.0 Bus

USB Device: Apple Internal Keyboard / Trackpad

USB Device: BRCM20702 Hub

USB Device: Bluetooth USB Host Controller

Thunderbolt Bus: MacBook Pro, Apple Inc., 17.1

MacBook Pro 15", macOS 10.15

Posted on Dec 24, 2019 5:55 PM

Reply

Answer 1

Top-ranking reply

haitham49 Author

Level 1

5 points

Jan 1, 2020 6:34 PM in response to haitham49

I didn't mention that i installed new SSD 1 terabyte hard drive to extend the memory of my mac. I contacted the company i bought it from and they send me some instructions which helped and solved the issue. i would recommend it for anyone who is having this issue

I have a few suggestions that should help to correct this problem.

First I would have you perform two very simple resets here:

PRAM Refresh: https://i.imgur.com/9YJuzWh.png

SMC Refresh: https://i.imgur.com/QgUD7oC.png

(these do not negatively affect your data)

Then, open Terminal in your Applications folder or Spotlight, and copy & paste the command line below into the box, and press enter afterwards. You'll likely be prompted to enter your mac login, and you may do so. You may also receive a warning that you are making changes. This is normal and you may proceed.

sudo pmset -a standby 0

(You'll enter Terminal in Spotlight to open terminal, then enter the sudo command into terminal)
Then this problem should be corrected. If you need to confirm that the above setting was properly set, open your System Report, select the 'Power' option, and then check the 'Standby Enabled' value. It should say 0.

I hope that solved the issue for you as it did for me

Thank you

Reply

Answer 2

Dec 29, 2019 8:12 AM in response to haitham49

haitham49 wrote:

Hello leroydouglas,

I am not sure what that is, but all my software is up to date. it seems that is started happening since i upgraded software from macOS Mojave to Mojave.

It happens now on a regular basis if i close my mac lid to put it to sleep for few hours.

Thank for the help

<MacBook Pro (Retina, 15-inch, Mid 2014)>

Try resetting the SMC https://support.apple.com/en-us/HT201295

Reply

Answer 3

Allan Jones

Level 9

72,176 points

Dec 29, 2019 10:18 AM in response to leroydouglas

What is this <:kHW_IntelIrisProItem> ? Look for an updated driver for your macOS.

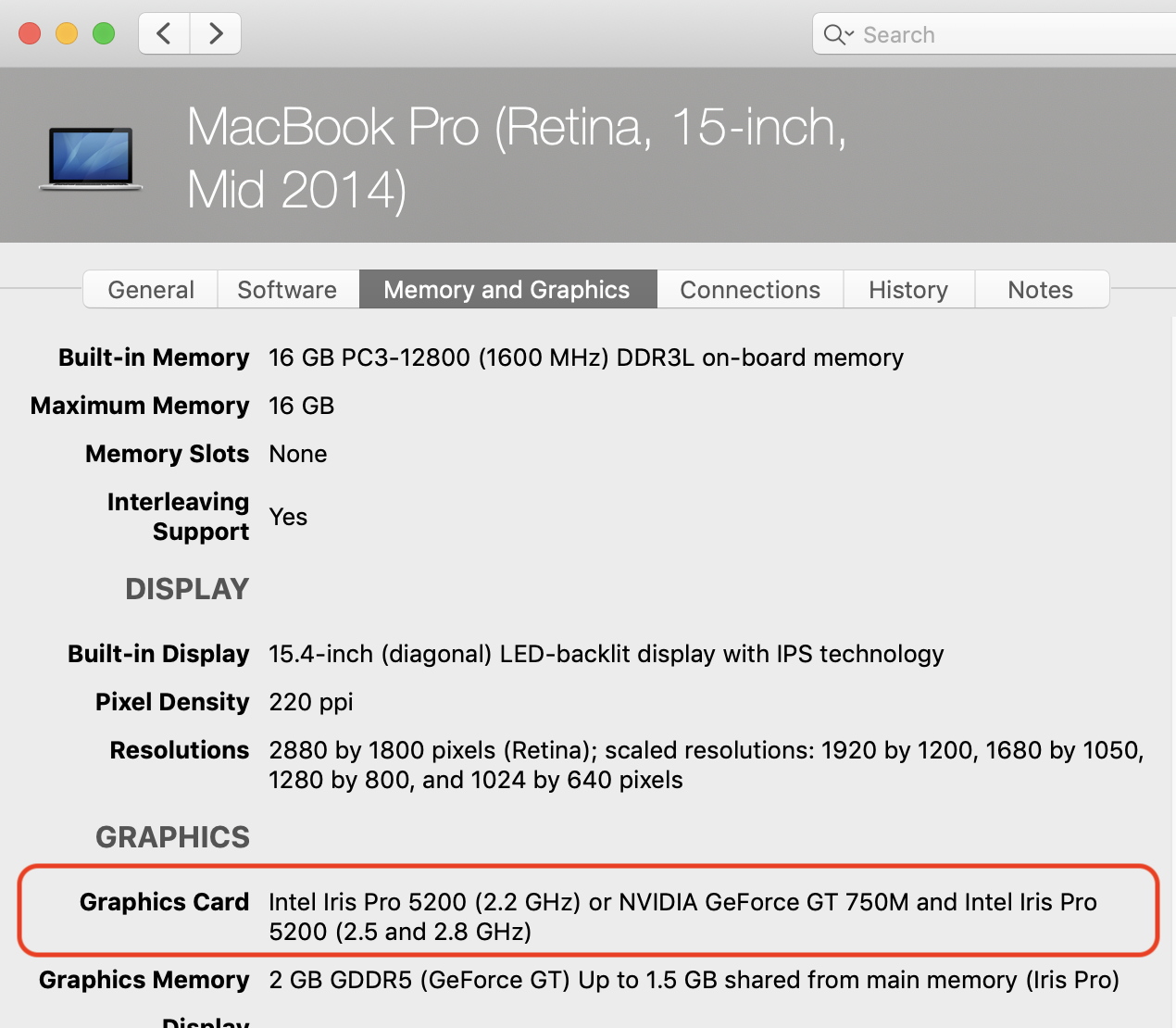

Leroy, That model has the Intel Iris Pro graphics integrated chipset. From MacTracker:

Any updates should come with macOS updates.

Reply

Answer 4

Dec 24, 2019 6:35 PM in response to haitham49

haitham49 wrote:

whenever i put my Macbook to sleep for few hours when i awake it the screen freeze as soon i put in my login informations. the error massage as soon i am able to login is the following ;

Sleep Wake failure in EFI

Model: MacBookPro11,2, BootROM 157.0.0.0.0, 4 processors, Quad-Core Intel Core i7, 2.2 GHz, 16 GB, SMC 2.18f15

Graphics: kHW_IntelIrisProItem, Intel Iris Pro, spdisplays_builtin

What is this <:kHW_IntelIrisProItem> ? Look for an updated driver for your macOS.

Unplug it to test.

Reply

Answer 5

haitham49 Author

Level 1

5 points

Dec 29, 2019 8:04 AM in response to leroydouglas

Hello leroydouglas,

I am not sure what that is, but all my software is up to date. it seems that is started happening since i upgraded software from macOS Mojave to Mojave.

It happens now on a regular basis if i close my mac lid to put it to sleep for few hours.

Thank for the help

Reply

Answer 6

haitham49 Author

Level 1

5 points

Jan 8, 2020 4:05 AM in response to josé4528

Hello Jose,

when it asked me for the password my login to Mac password worked. If you bought the computer from someone and you didn’t format and delete the laptop you might need to get the password.

go you your Mac users and see how many profiles are there and if there is any you try to delete them or rest your login password, and that might help

good luck 👍

Reply
