Mac book pro crashes due to audio codec issue

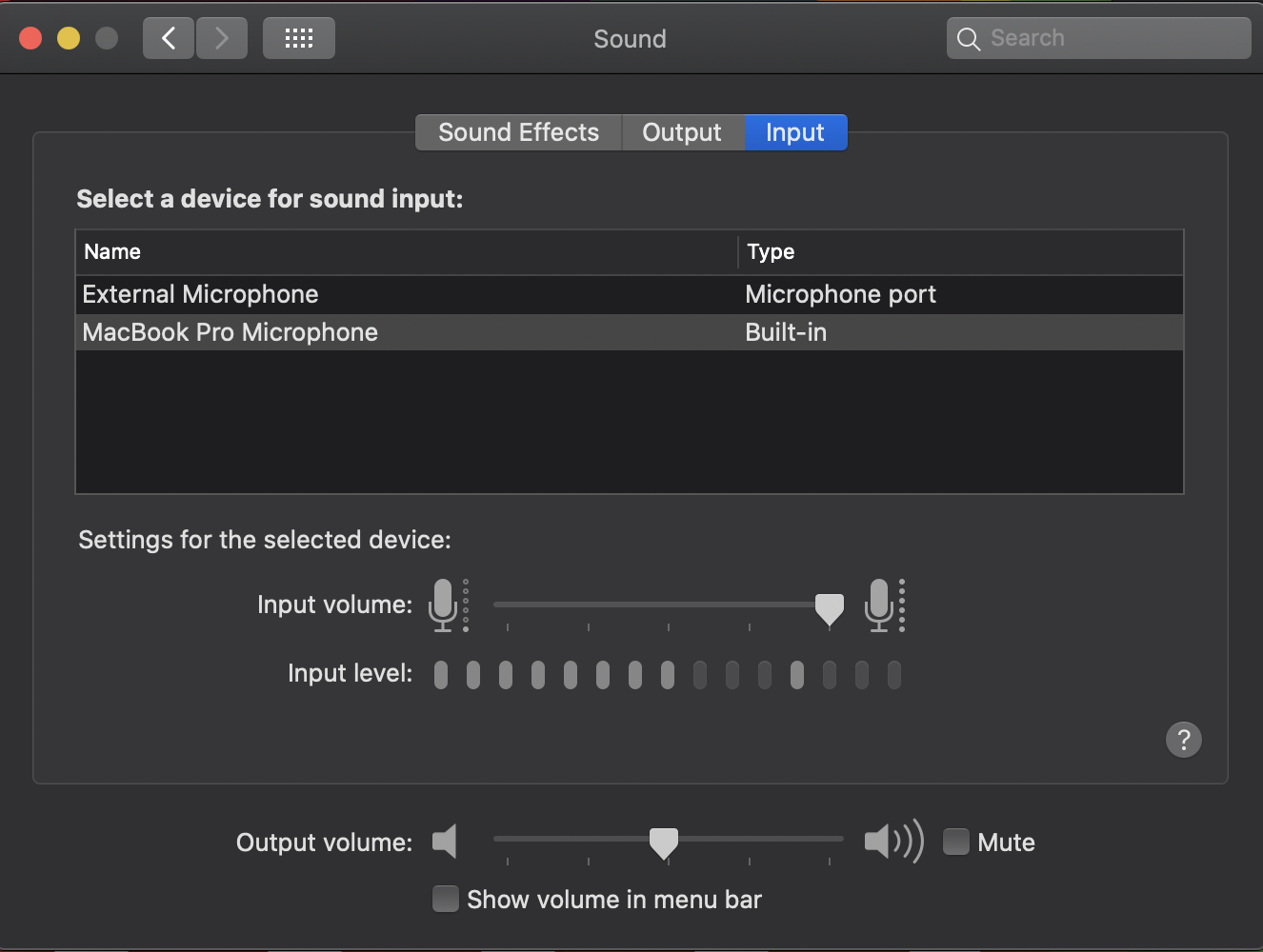

I have 2019 Mac book pro 16 inch with current Mac OS Catalina version of 10.15.7. Mac book crashes (nearly 10 times over 2 weeks) giving following issue of waiting for interrupt by the audio-codec driver. I have tried reinstalling Mac OS and removing most of the apps. The sound settings (both input and output) sometimes shows External Microphone even I haven't plug in one to microphone port (Image attached at the bottom). Please provide me any thoughts on this issue.


panic(cpu 0 caller 0xfffffff0127d4014): "i2c2::_runInterruptMode Timed out waiting for interrupt; last write status 00010118 int shadow 00190100 xfer 00000000 fifo 00000000 for device audio-codec-output"@/AppleInternal/BuildRoot/Library/Caches/com.apple.xbs/Sources/AppleS5L8940X/AppleS5L8940X-169.0.1/AppleS5L8940XI2C.cpp:351
Debugger message: panic
Memory ID: 0x6
OS version: 17P6610
macOS version: 19H2
Kernel version: Darwin Kernel Version 19.6.0: Thu Jun 18 20:30:46 PDT 2020; root:xnu-6153.145.1~1/RELEASE_ARM64_T8010
Kernel UUID: B4EDD42A-0513-3B38-A0EF-ED8AF599F183
iBoot version: iBoot-5540.140.12
secure boot?: YES
x86 EFI Boot State: 0x16
x86 System State: 0x0
x86 Power State: 0x0
x86 Shutdown Cause: 0x5
x86 Previous Power Transitions: 0x405060400
PCIeUp link state: 0x89271614
Paniclog version: 13
Kernel slide:     0x000000000a57c000
Kernel text base: 0xfffffff011580000
mach_absolute_time: 0x2fa21a1e41b
Epoch Time:        sec       usec
  Boot    : 0x5f972689 0x00009fe8
  Sleep   : 0x5f9a8b84 0x0004afba
  Wake    : 0x5f9a8ba1 0x000b25cd
  Calendar: 0x5f9ad169 0x00088a91

Panicked task 0xffffffe00016ce00: 3387 pages, 220 threads: pid 0: kernel_task
Panicked thread: 0xffffffe0004a4a90, backtrace: 0xffffffe00ad43220, tid: 424
		  lr: 0xfffffff011e44860  fp: 0xffffffe00ad43260
		  lr: 0xfffffff011e446bc  fp: 0xffffffe00ad432d0
		  lr: 0xfffffff011f5f770  fp: 0xffffffe00ad43380
		  lr: 0xfffffff0124115d8  fp: 0xffffffe00ad43390
		  lr: 0xfffffff011e44024  fp: 0xffffffe00ad43700
		  lr: 0xfffffff011e4437c  fp: 0xffffffe00ad43750
		  lr: 0xfffffff012c7e938  fp: 0xffffffe00ad43770
		  lr: 0xfffffff0127d4014  fp: 0xffffffe00ad437f0
		  lr: 0xfffffff0127d3878  fp: 0xffffffe00ad43880
		  lr: 0xfffffff0127d35b8  fp: 0xffffffe00ad438f0
		  lr: 0xfffffff0127d31f8  fp: 0xffffffe00ad43930
		  lr: 0xfffffff012488d34  fp: 0xffffffe00ad43950
		  lr: 0xfffffff012488b9c  fp: 0xffffffe00ad43980
		  lr: 0xfffffff012380f1c  fp: 0xffffffe00ad439f0
		  lr: 0xfffffff012489560  fp: 0xffffffe00ad43a50
		  lr: 0xfffffff01276966c  fp: 0xffffffe00ad43ac0
		  lr: 0xfffffff01276b664  fp: 0xffffffe00ad43b10
		  lr: 0xfffffff01276b89c  fp: 0xffffffe00ad43b60
		  lr: 0xfffffff0127a0644  fp: 0xffffffe00ad43b90
		  lr: 0xfffffff01279e3b4  fp: 0xffffffe00ad43bc0
		  lr: 0xfffffff01237fde0  fp: 0xffffffe00ad43c10
		  lr: 0xfffffff01237eb14  fp: 0xffffffe00ad43c50
		  lr: 0xfffffff01237e398  fp: 0xffffffe00ad43c90
		  lr: 0xfffffff01241c514  fp: 0x0000000000000000


MacBook Pro 16″, macOS 10.15

Posted on Oct 29, 2020 7:46 AM

Reply
Question marked as Top-ranking reply
User profile for user: hansika256
hansika256 Author
User level: Level 1
8 points

Posted on Oct 30, 2020 12:20 PM

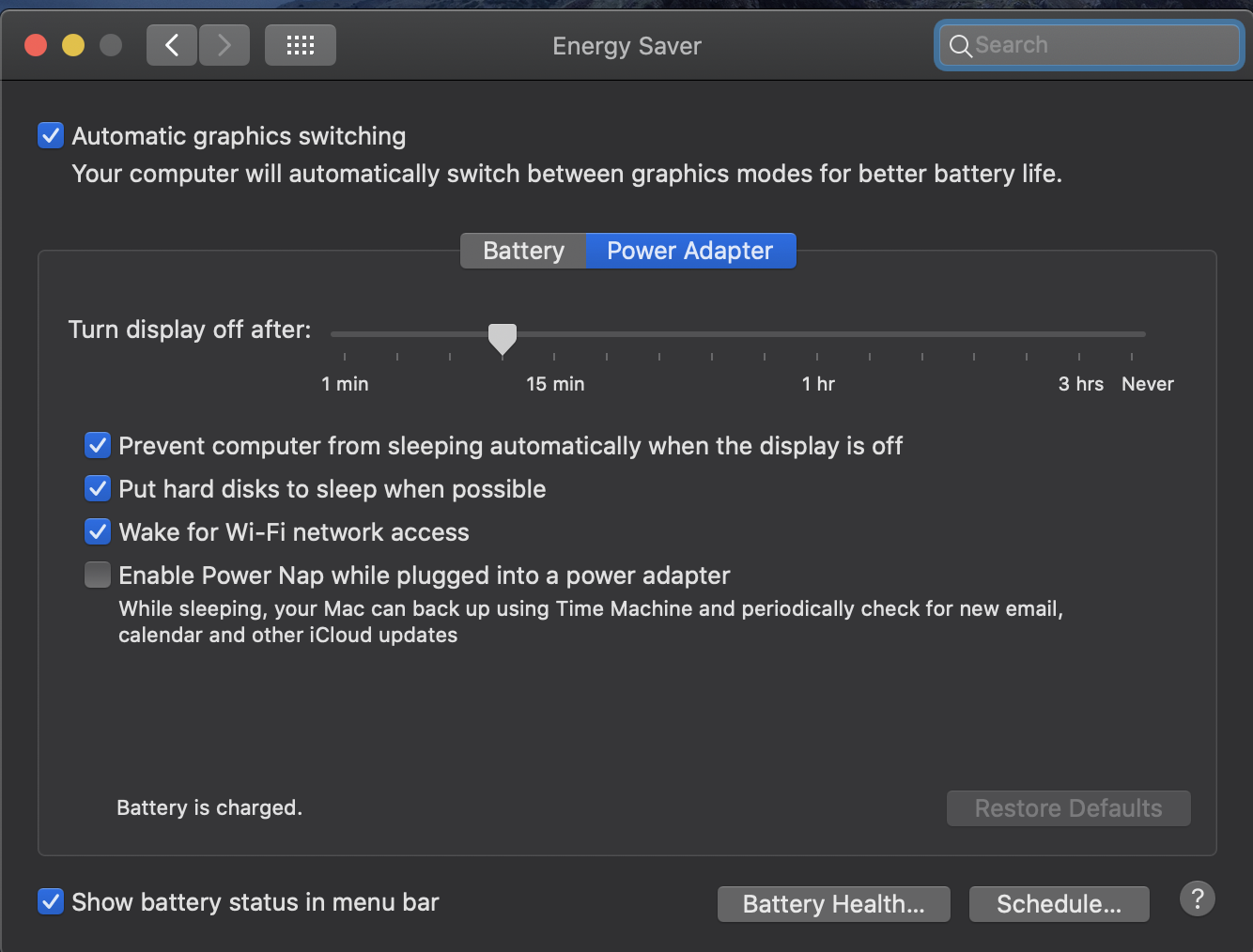

Seems like the problem is with Mac Os. I had enabled the power nap option on my energy saver settings which will lead to the panic in the kernel due to bug in OS from few versions back. Disabling the power nap (Untick the 4th checkbox in the power saver setting both under battery and power adapter tab) fixed the issue and it also reduced the heating of my Mac Book. But Apple should seriously consider fixing this which eat up lot of my time 😑.


View in context

Similar questions

4 replies
Question marked as Top-ranking reply
User profile for user: hansika256
hansika256 Author
User level: Level 1
8 points

Oct 30, 2020 12:20 PM in response to hansika256

Seems like the problem is with Mac Os. I had enabled the power nap option on my energy saver settings which will lead to the panic in the kernel due to bug in OS from few versions back. Disabling the power nap (Untick the 4th checkbox in the power saver setting both under battery and power adapter tab) fixed the issue and it also reduced the heating of my Mac Book. But Apple should seriously consider fixing this which eat up lot of my time 😑.


Reply
User profile for user: Barney-15E
Barney-15E
User level: Level 10
116,338 points

Oct 30, 2020 3:21 PM in response to hansika256

hansika256 wrote:

Yes the issue with detecting the headphone maybe a hardware issue. But the kernel panic was a OS issue fortunately .

I don't think it is. While disabling Power Nap hides the issue, it is most likely a hardware issue. Lots of people want to bury their heads in the sand and hope it is not hardware, but if you take it to an Apple Store, they will likely swap out the logic board.
