Bluetooth audio in OSX Lion

I did download and install the latest xCode, once it is installed.

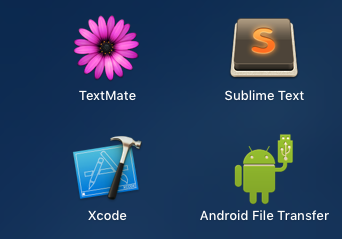

Click in the Xcode icon and open it.

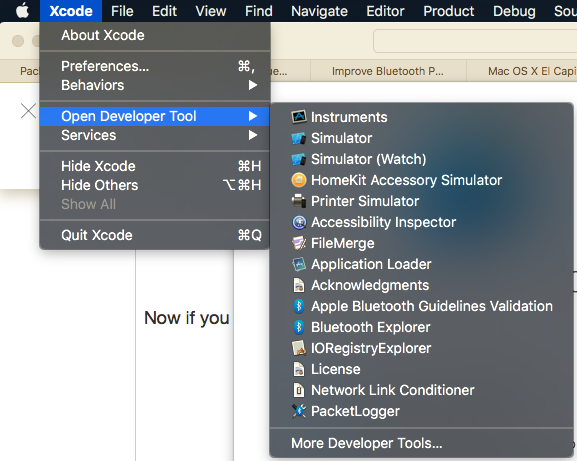

In the top menu: Click on Xcode

then 'Open Developer Tools' -> 'More Developer Tools'

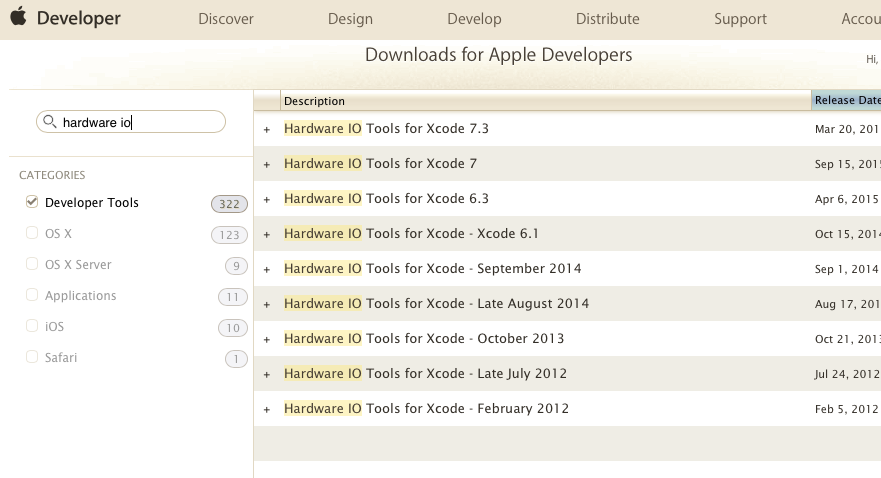

You will need to sign in or create an account as Xcode developer. When you sign in just type in the search field 'hardware io'.

Select and download the latest version of Hardware IO Tools for Xcode.

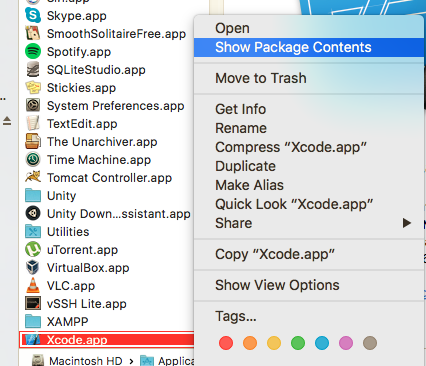

Once is download open the *.dmg file. In the other hand, in your application Xcode app folder do a right click and select: 'show package content'

Drag and drop all the tools from the 'hardware io' dmg file you just downloaded and place them in the 'contents->applications folder inside the Xcode app folder.

Now if you open the Xcode->Open Developers tools->Bluethoot Explorer

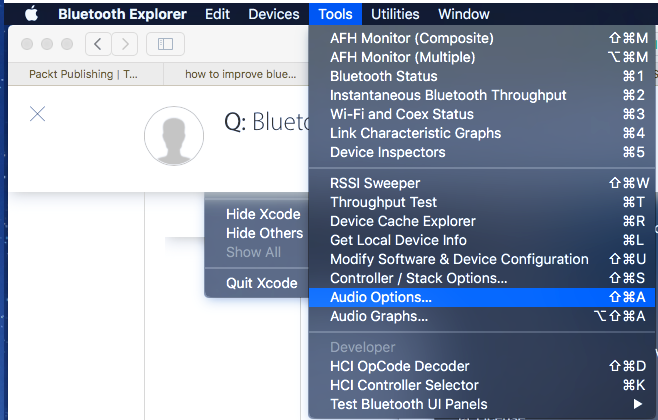

With Bluethoot Explorer open select from the top menu: Tools->Audio Options

I played with the options and realized that the problem was in my case with the bit rate. So I increased the number of packets that can be buffered to 50 and also the latency.

There are many bluethoot tools and graphs that you can use to troubleshoot and check where is the problem with the Xcode Hardware IO.

Let me know, with what configuration you were able to fix your problem.

Greetings.

Hi edown,

running HighSierra and connected my Plantronics bluetooth headset the first tim on iMac,

Thanks for posting: It works whereas the other settings posted with different Min/Max values do not!

Cheers!

Tino

Which Plantronics headset do you have?

I am getting Bluetooth audio errors with my Plantronics Voyager 520 since I installed Lion. It has Bluetooth version 2.0. It worked fine in Leopard and Snow Leopard. The steps I've taken so far are in this message:

<https://discussions.apple.com/thread/3202152>

Best regards,

Lou

> I have the plantronics voyager 520.

So we're both working with the exact same headset. If you get an answer, please let me know. I will do the same for you.

I'm guessing it might me a (rare) hardware incompatability problem at this point, but (hopefully) someone else will chime in with some guidance and/or experience with this issue.

Best regards,

Lou

I am also seeing a similar problem with an older Jawbone.

Worked fine under Snow Leopard.

Now I cannot get it to work with iChat.

Will post if I have any success trouble-shooting...

Cheers,

Andrew

I am in a similar boat - mine is a Plantronics Explorer 210. I used for voice chat as my Mac Pro had no mic, now I cannot use it any longer. Just has that bluetooth error. When I use it as an audio device. I get on console:

25/07/11 8:14:11.000 PM kernel: REQUIRE failure: result == kIOReturnSuccess - file: /SourceCache/IOBluetoothFamily/IOBluetoothFamily-2500.4.17/Core/Family/Drivers/ IOBluetoothSCOAudioDriver/IOBluetoothSCOAudioEngine.cpp:270

25/07/11 8:15:03.000 PM kernel: Sound assertion "mFirstConvert && ( numSampleFrames > currentSampleFrame)" failed in AppleHDAEngine at line 2349 goto Exit

25/07/11 8:15:07.000 PM kernel: REQUIRE failure: mClientResponseTimedOut == false - file: /SourceCache/IOBluetoothFamily/IOBluetoothFamily-2500.4.17/Core/Family/Drivers/ IOBluetoothSCOAudioDriver/IOBluetoothSCOAudioDevice.cpp:711

This issue will lock up facetime or ichat. requiring a Force Quit.

Hope this gets fixed!

I’m having similar problems with my Sennheiser MM 550 Travel Bluetooth headphones. After the initial pairing and selecting the headphones for output, sound plays well for awhile, but usually after a few minutes audio to the headphones will suddenly drop out. If I deselect and reselect the headphones for output, I get the same “Bluetooth Audio Error” message as you do. Like others, leaving the headphones paired causes occasional system freezes followed by the “Bluetooth Audio Error” message again.

For now, I have unpaired my headphones and connected them to my Mac with a cable. I’m hoping Apple will fix this in a future OS X update.

> ...unpairing fixes everything.

I thought the Apple support folks might monitor these issue threads.

It would be somewhat reassuring if they would at least acknowledge the issue.

I'd like to know if _any_ bluetooth headsets are working under Lion, but folks who don't have problems aren't likely to pay attention to our posts.

Best regards,

Lou

I am having issues as well with a BlueAnt Z9i.

Also having issues with a Jawbone Icon, which worked perfectly in Snow Leopard. Audio output to the headset seems to work until I try to enable input, then the "Bluetooth Audio Error" pops up and nothing works.

> Audio output to the headset seems to work until I try to enable input, then the "Bluetooth Audio Error" pops up

> and nothing works.

My Plantronics Voyager 520 won't even work as an output device without bringing up the error.

Best regards,

Lou

I have a Sony DR-BT101 and they seem to pair correctly, but after that the headset appears as "unconnected".

I tried to pair and unpair and some of the times i get them working for a short period. Another time I got a kernel panic and i had to reboot the computer.

I never tryed before (ie, with Snow Leopard) to pair them, i just tried it with Lion in a Mac Mini late 2010
