iPhone 4s: No sound keyboard, alerts, music without headphones

Anyone else out there with these same/similar issues:


  • No sound without ear buds or Bluetooth ONLY for
    • Alerts
    • Music
    • Videos
    • Keyboard Clicks
  • Lock Screen Not Locked, it changes or is blank


Brand new 4s, and there’s no sound with keyboard clicks, alerts, videos, or music without ear buds or Bluetooth headset. Ringer works, and Siri works, speaker phone works. And it does record my voice on the videos. I’ve done about six hard restarts, one restore, sprayed the plug where the ear buds plug in with canned air, and inserted and re-inserted the plug about fifty times as recommended on various threads so the phone doesn’t “think” ear buds are still plugged in.


I called Apple and they said because the ringer/speaker phone works but the alerts, music, clicks, don’t; it is most likely a software problem not hardware and they recommended a restore through iTunes.


I also took it to my local AT&T store (I bought it online through AT&T) and they were also stumped.


I did the “restore” and now my “lock” screen photo won’t stay in place even though when I check the “Wallpaper” setting’s it is still there, but does not show up when I unlock the phone unless I keep doing a hard restart.


Bottom line: Apple is saying to wait for a software upgrade in the next few weeks and if that doesn’t fix my issues I need to return the phone (which I’d rather not do) because it is guaranteed for a year…


This is my 5th iPhone (plus other 4 iPods) and NONE of the other Apple products had any issues. This is very disappointing. But I also waited about 3-6 months before purchasing them after a launch… maybe all the bugs were already resolved. So next time I will not rush to get one in the first 30 days…😟

iPhone 4S, iOS 5, Dell 17" Laptop; iPhone 3GS

Posted on Nov 6, 2011 11:23 AM

Reply
210 replies

Oct 14, 2013 8:41 PM in response to tsofronas

Had the same and for some time, which didn't change with upgrade to IOS 7 so after reading all the posts, did phone reboot i.e. turned phone off, wait several minutes then hold top on/off button and screen button (bottom button in screen), the Apple icon came on, held both buttons until ican went out, then restarted. All works great including, alerts, typing clicks etc etc. Fairly pretty pleased with myself i did the same 'fix' on one of my colleagues phone (who had no alerts) and fixed that as well. Phew, wasn't relishing replacing my phone.

Oct 28, 2013 10:55 AM in response to ZynWoof

I have a 4s and have had the same problem. Ever since the 7.0.3 update, I was getting ringtones, but NO SOUND for games, texts, incoming mail, occasionally even incoming calls, etc. I had the phone on vibrate just so I could tell when it was ringing. Alarms worked fine, though. I tried folding a piece of paper (Bullet11300 suggested this), swiped it carefully into the slots on the dock connector at the bottom of the phone, and VIOLA! Suddenly I have sound. This makes nearly no sense to me, as there was no fuzz or dirt that seemed to come out when I swiped, but I'll be ****** if it didn't work! I was about to try a full restore as a last ditch effort. I had tried the headphones, and the sound worked that way, but not without them, so I was willing to try anything. Thanks for the tip, Bullet11300!

Nov 4, 2013 1:14 AM in response to fluggenhaggen

I had sound issue as well, just done an update to ios7 on my 4S and had no audio on music or video unless I used headphones. No volume control for either of these, but ringer working, keysounds ok..... I tried the cleaning dock, earphone jack socket, resetting, turn on and off, mute, etc.... Nothing!

Then I tried turning off icloud backup and hey presto I have my audio back........

Weird, but going to try and turn it back on and see what happens later.....

Looks like mine was a software issue.....

Thanks everyone for some good tips and input on these issues....

Russ

Nov 11, 2013 11:19 AM in response to Dan Knauss

Dan Knauss wrote:

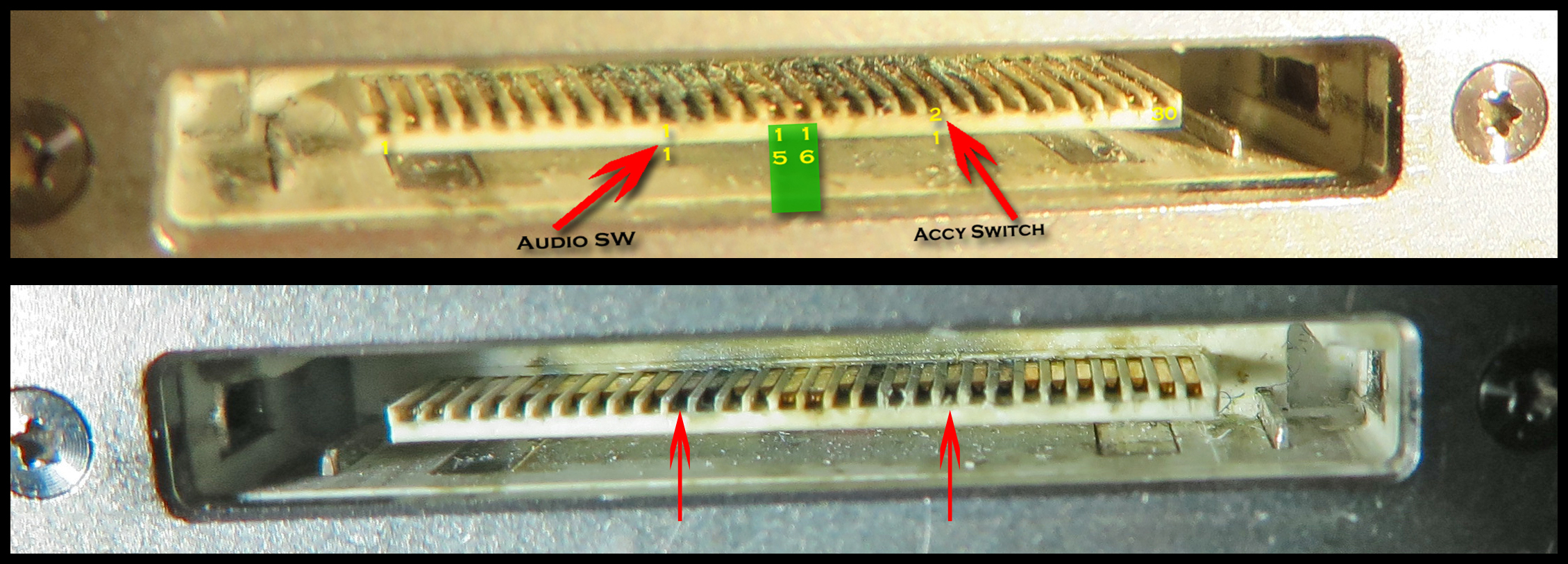

"The partial audio shutdown has to do with models before the iphone 5 switching the phone's speakers off when the audio ground pin is connected to ground. Enough lint, dust, etc. in the port can cause this to happen."


Pin #11 (switches audio to line out rather than iPhone speaker)

Pin #21 (switches iphone into Dock mode)


For me this is a Pin 21 issue. But Cleaning the connector (over, and over and over; alcohol, acetone, air.... makes no difference) Even putting 3.3volts onto pin 21 doesn't bring back the sound.


Interestingly downpressure on the platform of the dock connector at the area of pin #21 can sometimes bring the sound back. So this suggests that if there is an electrical connection problem it might be BEHIND the connector inside the phone, probably somehow shorting to ground (which is why the 3.3volts doesn't help).


I still hold that this is more of a software issue.... ios7 is reading the resistance on that pin DIFFERENTLY than ios6, because it is ONLY the ios7 upgrade that brought this problem on. It was not just coincidence.


Has anyone replaced their dock connector to see if that resolves the issue?


User uploaded file

Nov 29, 2013 5:47 PM in response to vna_cha

Thank you for sharing your experience. I was able to fix my phone with your tip. I knew the problem was caused by water corrosion because I run (re: sweat) with the phone and had a similar problem with a previous iphone. Taking a toothbrush dipped in isopropyl alcohol and gently brushing inside the docking port restored the speaker audio. Thank you!

Dec 17, 2013 8:37 PM in response to erikdc

So after trying numerous methods to resolve my issue ( couldn't hear incoming texts or alerts unless on the phone or if I had on my headphones) (also no video sound)..this is the one method that worked for me. Thanks to the original poster who recommended this method (vna_cha) and erikdc!


Things you will need


toothbrush

Rubbing alcohol

Patience


1st:Grab some rubbing alcohol, pour a small amount into the cap.

2nd: Find a toothbrush new/or old (I used a new one from dollar store)

3rd: Dip the tip of the toothbrush into the alcohol ( first 2 rows)

4th: Gently rub the charging area with the toothbrush ( try faced up and faced down)

5th: Allow time to dry, then test

And your phone should be back working :)


*** Repeat steps 3 & 4 if it doesn't work the first time.
