How to update firmware for SSD

I upgraded to a Samsung SSD and i didnt upgrade my firmware, and read tons of places that you need to. How can i do this, for the life of me i can find A samsung SSD firmware update for Mac

Mac Pro, Mac OS X (10.7.2)

Posted on Dec 11, 2012 1:46 AM

Reply
92 replies

Dec 17, 2012 1:13 AM in response to mende1

For a Samsung 840 pro (Mac Mini 2011 primary boot with firmware DXM03B0Q.), I have tried the following, to upgrade to DXM04B0Q firmware (Dec 13, 2012)....


1. Create a USB boot from Samsung SSD Magician v3.2.1. Error - "No HDD EBIOS".

2. VMs (like VMware Fusion) do not see the SSD, but just a volume. Cannot Update.

3. Create a CD boot from Samsung Magician. Not recognised by the Mac Mini as bootable. Tried with Multiple CDs, which are perfectly readable in OS X and Linux.

4. Tried 'Target Fire Wire Mode' as both Target and Host. Cannot see the SSD, but just the volume where OS X is installed. Cannot update.

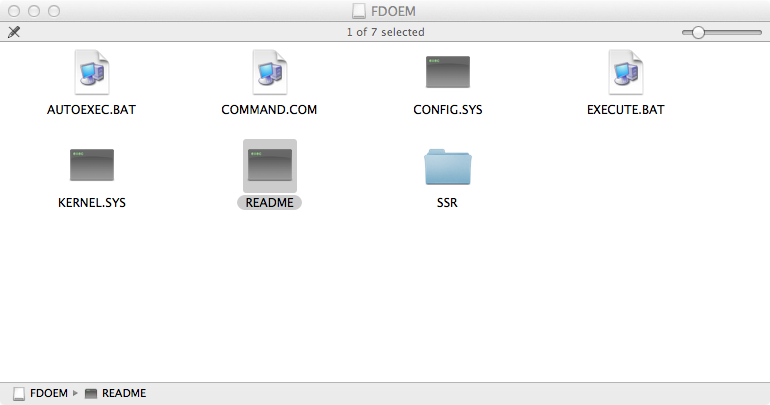

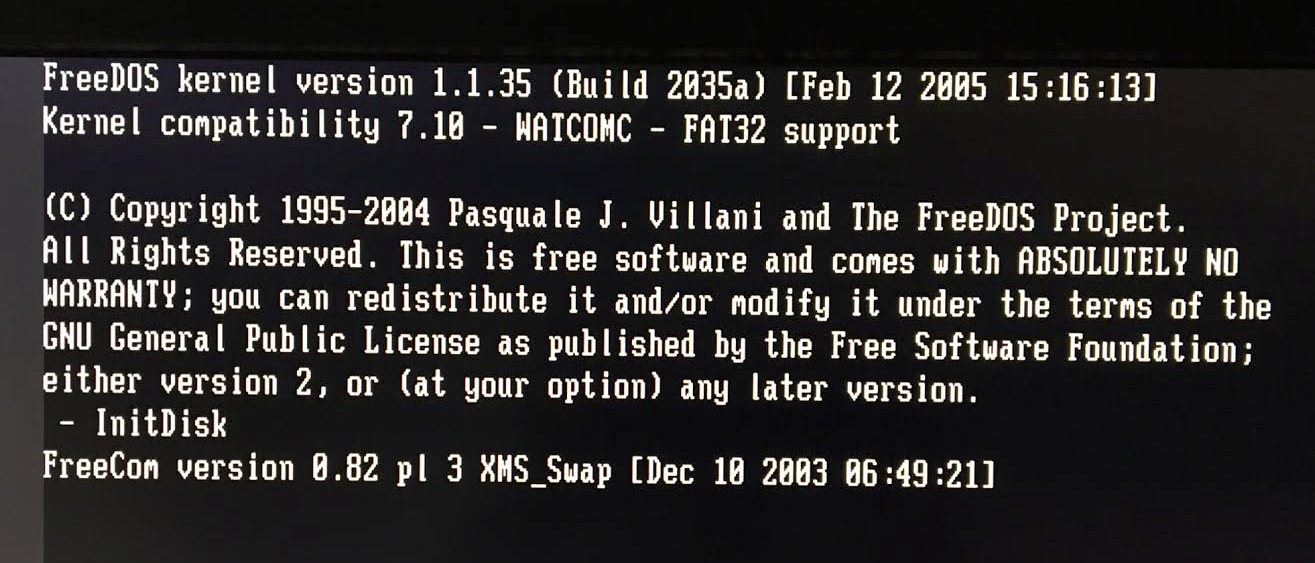

5. Using http://derek.chezmarcotte.ca/?p=188 and building my own FreeDOS (1.0 and 1.1) which has issues with the DSRDGUI0.EXE not working. It generates an error.

6. Bootcamp seems to be the best alternative, but requires a Windows install and Bootcamp does not make it easy. There is no support for external disks in ML and requires Windows 7.


It has been a frustrating experience so far.


Message was edited by: Loner T

Dec 17, 2012 10:17 AM in response to Loner T

A little more research on this subject....


http://www.ocztechnologyforum.com/forum/showthread.php?66742-Summit-Firmware-fla sher-for-OS-X&p=477134&viewfull=1#post477134


The issue referred to item #3 is discussed here.


Quite a few comments here as well....


http://www.youtube.com/watch?v=mihb8YQzDxw


So Bootcamp or the ability to remove the SSD, update it and put it back in a Mac seems to be the only route right now. 😢. Perhaps Samsung can develop a Mac updater which would be a 😮.

Dec 17, 2012 4:14 PM in response to Grant Bennet-Alder

Grant Bennet-Alder wrote:


You are right, of course. I was trying to suggest this as a concept plan to try, not as a recipe.


In my case, when I ran the Kingston updater under the Linux GUI, it could see no SSD drives at all. When I ran it with Sudo, it looked the same, but found Internal SSD drives immediately.

The Samsung SSD use a DOS executable unfortunately. I will check when I get home.

Dec 17, 2012 8:01 PM in response to Loner T

The CD version fails/hangs. No Joy... 😟



Intel 6 Series Chipset:


Vendor: Intel

Product: 6 Series Chipset

Link Speed: 6 Gigabit

Negotiated Link Speed: 6 Gigabit

Description: AHCI Version 1.30 Supported


Samsung SSD 840 PRO Series:


Capacity: 256.06 GB (256,060,514,304 bytes)

Model: Samsung SSD 840 PRO Series

Revision: DXM03B0Q

Serial Number: X12RNEACB32050X

Native Command Queuing: Yes

Queue Depth: 32

Removable Media: No

Detachable Drive: No

BSD Name: disk1

Medium Type: Solid State

TRIM Support: No

Bay Name: Lower

Partition Map Type: GPT (GUID Partition Table)

S.M.A.R.T. status: Verified

Volumes:

disk1s1:

Capacity: 209.7 MB (209,715,200 bytes)

BSD Name: disk1s1

Content: EFI

Sharma's HD:

Capacity: 255.2 GB (255,200,751,616 bytes)

Available: 242.04 GB (242,042,028,032 bytes)

Writable: Yes

File System: Journaled HFS+

BSD Name: disk1s2

Mount Point: /

Content: Apple_HFS

Volume UUID: C4D7A149-DCD1-384C-BCC9-218867AF9D2B

Recovery HD:

Capacity: 650 MB (650,006,528 bytes)

BSD Name: disk1s3

Content: Apple_Boot

Volume UUID: C97E18F5-F067-335A-A600-01182B5E5895
