Hello, I'm new for mac and OS X. so i need some help please
I have Macbook 13 OX S 10.11.2 and windows 10. I make a new partition to share files between this 2 system but after that i could not enter my windows ( windows showing an error asking me to repair or put CD or USB )
I hope I can get help here ..
OS X El Capitan (10.11.2)
You will need to create a large enough partition to accommodate both your Windows and the Shared partition when using BCA. Once the partition has been created, you will need to cancel the W10 installation, manually partition the single partition into two parts and use one part for Windows and the second for your Shared file system.
Please post the output of
diskutil list
diskutil cs list

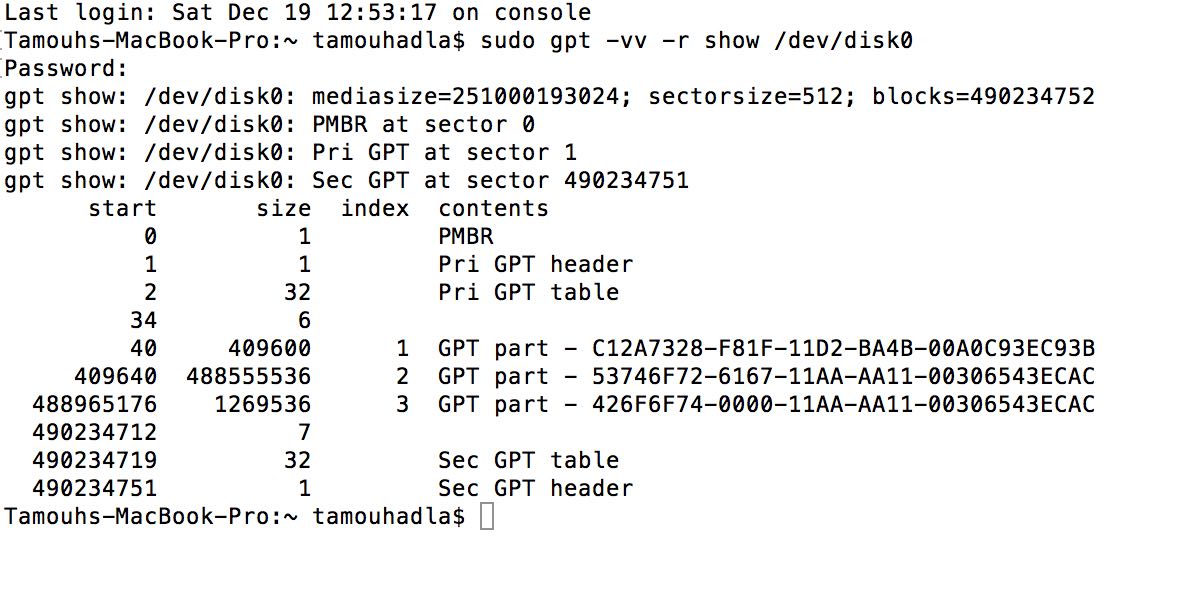

sudo gpt -vv -r show /dev/disk0
There may be another option based on the output of these commands.
Hope it's clear ..
Tamouhs-MacBook-Pro:~ tamouhadla$ diskutil list
/dev/disk0 (internal, physical):
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *251.0 GB disk0
1: EFI EFI 209.7 MB disk0s1
2: Apple_CoreStorage Macintosh HD 250.1 GB disk0s2
3: Apple_Boot Recovery HD 650.0 MB disk0s3
/dev/disk1 (internal, virtual):
#: TYPE NAME SIZE IDENTIFIER
0: Apple_HFS Macintosh HD +249.8 GB disk1
Logical Volume on disk0s2
97BB6DDF-8164-4B66-B79B-1D7F8D4E7AC4
Unencrypted
Tamouhs-MacBook-Pro:~ tamouhadla$ diskutil cs list
CoreStorage logical volume groups (1 found)
|
+-- Logical Volume Group 8846EEFC-396A-476F-857B-8FE68592319F
=========================================================
Name: Macintosh HD
Status: Online
Size: 250140434432 B (250.1 GB)
Free Space: 18882560 B (18.9 MB)
|
+-< Physical Volume 62E03267-742E-4D72-9988-25C08928FF67
| ----------------------------------------------------
| Index: 0
| Disk: disk0s2
| Status: Online
| Size: 250140434432 B (250.1 GB)
|
+-> Logical Volume Family B0582EE2-D684-40B5-A9C8-BB608E57F1BF
----------------------------------------------------------
Encryption Type: None
|
+-> Logical Volume 97BB6DDF-8164-4B66-B79B-1D7F8D4E7AC4
---------------------------------------------------
Disk: disk1
Status: Online
Size (Total): 249769230336 B (249.8 GB)
Revertible: Yes (no decryption required)
LV Name: Macintosh HD
Volume Name: Macintosh HD
Content Hint: Apple_HFS
Yes, it is clear. Disk Utility will not do certain types of partitioning, but the command-line diskutil will let you create more elaborate partition schemes.
In the following command, you can create a partition for Bootcamp (part1) and a shared partition (part2) in one command when reducing the core storage volume. This also mandates an EFI installation of Windows. (MBR installations using this method can break much more easily and are very fragile).
diskutil cs resizeStack
Usage: diskutil coreStorage resizeStack
lvUUID|MountPoint|DiskIdentifier|DeviceNode [pvUUID] size
[part1Format part1Name part1Size part2Format part2Name part2Size
part3Format part3Name part3Size ...]
Resize both a logical volume and one of its underlying physical volumes in a
single operation. A single physical volume is always chosen for the underlying
shrink or grow, even if the logical volume's logical volume group is backed by
more than one physical volume. If you do not specify a particular physical
volume, then one is chosen for you. Note that if this is a grow operation,
this verb is limited by the physical volume's partition's room to grow.
Specifying zero as the size asks for an "automatic" grow-to-fill operation.
If this is a shrink operation, you can optionally request that new partitions
be created in the newly-formed free space gap in the partition map.
Again, note that this only resizes one of the underlying physical volumes; if
you need more sophistication in managing your topology, you should use the
separate physical and logical volume resize verbs.
Example: diskutil coreStorage resizeStack
11111111-2222-3333-4444-555555555555 10g JHFS+ New 1g
You can see some variations of commands used in OSX and Bootcamp discussion .
😢 I got some of what you said ,, but what should i do now.
this com
I want to make 50Gb for Windows and 50GB for the extra partition.
So first i have to type this:
diskutil cs resizeStack
And then this ?? ( here i got lost)
lvUUID|MountPoint|DiskIdentifier|DeviceNode [pvUUID] size
[part1Format part1Name part1Size part2Format part2Name part2Size
part3Format part3Name part3Size ...]
if you can tell me in more simple way because I'm not familiar with command language
This is what you need. The following command
a. changes the size of Macintosh HD to 125g
b. creates a BOOTCAMP partition 60g Free Space
c. creates a SHARED 40g FAT32 (the 0g means the remainder)
Please post any error messages
diskutil cs resizeStack
97BB6DDF-8164-4B66-B79B-1D7F8D4E7AC4 125g
free BOOTCAMP 60g
fat32 Shared 0g
Hello thanks for repay, the first command is work but other ones not .. Please check this and tell my mistake .
Tamouhs-MacBook-Pro:~ tamouhadla$ diskutil coreStorage resizeStack 97BB6DDF-8164-4B66-B79B-1D7F8D4E7AC4 125g
The Core Storage Logical Volume UUID is 97BB6DDF-8164-4B66-B79B-1D7F8D4E7AC4
Started CoreStorage operation
Checking prerequisites for resizing Logical-Physical volume stack
Shrinking Logical-Physical volume stack
Verifying file system
Using live mode
Performing live verification
Checking Journaled HFS Plus volume
Checking catalog hierarchy
Checking extended attributes file
File system check exit code is 0
Shrinking file system
Shrinking Logical Volume
Resizing Core Storage Logical Volume structures
Resized Core Storage Logical Volume to 124999999488 bytes
Shrinking Core Storage Physical Volume from 250140434432 to 125371203584 bytes
Shrinking Core Storage data structures
Resizing Core Storage Physical Volume structures
Resized Core Storage Physical Volume to 125371203584 bytes
Copying booter
Shrinking partition for Physical Volume
Modifying partition map
Finished CoreStorage operation
Tamouhs-MacBook-Pro:~ tamouhadla$ diskutil coreStorage resizeStack free BOOTCAMP 60g
free does not appear to be a valid Core Storage Logical Volume UUID or disk
Tamouhs-MacBook-Pro:~ tamouhadla$ diskutil list
/dev/disk0 (internal, physical):
#: TYPE NAME SIZE IDENTIFIER
0: GUID_partition_scheme *251.0 GB disk0
1: EFI EFI 209.7 MB disk0s1
2: Apple_CoreStorage Macintosh HD 125.4 GB disk0s2
3: Apple_Boot Recovery HD 650.0 MB disk0s4
/dev/disk1 (internal, virtual):
#: TYPE NAME SIZE IDENTIFIER
0: Apple_HFS Macintosh HD +125.0 GB disk1
Logical Volume on disk0s2
97BB6DDF-8164-4B66-B79B-1D7F8D4E7AC4
Unencrypted
BTW I created a booted USB for windows 10 , so I guess I just need to finish partition the 2 parts ( Bootcamp + Share ) and start the install progress .. ( is this correct ? )
The command is a single command and it creates two additional parts. It is meant to be used just once. Now you have a 125g Free Space part, but no shared part. Can you post the output of
diskutil resizeVolume disk1 limits
Tamouhs-MacBook-Pro:~ tamouhadla$ diskutil resizeVolume disk1 limits
Error obtaining resizing information: disk is a Core Storage Logical Volume
Sorry , I did not know that ... what i should do now ?

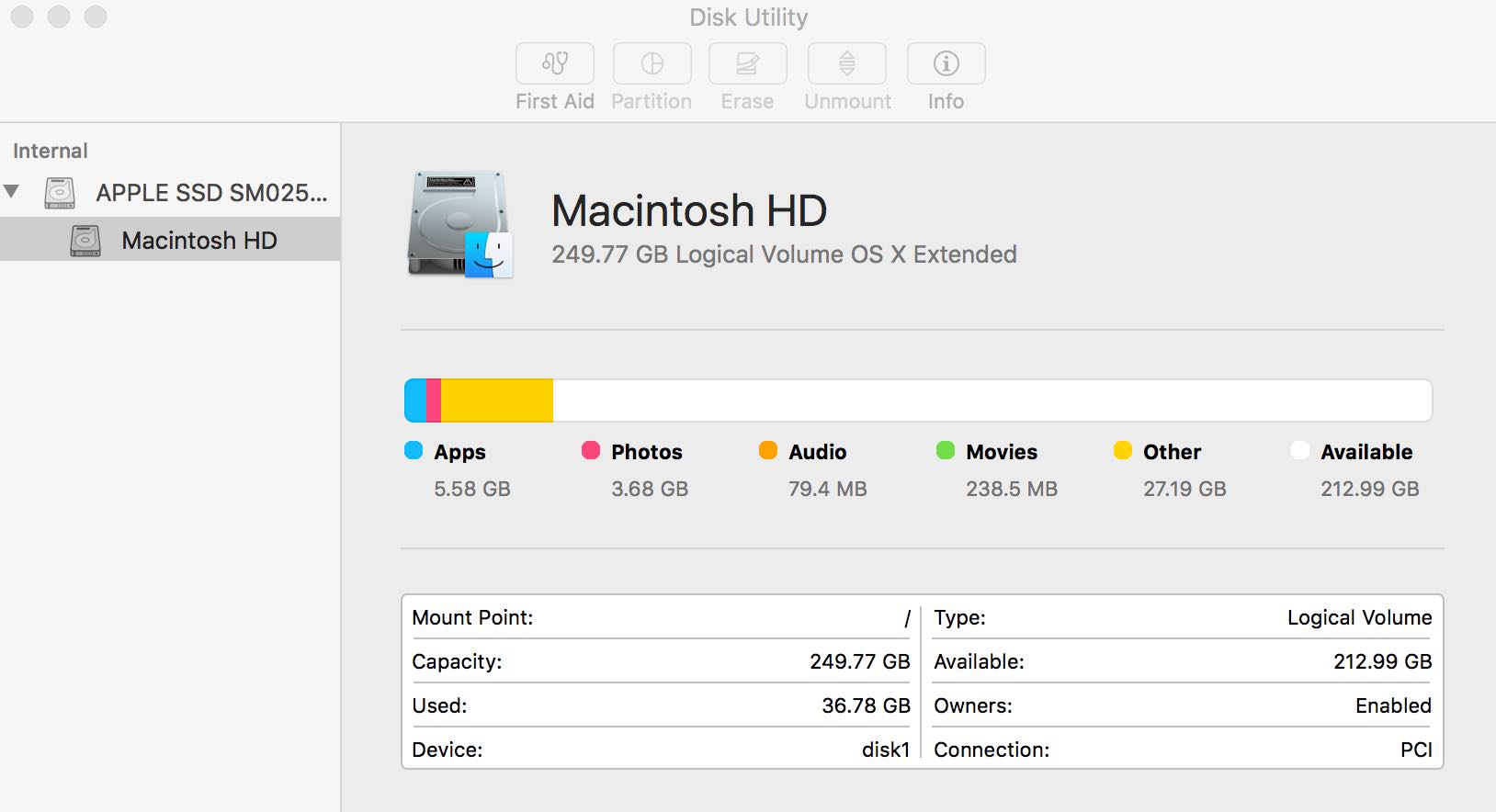

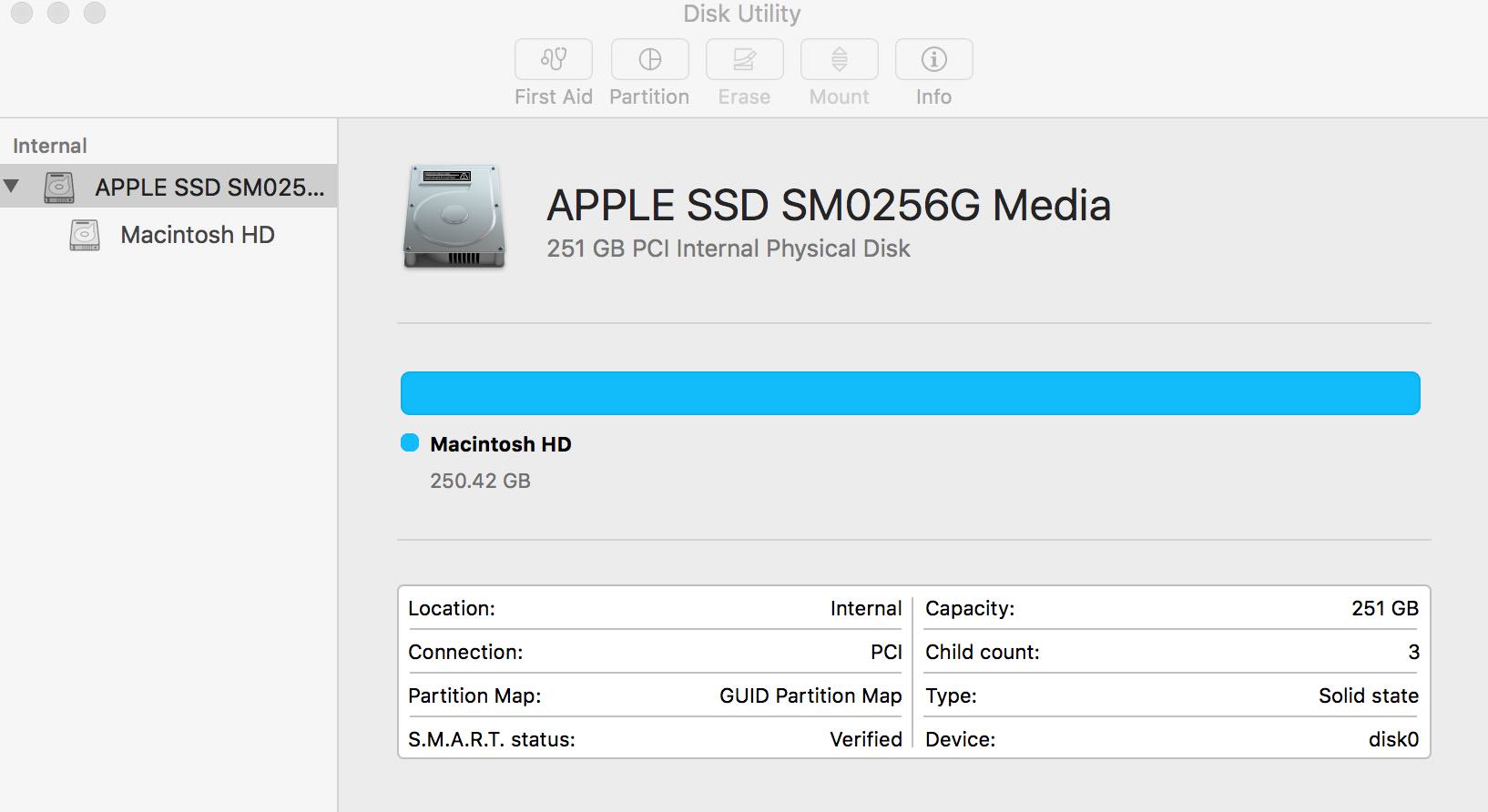

In Disk Utility can you drag the size pointer and make the Macintosh HD occupy the full disk space?
Yes , I dragged it back .
do i have type :
diskutil cs resizeStack 97BB6DDF-8164-4B66-B79B-1D7F8D4E7AC4 125g free BOOTCAMP 60g fat32 Shared 0g
exactly like this or how ?
Can you post the output of diskutil cs list for verification before you run the resizeStack again?
