System Storage Taking Up Way Too Much Space in macOS Sierra

I've encountered a problem on my brand new MacBook, but haven't been able to find a solution after working on it for most of today. In a nutshell: When I go to "About This Mac > Storage" the System files were taking up a whopping 90+ GB of my hard drive. Here is a screen shot:

User uploaded file

I also noticed that, unlike on my wife's MacBook Pro, I had no individual listing for iTunes. I could reach the iTunes folder through Documents on the left side, but the contents of the folder were grayed out. As an experiment, I copied then deleted my entire iTunes Library from within iTunes. After I did that, my Storage report looked like this:

User uploaded file

Now the System files are down around 8 GB. (The Documents content jumped up dramatically because I copied my iTunes Library to the Desktop.) Unfortunately, I haven't found a way to establish the separate entry for iTunes in this window. When I move things back into iTunes, they count again toward the System storage amount. And I still don't have a separate iTunes entry.


I would like to be a huge fan of Optimized Storage, but this set-up of counting iTunes media as "system files" seems problematic. And I have no idea why it reports storage content accurately on my wife's Mac but not mine. Unfortunately Apple Support was not very helpful when I contacted them this afternoon. The agent suggested reinstalling macOS Sierra, which I did, but it didn't solve the problem. Some help would be appreciated, Apple!

MacBook (Retina, 12-inch, Early 2016), macOS Sierra (10.12)

Posted on Sep 25, 2016 1:24 PM

Reply
Question marked as Top-ranking reply

Posted on Feb 23, 2017 11:39 PM

You have to take into account all the other files on your Mac, not just iTunes.


For example the text messages on my iPhone determine the size of the backup my iPhone does on the cloud.


You need to look into how many notes you have and how many text you sent on the macbook. iTunes isn't the only thing taking up space in the system storage tab. It would also be easier for us to help if you submitted a screenshot of the actual Documents>iTunes folder so we can see the size of the folder. That will give us all the info we need to determine the issue. My library is taking up space on my MacBook Air mainly because I use Apple Music and the library takes up space if I use it on my MacBook. Some files are stored on the mac. When I went to my iTunes Music folder in Finder I found what was taking up all the space. It was a movie I purchased on my MacBook Air. One movie was taking up 7GB of data. Go into iTunes and find the movie then select remove download and you can see in the iTunes folder in finder where the folder was removed and the space is now back when I go to System Information. I can delete it and still watch it on all my devices because of the purchase history option. Now what is taking up all the space is a folder titled Album Artwork.


My iTunes Library on my iMac is 4,185 albums, 176 days, 435.37GB so I'd say I'm doing great for having that available on my MacBook Air anytime I want and the System Storage is only now 35.1GB.


Do some digging around in Finder and I'm sure you will find the file(s) taking up all your space. Till then submit the screenshot with more info on the breakdown of the files within iTunes and I'll be able to tell you where to look next. There are a lot of folders you will need to look into if iTunes is not the issue. For instance you will have to go into your Caches folder and see what is in there. There is a lot that can be done, but I don't want to list them all here and misdirect you when you probably don't need to go into these folders.

169 replies

Dec 31, 2016 2:05 PM in response to bindex

I don't think this will solve your iTunes issue, but I've had a similar issue on two Mac machines, both from the same source: Adobe cache files. On my newer Sierra Macbook the "System" storage was reporting as 186Gb on my 250Gb SSD. Now that I've fixed it "System" is less than 20 Gb.

OmniDiskSweeper is a great tool for this, although there are other ways to fix it.

(Be sure you get Version 1.9 or later. The first time I tried, I went to the wrong source and got an earlier version, which didn't work on Sierra.)

Look at the following path: Users>"YourUserName">Library>Application Support>Adobe>Common>Media Cache Files. Delete everything in this folder.

In my case, this folder contained full copies of every video that had ever been on the machine. Plus, if I had renamed the video, say from "Beach1" to "Beach2", it had full copies with both names. It has additional smaller files for each video, and it may be caching image files as well, although I didn't look at every file.

This is especially weird since I copy newly shot videos from the camera card to the laptop in the field (so I can look at them quickly with Flip Player.) I do not ever edit video on this machine, or open video with any Adobe editing product. I do have Bridge, which makes thumbnails of the videos if I happen to use it to look at that folder.

I had the same problem a year or two ago on an earlier machine, fixed it, and I thought Adobe had fixed the bug. But apparently not.

Feb 24, 2017 12:05 AM in response to ishadoe

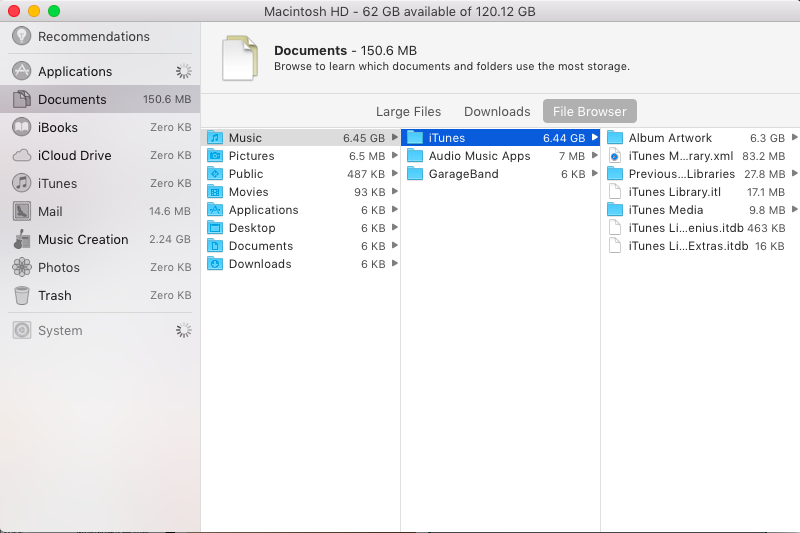

User uploaded file


Here is the type of screenshot we need from you to determine if it is iTunes taking up all the System Storage space and why.

I noticed when I remove more files to try and shrink the size of the system storage file it just makes the file get bigger. It does not decrease in size by simple removing files. I will write back with the results after I do a safe boot and restart the computer to see where the system storage level is at.

Jun 23, 2017 12:52 PM in response to bindex

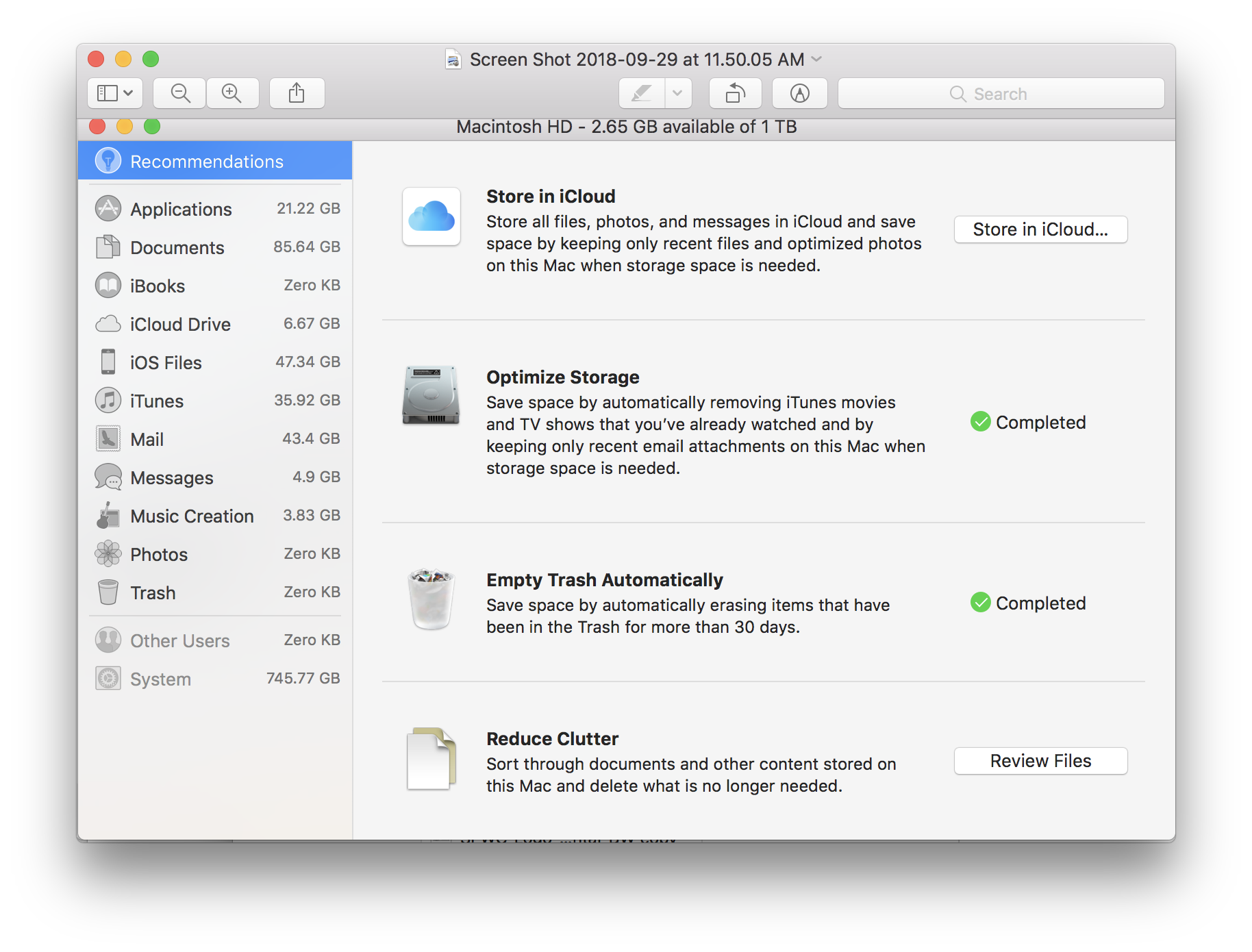

User uploaded file

Here is my screenshot of how my drive looks today. I wished you posted the disk info like this instead so we can see the issue you are having better. That being said my disk is showing that around 50% of the disk is being taken up by the System files.


I know Apple advertises these laptop hard drives as not for longtime use, but not being able to use 50% of the drive is ridiculous.

Aug 19, 2017 12:21 AM in response to SL29

Generally any logs under Users/Library/Logs can be safely deleted but normally it's not necessary or desirable because they take up so little space (mines currently 21.8MB), and don't forget they can be useful when trying to troubleshoot issues (that's one reason why they are generated). The "random" numbered iPhone folder is I believe left behind when you rename your device (say following a Restore) which then generates a new one with that name, or you previously had given your device a unique name but again following a Restore you leave it with it's default name (think I have that the right way round).


Anyhow, you can delete one or both because next time you sync the iPhone via iTunes a new folder will get generated - the question I would be concerned with is why are those folders so large, 70Gb is a lot for basically text files!


One word of caution, although it's generally safe to remove logs from the User Library (~/Library) either via Finder or the Console App you want to stay away from doing anything similar in either Macintosh HD/Library or Macintosh HD/System/Library folders.


ps. Just a thought, but if you have more than one iPhone log folder have you checked on how many iPhone BackUps you have - open iTunes then from main menu, iTunes/Preferences... then select Devices

User uploaded file

Nov 30, 2017 7:18 AM in response to bindex

I found the answer to my question using DaisyDisk app (trial version) on my Mac to analyse the disk usage. For those wondering why there's some hidden space: this is the OS design (High Sierra).

-> in my case it was related to my IOS back up, a part of it is hidden by High Sierra and not showing in the library, they remain hidden.



From DaisyDisk:

  • Notes for macOS High Sierra. If you are reading this, you must be wondering why there is still many GBs of hidden space on your disk, even after you scan as administrator? The short answer and the good news is that this is by macOS design.
  • Note #1 This hidden space is taken by Time Machine’s local snapshots, which typically pile up until they take ~80% of available disk space. If you happen to need more space, or after you back up your Mac to a permanent storage, the temporary backups are automatically removed by macOS and the disk space is reclaimed.

    In previous versions of macOS, the local snapshots were found in the hidden /.MobileBackups folder, which could be revealed by scanning as administrator in DaisyDisk. By contrast, the new Apple’s APFS file system in High Sierra stores the snapshots outside of any user accessible area, so they remain hidden.

    Usually, no action is required regarding the local snapshots. You can use tmutil command in Terminal to manage the snapshots, but even if you delete them, they will reappear again. Only if you turn off Time Machine they will stop appearing, but it doesn’t seem like a good idea. So basically you just ignore them.

    Also note that whenever you delete a file on APFS, its space doesn’t get immediately reclaimed, because all changes are captured by the snapshots.

    Note #2 The other source of hidden space on APFS are other volumes. Unlike the previous HFS file system, in APFS all volumes share free space within the parent “APFS container”, like folders on a disk. You can see this hidden space as “other volumes” in About This Mac or in Disk Utility. Note that even if you don’t create additional volumes yourself, there can be hidden small volumes used by macOS itself.

    Dec 26, 2017 3:01 PM in response to jessica.littler

    this probably sounds dumb but if i were to delete my users folder which takes up 89gb would that delete all the info off of my laptop? i assume that it wouldYour User's folder contains all your personal data. You have to create another admin user in order to delete your User.


    This is not a dumb question, but it does indicate to me that you are a very basic user. A drastic action of deleting a user is not something you would do unless you have a backup of your data.


    I'm not seeing a previous post from you that describes your problem. If system storage taking up too much space is your problem, I suggest you ignore this. If you look back over this long discussion you will see that under “About this Mac” > Storage is not a true representation of what is actually on your drive. If the temp files take up too much space, your Mac will delete when it gets low on storage.


    If your problem is more complex than system storage, then I suggest you create a new post describing your issue. Post a link to your new post here so we can be sure to follow-up.


    Writing an effective Apple Support Communities question

    Nov 9, 2018 5:06 PM in response to bindex

    I had the same problem and after trying endless solutions, including all of the ones posted in this thread (p.s. thanks to everyone across all the threads trying to help solve this problem), and ultimately the only thing that worked was doing a clean install of the new OS.


    In case you're still searching for an answer, or in case someone else with this problem comes upon this thread, I posted a more detailed update regarding what ultimately worked over in my thread regarding this hidden space / system storage problem; Re: Cannot find or remove 100+GB of "Hidden Space


    Hopefully that helps anyone who hasn't been able to solve this yet with some of the other available solutions.
