Windows 10 does not detect Thunderbolt 2

Question

Level 1

9 points

Windows 10 does not detect Thunderbolt 2

Hi from Sweden,

I installed Windows 10 on my MacBook Pro (13", mid 2012, OSX 10.12.6). Windows doesn't detect the Thunderbolt 2 port which mean I can't use any external displays. I have updated all the drivers etc.

It seems like I'm not the only one with this problem since the same question has been up here several times, how did you guys solve it?

Can I use an USB-port instead? I was thinking about buying an USB-HDMI adapter, do you think that would work?

Thank you in advance and apologies for my English :-)

MacBook Pro, macOS Sierra (10.12.6)

Posted on Sep 22, 2017 5:29 AM

Reply

Answer 1

Loner T

Level 9

59,526 points

Sep 22, 2017 3:22 PM in response to SatuSWE

Using a 13-in 2012 MBP/Intel HD4K with W10 Anniversary (1607) installation, I tested using a Apple TB-to-DVI adapter and an Acer X192W 19-in display.

I also tested hot-plugging. Cold boot and hot-plugging both work. I am a bit surprised with hot-plugging, since it is not supposed to work.

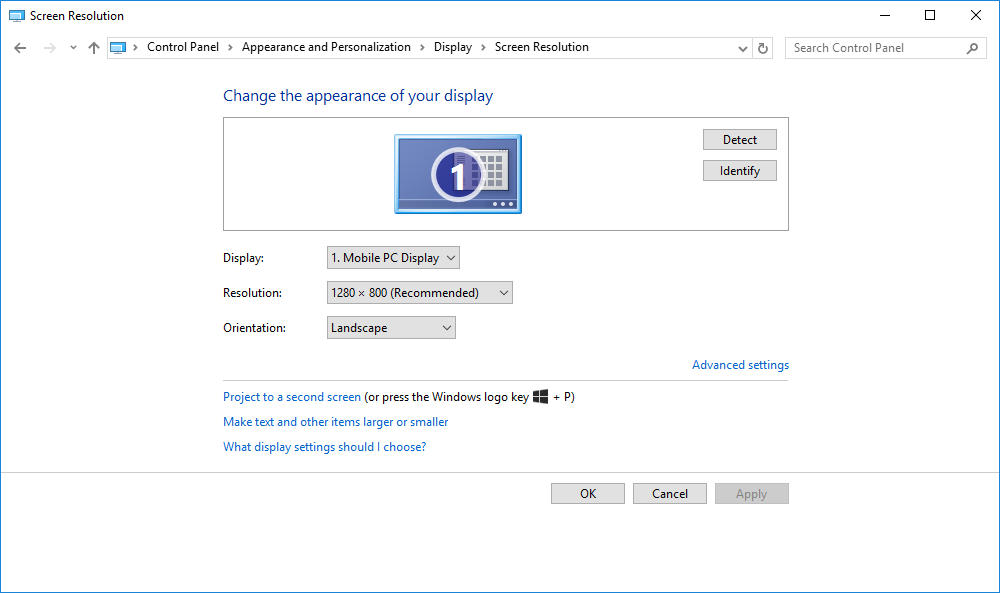

After cold boot, with display physically connected...

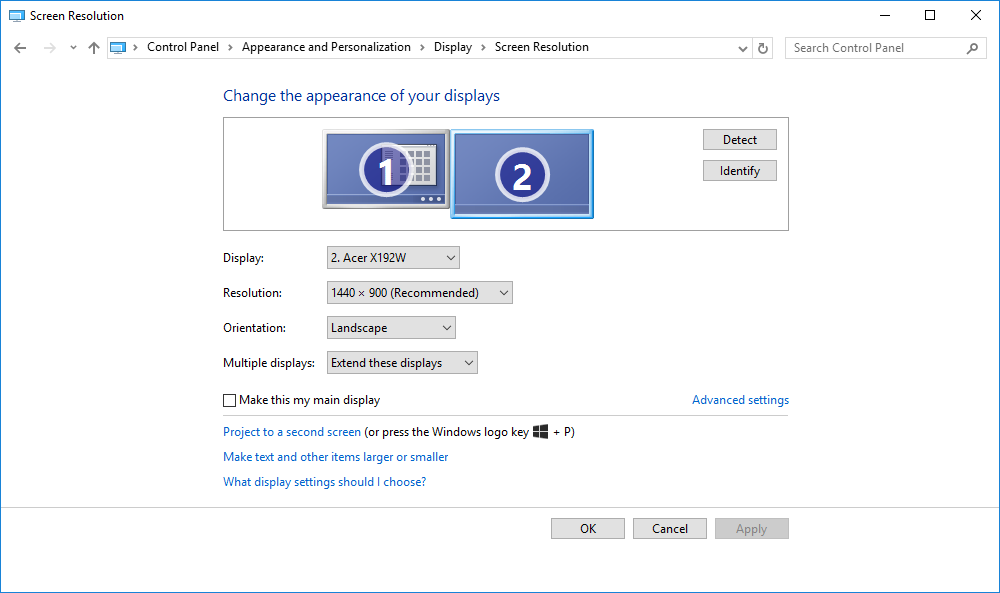

Unplug the display in Windows...

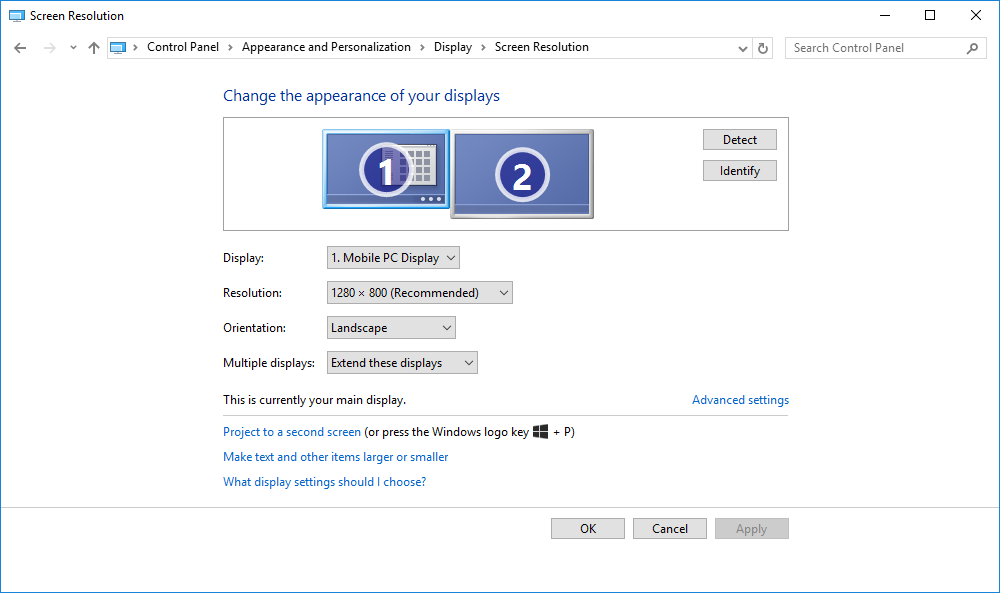

Hot-plug test..

I do not have Creators Update (1703) and do not plan to use it.

Reply

Answer 2

SatuSWE Author

Level 1

9 points

Sep 23, 2017 9:50 AM in response to Loner T

The problem was the same in Anniversary Update (and the reason I updated to Creators Update since I thought that it might help).

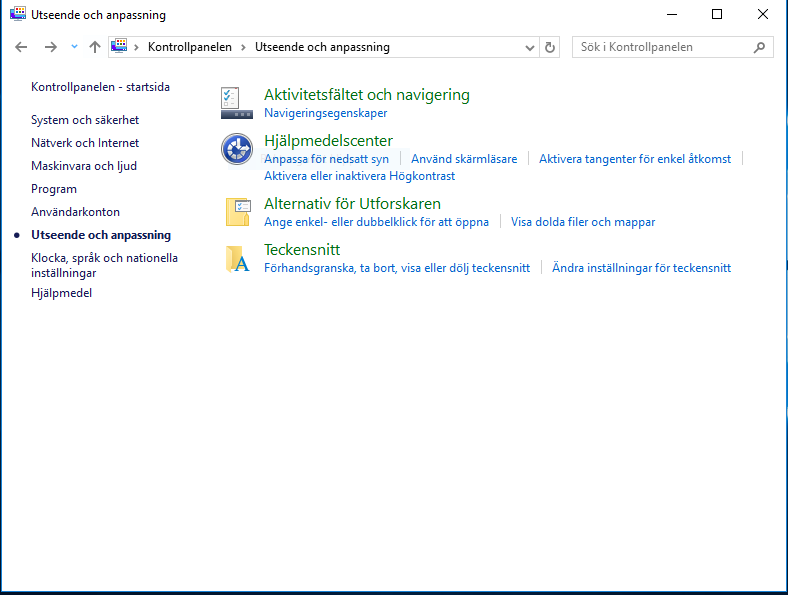

I don't even have to option to personalize my displays (sorry, everything in Swedish..):

Do you think the USB-HDMI adapter would do the trick? It's really frustrating that it's not working because I might as well bought a new PC instead of paying for the Windows-license... 😕

Reply

Answer 3

Loner T

Level 9

59,526 points

Sep 24, 2017 5:27 AM in response to SatuSWE

In Windows Device Manager, under View, if you select 'Show Hidden Devices', do you see any additional entries or missing devices?

This may or may not correct the issue, but disconnect all external storage/peripherals, and run the following two procedures

Reset the System Management Controller (SMC) on your Mac - Apple Support

How to reset NVRAM on your Mac - Apple Support

and test.

Reply

Answer 4

SatuSWE Author

Level 1

9 points

Sep 23, 2017 2:26 PM in response to Loner T

Yes I am, and it's working just fine in OSX.

I have tried to unplug the power cord to the monitor while the device manager is on display. When I replug, the device manager seems to update itself, but there are no new devices added. So my guess is that there is some kind of connection. I hope you understand my explanation. 😁 😁

Reply

Answer 5

SatuSWE Author

Level 1

9 points

Sep 24, 2017 6:27 AM in response to Loner T

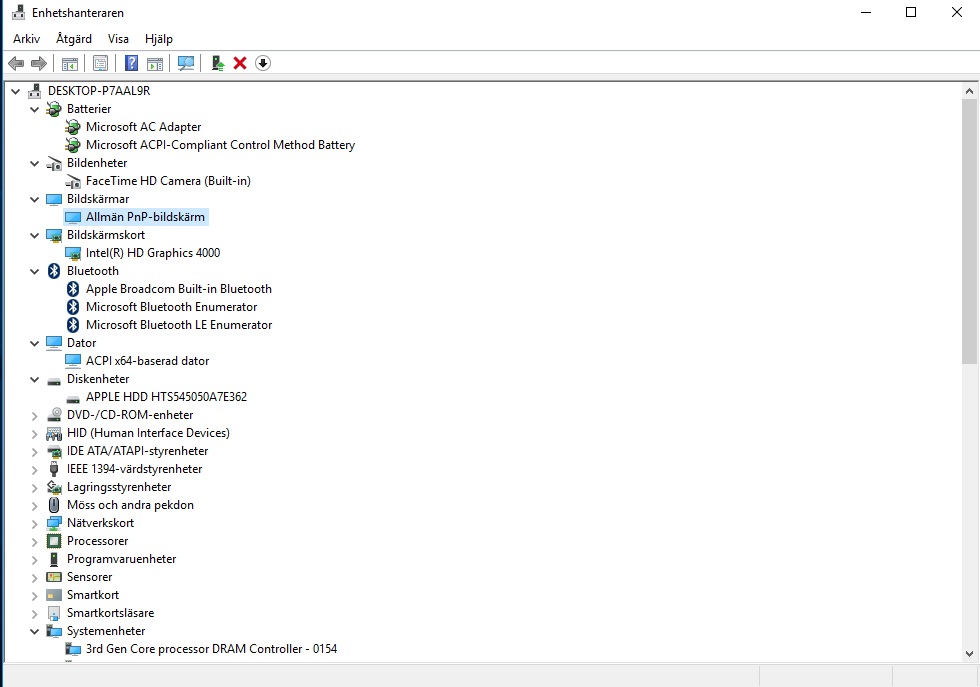

Yes, it actually shows one more "Generic PnP-display". The status says that the display is not connected to the computer (code 45). You can solve the problem by connecting the device.

I did the resets and it didn't help.

Reply

Answer 6

SatuSWE Author

Level 1

9 points

Sep 25, 2017 3:16 AM in response to Loner T

Utility = driver? I unistalled the utility program, created a Windows System Restore point, reinstalled the utility program, tried the compatibility mode and still get the same warning: "This program can only run with ASYS monitor devices!".

After that, I did something probably stupid: I uninstalled the hidden "Generic PnP-monitor", since I thought that Windows would detect it when I reboot. Well, it didn't. 😕 What should I do now? Reinstall Windows?

Reply

Answer 7

SatuSWE Author

Level 1

9 points

Sep 25, 2017 1:02 PM in response to Loner T

I don't have any other monitor, but I tried to connect it to my Samsung TV. Worked just fine in OSX but Windows didn't detect it either.

It's a new installation of Windows on this computer. I've just had OSX earlier.

Reply

Answer 8

Loner T

Level 9

59,526 points

Sep 23, 2017 11:44 AM in response to SatuSWE

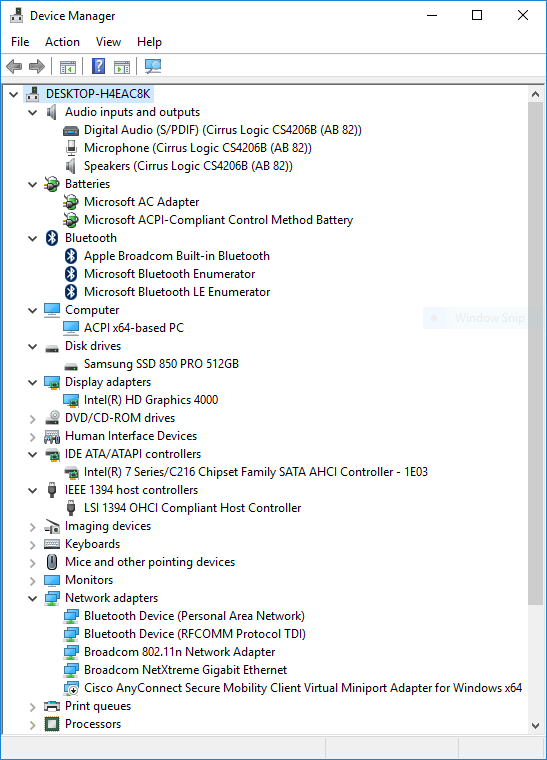

Can you check in Windows Device Manager and see which Display Adapter is Windows using?

Reply

Answer 9

SatuSWE Author

Level 1

9 points

Sep 23, 2017 12:26 PM in response to Loner T

"Generic PnP Monitor"

Reply

Answer 10

Loner T

Level 9

59,526 points

Sep 23, 2017 2:11 PM in response to SatuSWE

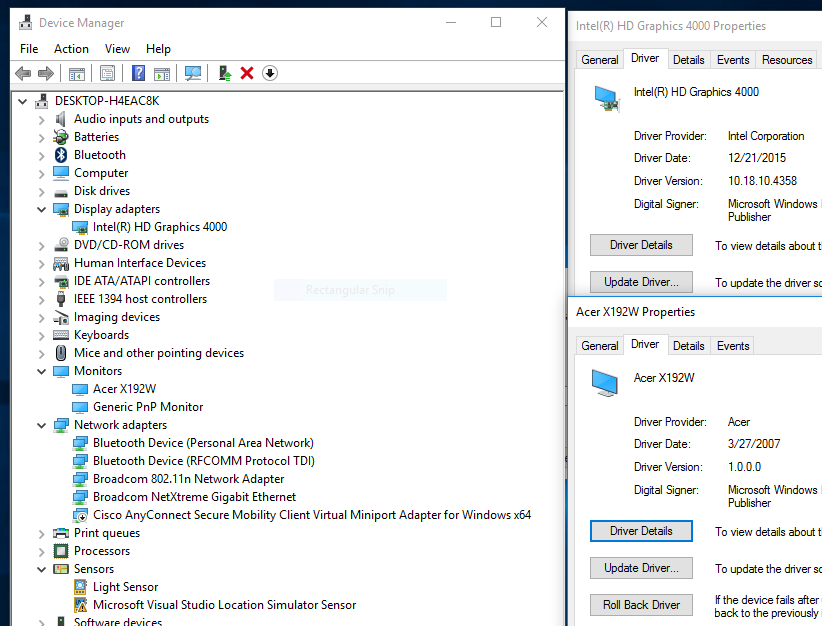

With the Acer display connected, this is what I see

Are you using an Apple TB-to-HDMI adapter?

Reply

Answer 11

Loner T

Level 9

59,526 points

Sep 24, 2017 4:42 PM in response to SatuSWE

Is this what you downloaded?

Reply

Answer 12

Loner T

Level 9

59,526 points

Sep 26, 2017 3:42 AM in response to SatuSWE

Remove Windows - Boot Camp for Mac: Remove Windows from your Mac - and then re-install Windows using BC Assistant.

Reply

Answer 13

Loner T

Level 9

59,526 points

Sep 22, 2017 5:58 AM in response to SatuSWE

On a 2012 model, hot-plugging a TB port is not supported. Does Windows detect the TB devices if you reboot after the devices are physically connected?

Reply

Answer 14

SatuSWE Author

Level 1

9 points

Sep 22, 2017 6:00 AM in response to Loner T

No, unfortunately not. I have tried several times.

Reply

Answer 15

Loner T

Level 9

59,526 points

Sep 22, 2017 6:48 AM in response to SatuSWE

I have the same Mac, but I need to find a TB Monitor to test. Do you have a TB-to-Ethernet adapter that you can test a wired connection with? In Device Manager, do you have any unknown devices?

Reply
