External monitor problem iMac 2017 High Sierra.

I try to connect a Samsung external monitor to my new 2017 iMac, but the monitor isn´t being recognized. I used the same monitor with my 2012 Mac mini and it all worked fine (even with two monitors).


I use a new USB – C 3.1 to DVI adaptor, but my iMac isn´t recognizing my Samsung monitor.


I have just updated to Mac OS High Sierra and it still doesn´t work (it didn`t work with Mac OS Sierra either).


And yes, I have opened up system preferences and Displays. Using my Mac mini, the Samsung display showed up in preferences.


Searching the net, it seem to be a problem for many people, but I cannot find a solution.


Any suggestions?


Thank you.


Jesper

iMac, macOS High Sierra (10.13), null

Posted on Sep 26, 2017 6:28 AM

Reply
Question marked as Top-ranking reply

Posted on Nov 20, 2017 5:31 PM

Hi RashDK,


You should be able to resolve the issue by just updating your DisplayLink driver. All external video adaptors (usb2hdmi/usb2vga/etc..) share the same driver.


They have an updated driver for High Sierra which fixed the same issue I had as the others in this thread.


Display Link Driver: http://www.displaylink.com/downloads/macos


Hope this helps. 🙂

235 replies

Oct 4, 2017 2:55 AM in response to den.thed

Hi,


I ran two monitors (and also used my MacBook Air's screen as a third display) through a thunderbolt dock, one using a thunderbolt to DVI adaptor the other a USB to DVI adaptor on Sierra, now with the upgrade only the thunderbolt to DVI monitor works. I have tried changing the monitor, the cables, swapped over to a HDMI to DVI cable which made the HDMI monitor work but stopped the thunderbolt one from working, even changed the dock to a Belkin one (which also used to work in dual screen mode). Found an article about how to roll back to Sierra, but this failed so I'm now using a complete clean install of High Sierra, but stuck with a redundant monitor and it's affecting my productivity.

Oct 5, 2017 6:01 AM in response to RaskDK

This problem started for me last spring, when I was still running el capitan. My computer never had an issue connecting to two external display monitors, one through a mini displayport to vga adapter and the other from a usb to vga adapter, until one day the usb/vga-connected monitor stopped being recognized. I took the adapter home to test on my old monitor there, and it worked fine. I brought it back to work and tested it with a couple of colleagues' monitors, and it wouldn't work. I couldn't figure out why the adapter wouldn't connect to work monitors, so I ordered a different adapter. The new adapter didn't work, either, and the problem wasn't fixed when I updated to Sierra.


The info I received from Apple Support may be relevant (although not helpful) to those who have posted here:

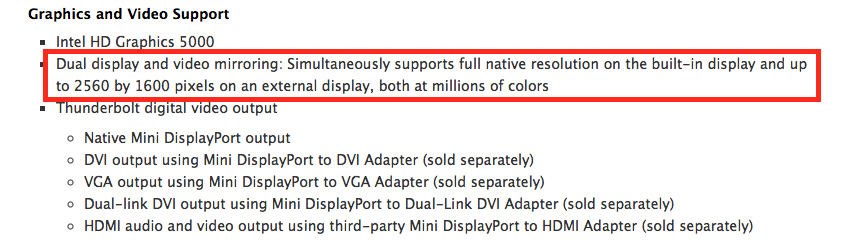

"The MacBook Air supports up to one external display:

MacBook Air (13-inch, Mid 2013) - Technical Specifications

User uploaded file


"The MacBook Pro models can support multiple external displays:

https://support.apple.com/kb/sp690?locale=en_US

User uploaded file



So according to Apple, dual-external monitor displays will only work with MacBook Pros and not MacBook Airs. That's the dead end I've reached, which may or may not be useful info to others.

Oct 11, 2017 12:46 AM in response to Redchicken43

Same here. I am able to get the external monitor to come back on by unplugging the Apple Mini DisplayPort to VGA adapter then plugging it back in to my external Thunderbolt 3 dock. After that, if the Mac goes to sleep and I try to wake it, there is no response unless I unplug and plug it back in. Occasionally the resolution will become stretched out. Unplugging and plugging back in solves that problem, but this is not ideal. At least I don’t need to restart the Mac each time.

Oct 15, 2017 4:09 AM in response to RaskDK

Hey :-) While I don't want to deny you a nice new monitor if you want one, but my three not-so-new ones are now suddenly back up and on. I'm not sure how I fixed it. I tried using Apple TV for a bit, that didn't really work, but what was curious was when I did get the Apple TV to link up to my 2011 iMac, it showed a desktop image I have used for ages, so not sure wherever one of the caches plays a part here..? All 3 working fin now though!

Oct 17, 2017 4:20 PM in response to RaskDK

OK... There is no official timeline on this but...


Apple Seeds Third macOS High Sierra 10.13.1 Beta to Developers | MacRumors Forums


Lets hope this answers all our issues...


macOS High Sierra 10.13.1 appears to focus on bug fixes, performance improvements, security enhancements, and other under-the-hood changes, but it also introduces a range of new Unicode 10 emoji...


One thing is for sure the emoji team is not slacking!


Matthew

Oct 28, 2017 11:37 PM in response to RaskDK

That's a good point, because I was thinking of having to do the same thing this weekend. I dont think it's a software issue, in the sense that this is something Apple chose to do. There would be little to be gained by alienated a large proportion of your customers, after all. In their defence, I have an HD Ready TV which I use as a 2nd monitor (of 3) in my music studio. That worked initially straight after the upgrade, but I had all sorts of interesting fun and games working out that Accessibility had gone a bit bezerk during the upgrade, and afterwards a large rectangle followed my pointer around the screen! Bizarre! Once that was fixed - that was the moment I lost the TV monitor. It's struggled to connect during the week, which actually led me to assume the screen itself had gone, not that there was a problem connecting. I think this is a 'junction' issue in the sense that my original problems arose from Accessibility, which is a hub for all manner of inputs, not least screen sharing and displays. So I'm going to hang fire for a few days and hope Apple fix this, as I can see this is something adversely affecting a great many of us, and spoiling what in many other ways I've found a wonderful upgrade...
