Level 1

42 points

iMac Pro restarting because of a problem?

iMac Pro intially booted as a Mac Pro backup, then reverted and reinstalled fresh High Sierra because of some compatibility issues, now getting forced restarts with this error code, thank you for any help!

{"caused_by":"macos","macos_system_state":"running","bug_type":"210","os_version ":"Bridge OS 2.0 (15P2064)","timestamp":"2018-01-12 06:47:28.38 +0000","incident_id":"3D1765A6-5583-44EF-9F16-BABB863EF278"}

{

"build" : "Bridge OS 2.0 (15P2064)",

"product" : "iBridge2,1",

"kernel" : "Darwin Kernel Version 17.3.0: Thu Nov 30 19:54:28 PST 2017; root:xnu-4570.37.11~2\/RELEASE_ARM64_T8010",

"incident" : "3D1765A6-5583-44EF-9F16-BABB863EF278",

"crashReporterKey" : "c0dec0dec0dec0dec0dec0dec0dec0dec0de0001",

"date" : "2018-01-12 06:47:28.05 +0000",

"panicString" : "panic(cpu 0 caller 0xfffffff0070fb3ec): macOS panic detected\nDebugger message: panic\nMemory ID: 0x6\nOS version: 15P2064\nKernel version: Darwin Kernel Version 17.3.0: Thu Nov 30 19:54:28 PST 2017; root:xnu-4570.37.11~2\/RELEASE_ARM64_T8010\nKernelCache UUID: D342183B0DC346B22ADABA5BB3219178\niBoot version: iBoot-4076.37.9\nsecure boot?: YES\nx86 EFI Boot State: 0xe\nx86 System State: 0x0\nx86 Power State: 0x0\nPaniclog version: 9\nKernel slide: 0x0000000000800000\nKernel text base: 0xfffffff007804000\nEpoch Time: sec usec\n
Boot : 0x5a57ac79 0x00085f05\n
Sleep
: 0x00000000 0x00000000\n
Wake : 0x00000000 0x00000000\n
Calendar: 0x5a5859ed 0x000e98dd\n\nPanicked task 0xffffffe0002eb610: 3545 pages, 156 threads: pid 0: kernel_task\nPanicked thread: 0xffffffe000314000, backtrace: 0xffffffe017f43550, tid: 334\n\t\t
lr: 0xfffffff0079f32e0
fp: 0xffffffe017f43690\n\t\t
lr: 0xfffffff0078dd588
fp: 0xffffffe017f436a0\n\t\t
lr: 0xfffffff00790dce4
fp: 0xffffffe017f43a10\n\t\t
lr: 0xfffffff00790dff4
fp: 0xffffffe017f43a50\n\t\t
lr: 0xfffffff00790f874
fp: 0xffffffe017f43a70\n\t\t
lr: 0xfffffff0070fb3ec
fp: 0xffffffe017f43ae0\n\t\t
lr: 0xfffffff0070fd674
fp: 0xffffffe017f43b80\n\t\t
lr: 0xfffffff0070fabac
fp: 0xffffffe017f43c00\n\t\t
lr: 0xfffffff0070bab08
fp: 0xffffffe017f43c30\n\t\t
lr: 0xfffffff007d56064
fp: 0xffffffe017f43c60\n\t\t
lr: 0xfffffff007d559b0
fp: 0xffffffe017f43c90\n\t\t
lr: 0xfffffff0078e84e0
fp: 0x0000000000000000\n\n",

"panicFlags" : "0x102",

"otherString" : "\n** Stackshot Succeeded ** Bytes Traced 73568 **\n",

"macOSPanicFlags" : "0x4",

"macOSPanicString" : "panic(cpu 0 caller 0xffffff8008f4bd7f): \"TLB invalidation IPI timeout, unresponsive CPU bitmap: 0x40, NMIPI acks: 0x0, now: 0x0, deadline: 9665438133613\"@\/BuildRoot\/Library\/Caches\/com.apple.xbs\/Sources\/xnu\/xnu- 4570.37.11\/osfmk\/x86_64\/pmap.c:2797\nBacktrace (CPU 0), Frame : Return Address\n0xffffffce4ac3af70 : 0xffffff8008e4f5f6 \n0xffffffce4ac3afc0 : 0xffffff8008f7c6f4 \n0xffffffce4ac3b000 : 0xffffff8008f6e109 \n0xffffffce4ac3b080 : 0xffffff8008e01120 \n0xffffffce4ac3b0a0 : 0xffffff8008e4f02c \n0xffffffce4ac3b1d0 : 0xffffff8008e4edac \n0xffffffce4ac3b230 : 0xffffff8008f79db8 \n0xffffffce4ac3b280 : 0xffffff8008e4f15a \n0xffffffce4ac3b2d0 : 0xffffff8008f7c6f4 \n0xffffffce4ac3b310 : 0xffffff8008f6e109 \n0xffffffce4ac3b390 : 0xffffff8008e01120 \n0xffffffce4ac3b3b0 : 0xffffff8008e4f02c \n0xffffffce4ac3b4e0 : 0xffffff8008e4edac \n0xffffffce4ac3b540 : 0xffffff8008f4bd7f \n0xffffffce4ac3b5e0 : 0xffffff8008f52ac4 \n0xffffffce4ac3b6c0 : 0xffffff8008f53a94 \n0xffffffce4ac3b720 : 0xffffff8008edbb1f \n0xffffffce4ac3b850 : 0xffffff8008edb402 \n0xffffffce4ac3b890 : 0xffffff8008f03e5b \n0xffffffce4ac3b8d0 : 0xffffff800906d4d9 \n0xffffffce4ac3b8e0 : 0xffffff7f8e27a49c \n0xffffffce4ac3b970 : 0xffffff8009076622 \n0xffffffce4ac3bab0 : 0xffffff800907a2d6 \n0xffffffce4ac3bb50 : 0xffffff8009079c97 \n0xffffffce4ac3bc90 : 0xffffff800907e2c4 \n0xffffffce4ac3bd00 : 0xffffff7f8e278e7e \n0xffffffce4ac3bd90 : 0xffffff80090ada64 \n0xffffffce4ac3be40 : 0xffffff8009341d8a \n0xffffffce4ac3bee0 : 0xffffff8009341efe \n0xffffffce4ac3bf40 : 0xffffff80093fa0b8 \n0xffffffce4ac3bfa0 : 0xffffff8008e01906 \n Kernel Extensions in backtrace:\n com.apple.filesystems.afpfs(11.1)[18924E77-CD8C-34F7-9C9F-D11EACF8A795]@0xffffff 7f8e272000->0xffffff7f8e2c1fff\n dependency: com.apple.filesystems.hfs.encodings.kext(1)[F1862033-F96A-398C-8231-DC48CC99056 7]@0xffffff7f8a5ad000\n dependency: com.apple.security.SecureRemotePassword(1.0)[347C3F6A-3E70-3DA1-B3B8-CD3746576C E7]@0xffffff7f8e261000\n\nBSD process name corresponding to current thread: diskimages-helpe\n\nMac OS version:\n17C2205\n\nKernel version:\nDarwin Kernel Version 17.3.0: Thu Nov 30 16:32:47 PST 2017; root:xnu-4570.37.11~1\/RELEASE_X86_64\nKernel UUID: AB211A98-9AA0-3640-9478-D16ABD4093BB\nKernel slide: 0x0000000008a00000\nKernel text base: 0xffffff8008c00000\n__HIB
text base: 0xffffff8008b00000\nSystem model name: iMacPro1,1 (Mac-7BA5B2D9E42DDD94)\n\nSystem uptime in nanoseconds: 9666940877554\nlast loaded kext at 1987187667816: @filesystems.smbfs\t3.2 (addr 0xffffff7f8e2c2000, size 434176)\nloaded kexts:\ncom.uaudio.driver.UAFWAudio\t4.3.1 47542\ncom.uaudio.driver.UAD2System\t9.4.0\n@filesystems.smbfs\t3.2\n@filesyste ms.afpfs\t11.1\n@nke.asp-tcp\t8.0.2\n@filesystems.msdosfs\t1.10\n>!ATopCaseHIDEv entDriver\t127.1\n>!AUpstreamUserClient\t3.6.4\n@kext.AMDFramebuffer\t1.6.4\n@ke xt.AMDRadeonX5000\t1.6.4\n>!AGraphicsDevicePolicy\t3.16.21\n@AGDCPluginDisplayMe trics\t3.16.2\n>!AHV\t1\n|IOUserEthernet\t1.0.1\n|IO!BSerialManager\t6.0.3f4\n>p mtelemetry\t1\n>AGPM\t110.23.24\n>!APlatformEnabler\t2.7.0d0\n>X86PlatformShim\t 1.0.0\n@Dont_Steal_Mac_OS_X\t7.0.0\n>AudioAUUC\t1.70\n@kext.AMD10000!C\t1.6.4\n> AGDCBacklightControl\t3.16.2\n>ACPI_SMC_PlatformPlugin\t1.0.0\n>!ABacklight\t170 .10.2\n>!AThunderboltIP\t3.1.1\n>!ABridgeAudio!C\t3.97\n>!AGFXHDA\t100.1.4\n>!A! ISlowAdaptiveClocking\t4.0.0\n>!AFIVRDriver\t4.1.0\n>!A!IPCHPMC\t2.0.1\n>!AOSXWa tchdog\t1\n>BridgeAudioCommunication\t3.97\n>!AMCCSControl\t1.5.3\n@filesystems. autofs\t3.0\n>!AHIDALSService\t1\n>!U!SCoexistentDriver\t439.37.1\n>!UCardReader \t439.37.1\n>usb.!UHostBillboardDevice\t1.0\n|SCSITaskUserClient\t404.30.2\n@!AE thernetAquantiaAqtionFirmwareDev\t1.0.34\n@!AEthernetAquantiaAqtionFirmware\t1.0 .34\n>BCMWLANFirmware4364.Datastore\t1\n>!ABCMWLANCoreV3.Datastore\t1\n@filesyst ems.apfs\t748.37.18\n>!AFileSystemDriver\t3.0.1\n@filesystems.hfs.kext\t407.30.1 \n@BootCache\t40\n@!AFSCompression.!AFSCompressionTypeDataless\t1.0.0d1\n@!AFSCo mpression.!AFSCompressionTypeZlib\t1.0.0\n>!AAHCIPort\t329\n>!ABCMWLANBusInterfa cePCIe\t1\n>!AACPIButtons\t6.1\n>!ASMBIOS\t2.1\n>!AACPIEC\t6.1\n>!AAPIC\t1.7\n@n ke.applicationfirewall\t183\n$TMSafetyNet\t8\n$quarantine\t3\n@IOBufferCopyEngin eTest\t1\n$SecureRemotePassword\t1.0\n>usb.cdc.acm\t5.0.0\n>!AHIDKeyboard\t203\n >!AMultitouchDriver\t1204.13\n>!AInputDeviceSupport\t1201.8\n>!AHS!BDriver\t127. 1\n>IO!BHIDDriver\t6.0.3f4\n|IOAccelerator!F2\t376.6\n@kext.AMDRadeonX5000AccelL ibs\t1.4.4\n>!AGraphicsControl\t3.16.21\n>!ASSE\t1.0\n|IOSurface\t209.2.2\n@kext .AMDRadeonX5100HWLibs\t1.0\n>!AHDA!C\t280.12\n|IOHDA!F\t280.12\n@!AGPUWrangler\t 3.16.2\n>IOPlatformPluginLegacy\t1.0.0\n@kext.AMDSupport\t1.6.4\n@!AGraphicsDevi ceControl\t3.16.21\n>!ABacklightExpert\t1.1.0\n|IONDRVSupport\t517.22\n|IOFireWi re!F\t4.6.8\n>!UAudio\t311.9\n|IOAudio!F\t206.5\n@vecLib.kext\t1.2.0\n>!ASMBusPC I\t1.0.14d1\n|IO!BHost!CUARTTransport\t6.0.3f4\n|IO!BHost!CTransport\t6.0.3f4\n> !A!ILpssUARTv1\t3.0.60\n>!A!ILpssUARTCommon\t3.0.60\n>!AOnboardSerial\t1.0\n|IOS kywalk!F\t1\n|IOSlowAdaptiveClocking!F\t1.0.0\n>X86PlatformPlugin\t1.0.0\n>IOPla tformPlugin!F\t6.0.0d8\n@kext.AMDRadeonX5000HWServices\t1.6.4\n>!ASMBus!C\t1.0.1 8d1\n|IOGraphics!F\t517.22\n>!AThunderboltEDMSink\t4.1.2\n@kext.triggers\t1.0\n> usb.IOUSBHostHIDDevice\t1.2\n>usb.cdc.ecm\t5.0.0\n>usb.cdc.ncm\t5.0.0\n|IOUSBMas s!SClass\t4.0.4\n>usb.cdc\t5.0.0\n>usb.networking\t5.0.0\n>usb.!UHostCompositeDe vice\t1.2\n|IOAHCISerialATAPI\t267\n@filesystems.hfs.encodings.kext\t1\n>!AThund erboltDPOutAdapter\t5.0.2\n>!AThunderboltPCIUpAdapter\t2.1.3\n>!AHPM\t3.1.3\n>!A !ILpssI2C!C\t3.0.60\n>!A!ILpssDmac\t3.0.60\n>!A!ILpssI2C\t3.0.60\n>!AThunderbolt PCIDownAdapter\t2.1.3\n>!AThunderboltDPInAdapter\t5.0.2\n>!AThunderboltDPAdapter !F\t5.0.2\n|IOAHCIBlock!S\t301.20.1\n|IOAHCI!F\t288\n>!AXsanScheme\t3\n>!AThunde rboltNHI\t4.5.6\n|IOThunderbolt!F\t6.6.4\n>!UVHCI\t1.2\n>usb.!UVHCICommon\t1.0\n >!AEffaceableNOR\t1.0\n|IOBufferCopy!C\t1.0.0\n|IONVMe!F\t2.1.0\n>!ABCMWLANCore\ t1.0.0\n>IOImageLoader\t1.0.0\n|IOSerial!F\t11\n|IO80211!FV2\t1200.12.2\n>coreca pture\t1.0.4\n>!AEthernetAquantiaAqtion\t1.3.43\n>mDNSOffloadUserClient\t1.0.1b8 \n>!UMergeNub\t900.4.1\n>!UHostMergeProperties\t1.2\n>usb.!UXHCIPCI\t1.2\n>usb.! UXHCI\t1.2\n>usb.!UHostPacketFilter\t1.0\n|IOUSB!F\t900.4.1\n>!AEFINVRAM\t2.1\n| IOHID!F\t2.0.0\n>!AEFIRuntime\t2.1\n>!ASMCRTC\t1.0\n|IOSMBus!F\t1.1\n$sandbox\t3 00.0\n@kext.!AMatch\t1.0.0d1\n|IOBufferCopyEngine!F\t1\n>!AKeyStore\t2\n>!UTDM\t 439.37.1\n>!AMobileFileIntegrity\t1.0.5\n|IOUSBMass!SDriver\t140.30.1\n|IOSCSIBl ockCommandsDevice\t404.30.2\n|IOSCSIArchitectureModel!F\t404.30.2\n>!ACredential Manager\t1.0\n>KernelRelayHost\t1\n>!ASEPManager\t1.0.1\n>IOSlaveProcessor\t1\n> !AFDEKeyStore\t28.30\n>!AEffaceable!S\t1.0\n|IOTimeSync!F\t650.7\n|IONetworking! F\t3.4\n>DiskImages\t480.30.2\n|IO!S!F\t2.1\n|IO!B!F\t6.0.3f4\n|IOUSBHost!F\t1.2 \n>usb.!UCommon\t1.0\n>!ABusPower!C\t1.0\n|IOReport!F\t31\n>!AACPIPlatform\t6.1\ n>!ASMC\t3.1.9\n|IOPCI!F\t2.9\n|IOACPI!F\t1.4\n@kec.Libm\t1\n@kec.pthread\t1\n@k ec.corecrypto\t1.0\n",

"macOSOtherString" : "\n** In Memory Panic Stackshot Succeeded ** Bytes Traced 607744 **\n",

"macOSRawStackshotData" : "AAEEACAAAAAAA\/

"binaryImages" : [["d342183b-0dc3-46b2-2ada-ba5bb3219178",18446743936270598144,"U"],["00000000-0 000-0000-0000-000000000000",0,"A"],["d34499bb-a808-3dbb-8766-9aa38ce89f35",64424 50944,"S"]],

"notes" : ["Source: \/dev\/rdisk1","28 unindexed user-stack frames from 17 pids: 26,27,28,29,30,31,36,37,38,39,41,42,44,46,47,51,58"]

}

Model: iMacPro1,1, BootROM , 10 processors, Intel Xeon W, 3 GHz, 128 GB, SMC

Graphics: Radeon Pro Vega 64, Radeon Pro Vega 64, PCIe, 16 GB

Memory Module: NODE 1/CPU1_DIMM_A0, 32 GB, DDR4, 2666 MHz, Micron, 36ASF4G72PZ-2G6D2 36ASF4G72PZ-2G6D2 36ASF4G72PZ-2G6D2 36ASF4G72PZ-2G6D2

Memory Module: NODE 1/CPU1_DIMM_B0, 32 GB, DDR4, 2666 MHz, Micron, 36ASF4G72PZ-2G6D2 36ASF4G72PZ-2G6D2 36ASF4G72PZ-2G6D2 36ASF4G72PZ-2G6D2

Memory Module: NODE 1/CPU1_DIMM_C0, 32 GB, DDR4, 2666 MHz, Micron, 36ASF4G72PZ-2G6D2 36ASF4G72PZ-2G6D2 36ASF4G72PZ-2G6D2 36ASF4G72PZ-2G6D2

Memory Module: NODE 1/CPU1_DIMM_D0, 32 GB, DDR4, 2666 MHz, Micron, 36ASF4G72PZ-2G6D2 36ASF4G72PZ-2G6D2 36ASF4G72PZ-2G6D2 36ASF4G72PZ-2G6D2

AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x7BF), wl0: Nov
9 2017 09:46:34 version 9.100.30.0.32.1.18 FWID 01-57236d12

Bluetooth: Version 6.0.3f4, 3 services, 27 devices, 1 incoming serial ports

Network Service: Ethernet, Ethernet, en0

Network Service: Wi-Fi, AirPort, en1

PCI Card: pci1b4b,9220, AHCI Controller, Thunderbolt@184,0,0

PCI Card: Universal Audio Apollo Twin - SOLO, Other Multimedia, Thunderbolt@68,0,0

Serial ATA Device: LaCie
2big v2 THB USB3 Raid 0, 6 TB

Serial ATA Device: MARVELL VIRTUAL

USB Device: USB 3.0 Bus

USB Device: Card Reader

USB Device: Logitech Webcam C930e

USB Device: Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter

USB Device: Gaming Mouse G502

USB Device: AppleUSBVHCIBCE

USB Device: Headset

USB Device: iBridge ALS

USB Device: iBridge FaceTime HD Camera (Built-in)

USB Device: iBridge

Thunderbolt Bus: iMac Pro, Apple Inc., 25.4

Thunderbolt Device: Apollo Twin, Universal Audio, Inc., 3, 7.1

Thunderbolt Bus: iMac Pro, Apple Inc., 25.4

Thunderbolt Device: 2big TBT2 USB3, LaCie, 1, 22.1

iMac Pro (2017), iOS 11.2.2, Restart / Crashing

Posted on Jan 12, 2018 4:02 PM

Top-ranking reply

dfpsmith

Level 1

4 points

Posted on Jan 23, 2019 10:51 AM

I was getting kernel panics, mostly while using Premiere/After Effects, also my wifi would sometimes freak out.

Took to apple care, they replaced the logic board, didn't help. After chatting with Apple support technicians and giving them all kinds of logs from the computer, they said it was related to the software on the computer not being able to contact a server and freaking out, making it kernel panic and restart.

I have little snitch installed on my computer to monitor internet traffic, I uninstalled it and changed over to the open source software Lulu instead and it completely fixed my problem. The computer has not had a single kernel panic in over a week, it used to have a panic 2-3 times per day while doing video editing.

Other things that helped reduce panics before I got to this solution:

Disconnected a USB-C iMac Pro Hub

Turned off Filevault

Turned off power saving features

Hope that helps someone else.

View in context

252 replies

jplbob

Level 1

8 points

Oct 31, 2018 3:56 PM in response to mickknutson

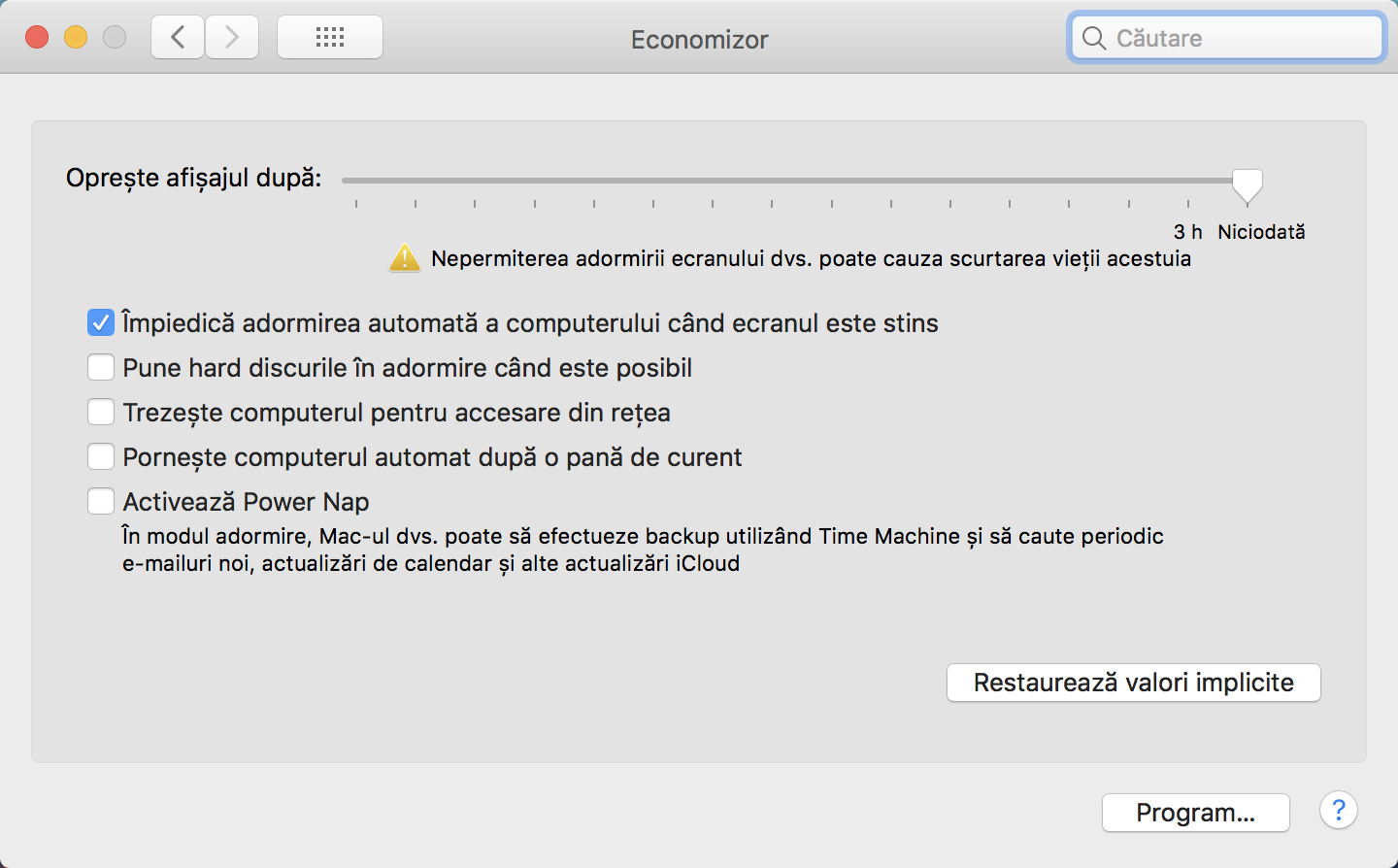

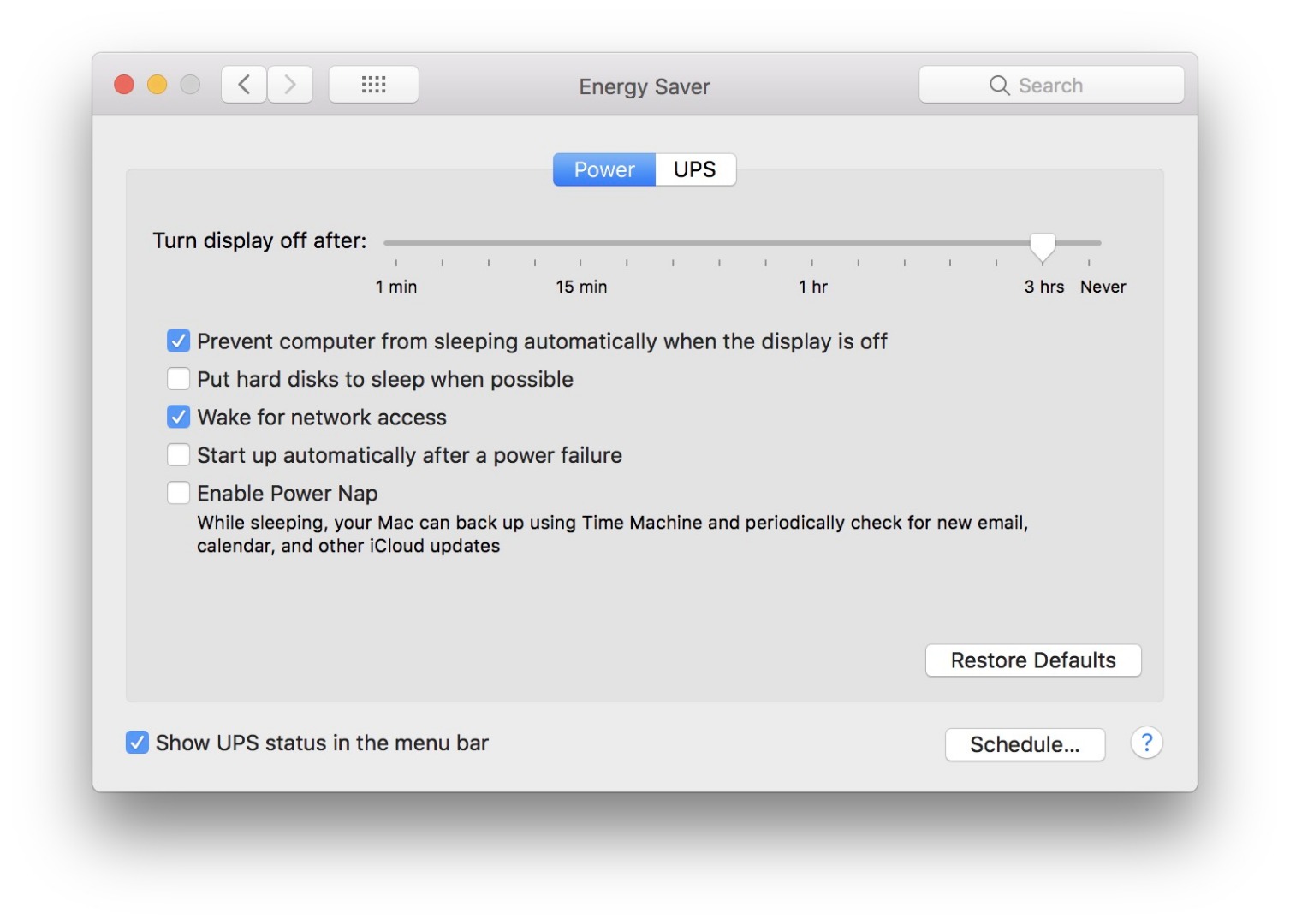

I posted before it showed me the entire thread of this conversation. I checked my Energy Saver settings, and I did not have "Prevent computer from sleeping automatically when the display is off" checked.

I've since checked that as well as unchecked Enable Power Nap, and haven't had an issue since. I'll report back if that changes, but the display has powered off a couple of times since then (I have mine set to power off after 1 hour).

ljs10

Level 1

30 points

Nov 3, 2018 8:37 AM in response to nickatnyte_

I had a persistent restart & frozen screen, sometimes several times a day. I thought I had this problem before connecting a second monitor, Dell 2711 using TB3 to Display. So I left it connected. Then one day out of frustration I decided to disconnected it just in case.

That was weeks ago & I no longer have any problems.

I tested this by reconnecting the Dell and it did the restart.

I am assuming it is the 8 year old Dell monitor but I guess it could be a bad port or cable.

I am looking for a second monitor now?

MFASM

Level 1

75 points

Jan 12, 2018 8:19 PM in response to nickatnyte_

what do you have plugged in? I unplugged everything and did diagnostic test on mine and it said everything was good

MFASM

Level 1

75 points

Jan 14, 2018 6:24 PM in response to sugaraspa

you can run apple diagnostics to check your Mac hardware

Jan 22, 2018 7:19 AM in response to mustgroove

Given that the crash mentions "BridgeOS", I wonder whether this might be a bug related to the new Secure Boot features, and whether turning it off might help?

About Secure Boot - Apple Support

mc22cc

Level 1

12 points

Jun 29, 2018 7:25 AM in response to Andrew Pollock2

Apple is replacing my machine.

Oct 3, 2018 11:59 AM in response to DocValentin

as of now, its been diagnosed with a bad logic board and possible bad buses... in for repair. fingers crossed that this solves the problem.

May 11, 2018 12:53 PM in response to Sean O'Bryan

Hey Sean, run the hardware diagnostics if you want some peace of mind but I'm on my third iMac Pro (2nd replacement) and same problem. So if it's a hardware problem it's pervasive.

To run the hardware diagnostics see here;

https://support.apple.com/en-ca/HT202731

I opted to stick with the IMPRO because it works great as long as it doesn't go into low power mode and am hoping Apple will release either a software or hardware fix but getting somewhat frustrated by their lack of any communication. Even a "we're working on it" would make me feel better.

May 21, 2018 10:38 AM in response to sugaraspa

Sugaraspa, Have you installed the latest Apple Security Update?

I assume you are running 10.13.4, right?

Build 17E202?

My issues, so far it's been about a week or so, seem to have vanished after having installed the update.

Jun 13, 2018 9:02 AM in response to mc22cc

I think this 'video card is the problem' could be a red herring. None of the log files in this and other threads suggest a video issue that I can see - but rather issues related to stalled / deadlocked processors / threads and issues with a processor's translation look aside buffer (TLB) - which could be any process / driver / extension?

My past experience with Apple support is that even going up 3 levels of engineer still does not get you someone who understands hardware and OS issues deeply enough to diagnose the types of things reported in these logs.

So, I think we just need to hold off on speculation (mine included!) and simply accepting one support guy's "graphics problem" statement and instead keep sending Apple crash/panic logs so that they have lots of data to help them track this down.

Aug 2, 2018 5:16 PM in response to nickatnyte_

I received word today from a Senior Advisor I've been working with regarding this issue. He stated that Apple engineers are aware of the issue, and that it is related to the T2 chip / Bridge OS. He said they do not have a fix at this time (obviously), but are aware and working on it. I guess now we all play the waiting game...

Oct 14, 2018 11:22 AM in response to newmediagroup

Been about a week now, after having nightly RR's on a regular basis, then switching my two USB-Dongle-Thunderbolt dongles (presumably back their previous ports before I had unplugged them all) and still now not having ANY RR's.

Truth is stranger than fiction, but just mentioning this on the odd chance it might work for someone else.

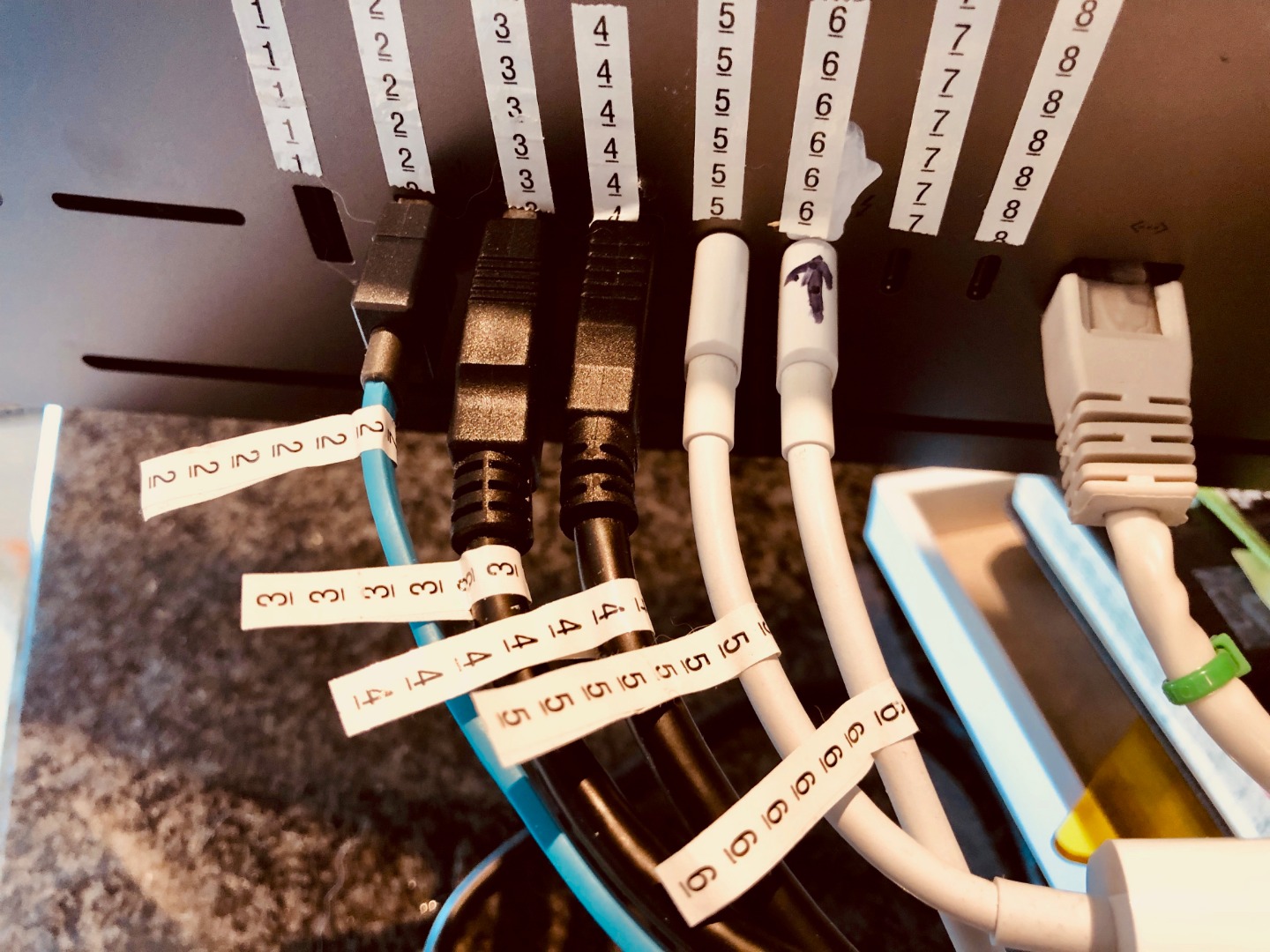

The two ports in question are labeled #5 and #6. They are two of the USBc iMac Pro ports to which I have connected Thunderbolt dongles going to my external TM hard drive and external backup drive. Everything runs 24/7.

I just today labeled the ports (kind of a mess job, I admit, but no one sees it) and their associated cables so that I never get them out of working order ever again.

Again, I have absolutely no idea whatsoever why my solution is working for me, but conceptually can imagine that within the deep workings of the low-level code there are certainly hardcoded ID's for each port, and for each peripheral and somehow everything is back to being stable without any RR's. Maybe just luck? Hard to imagine.

John

Apr 14, 2019 12:56 PM in response to nickatnyte_

Nick, Had the same thing happen to me about 6 months ago. What a nightmare. After working on the Mac Pro, along with Apple tech support, gave up. When I ran upgrade (I guess it was High Sierra) of course my internal SSD got reformatted to the new APFS. It took hours. Anyway, when I did the reboot the machine just went totally out of control. The display was flickering with some apps that were trying to load, the mouse was unresponsive, it was just insane. In the end, after trying everything under the sun, somehow I was able to clone back the old OS which was using the old HFS+ format and not wanting to play this game any longer decided to buy a new iMac Pro which I've been running ever since. Just the old MP basically as a glorified TV to display stock quotes, etc. What a waste. Jeeze.

At one point I was experiencing the random restarts on my brand new $5,000.00 iMac Pro! Somehow, purely by accident, I switched two of the USB plugs which were connected to external thunderbolt hard drives and the problem went away. Been okay ever since.

But believe me I feel your pain. Don't know what to say. Wish I had some wisdom to share, but hang in there and you will eventually prevail.

John

Ocean City, NJ

Jan 17, 2018 5:47 PM in response to MFASM

I have not had another panic since I ran the diagnostics on my iMac Pro. I have not been using any Thunderbolt devices at all as I have a NAS and the only thing I have plugged in at this point is just a CAT 6 cable. So far so good. Hopefully, you get your issues resolved soon by the Apple Engineer. If I experience another kernel panic I'll come back and post here.

May 27, 2018 6:28 AM in response to INvisibleART

Well, I hope for your sake that you are on to something.

In my case, I could have sworn the culprit was either Sophos or Code42 (Malware & Remote backup apps) running in the background, as, when I totally uninstalled both of these I had no more freeze/crashes, for . . . 2 days anyway. Although I did notice a slight uptick in performance, I now realize these apps were not (at least totally) responsible for all of the bug issues we are having on our iMac Pros.

The ONE thing that does seem to have worked, in my case, now going on three weeks I think, is installation of the very most recent (released a few weeks ago) 10.13.4 "Security Update" from Apple. I've got my fingers crossed.

Eventually, I'll reinstall, one at a time the Sophos app and the Code42 app to "prove" what's really going on.

Hang in there, and please keep the feedback coming. We're all in the same boat. Still could be a hardware/firmware/Software issue. Who knows.

ARE YOU RUNNING BUILD 17E202 or something else? I remember a while back there were "special" builds just for iMac Pros. This may be one of them, that works!

John

Ocean City, NJ

High Sierra v10.13.4 (17E199) on a new (late 2017) iMac Pro, 3.2 HGz Intel Xeon W, 1Tb SSD (APFS)
