Trackpad 2 not working on fresh Windows 10 boot camp install

I can’t get the trackpad 2 to work on Windows 10 boot camp. This is a fresh install of Windows 10. Trackpad works fine on the Mac side (Mojave). Touchpad and other external mice work fine on both Windows 10 and Mojave. I installed all the boot camp drivers by downloading from boot camp assist and putting them on a thumb drive. Any suggestions?

Posted on Dec 2, 2018 2:31 PM

Similar questions

boot camp trackpad issues in games Hello when I use trackpad not in games on windows installed via boot camp it works fine but when I'm playing a game (steam) it's very hard to make 'left mouse click' work, and boot camp settings don't help it. Is there anything else I can do about it?
1080 3
Magic Mouse 2 scroll gesture on Boot Camp Windows 10 pro I just got my magic mouse 2 today and wanted to use it in windows as well, after testing it and installing the bootcamp drivers from here: https://support.apple.com/kb/DL1837?locale=en_US it still isn't working. My device is a Macbook Air 2017, running Windows 10pro I read on another post here that these drivers support Windows 8.1 and I tried running the driver installers as administrator, in compatibility mode for win8.1 What am I missing? Is there another solution to this?
15115 1
losing trackpad connection on my new 24" iMac I have an older trackpad that I want to use with my new M1 iMac. It tries to connect but loses connection almost immediately. Battery life is 84% on the trackpad. Always lose connection before I can set it up, or loses connection after I set it up. Any ideas out there?
527 8

26 replies

twobitrye Author

Level 1

8 points

Dec 9, 2018 5:40 AM in response to Loner T

Strange. Let's try that again:

bth.inf: https://pastebin.com/224kZ0QH

bthleenum.inf: https://pastebin.com/G96FKJTs

Loner T

Level 9

59,536 points

Dec 2, 2018 3:46 PM in response to twobitrye

Trackpad 2 has two modes, wired and wireless. It is a different device when plugged-in via the Lightning cable. IT should work in Wireless mode as well. If it is paired, but not working, you should look at BT/WiFi collaboration and disallow Windows to turn off devices to save power.

twobitrye Author

Level 1

8 points

Dec 5, 2018 7:44 AM in response to Loner T

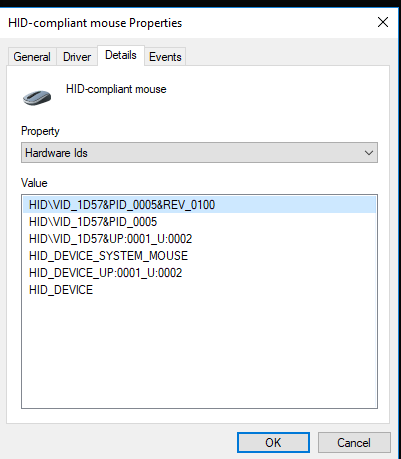

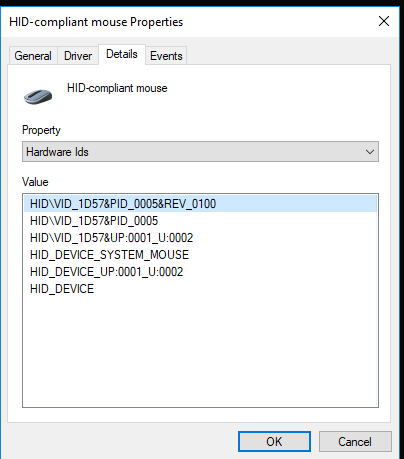

I'm attaching a screenshot of the "Hardware Ids" description for each of these devices, which I think contains the information you are asking about. There was no "Hardware Id" for "Bluetooth" under "Software devices."

Under "mice and other pointing devices" I see three instances of "HID-compliant mouse"
Under "software devices" I see a hidden device called "Bluetooth."
Under "human interface devices" I see three "USB input devices" and one "Bluetooth Serial UHE HID"

Loner T

Level 9

59,536 points

Dec 7, 2018 7:08 PM in response to twobitrye

Run a SMC and NVRAM Reset and check for any hidden devices. If there are any, we can try to re-install BC drivers.

How to reset the System Management Controller (SMC) on your Mac - Apple Support

Reset NVRAM or PRAM on your Mac - Apple Support

Loner T

Level 9

59,536 points

Dec 8, 2018 3:37 PM in response to twobitrye

There is an entry in the INF file which has

[Apple.NTamd64]

%AppleBuildInBt%=AppleBtBc, USB\VID_05ac&PID_8213

This matches the device you have.

If you run Windows Update and let it find the driver, instead of using the oem0.inf, we need to see what it actually finds. In most cases, it seems to use just a VID match and install a driver, which does not have OEM features.

twobitrye Author

Level 1

8 points

Dec 8, 2018 8:01 PM in response to Loner T

I ran Windows update and let it find the driver. I now see three things under Bluetooth in device manager:

-Bluetooth Radio, inf is bth.inf (info here: https://pastebin.com/gJxRFaHv)

-Microsoft Bluetooth Enumerator, info is bth.inf

-Microsoft Bluetooth LE Enumerator, info is bthleenum.inf (info here: https://pastebin.com/CRqCEJKQ)

I don't see a VID/PID in any of these devices. Any other suggestions? I really appreciate your help with this. It's driving me crazy.

Loner T

Level 9

59,536 points

Dec 3, 2018 1:25 AM in response to twobitrye

This is a Windows WHQL driver, not the Apple BC driver. You will need to remove this from W10, install the BC driver and disable Windows Updates for this PID/VID.

Loner T

Level 9

59,536 points

Dec 4, 2018 4:19 AM in response to twobitrye

Can you post the PID/VID (Product ID/Vendor ID) of each of these devices?

twobitrye Author

Level 1

8 points

Dec 7, 2018 3:44 PM in response to Loner T

Okay, thanks for your help in identifying that. Could you break down what steps I can take to make Bluetooth work properly now that we know this information?

Loner T

Level 9

59,536 points

Dec 8, 2018 11:05 AM in response to twobitrye

Can you right-click on the Apple Broadcom driver and post the PID/VID of the device? Then we can check the .inf file and see what are the available PID/VIDs in the file.

twobitrye Author

Level 1

8 points

Dec 8, 2018 12:13 PM in response to Loner T

Sure! Here's a link to the pastebin with the oem0.inf contents: https://pastebin.com/NKhvPeX4

Is this what you're talking about? I see VID/PIDs in there, but I'm not sure what to do with them.

This thread has been closed by the system or the community team. You may vote for any posts you find helpful, or search the Community for additional answers.
