Windows Boot Manager error, winload.exe

Hello,

MacPro 3,1

Windows 7 & 10.9.5

Mac OS and Windows partition on same disk

I've been reading threads here on the apple board and elsewhere on the net. Tried the easier fixes with no luck. (No USB devices on boot, zapping Pram, CommandS fsck operations, etc)

I've had no hardware or mac os updates in a very long time. Bootcamp was working fine for years, then suddenly not working.

I'm wondering if I do have some corruption going on..

My Windows 7 (64), is a Vista upgrade

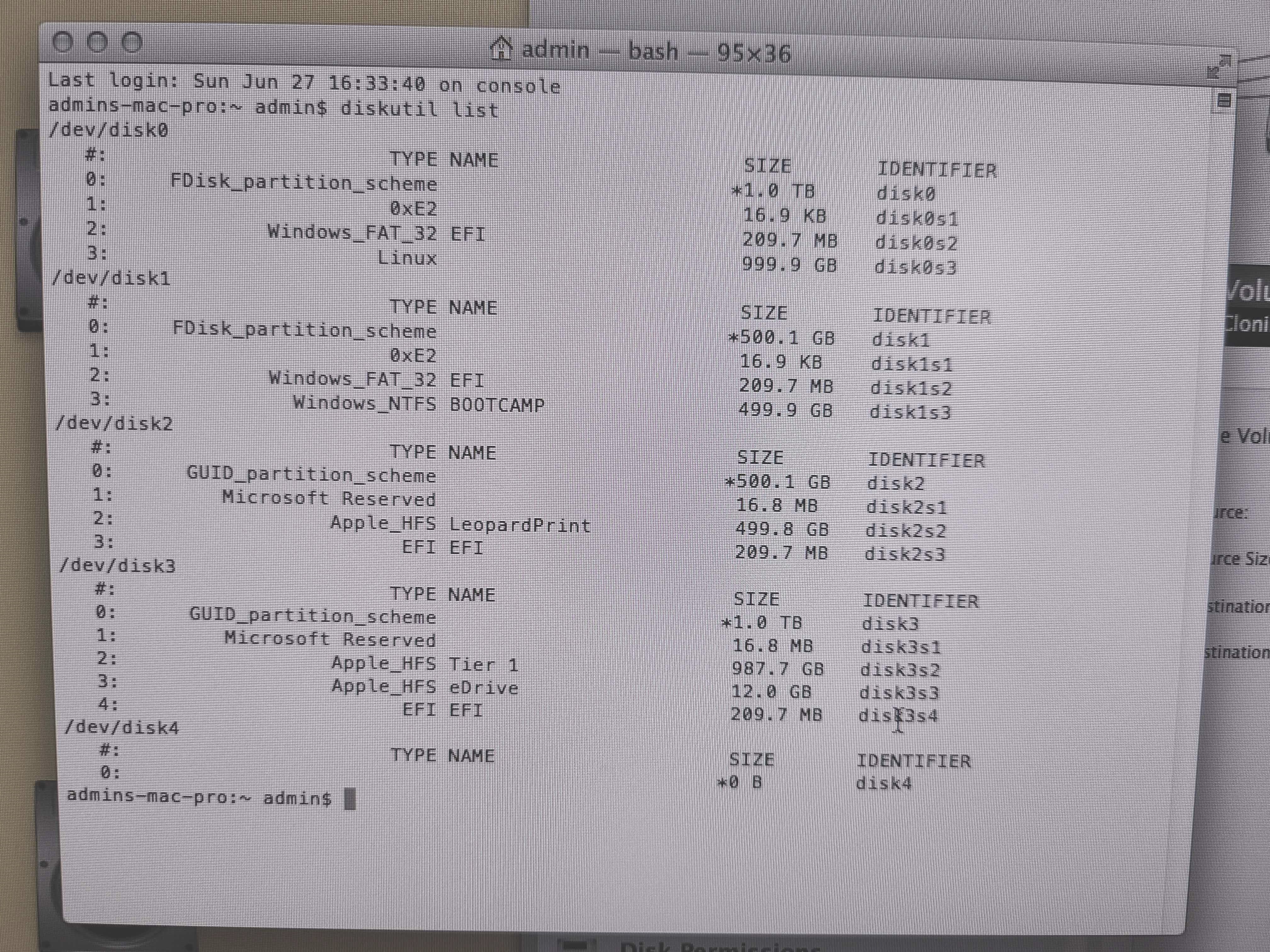

DiskUtil list

Diskutil cs list

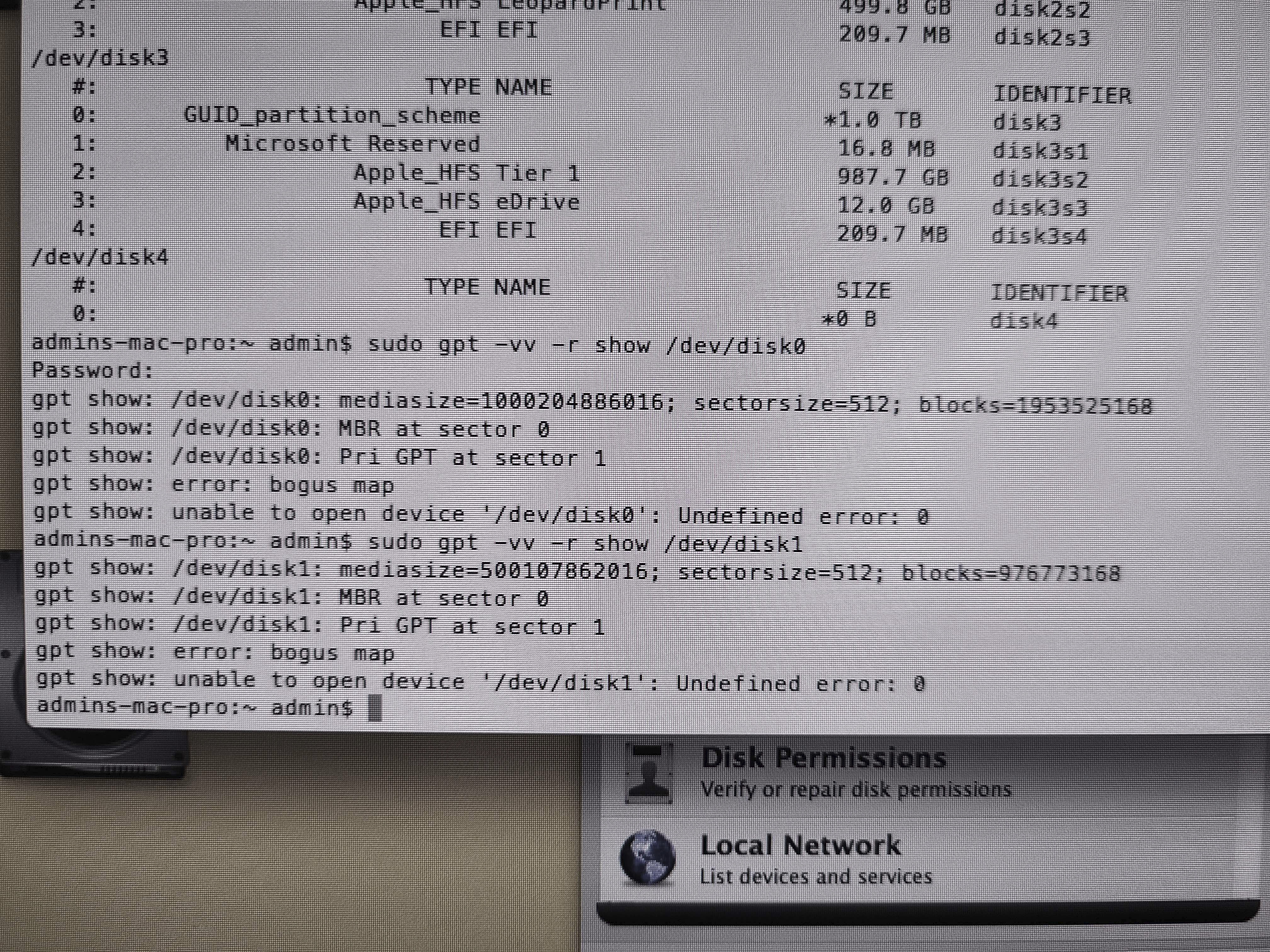

sudo gpt -vv -r show /dev/disk0

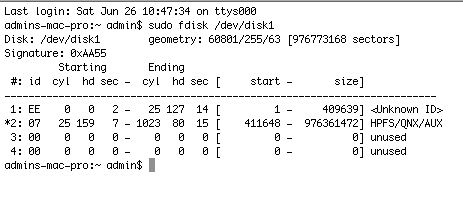

sudo fdisk /dev/disk0

Many thanks for any help!

Andre

Posted on Jun 25, 2021 8:15 PM

Top-ranking reply

Loner T

Level 9

59,536 points

Posted on Jun 28, 2021 6:11 PM

The command we used does not repair the GPT. To repair it, we need to run GPT FDisk in interactive menu. See https://www.rodsbooks.com/gdisk/gdisk.html for reference. A reboot can re-order disks, so be careful.

You need to run (do not type text like this). Let us try to repair disk0 (your macOS disk). Be careful, in each menu, the one-character command can mean different types of requests.

sudo gdisk /dev/disk0

2 (Choose 2, if prompted)

p (print)

x (Experts menu)

n (New Protective MBR)

o (print Protective MBR)

p (print GPT)

w (write the updated GPT)

y (confirm write)

q (quit, if necessary)

Do not reboot. Now post the output of

diskutil list

before we go further.

View in context

Similar questions

60 replies

dreko71 Author

Level 1

9 points

Jun 30, 2021 1:14 PM in response to Loner T

Ok, hmmm this next step seems a bit daunting.. hopefully there will be no errors between the Start and End values.

I'm wondering if I should just leave everything where it's at... the Mac OSX is back (and the most important part of this 3,1 computer)

The Bootcamp Windows 7 OS functionality, seems like taking a great risk to restore. Being somewhat risk averse, I'm wondering if I should just let sleeping dogs lie...

The long string of commands in repairing the GPT, trying to resurrect BootCamp... do you feel we are taking great risks to the whole system? If so, maybe I'll just leave everything as is... and move on...

thoughts??

dreko71 Author

Level 1

9 points

Jun 26, 2021 7:52 AM in response to Loner T

Thank you LonerT

dreko71 Author

Level 1

9 points

Jun 26, 2021 8:33 AM in response to Loner T

Yes, it's mounted on the desktop, TechToolPro sees it as does Disk Utility.

I can select it in startup disk, and holding down the option key

however, once it's starts the windows booting process...

Loner T

Level 9

59,536 points

Jun 26, 2021 12:42 PM in response to dreko71

The Apricorn/Aura combination has quite. Few issues.

You will need to use DVD.

dreko71 Author

Level 1

9 points

Jun 26, 2021 3:27 PM in response to Loner T

Ok, understood. I'll replace the DVD drive

thanks

Loner T

Level 9

59,536 points

Jun 26, 2021 4:40 PM in response to dreko71

The normal Windows installation uses the SATA connection. If you use teh Apricorn, then you may also need eta drivers or teh card to be able to see the SSD. Apple BC drivers do not include these.

dreko71 Author

Level 1

9 points

Jun 26, 2021 8:35 PM in response to Loner T

Yes, I'm finding many issues with bootcamp and apricorn in older threads... oh well I had a good run lol

Loner T

Level 9

59,536 points

Jun 27, 2021 2:15 PM in response to dreko71

Can you post the output of

diskutil List

before we go further?

dreko71 Author

Level 1

9 points

Jun 27, 2021 2:48 PM in response to Loner T

dreko71 Author

Level 1

9 points

Jun 27, 2021 3:23 PM in response to Loner T

Incase this helps

I have Diskwarrior, MicroMat's Drive 10, ProSoft Data Rescue II, OSX 10.10 and OSX 10.6 disks

dreko71 Author

Level 1

9 points

Jun 27, 2021 3:59 PM in response to Loner T

dreko71 Author

Level 1

9 points

Jun 27, 2021 4:12 PM in response to Loner T

Where would I install the GPT Fdisk? On to a bootable USB disk I'm guessing....

I'll try..

dreko71 Author

Level 1

9 points

Jun 28, 2021 3:24 PM in response to Loner T

Can I run GDisk in terminal, off the TechTool Pro eDisk Mac environment?

It appears GDisk tools are all windows programs, no?

sorry a bit confused

dreko71 Author

Level 1

9 points

Jun 28, 2021 3:45 PM in response to dreko71

Loner T

Level 9

59,536 points

Jun 28, 2021 3:50 PM in response to dreko71

The command is "-l /dev/disk1". It is a minus sign followed by a lowercase L followed by a space followed by "/dev/disk0" or "/dev/disk1".
