Cold restarts after 10.10.3 update.

Hi,

Ever since the 10.10.3 update I am experiencing two problems on my mac mini. I am not entirely sure that they are related to the update but since I haven’t changed anything (hardware or software) on my mac, I can only assume that the update probably triggered the issues.

The first problem is that every now and then I get a bunch of pixels flickering on some random position of my screen. Another user reported the exact same error and posted a video here: https://www.facebook.com/georgetasioulis/videos/10203713632115564/ Once I drag a window over these pixels, the problem is gone.

The second and more major problem is that I get random cold restarts. It could be 5 minutes since I booted my mac or even a day after. There is no specific app that I’m running when the mac restarts. In other words I can’t seem to find a pattern on when this happens.

After reading many forum posts I ended up doing a clean installation of Yosemite and started installing everything from scratch. After a while the same thing happened. I noticed that some “power users” can make sense of the kernel panic logs so here is my latest one:

Anonymous UUID: DFD8BE96-203B-C244-A890-73E40E563534

Sat Apr 18 09:26:15 2015

*** Panic Report ***

panic(cpu 2 caller 0xffffff8030417cc2): Kernel trap at 0xffffff803053ea88, type 13=general protection, registers:

CR0: 0x000000008001003b, CR2: 0x0000000004b77e1e, CR3: 0x0000000023f5e036, CR4: 0x00000000001626e0

RAX: 0xffffff805c11e020, RBX: 0xffffff804fd3ac00, RCX: 0xff0e1b2aff0e1a2a, RDX: 0xffffff804fd3ac50

RSP: 0xffffff822e4f3d30, RBP: 0xffffff822e4f3dd0, RSI: 0x0000000000000025, RDI: 0xffffff804fd3ac18

R8: 0x0000000000000001, R9: 0x0000000000000000, R10: 0x0000000000002000, R11: 0x0000000000000012

R12: 0xffffff805c11e000, R13: 0x0000000000000000, R14: 0xffffff804fd3ac18, R15: 0xffffff804fd3ac50

RFL: 0x0000000000010282, RIP: 0xffffff803053ea88, CS: 0x0000000000000008, SS: 0x0000000000000010

Fault CR2: 0x0000000004b77e1e, Error code: 0x0000000000000000, Fault CPU: 0x2

mp = 0xffffff804fd3ac00, phys = 0x31183c00, prev (0x7: 0x30113000-0x30200000)

vp = 0xffffff804fd3ac00, phys = 0x709000, prev (0: 0xa0000-0xc0000)

0xffffff804fd39000: YwAAAGcAAABtAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAABAICA gAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA AAACAgB4fCQcgAACACAAAACETGg2GU6LSgoMZPwACAgACKggAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAACAgEAAAAAAAAAAAAAAAAAAAAAAAAAA AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAG1hcCBhdXRvX2hvbYjEe0+A////AAACAP8PAAAAAAA h/////z8AAAAAhOJQ4IHtUVi9mzYAjtNPAKLTT4D////QoSCysACmMLCE7VHAg+1RUJjTTwgAUAQAAAg AAAQAAAACAAABAAAsFAAAAGF1dG9mcwAAL25ldG1hcCAtaG9zwMwAAOAODu7g7t7uDgUODWWAACAgBLA 5gDsgAAH8/zeAgw8GdAMAAAAA

0xffffff804fd3a000: fwAAAIgAAACTAAAAAAAAAAAAAAAAAAAAAACAgB4fCQcgAACACAAAACETGg2G06LTgoMqK0QBMwACKQQ AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA AADAwAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA AAAAAAAAAwMAeH4mHLQAKwAgAAAAhExYNqtIqH4qPGr9oAuoAAhoAAAAAAAAAAAAAAAAAAAAAAAAAAAA AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAj/fE+A////AAACAP8PAAAAAAAh/////z8AAAAAM3p QwIPtUYDLmjYAmNNPAKzTT2AtpjBQAKYwcNjeT/CAW2Og195PUKLTT4D///9gotNPgP///wAQEAQAEBA AqCFET2RldmYvZGV2AAACAP8PAAAAJGWK/////6AjAAApJAAAAAAAIT8AAAAAc9dP3GSWHQCi00+A/// /4HuvMF6YAQCYl/5VAAAAAkgCpzCQ/6UwgBfdYyAPElwA4BFcMN7eTwDQgAQAAN2AEAAAAAAQAAAAABA AqBR7A/UV4QL1G+ACs/iaAAIAAAERAAAAaGZzAMwAAAwODu7u4O7uDgAAMAABzswA4ODg4Oju4ODuLu7 eBwAAACAACAIBbA44DghQE/8DDiBs2TkBc4AAICAEICibAw44DgjwP4CDYQovAAAA

0xffffff804fd3b000: WQAAAF0AAABjAAAAAAAAAAAAAAAAAAAAACAgIAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAwgIAaHwoHLQAGQAoxAAAAABIDABAAAIAAFn0AAAA AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA AAAAAAAAAAAAAAAAAHh8JByAAAIAAAAAAAAAiAS9kZXYvZGlzazBzMggY30+A////AAAAAgABAAAAAEA AAwAAANNuCwAAAAAhAN/eTwEAAABAc9dPQLbTTwAQAAAAAAIA/w8AAAAAACH/////wGyqTwIAAAAAAAA AAOUO7u4DzgMADOwAAIIQAIiO/T+AC/A/gEMJJgCBACAgBAA4

Backtrace (CPU 2), Frame : Return Address

0xffffff820ef35e10 : 0xffffff803032bda1

0xffffff820ef35e90 : 0xffffff8030417cc2

0xffffff820ef36050 : 0xffffff8030434b73

0xffffff820ef36070 : 0xffffff803053ea88

0xffffff822e4f3dd0 : 0xffffff80307552f7

0xffffff822e4f3eb0 : 0xffffff803055879b

0xffffff822e4f3ed0 : 0xffffff8030542e24

0xffffff822e4f3f40 : 0xffffff803054d027

0xffffff822e4f3f50 : 0xffffff803084ba86

0xffffff822e4f3fb0 : 0xffffff8030435376

BSD process name corresponding to current thread: sync

Mac OS version:

14D136

Kernel version:

Darwin Kernel Version 14.3.0: Mon Mar 23 11:59:05 PDT 2015; root:xnu-2782.20.48~5/RELEASE_X86_64

Kernel UUID: 4B3A11F4-77AA-3D27-A22D-81A1BC5B504D

Kernel slide: 0x0000000030000000

Kernel text base: 0xffffff8030200000

__HIB text base: 0xffffff8030100000

System model name: Macmini6,2 (Mac-F65AE981FFA204ED)

System uptime in nanoseconds: 648750639627

last loaded kext at 243977764692: com.apple.filesystems.msdosfs 1.10 (addr 0xffffff7fb112b000, size 69632)

loaded kexts:

com.Logitech.Unifying.HID Driver 1.3.1

com.Logitech.Control Center.HID Driver 3.9.1

at.obdev.nke.LittleSnitch 4240

com.apple.filesystems.msdosfs 1.10

com.apple.iokit.IOBluetoothUSBDFU 4.3.4f4

com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 4.3.4f4

com.apple.driver.AppleUSBCDC 4.3.3b1

com.apple.filesystems.autofs 3.0

com.apple.iokit.IOBluetoothSerialManager 4.3.4f4

com.apple.driver.AGPM 110.19.5

com.apple.driver.X86PlatformShim 1.0.0

com.apple.driver.ApplePlatformEnabler 2.2.0d4

com.apple.driver.AppleOSXWatchdog 1

com.apple.driver.AudioAUUC 1.70

com.apple.driver.AppleMikeyHIDDriver 124

com.apple.driver.AppleHDAHardwareConfigDriver 272.18

com.apple.driver.AppleUpstreamUserClient 3.6.1

com.apple.driver.AppleMCCSControl 1.2.11

com.apple.driver.AppleHDA 272.18

com.apple.iokit.IOUserEthernet 1.0.1

com.apple.Dont_Steal_Mac_OS_X 7.0.0

com.apple.driver.AppleHWAccess 1

com.apple.driver.AppleIntelHD4000Graphics 10.0.6

com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0

com.apple.driver.AppleHV 1

com.apple.driver.AppleSMCPDRC 1.0.0

com.apple.driver.AppleMuxControl 3.10.22

com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0

com.apple.driver.AppleFIVRDriver 4.1.0

com.apple.driver.AppleLPC 1.7.3

com.apple.driver.AppleIntelFramebufferCapri 10.0.6

com.apple.driver.AppleMikeyDriver 272.18

com.apple.driver.AppleThunderboltIP 2.0.2

com.apple.driver.AppleUSBDisplays 372.1

com.apple.driver.AppleIRController 327.5

com.apple.driver.AppleFileSystemDriver 3.0.1

com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1

com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0d1

com.apple.BootCache 36

com.apple.driver.AppleUSBOHCI 656.4.1

com.apple.driver.XsanFilter 404

com.apple.iokit.IOAHCIBlockStorage 2.7.1

com.apple.driver.AirPort.Brcm4331 800.20.24

com.apple.iokit.IOAHCIPassThrough 1.0.3

com.apple.driver.AppleSDXC 1.6.5

com.apple.iokit.AppleBCM5701Ethernet 10.1.3

com.apple.driver.AppleUSBHub 705.4.2

com.apple.driver.AirPort.Brcm4360 930.37.3

com.apple.driver.AppleFWOHCI 5.5.2

com.apple.driver.AppleAHCIPort 3.1.2

com.apple.driver.AppleUSBEHCI 705.4.14

com.apple.driver.AppleUSBXHCI 710.4.11

com.apple.driver.AppleACPIButtons 3.1

com.apple.driver.AppleRTC 2.0

com.apple.driver.AppleHPET 1.8

com.apple.driver.AppleSMBIOS 2.1

com.apple.driver.AppleACPIEC 3.1

com.apple.driver.AppleAPIC 1.7

com.apple.driver.AppleIntelCPUPowerManagementClient 218.0.0

com.apple.nke.applicationfirewall 161

com.apple.security.quarantine 3

com.apple.security.TMSafetyNet 8

com.apple.driver.AppleIntelCPUPowerManagement 218.0.0

com.apple.iokit.IOBluetoothHostControllerUSBTransport 4.3.4f4

com.apple.kext.triggers 1.0

com.apple.iokit.IOSerialFamily 11

com.apple.driver.DspFuncLib 272.18

com.apple.kext.OSvKernDSPLib 1.15

com.apple.iokit.IOSurface 97.4

com.apple.driver.IOPlatformPluginLegacy 1.0.0

com.apple.driver.AppleBacklightExpert 1.1.0

com.apple.iokit.IONDRVSupport 2.4.1

com.apple.driver.AppleGraphicsControl 3.10.22

com.apple.driver.X86PlatformPlugin 1.0.0

com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0

com.apple.iokit.IOUSBUserClient 705.4.0

com.apple.iokit.IOFireWireIP 2.2.6

com.apple.driver.AppleHDAController 272.18

com.apple.iokit.IOHDAFamily 272.18

com.apple.driver.IOPlatformPluginFamily 5.9.1d7

com.apple.iokit.IOAcceleratorFamily2 156.14

com.apple.AppleGraphicsDeviceControl 3.10.22

com.apple.iokit.IOGraphicsFamily 2.4.1

com.apple.driver.AppleSMBusController 1.0.13d1

com.apple.driver.AppleSMC 3.1.9

com.apple.driver.AppleSMBusPCI 1.0.12d1

com.apple.driver.AppleThunderboltEDMSink 4.0.2

com.apple.iokit.IOSCSIArchitectureModelFamily 3.7.5

com.apple.iokit.IOUSBHIDDriverPM 710.4.7

com.apple.driver.AppleUSBAudio 295.23

com.apple.iokit.IOAudioFamily 203.3

com.apple.vecLib.kext 1.2.0

com.apple.driver.IOBluetoothHIDDriver 4.3.4f4

com.apple.iokit.IOBluetoothFamily 4.3.4f4

com.apple.iokit.IOUSBHIDDriver 705.4.0

com.apple.driver.AppleThunderboltDPInAdapter 4.0.6

com.apple.driver.AppleThunderboltDPOutAdapter 4.0.6

com.apple.driver.AppleThunderboltDPAdapterFamily 4.0.6

com.apple.driver.AppleThunderboltPCIUpAdapter 2.0.2

com.apple.driver.AppleThunderboltPCIDownAdapter 2.0.2

com.apple.driver.AppleUSBMergeNub 705.4.0

com.apple.driver.AppleUSBComposite 705.4.9

com.apple.driver.AppleThunderboltNHI 3.1.7

com.apple.iokit.IOThunderboltFamily 4.2.2

com.apple.iokit.IOEthernetAVBController 1.0.3b3

com.apple.iokit.IO80211Family 730.60

com.apple.driver.mDNSOffloadUserClient 1.0.1b8

com.apple.iokit.IONetworkingFamily 3.2

com.apple.iokit.IOFireWireFamily 4.5.6

com.apple.iokit.IOAHCIFamily 2.7.5

com.apple.iokit.IOUSBFamily 720.4.4

com.apple.driver.AppleEFINVRAM 2.0

com.apple.driver.AppleEFIRuntime 2.0

com.apple.iokit.IOHIDFamily 2.0.0

com.apple.iokit.IOSMBusFamily 1.1

com.apple.security.sandbox 300.0

com.apple.kext.AppleMatch 1.0.0d1

com.apple.driver.AppleKeyStore 2

com.apple.driver.AppleMobileFileIntegrity 1.0.5

com.apple.driver.AppleCredentialManager 1.0

com.apple.driver.DiskImages 396

com.apple.iokit.IOStorageFamily 2.0

com.apple.iokit.IOReportFamily 31

com.apple.driver.AppleFDEKeyStore 28.30

com.apple.driver.AppleACPIPlatform 3.1

com.apple.iokit.IOPCIFamily 2.9

com.apple.iokit.IOACPIFamily 1.4

com.apple.kec.Libm 1

com.apple.kec.pthread 1

com.apple.kec.corecrypto 1.0

I would really appreciate if someone could point me to the right direction in order to figure out what to do next. My spec is a mac mini (late 2012) 2.3GHz i7 with 16GB RAM from Crucial and a Corsair SSD Force 3 240GB. It is connected to an Apple Thunderbolt display with only one peripheral: a Logitech Anywhere MX mouse.

One last thing… the above kernel crash log is kinda rare. Most of them have this:

Kernel Extensions in backtrace:

com.apple.iokit.IOACPIFamily(1.4)[70E2B65E-A91A-3522-A1A0-79FD63EABB4C]@0xfffff f7f82ecb000->0xffffff7f82ed3fff

com.apple.iokit.IOPCIFamily(2.9)[52E715FC-521D-3869-B2EA-5228FA4BEA34]@0xffffff 7f82524000->0xffffff7f82552fff

com.apple.driver.AppleACPIPlatform(3.1)[97299A71-6EDD-3AD9-AE1D-2F7B61E8AA72]@0 xffffff7f8458b000->0xffffff7f845e9fff

dependency: com.apple.iokit.IOACPIFamily(1.4)[70E2B65E-A91A-3522-A1A0-79FD63EABB4C]@0xfffff f7f82ecb000

dependency: com.apple.iokit.IOPCIFamily(2.9)[52E715FC-521D-3869-B2EA-5228FA4BEA34]@0xffffff 7f82524000

Not sure if this helps but “com.apple.iokit.IOACPIFamily” is mentioned most of the times.

Mac mini, OS X Yosemite (10.10.3), Late 2012, 2.3 GHz i7

Posted on Apr 18, 2015 12:00 AM

488 replies

Aug 30, 2016 12:21 PM in response to -ixen-

That's 10.11.6.

I keep getting a line of flickering pixels where the bottom of the menu bar meets the window. This is 1-pixel high and it's always in the left 2/3 of the screen. I haven't noticed it every day, but frequently.

I've been unable to capture it because as soon as I click anything in the menu bar or use a capture shortcut it stops.

This is very different from the small flickering rectangles I used to see places in the window before receiving my new 'puter.

-ixen-

Level 1

35 points

Aug 30, 2016 1:02 PM in response to OregonRebel

This is the first time in 10.11.6. I get a straight horizontal line of rectangles across the MBP LCD monitor. I've also been unable to capture it. However, I've checked the Console.app and I found this:

30/08/16 21:46:42,076 MPlayerX[858]: Error: this application, or a library it uses, has passed an invalid numeric value (NaN, or not-a-number) to CoreGraphics API and this value is being ignored.Please fix this problem.

30/08/16 21:51:56,000 kernel[0]: IOGraphics flags 0x43

It was just the time that the issue happened.

The error of MPlayerX to CoreGraphics API was reproduced every time I quitted the app.

I updated the MPlayerX to the latest version and the problem is solved.

stuartjash

Level 4

1,482 points

Aug 30, 2016 4:46 PM in response to Panagiotis Tsamoudakis

It sounds like you have a faulty logic board. That would explain the kernel panicking as well. It's not the ideal scenario, but that sounds just like a bad logic board.

Aug 30, 2016 5:03 PM in response to stuartjash

Pretty sure that's what was causing the kernel panics, rectangle glitches and overheating on my last computer.

After getting the new one the panics and boxes were gone and temps were normal.

But then I started seeing the other glitch.

stuartjash

Level 4

1,482 points

Aug 30, 2016 5:26 PM in response to OregonRebel

If you're referring to the one in which the Console log showed a MPlayerX issue, I would highly recommend downloading Malwarebytes (free) online and running it. If that doesn't find anything, download AppCleaner (also free), and drag/drop MPlayerX into the program and put it in the Trash. MPlayerX is known as a "Potentially Unwanted Program." It typically comes installed with a fake Adobe Flash updater or something similar. Most people don't realize they installed it. I've seen it cause piles of bizarre issues.

-ixen-

Level 1

35 points

Aug 31, 2016 2:14 AM in response to stuartjash

This is the second logic board. The first was replaced since 10.10.5 because of the same problem.

My MBP went to service for about 5 times since then and passed all the tests.

I worked without problems with 10.11.4 and 10.11.5, but now it comes again.

I will remove the MPlayerX and see

Aug 31, 2016 5:50 AM in response to -ixen-

Doubtful that Mplayer is causing the issue, but you only see the rectangles when it's when it's playing? Have you used another video player? I usually use VLC, but also have Elmedia Playerinstalled and have been trying out Playr, but its feature set is too limited; Hated Kodi!

The problem does sound like a logic board - same issue I had. So the real issue may be why are you burning through boards? The fact that it "passed all the tests" means nothing, so did mine.

The morons at AppleDoesn'tCare kept arguing with me and refusing to believe my two fan controller apps that were showing temps in excess of 200° even though I sent a screenshot showing 217° at the CPU! They kept insisting the apps were incorrect, but the developers assured me they use the same method of reading sensors as the OS.

Then they screwed up all the repair jobs they scheduled with our local Mac store (not an Apple store) - I'd pick up my computer and nothing had been done. Once because they said they didn't show that a repair order had been created. Then because the repair order didn't cover the logic board (even though Apple said they were ordering the logic board replaced - no questions asked - it wouldn't even be tested, just replaced). Lastly because the Apple rep who created the repair order had reused the order number from the previous repair order and it had expired.

After months of hassle and many, many hours spent on the phone and emailing various Apple departments and personal, I finally got hold of someone above Customer Relations who exchanged my defective machine for a new one via FedEx.

With the new machine the daily kernel panics stopped immediately, the boxy glitches were gone and temps returned to normal. I'd also been having trouble with USB devices suddenly disconnecting, and that was no longer a problem either.

If you're machine is under warranty you may have to fight hard to get the board replaced, but don't give up! Don't let them deter you by saying the tests were normal so everything is A-OK.

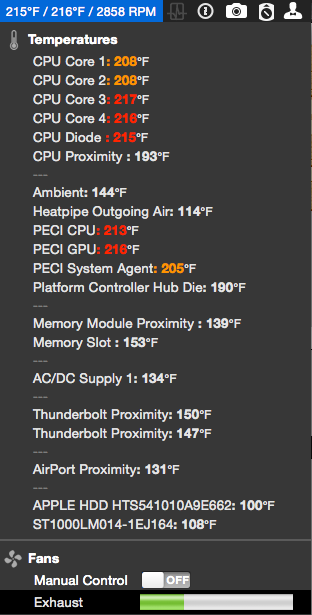

I recommend TG Pro as a fan controller. Or Macs Fan Control if you want a free one.

-ixen-

Level 1

35 points

Aug 31, 2016 6:51 AM in response to OregonRebel

I don't have problems with temps. I've checked them for a long time and the they are normal.

The apple service provider replaced my logic board but they told me that they do so because of my extensive reports (vids & photos of the issue). They refuse to replace the second logic board or the machine. They deny that there is something faulty in the hardware. I exchange a lot of mails with the apple developers in bug report. They know the issue but for some reason they play with graphics drivers. As I said, 10.11.4 and 10.11.5 were very stable versions. I hadn't any issue. However, they made modifications again in 10.11.6. check this About the security content of OS X El Capitan v10.11.6 and Security Update 2016-004 - Apple Support

CoreGraphics

Available for: OS X El Capitan v10.11 and later

Impact: A local user may be able to elevate privileges

Description: An out-of-bounds read issue existed that led to the disclosure of kernel memory. This was addressed through improved input validation.

CVE-2016-4652 : Yubin Fu of Tencent KeenLab working with Trend Micro's Zero Day Initiative

CoreGraphics

Available for: OS X Mavericks v10.9.5, OS X Yosemite v10.10.5, and OS X El Capitan v10.11 and later

Impact: A remote attacker may be able to execute arbitrary code

Description: A memory corruption issue was addressed through improved memory handling.

CVE-2016-4637 : Tyler Bohan of Cisco Talos (talosintel.com/vulnerability-reports)

Graphics Drivers

Available for: OS X El Capitan v10.11 and later

Impact: A local user may be able to execute arbitrary code with kernel privileges

Description: A memory corruption issue was addressed through improved input validation.

CVE-2016-4634 : Stefan Esser of SektionEins

Intel Graphics Driver

Available for: OS X El Capitan v10.11 and later

Impact: A malicious application may be able to execute arbitrary code with kernel privileges

Description: Multiple memory corruption issues were addressed through improved memory handling.

CVE-2016-4633 : Marco Grassi (@marcograss) of KeenLab (@keen_lab), Tencent

Apple developers asked me yesterday to file a new bug report as things have changed since this was first reported, and they need to begin with fresh diagnostics.

Cold restarts after 10.10.3 update.
