I have a problem because the webcam built into iMac Pro does not behave as it should. Instead of showing the normal picture format in 16: 9 aspect ratio, it shows 4: 3.
I've already installed the Boot Camp driver update, but it does not do anything, because the camera drivers are from 2006.
Does anyone know how to solve this problem?
iMac Pro, macOS 10.14
This has
<ProductManufacturer>Apple Inc.</ProductManufacturer>
<ProductVersion>6.1.7483</ProductVersion>
<ProductCode>{FCFFE6B6-BAE8-490E-88D0-097A9DA1C43D}</ProductCode>
which seems to be the latest. It has
<Name>FaceTime HD Camera
<InfName>AppleCamera64.inf</InfName>
<Class>Image</Class>
<ClassGUID>{6bdd1fc6-810f-11d0-bec7-08002be2092f}</ClassGUID>
<CatalogFile>AppleCamera64.cat</CatalogFile>
<Provider>"Apple Inc."</Provider>
<DriverVer>09/30/2016,6.1.6500.0</DriverVer>
<ServiceBinary>AppleCamera.sys</ServiceBinary>
<HardwareID></HardwareID>
<isX64>yes</isX64>
</Name>
You should have the 2016 driver, not the 2006 driver. You should have a .exe file in the Apple Drivers folder on the USB.
This requires a bit of work. You should first create a Windows System Restore point.
You can uninstall the 2006 driver, delete the device, remove the 2006 driver from the DrvStore using pnputil.exe, and then manually install the 2016 driver. If you reboot in the middle, the 2006 driver will come back. The current driver is a generic USB camera driver.
Let us look at an example. I will pick the 802.11ac Wireless adapter.
Can you verify that your Broadcom driver is
ndv: Installing Driver:
ndv: Inf Name - bcmwdidhdpcie.inf
ndv: Driver Date - 12/13/2018
ndv: Driver Version - 100.10.459.0
ndv: Driver package 'C:\Windows\System32\DriverStore\FileRepository\bcmwdidhdpcie.inf_amd64_95b2d31323bb2fde\bcmwdidhdpcie.inf' is already imported.
Also, notice what happens in the following part...
Searching for hardware ID(s):
dvi: pci\ven_14e4&dev_4464&subsys_07bf106b&rev_03
dvi: pci\ven_14e4&dev_4464&subsys_07bf106b
dvi: pci\ven_14e4&dev_4464&cc_028000
dvi: pci\ven_14e4&dev_4464&cc_0280
dvi: Searching for compatible ID(s):
dvi: pci\ven_14e4&dev_4464&rev_03
dvi: pci\ven_14e4&dev_4464
dvi: pci\ven_14e4&cc_028000
dvi: pci\ven_14e4&cc_0280
dvi: pci\ven_14e4
dvi: pci\cc_028000&dt_0
dvi: pci\cc_028000
dvi: pci\cc_0280&dt_0
dvi: pci\cc_0280
dvi: Class GUID of device changed to: {4d36e972-e325-11ce-bfc1-08002be10318}.
This shows you how the PID/VID are matched by Windows before the driver selection is completed.
yes, it's alright on the macOS side.
I will check it on an iMac (not a Pro) in the next couple of days.
Ok. Maybe something can be determined.
Is it about these settings?
Ok. OBS, Streamlabs, Skype, Discord
Skype seems to work fine on the 2014 iMac.
ok. So, it would be good for the apple to renew the camera drivers.
OBS Log file (you can click on it and see the details. The resolution is 1920x1080.
Unfortunately, even if I'm setting to 1920x1080, the picture is displayed in 4: 3 format
Unfortunately, this did not work. It gets information that the drivers are up to date. But they are from 2006.
I have already done it many times and it does not help, because the camera driver is not updated there.
And how do I uninstall the camera driver using pnputil.exe? It's best to write step by step.

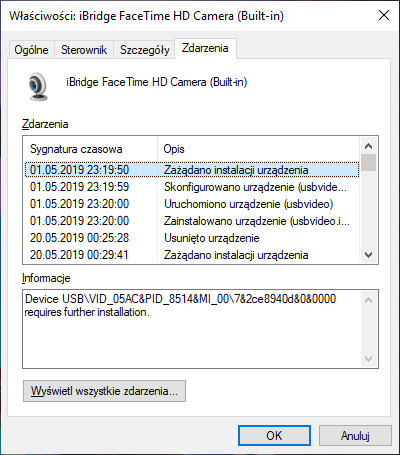

I have PID/ VID of the current driver, from 2006. However, I do not know how to check the driver's 2016 PID/VID.
Is that what this is about?
iBridge FaceTime HD | 4: 3 format instead of 16: 9 in OBS Studio and other apps
