Hello, I have a graphics problem with Monterey on my Mac mini end of 2014 ( Graphics problem under Monterey (Intel Iris 1536 MB chip). The edges of the Dock and the Control Panel appearing full of artifact, like plastic cut with scissors or torn. My Mac being compatible it's strange and ugly. I should mention that other users with other Macs using this chip have the same problem.
Mac mini, macOS 11.6
UPDATE :
I successfully downgraded to catalina and no glitch to be found. (Clean Install followed by a restoration)
I managed to find the EFI update on Apple's website so that you can downgrade only the EFI but I didn't need it. Installing Catalina worked. Now the control center doesn't exist in this OS but other glitches (grouped app folders, dock and login, close/reduce/full screen windows button) are gone.
I'm now downloading Big Sur to see if the glitches are there (they weren't before I installed Monterey), and if they are I will see if I can use the older EFI with Big Sur.
I'll keep you posted.
UPDATE :
I successfully downgraded to catalina and no glitch to be found. (Clean Install followed by a restoration)
I managed to find the EFI update on Apple's website so that you can downgrade only the EFI but I didn't need it. Installing Catalina worked. Now the control center doesn't exist in this OS but other glitches (grouped app folders, dock and login, close/reduce/full screen windows button) are gone.
I'm now downloading Big Sur to see if the glitches are there (they weren't before I installed Monterey), and if they are I will see if I can use the older EFI with Big Sur.
I'll keep you posted.
UPDATE 2 :
I installed Big Sur and the glitches are gone, everything is back to normal.
I d'ont know if a clean install directly from Monterey to Big Sur would work, i didn't try it because I had a bootable USB drive ready with Catalina. But the clean install to Catalina followed by an update to Big Sur worked for me.
And voilà. Goodbye glitches.
This is what I'm seeing on my Mac Mini with dual displays running Monterey after a few setting changes.

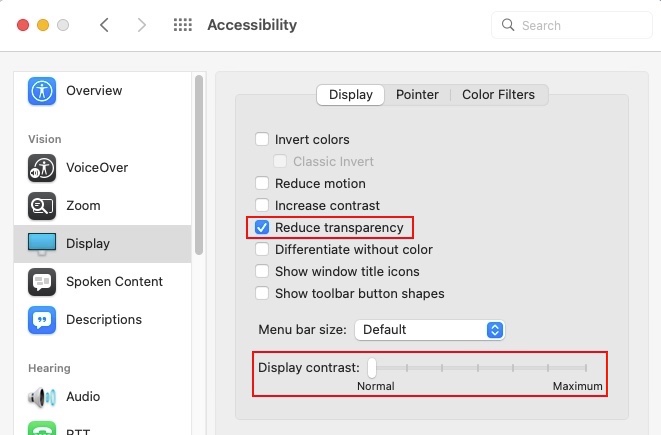

1) Go to Apple > System Preferences > Accessibility > Display > check Reduce Transparency and make sure that Display contrast: is set to Normal.

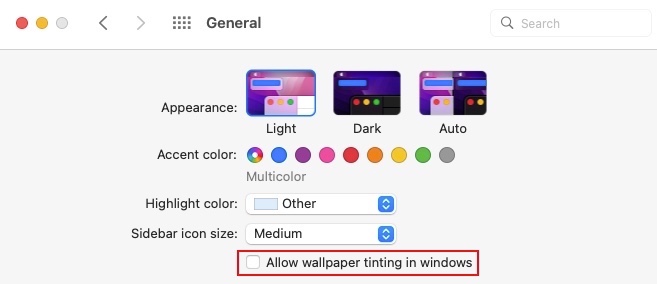

2) Go to Apple > System Preferences > General > choose Light and uncheck Allow wallpaper tinting in windows.

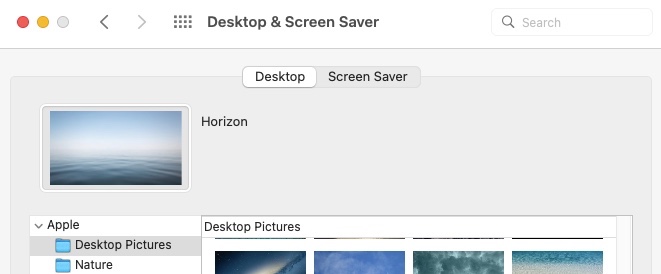

3) Go to Apple > System Preferences > Desktop & ScreenSaver > test an old or more neutral Desktop Image.

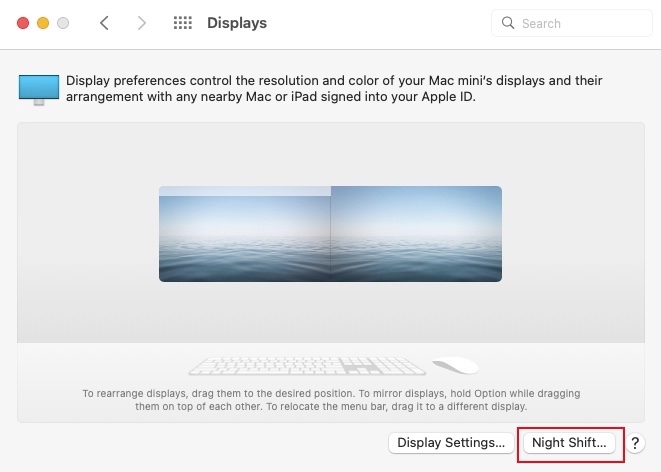

4) Go to Apple > System Preferences > Displays > click on the Night Shift.. button and make sure that it is disabled and the Color slider is set to Less Warm
Yes, the good news is that it is fixed in the next version (12.3). The bug affects the previous versions.
Confirmed that the border bug is fixed in 12.3 (due to release early March) yay!
Good news! It's fixed now with new beta!
But one thing looks strange anyway: in dark mode, the edges in the settings looks odd: the round corners are brighter than the straight lines
You're welcome.
More info about your setup could be helpful.
What Display are you using?
(brand, size, model #)
How exactly is that Display connected to your 2014 Mac Mini?
(hdmi cable, adapter brand & cable for other)
Have you tried a different Picture Size/Aspect Ratio using the displays on screen menu,
and then tried re-adjusting the Displays Resolution in the Mac Mini Display Preferences to match?
I have the same issue, with the following observations:
I'm thinking through every change I've made in the last day that might have led to the glitch happening. I installed some fonts, changed how Mission Control handles Spaces, and I've plugged/un-plugged my Apple Cinema Display several times.
Do I have a way to tell macOS to reinstall or otherwise reset graphics drivers? Checking now...
The only thing I can report so far is that, for me, the glitch DOES go away in safe boot. In normal boot, the glitch appears at:
The glitch began happening to me today, this afternoon. The only thing I did today this afternoon that I have not done a million times before is watch Netflix in Microsoft Edge. I don't think Edge or Netflix invoking something in Edge would have the ability to cause macOS to misbehave at a system level. However, at this point, I take nothing for granted.
I don’t know how you downgraded but I managed to reinstall Big Sur and the glitches are gone. See my other messages.
Got the same issue with my Mac Mini late 2014, Intel Iris 1536MB and a Dell S2721DS monitor. A little fix for the dock is to change the size a little bit, so the horizontal edges are one single line without artefacts. The problem with the round dock corners and the control center remains. Also the borders of the notifications are creepy.
Hope we will get a fix soon, this graphic bug is very annoying.
@Rafa2mac, I reported this problem to Apple at this address: https://www.apple.com/feedback/
Maybe you can do the same thing, hoping that the more reports there are, the faster Apple will fix this problem
I already switched back to Big Sur three weeks ago from a bootable key. Nevertheless, it is not normal that a company like Apple releases an OS with such a display problem on its own machines originally equipped with these graphics chips by Apple.
I have a MacBook Pro (Retina, 15-inch, Mid 2015), 2.8 GHz Quad-Core Intel Core i7, Intel Iris Pro 1536 MB, 16GB RAM
My external display is ASUS VE247H Monitor, 23.6" FHD (1920x1080). It is connected through a Mini DisplayPort to HDMI.
I have exactly the same issue as Bouboule8420. This is happening with and without the external display. Never happened before in Big Sur, started as soon as I updated.
I'm having a similar issue with a design software I use (Home Designer Pro 2022). I had zero issues before I upgraded to Monterey, and now all 3D rendering in the program is pixelated and full of artifact (see sample screen shot below). I'm running a MacBook Air (Retina, 2020) with the same Intel Iris 1536 MB graphics card you listed in your original post. I certainly hope Apple fixes this as part of the graphics upgrade in OS 12.1...
