Cold restarts after 10.10.3 update.

Hi,

Ever since the 10.10.3 update I am experiencing two problems on my mac mini. I am not entirely sure that they are related to the update but since I haven’t changed anything (hardware or software) on my mac, I can only assume that the update probably triggered the issues.

The first problem is that every now and then I get a bunch of pixels flickering on some random position of my screen. Another user reported the exact same error and posted a video here: https://www.facebook.com/georgetasioulis/videos/10203713632115564/ Once I drag a window over these pixels, the problem is gone.

The second and more major problem is that I get random cold restarts. It could be 5 minutes since I booted my mac or even a day after. There is no specific app that I’m running when the mac restarts. In other words I can’t seem to find a pattern on when this happens.

After reading many forum posts I ended up doing a clean installation of Yosemite and started installing everything from scratch. After a while the same thing happened. I noticed that some “power users” can make sense of the kernel panic logs so here is my latest one:

Anonymous UUID: DFD8BE96-203B-C244-A890-73E40E563534

Sat Apr 18 09:26:15 2015

*** Panic Report ***

panic(cpu 2 caller 0xffffff8030417cc2): Kernel trap at 0xffffff803053ea88, type 13=general protection, registers:

CR0: 0x000000008001003b, CR2: 0x0000000004b77e1e, CR3: 0x0000000023f5e036, CR4: 0x00000000001626e0

RAX: 0xffffff805c11e020, RBX: 0xffffff804fd3ac00, RCX: 0xff0e1b2aff0e1a2a, RDX: 0xffffff804fd3ac50

RSP: 0xffffff822e4f3d30, RBP: 0xffffff822e4f3dd0, RSI: 0x0000000000000025, RDI: 0xffffff804fd3ac18

R8: 0x0000000000000001, R9: 0x0000000000000000, R10: 0x0000000000002000, R11: 0x0000000000000012

R12: 0xffffff805c11e000, R13: 0x0000000000000000, R14: 0xffffff804fd3ac18, R15: 0xffffff804fd3ac50

RFL: 0x0000000000010282, RIP: 0xffffff803053ea88, CS: 0x0000000000000008, SS: 0x0000000000000010

Fault CR2: 0x0000000004b77e1e, Error code: 0x0000000000000000, Fault CPU: 0x2

mp = 0xffffff804fd3ac00, phys = 0x31183c00, prev (0x7: 0x30113000-0x30200000)

vp = 0xffffff804fd3ac00, phys = 0x709000, prev (0: 0xa0000-0xc0000)

0xffffff804fd39000: YwAAAGcAAABtAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAABAICA gAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA AAACAgB4fCQcgAACACAAAACETGg2GU6LSgoMZPwACAgACKggAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAACAgEAAAAAAAAAAAAAAAAAAAAAAAAAA AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAG1hcCBhdXRvX2hvbYjEe0+A////AAACAP8PAAAAAAA h/////z8AAAAAhOJQ4IHtUVi9mzYAjtNPAKLTT4D////QoSCysACmMLCE7VHAg+1RUJjTTwgAUAQAAAg AAAQAAAACAAABAAAsFAAAAGF1dG9mcwAAL25ldG1hcCAtaG9zwMwAAOAODu7g7t7uDgUODWWAACAgBLA 5gDsgAAH8/zeAgw8GdAMAAAAA

0xffffff804fd3a000: fwAAAIgAAACTAAAAAAAAAAAAAAAAAAAAAACAgB4fCQcgAACACAAAACETGg2G06LTgoMqK0QBMwACKQQ AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA AADAwAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA AAAAAAAAAwMAeH4mHLQAKwAgAAAAhExYNqtIqH4qPGr9oAuoAAhoAAAAAAAAAAAAAAAAAAAAAAAAAAAA AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAj/fE+A////AAACAP8PAAAAAAAh/////z8AAAAAM3p QwIPtUYDLmjYAmNNPAKzTT2AtpjBQAKYwcNjeT/CAW2Og195PUKLTT4D///9gotNPgP///wAQEAQAEBA AqCFET2RldmYvZGV2AAACAP8PAAAAJGWK/////6AjAAApJAAAAAAAIT8AAAAAc9dP3GSWHQCi00+A/// /4HuvMF6YAQCYl/5VAAAAAkgCpzCQ/6UwgBfdYyAPElwA4BFcMN7eTwDQgAQAAN2AEAAAAAAQAAAAABA AqBR7A/UV4QL1G+ACs/iaAAIAAAERAAAAaGZzAMwAAAwODu7u4O7uDgAAMAABzswA4ODg4Oju4ODuLu7 eBwAAACAACAIBbA44DghQE/8DDiBs2TkBc4AAICAEICibAw44DgjwP4CDYQovAAAA

0xffffff804fd3b000: WQAAAF0AAABjAAAAAAAAAAAAAAAAAAAAACAgIAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAwgIAaHwoHLQAGQAoxAAAAABIDABAAAIAAFn0AAAA AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA AAAAAAAAAAAAAAAAAHh8JByAAAIAAAAAAAAAiAS9kZXYvZGlzazBzMggY30+A////AAAAAgABAAAAAEA AAwAAANNuCwAAAAAhAN/eTwEAAABAc9dPQLbTTwAQAAAAAAIA/w8AAAAAACH/////wGyqTwIAAAAAAAA AAOUO7u4DzgMADOwAAIIQAIiO/T+AC/A/gEMJJgCBACAgBAA4

Backtrace (CPU 2), Frame : Return Address

0xffffff820ef35e10 : 0xffffff803032bda1

0xffffff820ef35e90 : 0xffffff8030417cc2

0xffffff820ef36050 : 0xffffff8030434b73

0xffffff820ef36070 : 0xffffff803053ea88

0xffffff822e4f3dd0 : 0xffffff80307552f7

0xffffff822e4f3eb0 : 0xffffff803055879b

0xffffff822e4f3ed0 : 0xffffff8030542e24

0xffffff822e4f3f40 : 0xffffff803054d027

0xffffff822e4f3f50 : 0xffffff803084ba86

0xffffff822e4f3fb0 : 0xffffff8030435376

BSD process name corresponding to current thread: sync

Mac OS version:

14D136

Kernel version:

Darwin Kernel Version 14.3.0: Mon Mar 23 11:59:05 PDT 2015; root:xnu-2782.20.48~5/RELEASE_X86_64

Kernel UUID: 4B3A11F4-77AA-3D27-A22D-81A1BC5B504D

Kernel slide: 0x0000000030000000

Kernel text base: 0xffffff8030200000

__HIB text base: 0xffffff8030100000

System model name: Macmini6,2 (Mac-F65AE981FFA204ED)

System uptime in nanoseconds: 648750639627

last loaded kext at 243977764692: com.apple.filesystems.msdosfs 1.10 (addr 0xffffff7fb112b000, size 69632)

loaded kexts:

com.Logitech.Unifying.HID Driver 1.3.1

com.Logitech.Control Center.HID Driver 3.9.1

at.obdev.nke.LittleSnitch 4240

com.apple.filesystems.msdosfs 1.10

com.apple.iokit.IOBluetoothUSBDFU 4.3.4f4

com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 4.3.4f4

com.apple.driver.AppleUSBCDC 4.3.3b1

com.apple.filesystems.autofs 3.0

com.apple.iokit.IOBluetoothSerialManager 4.3.4f4

com.apple.driver.AGPM 110.19.5

com.apple.driver.X86PlatformShim 1.0.0

com.apple.driver.ApplePlatformEnabler 2.2.0d4

com.apple.driver.AppleOSXWatchdog 1

com.apple.driver.AudioAUUC 1.70

com.apple.driver.AppleMikeyHIDDriver 124

com.apple.driver.AppleHDAHardwareConfigDriver 272.18

com.apple.driver.AppleUpstreamUserClient 3.6.1

com.apple.driver.AppleMCCSControl 1.2.11

com.apple.driver.AppleHDA 272.18

com.apple.iokit.IOUserEthernet 1.0.1

com.apple.Dont_Steal_Mac_OS_X 7.0.0

com.apple.driver.AppleHWAccess 1

com.apple.driver.AppleIntelHD4000Graphics 10.0.6

com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0

com.apple.driver.AppleHV 1

com.apple.driver.AppleSMCPDRC 1.0.0

com.apple.driver.AppleMuxControl 3.10.22

com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0

com.apple.driver.AppleFIVRDriver 4.1.0

com.apple.driver.AppleLPC 1.7.3

com.apple.driver.AppleIntelFramebufferCapri 10.0.6

com.apple.driver.AppleMikeyDriver 272.18

com.apple.driver.AppleThunderboltIP 2.0.2

com.apple.driver.AppleUSBDisplays 372.1

com.apple.driver.AppleIRController 327.5

com.apple.driver.AppleFileSystemDriver 3.0.1

com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1

com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0d1

com.apple.BootCache 36

com.apple.driver.AppleUSBOHCI 656.4.1

com.apple.driver.XsanFilter 404

com.apple.iokit.IOAHCIBlockStorage 2.7.1

com.apple.driver.AirPort.Brcm4331 800.20.24

com.apple.iokit.IOAHCIPassThrough 1.0.3

com.apple.driver.AppleSDXC 1.6.5

com.apple.iokit.AppleBCM5701Ethernet 10.1.3

com.apple.driver.AppleUSBHub 705.4.2

com.apple.driver.AirPort.Brcm4360 930.37.3

com.apple.driver.AppleFWOHCI 5.5.2

com.apple.driver.AppleAHCIPort 3.1.2

com.apple.driver.AppleUSBEHCI 705.4.14

com.apple.driver.AppleUSBXHCI 710.4.11

com.apple.driver.AppleACPIButtons 3.1

com.apple.driver.AppleRTC 2.0

com.apple.driver.AppleHPET 1.8

com.apple.driver.AppleSMBIOS 2.1

com.apple.driver.AppleACPIEC 3.1

com.apple.driver.AppleAPIC 1.7

com.apple.driver.AppleIntelCPUPowerManagementClient 218.0.0

com.apple.nke.applicationfirewall 161

com.apple.security.quarantine 3

com.apple.security.TMSafetyNet 8

com.apple.driver.AppleIntelCPUPowerManagement 218.0.0

com.apple.iokit.IOBluetoothHostControllerUSBTransport 4.3.4f4

com.apple.kext.triggers 1.0

com.apple.iokit.IOSerialFamily 11

com.apple.driver.DspFuncLib 272.18

com.apple.kext.OSvKernDSPLib 1.15

com.apple.iokit.IOSurface 97.4

com.apple.driver.IOPlatformPluginLegacy 1.0.0

com.apple.driver.AppleBacklightExpert 1.1.0

com.apple.iokit.IONDRVSupport 2.4.1

com.apple.driver.AppleGraphicsControl 3.10.22

com.apple.driver.X86PlatformPlugin 1.0.0

com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0

com.apple.iokit.IOUSBUserClient 705.4.0

com.apple.iokit.IOFireWireIP 2.2.6

com.apple.driver.AppleHDAController 272.18

com.apple.iokit.IOHDAFamily 272.18

com.apple.driver.IOPlatformPluginFamily 5.9.1d7

com.apple.iokit.IOAcceleratorFamily2 156.14

com.apple.AppleGraphicsDeviceControl 3.10.22

com.apple.iokit.IOGraphicsFamily 2.4.1

com.apple.driver.AppleSMBusController 1.0.13d1

com.apple.driver.AppleSMC 3.1.9

com.apple.driver.AppleSMBusPCI 1.0.12d1

com.apple.driver.AppleThunderboltEDMSink 4.0.2

com.apple.iokit.IOSCSIArchitectureModelFamily 3.7.5

com.apple.iokit.IOUSBHIDDriverPM 710.4.7

com.apple.driver.AppleUSBAudio 295.23

com.apple.iokit.IOAudioFamily 203.3

com.apple.vecLib.kext 1.2.0

com.apple.driver.IOBluetoothHIDDriver 4.3.4f4

com.apple.iokit.IOBluetoothFamily 4.3.4f4

com.apple.iokit.IOUSBHIDDriver 705.4.0

com.apple.driver.AppleThunderboltDPInAdapter 4.0.6

com.apple.driver.AppleThunderboltDPOutAdapter 4.0.6

com.apple.driver.AppleThunderboltDPAdapterFamily 4.0.6

com.apple.driver.AppleThunderboltPCIUpAdapter 2.0.2

com.apple.driver.AppleThunderboltPCIDownAdapter 2.0.2

com.apple.driver.AppleUSBMergeNub 705.4.0

com.apple.driver.AppleUSBComposite 705.4.9

com.apple.driver.AppleThunderboltNHI 3.1.7

com.apple.iokit.IOThunderboltFamily 4.2.2

com.apple.iokit.IOEthernetAVBController 1.0.3b3

com.apple.iokit.IO80211Family 730.60

com.apple.driver.mDNSOffloadUserClient 1.0.1b8

com.apple.iokit.IONetworkingFamily 3.2

com.apple.iokit.IOFireWireFamily 4.5.6

com.apple.iokit.IOAHCIFamily 2.7.5

com.apple.iokit.IOUSBFamily 720.4.4

com.apple.driver.AppleEFINVRAM 2.0

com.apple.driver.AppleEFIRuntime 2.0

com.apple.iokit.IOHIDFamily 2.0.0

com.apple.iokit.IOSMBusFamily 1.1

com.apple.security.sandbox 300.0

com.apple.kext.AppleMatch 1.0.0d1

com.apple.driver.AppleKeyStore 2

com.apple.driver.AppleMobileFileIntegrity 1.0.5

com.apple.driver.AppleCredentialManager 1.0

com.apple.driver.DiskImages 396

com.apple.iokit.IOStorageFamily 2.0

com.apple.iokit.IOReportFamily 31

com.apple.driver.AppleFDEKeyStore 28.30

com.apple.driver.AppleACPIPlatform 3.1

com.apple.iokit.IOPCIFamily 2.9

com.apple.iokit.IOACPIFamily 1.4

com.apple.kec.Libm 1

com.apple.kec.pthread 1

com.apple.kec.corecrypto 1.0

I would really appreciate if someone could point me to the right direction in order to figure out what to do next. My spec is a mac mini (late 2012) 2.3GHz i7 with 16GB RAM from Crucial and a Corsair SSD Force 3 240GB. It is connected to an Apple Thunderbolt display with only one peripheral: a Logitech Anywhere MX mouse.

One last thing… the above kernel crash log is kinda rare. Most of them have this:

Kernel Extensions in backtrace:

com.apple.iokit.IOACPIFamily(1.4)[70E2B65E-A91A-3522-A1A0-79FD63EABB4C]@0xfffff f7f82ecb000->0xffffff7f82ed3fff

com.apple.iokit.IOPCIFamily(2.9)[52E715FC-521D-3869-B2EA-5228FA4BEA34]@0xffffff 7f82524000->0xffffff7f82552fff

com.apple.driver.AppleACPIPlatform(3.1)[97299A71-6EDD-3AD9-AE1D-2F7B61E8AA72]@0 xffffff7f8458b000->0xffffff7f845e9fff

dependency: com.apple.iokit.IOACPIFamily(1.4)[70E2B65E-A91A-3522-A1A0-79FD63EABB4C]@0xfffff f7f82ecb000

dependency: com.apple.iokit.IOPCIFamily(2.9)[52E715FC-521D-3869-B2EA-5228FA4BEA34]@0xffffff 7f82524000

Not sure if this helps but “com.apple.iokit.IOACPIFamily” is mentioned most of the times.

Mac mini, OS X Yosemite (10.10.3), Late 2012, 2.3 GHz i7

Posted on Apr 18, 2015 12:00 AM

488 replies

Oct 7, 2015 6:34 PM in response to Panagiotis Tsamoudakis

Hi, I started having the flickering but it wasn't often. I guess it started after 10.10.3.

I just made a clean install of El Capitan and its worst.

Here's some videos about it:

https://drive.google.com/file/d/0BwMAm9Yd_DcFS0NIMC05NlZPSFk/view?usp=sharing

https://drive.google.com/file/d/0BwMAm9Yd_DcFemVoMXN2ZEZQMkk/view?usp=sharing

I have a:

MacBook Pro 13" Mid 2012

Apple 4GB of RAM

I just recently disabled transparency and so far it is working ok. If the problem reappears, I'll try downgrading to 10.10.2

Oct 8, 2015 9:11 AM in response to Panagiotis Tsamoudakis

I upgraded to El Capitan last weekend, and all I can say is that I feel like I have a whole new computer. I'm assuming that the upgrade kept the Transparency Off setting, but everything is running much, much better and fast. No panics... yet.

-ixen-

Level 1

35 points

Oct 12, 2015 12:53 PM in response to roadsider

For some reason Apple stops updating MacBook Pro and Mac mini (with Intel HD 4000) to Later OS X than 10.10.2

Probably is the only stable version.

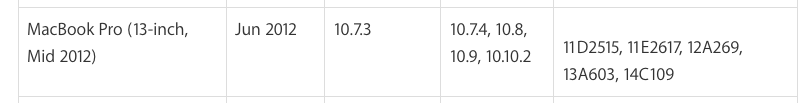

see OS X versions and builds included with Mac computers - Apple Support

MacBook Pro

By the way I have a flickering issue almost every day in the external monitor with El Capitan 10.11.

Barney-15E

Level 10

116,842 points

Oct 12, 2015 2:58 PM in response to -ixen-

-ixen- wrote:

For some reason Apple stops updating MacBook Pro and Mac mini (with Intel HD 4000) to Later OS X than 10.10.2

Probably is the only stable version.

see OS X versions and builds included with Mac computers - Apple Support

MacBook Pro

By the way I have a flickering issue almost every day in the external monitor with El Capitan 10.11.

Yes, that was the most current shipping OS when they stopped selling that Mini.

The Macbook Pro is still being sold, with El Capitan installed.

Oddly, there's not a Mac on that list that has El Capitan installed. Makes you kinda go, "hmmmmmm."

Duey182

Level 1

8 points

Oct 12, 2015 4:19 PM in response to Barney-15E

well as I originally said before, the OS X update hasn't fixed the problem nor did any other update/upgrade previous. Because the problem is a common problem throughout all mac's that require a screen. I note to all mac users use a different screen where possible all my other monitors don't have this problem the only one that does is the original screen that came with the device, I know run the apple thunder bolt 27" cinema display on a pc running an ASUS thunderbolt card works perfect every time.

Duey182

Level 1

8 points

Oct 12, 2015 4:34 PM in response to -ixen-

Well as I originally said before, the OS X update hasn't fixed the problem nor did any other update/upgrade previous. Because the problem is a common problem throughout all mac's that require a screen. A note to all mac users use a different screen where possible all my other monitors don't have this problem the only one that does is the original screen that came with the device, I know run the apple thunder bolt 27" cinema display on a pc running an ASUS thunderbolt card works perfect every time. https://www.google.com.au/search?q=asus+thunderbolt+card&ie=&oe=

The problem is between the connection to the screen and the thunderbolt connector take the board out and you will see what I mean flip it over sometimes there is no solder some times there is apple don't acknowledge this fault as a void in warranty.

Get the ASUS thunderbolt card and you will see what I mean. I have an earlier version of this card in mine and have been running it since 2013.

The mac mini mid 2011 came with the thunderbolt 27" cinema display and never work properly with the mac then I bought the mac mini late 2012 still no different, so in late 2012 about December I built a pc to take the ASUS thunderbolt card and well you know the rest.

Anyway just a small note: I did not write this reply to be in your face or to be in apples face, I love apple products, Hmm haha.

MrCamaleo

Level 1

102 points

Oct 13, 2015 9:54 AM in response to roadsider

installed one week ago, since then same experience here: no panics and no flickering!

🙂

Oct 13, 2015 10:04 AM in response to MrCamaleo

Almost same here: installed El Capitan (final, update not clean install) ten days ago, no flickering, a couple of panics (seemingly using Logic, Time Machine and a random one)

Oct 13, 2015 10:19 AM in response to madsalmard206

I did not have any restarts on El Capitan since I tried it, the flickering issue still there (not so often though but there 😟)

it's bad news that you have restart AppleRyck, do you have Intel HD4000 onboard?

-ixen-

Level 1

35 points

Oct 13, 2015 10:19 AM in response to MrCamaleo

these are good news 🙂. I made today a clean install. No problems so far. Please let me know if you performed a clean install of El Capitan

Oct 13, 2015 10:21 AM in response to -ixen-

I preformed clean install too I had no restarts (most important for me) but I had some flicking now and then and I reported to Apple

Oct 13, 2015 10:29 AM in response to YouCanCallMeMo

Made a clean install El Capitan and tried it some days without panics. But two other bugs made me switch back to 10.10.2. Waiting for next updates...

Oct 13, 2015 10:36 AM in response to YouCanCallMeMo

Yes, MacMini late 2012 with Intel HD4000 here. Cannot find a relation between graphics and restarts, though. Graphics have been pretty stable, the whole systems looks like it's more solid than Yosemite, but sh*t sometimes happened.

Logic: could be some incompatibilities they're being still worked on, many sw instruments and plugin producers have advised to not update to OS X 10.11, so it may be my "fault" here.

Time machine: at the end of a 500mb backup, about at the "Cleaning..." phase, I believe, it had the panic. Subsequent backup took longer at the "Preparing..." phase (probably checking and repairing some corruption).

However, it could really be anything. I also suspect some Parallels 10 service, the few panics I had happened after I started Parallels on El Capitan for the first time. The virtual machine I use sometimes hangs (beach balling) while it's open, but doesn't crash or freeze, usually it's a 30 seconds hang. That couldn't be good, anyway.

Oct 13, 2015 11:25 AM in response to madsalmard206

I am a developer and I had chance to test El Capitan long enough to say that it's sold system I hadn't any restarts, only the flickering issue,

I suggest you "AppleRyck" to have a clean install and by the way my machine is like yours mini late 2012.

-ixen-

Level 1

35 points

Oct 15, 2015 1:26 AM in response to YouCanCallMeMo

Two days after the clean install of 10.11 while everything was working fine, I attempted to install the new version of Little Snitch 3.6 El Capitan ready. Just after the restart a dot of 4 flickering black pixels appeared in the Little Snitch rules window.

I restored to a previous state with time machine.

Cold restarts after 10.10.3 update.
