M1 MacBook Air with external monitor crashes when sleeping

BTW: I have a Macbook Pro and I don't think that Apple responds. In the past, I have found many answers to minor problems on this forum when the Apple advisors fail. I even went to a forum while on the phone with a senior advisor and she thanked me for the information...

confirmed with 11.2, new firmware, it still panics:

• I have "Prevent computer from sleep automatically when the display os off" in Power Adapter (my display charges the mac).
• mac goes to anyway sleep after a while (lid closed or clamshell mode usually)
• sometimes there's a kernel panic, after a while reboots itself, asks for windows reopen etc.

Well, I’m directly connected over TB3 from the monitor to the laptop so I don’t think there’s an option to change it to DP 1.2

I can definitely go via dock to DP but then I have to go through my KVM because my monitor only has one DP input, which is not ideal here (but that’s also why o have the KVM. On the flip side, do I need DP 1.4 for GSYNC or 3800+ resolution, because that’s what the PC that is connected is running at and would be running at via the KVM (albeit limited to 120hz)

yep. TB display is just DP ;)

got the LG 38WN95C - definitely only influences the hz - just not fancy 144 but only 60 or 75hz. I will just leave it at 1.2 with 75hz until there has been a bugfix which will probably come sooner or later since we already know the output works fine on its own, it just causes a kernel panic which means it can be solved via a software fix at some point.

Yup, that’s what I mean. My PC is connected via direct DP connection for gaming (GSYNC) - I have the same monitor actually - so that’s what I’m trying to maintain. Anyway, if this works for me as well, maybe this gives Apple direction towards a fix in 11.3.

in the settings of your monitor.

I will be trying this later with my LG32UL950-W which causes the same Panic restarts pattern documented here.

My setup : MBPro M1 connected to Caldigits TS3+ connected to monitor LG32UL950-W via TB3

I have a Dell monitor (Dell U2719D ) and I have tried all of the DP settings. I cannot for the life of me find how to change the Display Port to 1.2 or 1.4. Can somebody help me with this?

Oh, yea-- BTW-- Last night I unplugged my MacBook Pro M1 computer from everything (made sure that it was fully charged in the evening) and this morning-- NO CRASH!!!!! I'd still like to keep it plugged into a charging device, but I don't want to break the spell! LOL!

Thank you! I watched the youtube, but for my Dell UltraSharp, there is everything that the movie has except the display port. I'm bummed but if you find anything else, let me know!! Thanks so much for trying!

Sorry to repeat but, is there anyone who fixed the problem? I can't believe this is happening with a 2000€ new macbook Pro!

This is insane!

I'm trying to work with my LG 27UL500, i'm getting a crash after the other... it's so annoying.

Please help!

I am also having insatiability problems with my external monitor. Sometimes it works, sometimes it doesn't.

I am constantly trying to get the M1 MBP to recognise the monitor. I am constantly having to:

• Reboot the Mac,
• unplug and replug the monitor,
• reapply the scale setting.

Over and over and over again. That and the monitor just turns black for a second or two every now and then.

So frustrating.

I am also constantly having to reapply the scale setting through System Preferences.

However, due to the incorrect scaling, my System Preferences window usually opens off-screen. This appears to be a long-running issue for MacOS, dating back several years. The only fix I can find to bring off-screen windows back on-screen is to reset the scale setting in System Preferences.... which is impossible if System Preferences itself is off-screen!

So, as a result, I am now having to restart my M1 MacBook Pro multiple times per day. This is almost as painful as the daily/nightly restarts when previously using DisplayPort 1.4. At least I get the chance to save my work before restarting (with the scaling/off-screen issue), whereas with the DP 1.4 kernel panics, I would lose my work and open windows.

Updated to 11.3 but most issues are still there.

From my 6 points mentioned above, only point 5 hasn't appeared yet. All the rest isn't fixed at all with 11.3.

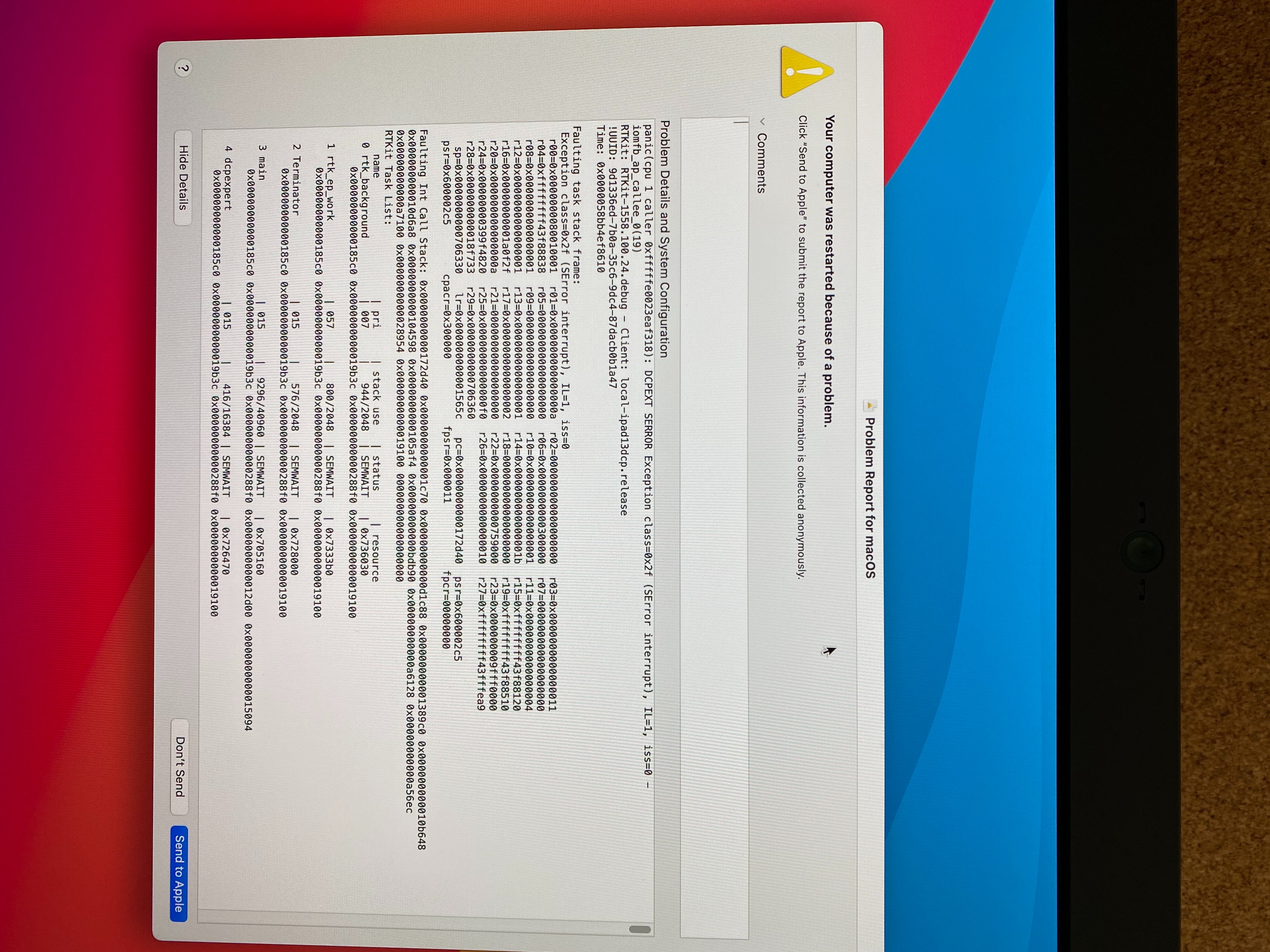

See image below. My Mac has restarted AGAIN after sleep because of a problem.

Please, Apple, solve this ASAP! This is VERY annoying!

And another crash less than 2 hours later... So annoying!

For those interested, see log report in attachment.

And I heard from a friend that he also still has the same issues after updating to 11.3...

Just adding the crash dump so other user can find this thread.

Using a CalDigit TS3plus and an LG 38WN95C (set to DP1.4) connected via thunderbolt.

panic(cpu 4 caller 0xfffffe00152d6fa4): "pci-bridge: pci restore invalid deviceid 0x15d48086\n"

Debugger message: panic

Memory ID: 0x6

OS release type: User

OS version: 20F71

Kernel version: Darwin Kernel Version 20.5.0: Sat May 8 05:10:31 PDT 2021; root:xnu-7195.121.3~9/RELEASE_ARM64_T8101

Fileset Kernelcache UUID: FB10CC0AB8BAC020BC47A50D64476F11

Kernel UUID: 07259C53-9EF7-32FF-821D-8F28A5985DFA

iBoot version: iBoot-6723.120.36

secure boot?: YES

Paniclog version: 13

KernelCache slide: 0x000000000b250000

KernelCache base: 0xfffffe0012254000

Kernel slide: 0x000000000bd98000

Kernel text base: 0xfffffe0012d9c000

Kernel text exec base: 0xfffffe0012e68000

mach_absolute_time: 0x14d3bdd8bef

Epoch Time: sec usec

Boot : 0x60afa7f7 0x000e9aa4

Sleep : 0x60b0ed64 0x000b84cb

Wake : 0x60b0ede4 0x000cc3be

Calendar: 0x60b0ede6 0x000be94d

CORE 0 recently retired instr at 0xfffffe0012fda6f4

CORE 1 recently retired instr at 0xfffffe0012fda6f4

CORE 2 recently retired instr at 0xfffffe0012fda6f4

CORE 3 recently retired instr at 0xfffffe0012fda6f4

CORE 4 recently retired instr at 0xfffffe0012fd9240

CORE 5 recently retired instr at 0xfffffe0012fda6f8

CORE 6 recently retired instr at 0xfffffe0012fda6f8

CORE 7 recently retired instr at 0xfffffe0012fda6f8

Panicked task 0xfffffe166675c688: 223021 pages, 648 threads: pid 0: kernel_task

Panicked thread: 0xfffffe167443eca0, backtrace: 0xfffffe3feddd34f0, tid: 501961

lr: 0xfffffe0012eb6be4 fp: 0xfffffe3feddd3560

lr: 0xfffffe0012eb69c8 fp: 0xfffffe3feddd35d0

lr: 0xfffffe0012fdfa70 fp: 0xfffffe3feddd35f0

lr: 0xfffffe0012fd12b8 fp: 0xfffffe3feddd36a0

lr: 0xfffffe0012e6f7e8 fp: 0xfffffe3feddd36b0

lr: 0xfffffe0012eb6658 fp: 0xfffffe3feddd3a40

lr: 0xfffffe0012eb6658 fp: 0xfffffe3feddd3ab0

lr: 0xfffffe00136683e8 fp: 0xfffffe3feddd3ad0

lr: 0xfffffe00152d6fa4 fp: 0xfffffe3feddd3b00

lr: 0xfffffe00152bf47c fp: 0xfffffe3feddd3b80

lr: 0xfffffe00152bf5b4 fp: 0xfffffe3feddd3bd0

lr: 0xfffffe00152bf6d4 fp: 0xfffffe3feddd3c10

lr: 0xfffffe00152bf7e4 fp: 0xfffffe3feddd3c30

lr: 0xfffffe00152be200 fp: 0xfffffe3feddd3c80

lr: 0xfffffe00152c7e8c fp: 0xfffffe3feddd3ca0

lr: 0xfffffe0013569760 fp: 0xfffffe3feddd3d60

lr: 0xfffffe0013569428 fp: 0xfffffe3feddd3d90

lr: 0xfffffe0012efc0d8 fp: 0xfffffe3feddd3e10

lr: 0xfffffe0012efcfa4 fp: 0xfffffe3feddd3f00

lr: 0xfffffe0012e78c38 fp: 0x0000000000000000

Kernel Extensions in backtrace:

com.apple.iokit.IOPCIFamily(2.9)[B0CD5169-B0A8-3682-BB05-ADBC1D65D831]@0xfffffe00152bc000->0xfffffe00152d7fff

last started kext at 1416281262: com.apple.filesystems.smbfs 3.6 (addr 0xfffffe0012d70000, size 65536)

loaded kexts:

...

** Stackshot Succeeded ** Bytes Traced 574933 (Uncompressed 1472256) **

Update: Staff at the Apple store just told me M1 Mac crashing is “not abnormal” so folks, it is normal.

My M1 MacBook Air crashes with the pink screen after sleep, even when no devices or cables are connected. If this is normal, I don’t know what can be done to fix this.
